AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )GT

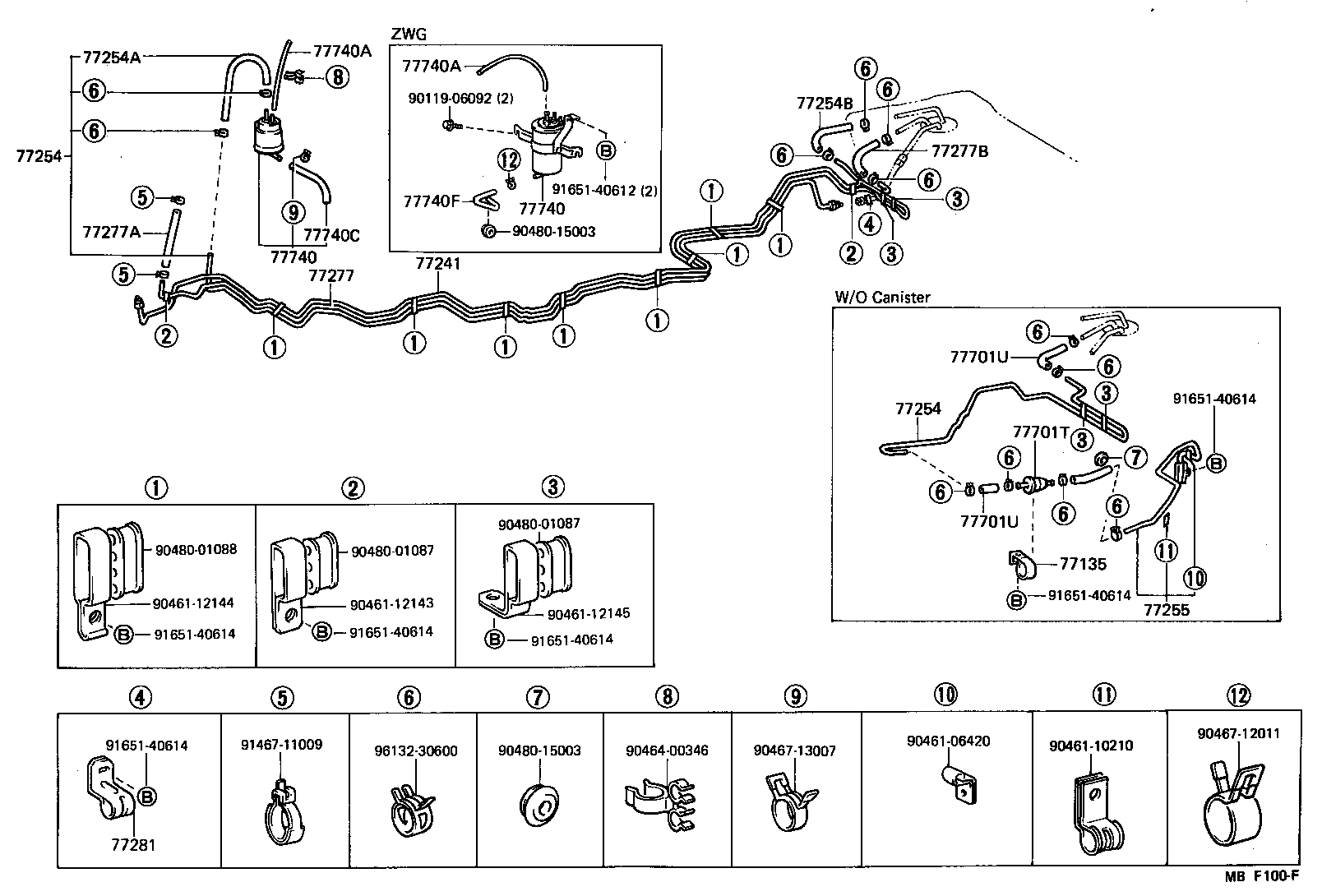

Click highlighted areas on diagram

diagram 77135 77241 77254 77254 77254A 77254B 77255 77277 77277A 77277B 77281 77701T 77701U 77701U 77740 77740 77740A 77740A 77740C 77740F 9011906092 9046106420 9046110210 9046112143 9046112144 9046112145 9046400346 9046712011 9046713007 9048001087 9048001087 9048001088 9048015003 9048015003 9146711009 9165140612 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9613230600
Part # Description Qty Price
77135 - BRACKET, CHECK VALVE
77277-16050

AE86..EUR,GEN,ME

 1
77277-16050

AE86..GT..GEN;AE86..SR..(EUR,GEN);AE86..GT..(EUG,SDZ)

 1
77241 - TUBE, FUEL MAIN, NO.1
77205-12120

AE86..GT

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-12050

AE86..GT

 1
77263-12050

AE86..GT..GEN;AE86..GT..(EUG,SDZ)

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-12050

AE86..GT

 1
77263-12050

AE86..GT..GEN;AE86..GT..(EUG,SDZ)

 1
77255 - TUBE, FUEL EMISSION, NO.2
77028-12050

AE86..GT..GEN;AE86..SR..(EUR,GEN);AE86..GT..(EUG,SDZ)

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-12160

AE86..GT

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

AE86..GT

*H,L=220

 1
95333-06022

AE86..GT

*H,L=220

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

AE86..EUR,GEN,ME

 1
90917-10020

AE86..GT..GEN;AE86..SR..(EUR,GEN);AE86..GT..(EUG,SDZ)

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95332-06010

AE86..EUR,GEN,ME

*H,L=60

 1
95332-06010

AE86..GT..GEN;AE86..SR..(EUR,GEN);AE86..GT..(EUG,SDZ)

*H,L=60

 1
95332-06020

AE86..EUR,GEN

*H,L=180

 1
95332-06030

AE86..GT

*H,L=220

 1
95332-06030

AE86..GT..GEN;AE86..GT..(EUG,SDZ)

*H,L=220

 1
95332-06020

AE86..EUR,GEN,ME

*H,L=180

 1
95333-06010

AE86..GEN;AE86..EUG

*H,L=60

 1
95332-06020

AE86..GT..GEN;AE86..SR..(EUR,GEN);AE86..GT..(EUG,SDZ)

*H,L=110

 1
95333-06030

AE86..EUG;AE86..GT..GEN

*H,L=220

 1
95333-06020

AE86..GEN;AE86..EUG

*H,L=110

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95332-06010

AE86..EUR,GEN,ME

*H,L=60

 1
95332-06010

AE86..GT..GEN;AE86..SR..(EUR,GEN);AE86..GT..(EUG,SDZ)

*H,L=60

 1
95332-06020

AE86..EUR,GEN

*H,L=180

 1
95332-06030

AE86..GT

*H,L=220

 1
95332-06030

AE86..GT..GEN;AE86..GT..(EUG,SDZ)

*H,L=220

 1
95332-06020

AE86..EUR,GEN,ME

*H,L=180

 1
95333-06010

AE86..GEN;AE86..EUG

*H,L=60

 1
95332-06020

AE86..GT..GEN;AE86..SR..(EUR,GEN);AE86..GT..(EUG,SDZ)

*H,L=110

 1
95333-06030

AE86..EUG;AE86..GT..GEN

*H,L=220

 1
95333-06020

AE86..GEN;AE86..EUG

*H,L=110

 1
Common parts
90119-06092
90461-06420
90461-10210
90461-12143
90461-12144
90461-12145
90464-00346
90467-12011
90467-13007
90480-01087
90480-01088
90480-15003
91467-11009
91651-40612
91651-40614
96132-30600
