AE86R-ECMQFW (1983)
Toyota Corolla Coupe

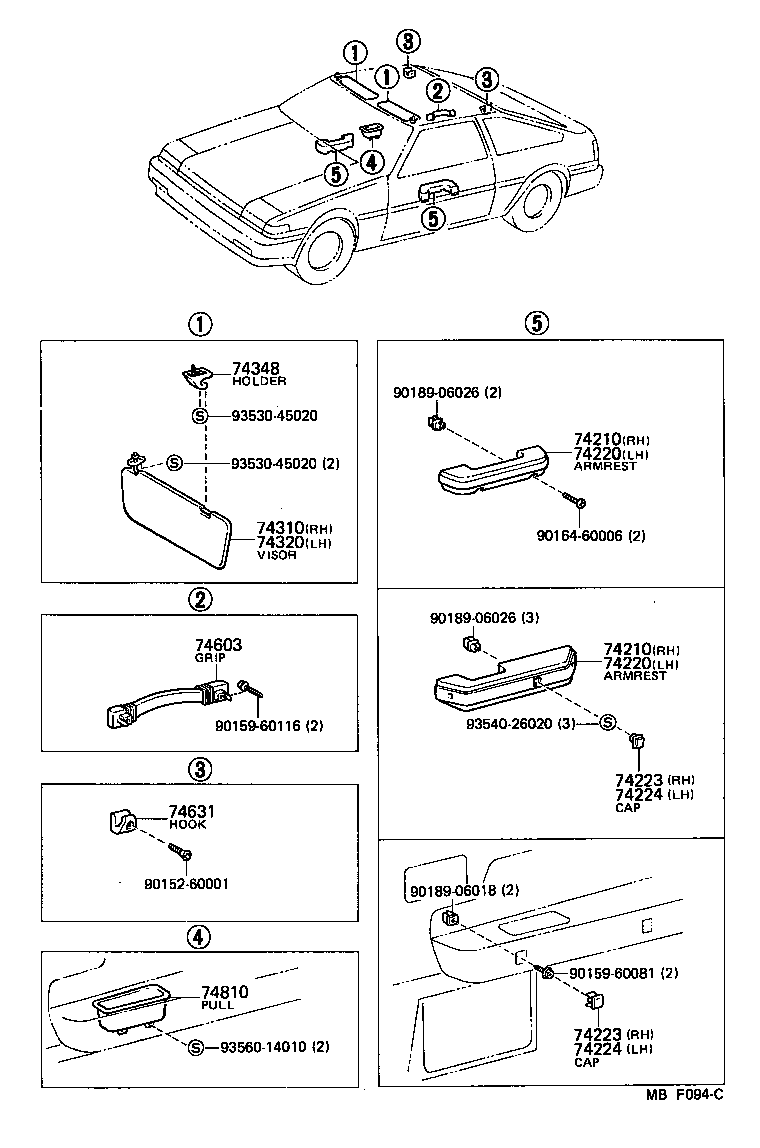

(8305-8505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1207002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1207004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1207002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1207004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-1203002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74220-1203004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-1203002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74220-1203004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-1204004 |
AE86..GT W/MOULDING TRIM,BLUE,BLUE,TRIM8# |
2 | ||
| 74223-1205004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223-1205002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74223-1204002 |
AE86..GT W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-1204004 |
AE86..GT W/MOULDING TRIM,BLUE,BLUE,TRIM8# |
2 | ||
| 74223-1205004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223-1205002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74223-1204002 |
AE86..GT W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-1204002 |
AE86..GT W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74223-1205002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74223-1205004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223-1204004 |
AE86..GT W/MOUDING TRIM,BLUE,BLUE,TRIM8# |
2 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-1204002 |
AE86..GT W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74223-1205002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74223-1205004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223-1204004 |
AE86..GT W/MOUDING TRIM,BLUE,BLUE,TRIM8# |
2 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-12360 |
AE86..RHD..EUG IVORY |
1 | ||
| 74310-1258008 |
AE86..RHD..EUG IVORY,IVORY |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-12310 |
AE86..RHD..EUG IVORY |
1 | ||
| 74320-1245008 |
AE86..RHD..EUG IVORY,IVORY |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3201001 |
AE86 BLACK,BLACK,TRIM2# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-1403014 |
AE86 BLUE,BLUE,TRIM8# |
1 | ||
| 74610-1403002 |
AE86 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74631 - HOOK, COAT, A | ||||
| 74631-1207004 |
AE86 BLUE,BLUE,TRIM8# |
2 | ||
| 74631-1207002 |
AE86 DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 74266-1201004 |
AE86..3D..GT RH,BLUE,BLUE,TRIM8# |
1 | ||
| 74266-1201005 |
AE86..3D..GT RH,BEIGE,BEIGE,TRIM3# |
1 | ||
| 74267-1201004 |
AE86..3D..GT LH,BLUE,BLUE,TRIM8# |
1 | ||
| 74267-1201005 |
AE86..3D..GT LH,BEIGE,BEIGE,TRIM3# |
1 | ||
| Common parts | ||||
| 90152-60001 | ||||
| 90159-60081 | ||||
| 90159-60116 | ||||
| 90164-60006 | ||||
| 90189-06018 | ||||
| 90189-06026 | ||||
| 93530-45020 | ||||
| 93540-26020 | ||||
| 93560-14010 | ||||

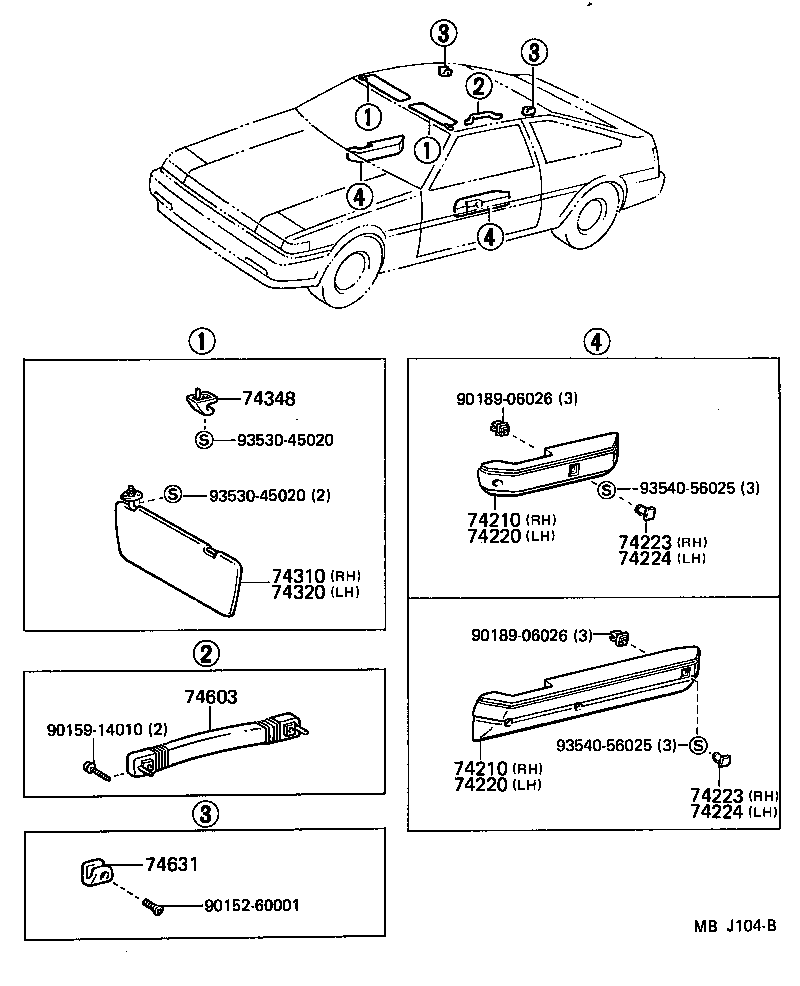

(8505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1207002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1207004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-1207002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74210-1207004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-1203002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74220-1203004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-1203002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74220-1203004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-1204004 |
AE86..GT W/MOULDING TRIM,BLUE,BLUE,TRIM8# |
2 | ||
| 74223-1205004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223-1205002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74223-1204002 |
AE86..GT W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-1204004 |
AE86..GT W/MOULDING TRIM,BLUE,BLUE,TRIM8# |
2 | ||
| 74223-1205004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223-1205002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74223-1204002 |
AE86..GT W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-1204002 |
AE86..GT W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74223-1205002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74223-1205004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223-1204004 |
AE86..GT W/MOUDING TRIM,BLUE,BLUE,TRIM8# |
2 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74223-1204002 |
AE86..GT W/MOULDING TRIM,DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 74223-1205002 |
AE86..ARL,EUR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74223-1205004 |
AE86..ARL,EUR BLUE,BLUE,TRIM8# |
1 | ||
| 74223-1204004 |
AE86..GT W/MOUDING TRIM,BLUE,BLUE,TRIM8# |
2 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-12360 |
AE86..RHD..EUG IVORY |
1 | ||
| 74310-1258008 |
AE86..RHD..EUG IVORY,IVORY |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-12310 |
AE86..RHD..EUG IVORY |
1 | ||
| 74320-1245008 |
AE86..RHD..EUG IVORY,IVORY |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-3201001 |
AE86 BLACK,BLACK,TRIM2# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-1403014 |
AE86 BLUE,BLUE,TRIM8# |
1 | ||
| 74610-1403002 |
AE86 DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 74631 - HOOK, COAT, A | ||||
| 74631-1207004 |
AE86 BLUE,BLUE,TRIM8# |
2 | ||
| 74631-1207002 |
AE86 DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| Common parts | ||||
| 90152-60001 | ||||
| 90159-14010 | ||||
| 90189-06026 | ||||
| 93530-45020 | ||||
| 93540-56025 | ||||
