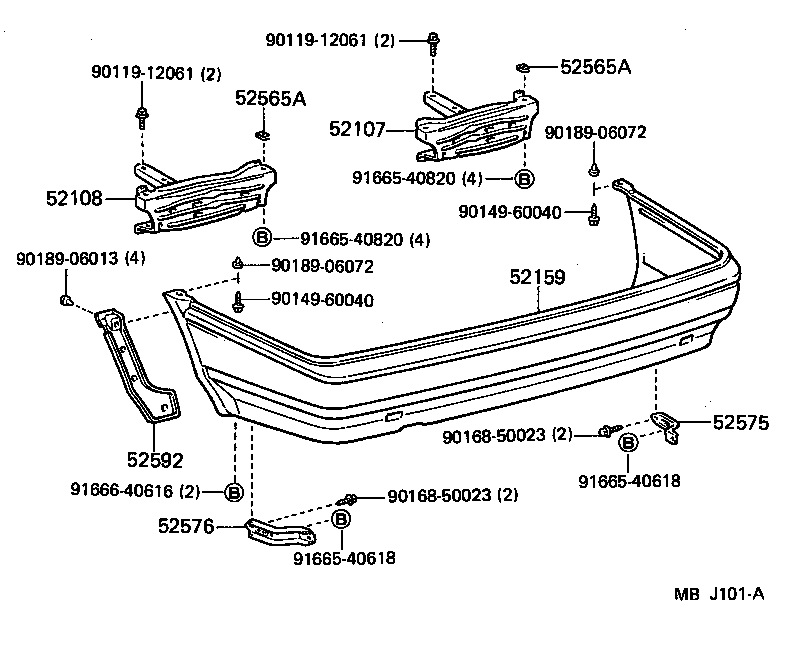

AE86R-ECMQFW (1983)
Toyota Corolla Coupe
(8305-8505)ARL,EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-12110 |
AE86..ARL,EUR,GEN |
1 | ||
| 52015-12111 |
AE86..EUR,GEN |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-12110 |
AE86..ARL,EUR,GEN |
1 | ||
| 52016-12111 |
AE86..EUR,GEN |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1219002 |
AE86..ARL,EUR,GEN RED,RED/MAROON,2M9 |
1 | ||
| 52159-1219003 |
AE86..ARL,EUR,GEN SILVER-M,GRAY,2M8 |
1 | ||
| 52159-12080 |
AE86..ARL,EUR,GEN DARK GRAY(038,147,3D6,3D7,4E1);DARK GRAY(8B1);DARK GRAY(558,6G5,8A8,8A9,3C3) |
1 | ||
| 52159-1219112 |
AE86..ARL,EUR,GEN RED,RED,2T6 |
1 | ||
| 52159-12081 |
AE86..ARL,EUR,GEN BLACK(8A8,8A9);BLACK(041,147,3E6,4E1,561,148) |
1 | ||
| 52159-1262003 |
AE86..EUR BLACK & SILVER,MEDIUM GRAY METALLIC |
1 | ||
| 52159-1219102 |
AE86..ARL,EUR,GEN RED,RED,2M9 |
1 | ||
| 52159-12081 |
AE86..ARL,EUR,GEN BLACK(558,6G5,8A8,8A9,8B1,3C3);BLACK(038,147,3D6,3D7,4E1) |
1 | ||
| 52159-1219103 |
AE86..ARL,EUR,GEN SILVER-M,SILVER METALLIC,2M8 ,2P2 |
1 | ||
| 52159-12550 |
AE86..EUR,GEN BLACK |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
AE86..ARL,EUR,GEN |
8 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
AE86..ARL,EUR,GEN |
8 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-12011 |
AE86..EUR,GEN |
1 | ||
| 52575-12010 |
AE86..ARL,EUR,GEN |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-12011 |
AE86..EUR,GEN |
1 | ||
| 52576-12010 |
AE86..ARL,EUR,GEN |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52591-12010 |
AE86 |
1 | ||
| 52592-12010 |
AE86..EUR,GEN |
1 | ||
| Common parts | ||||
| 90119-12061 | ||||
| 90149-60040 | ||||
| 90168-50023 | ||||
| 90189-06013 | ||||
| 90189-06054 | ||||
| 91665-40618 | ||||
| 91666-40616 | ||||
| 91666-40820 | ||||

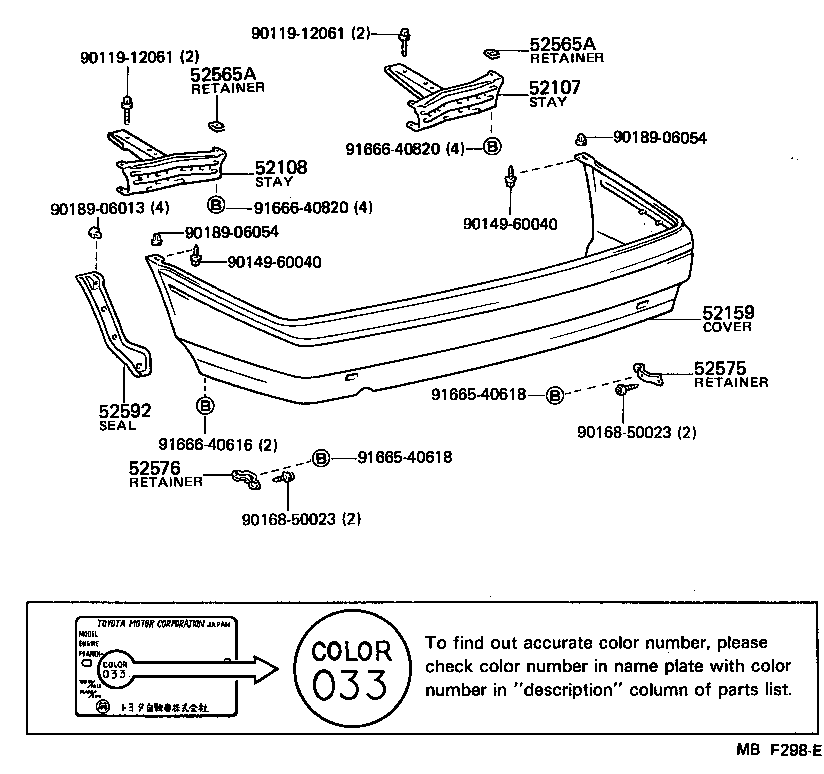

(8505- )EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-12110 |
AE86..ARL,EUR,GEN |
1 | ||
| 52015-12111 |
AE86..EUR,GEN |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-12110 |
AE86..ARL,EUR,GEN |
1 | ||
| 52016-12111 |
AE86..EUR,GEN |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1219002 |
AE86..ARL,EUR,GEN RED,RED/MAROON,2M9 |
1 | ||
| 52159-1219003 |
AE86..ARL,EUR,GEN SILVER-M,GRAY,2M8 |
1 | ||
| 52159-12080 |
AE86..ARL,EUR,GEN DARK GRAY(038,147,3D6,3D7,4E1);DARK GRAY(8B1);DARK GRAY(558,6G5,8A8,8A9,3C3) |
1 | ||
| 52159-1219112 |
AE86..ARL,EUR,GEN RED,RED,2T6 |
1 | ||
| 52159-12081 |
AE86..ARL,EUR,GEN BLACK(8A8,8A9);BLACK(041,147,3E6,4E1,561,148) |
1 | ||
| 52159-1262003 |
AE86..EUR BLACK & SILVER,MEDIUM GRAY METALLIC |
1 | ||
| 52159-1219102 |
AE86..ARL,EUR,GEN RED,RED,2M9 |
1 | ||
| 52159-12081 |
AE86..ARL,EUR,GEN BLACK(558,6G5,8A8,8A9,8B1,3C3);BLACK(038,147,3D6,3D7,4E1) |
1 | ||
| 52159-1219103 |
AE86..ARL,EUR,GEN SILVER-M,SILVER METALLIC,2M8 ,2P2 |
1 | ||
| 52159-12550 |
AE86..EUR,GEN BLACK |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
AE86..ARL,EUR,GEN |
8 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
AE86..ARL,EUR,GEN |
8 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-12011 |
AE86..EUR,GEN |
1 | ||
| 52575-12010 |
AE86..ARL,EUR,GEN |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-12011 |
AE86..EUR,GEN |
1 | ||
| 52576-12010 |
AE86..ARL,EUR,GEN |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52591-12010 |
AE86 |
1 | ||
| 52592-12010 |
AE86..EUR,GEN |
1 | ||
| Common parts | ||||
| 90119-12061 | ||||
| 90149-60040 | ||||
| 90168-50023 | ||||
| 90189-06013 | ||||
| 90189-06072 | ||||
| 91665-40618 | ||||
| 91665-40820 | ||||
| 91666-40616 | ||||
