AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

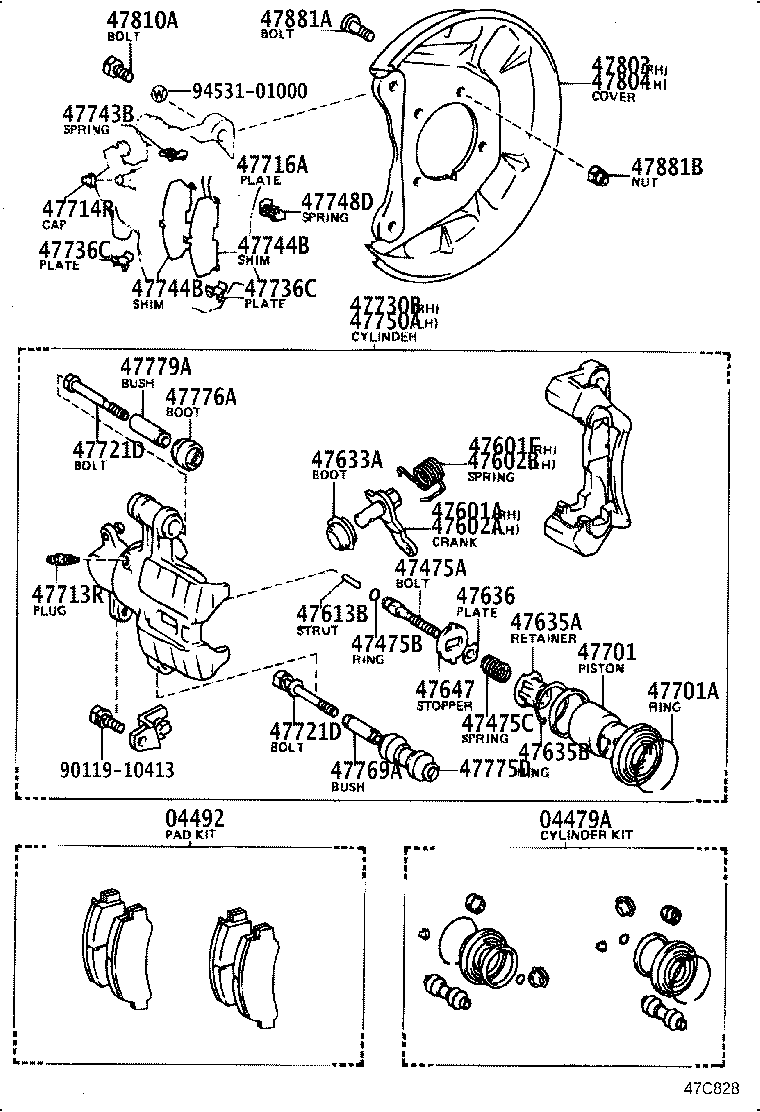

ILLUST NO. 1 OF 2(8308- )GT

Click highlighted areas on diagram

diagram 04479A 04492 47475A 47475B 47475C 47601A 47601F 47602A 47602B 47613B 47633A 47635A 47635B 47636 47647 47701 47701A 47713R 47714R 47716A 47721D 47721D 47730B 47736C 47736C 47743B 47744B 47744B 47748D 47750A 47769A 47775D 47776A 47779A 47803 47804 47810A 47881A 47881B 9011910413 9453101000
Part # Description Qty Price
47601A - CRANK SUB-ASSY, PARKING BRAKE, RH
47601-12010

AE86..GT

 1
47601F - SPRING, TORSION(FOR PARKING BRAKE CRANK RH)
90508-32016

AE86..GT

 1
47602A - CRANK SUB-ASSY, PARKING BRAKE, LH
47602-12010

AE86..GT

 1
47602B - SPRING, TORSION(FOR PARKING BRAKE CRANK LH)
90508-32017

AE86..GT

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-12230

AE86..GT

 1
47743B - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)
47743-12030

AE86..GT

 2
47748D - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47748-12090

AE86..GT

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-12230

AE86..GT

 1
Common parts
90119-10413
94531-01000

ILLUST NO. 2 OF 2(8308- )GT

Click highlighted areas on diagram

diagram 04466 04946 04948
Part # Description Qty Price
