AE86R-ECMQFW (1983)
Toyota Corolla Coupe
(8305- )SR ; (8308-8310)GT..GEN,ME ; (8310-)GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

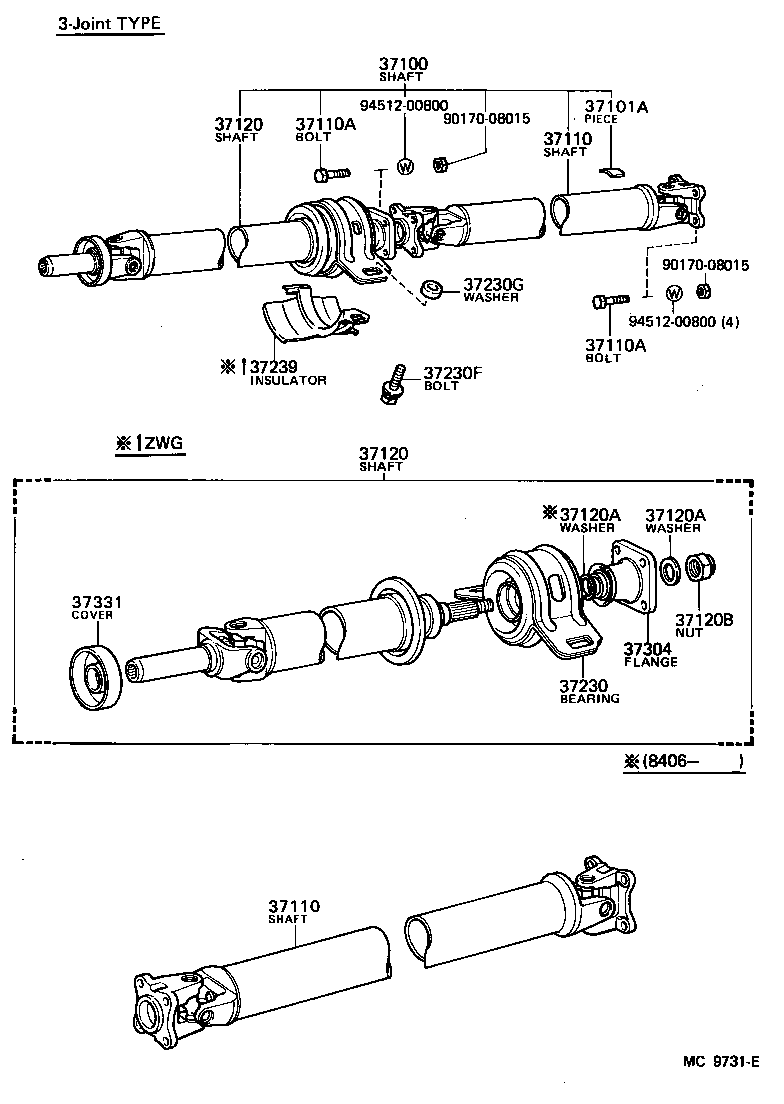

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-12410 |
AE86..EUG |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01153 |
AE86 16G,L=33.2,16G |
3 | ||
| 90937-01154 |
AE86 18G,L=37.3,18G |
3 | ||
| 90937-01155 |
AE86 22G,L=45.6,22G |
3 | ||
| 90937-01140 |
AE86 30G,L=62.2,30G |
3 | ||
| 90937-01158 |
AE86 28G,L=58.1,28G |
3 | ||
| 90937-01136 |
AE86 20G,L=41.4,20G |
3 | ||
| 90937-01157 |
AE86 26G,L=53.9,26G |
3 | ||
| 90937-01156 |
AE86 24G,L=49.7,24G |
3 | ||
| 90937-01148 |
AE86 4G,T=2.0,4G |
3 | ||
| 90937-01151 |
AE86 12G,L=24.9,12G |
3 | ||
| 90937-01150 |
AE86 8G,L=16.6,8G |
3 | ||
| 90937-01132 |
AE86 10G,L=20.7,10G |
3 | ||
| 90937-01147 |
AE86 2G,T=2.0,2G |
3 | ||
| 90937-01149 |
AE86 6G,L=12.4,6G |
3 | ||
| 90937-01152 |
AE86 14G,L=29.0,14G |
3 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08090 |
AE86..EUR 17G |
2 | ||
| 90101-08091 |
AE86..EUR 19G |
2 | ||
| 90101-08088 |
AE86..ARL,EUR 15G |
2 | ||
| 90101-08091 |
AE86..ARL,EUR 19G |
2 | ||
| 90101-08088 |
AE86..EUR 15G |
2 | ||
| 90101-08082 |
AE86 *8-1.25PX25-12,13G |
8 | ||
| 90101-08090 |
AE86..ARL,EUR 17G |
2 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08090 |
AE86..EUR 17G |
2 | ||
| 90101-08091 |
AE86..EUR 19G |
2 | ||
| 90101-08088 |
AE86..ARL,EUR 15G |
2 | ||
| 90101-08091 |
AE86..ARL,EUR 19G |
2 | ||
| 90101-08088 |
AE86..EUR 15G |
2 | ||
| 90101-08082 |
AE86 *8-1.25PX25-12,13G |
8 | ||
| 90101-08090 |
AE86..ARL,EUR 17G |
2 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AE86 OD=33.5,T=4.0,T=4,OD=33.5 |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AE86 OD=33.5,T=4.0,T=4,OD=33.5 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AE86 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-12060 |
AE86..EUG |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10049 |
AE86 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10008 |
AE86 T=4.5 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
AE86 |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
AE86..5F |
1 | ||
| Common parts | ||||
| 90170-08015 | ||||
| 94512-00800 | ||||
(8308-8310)EUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

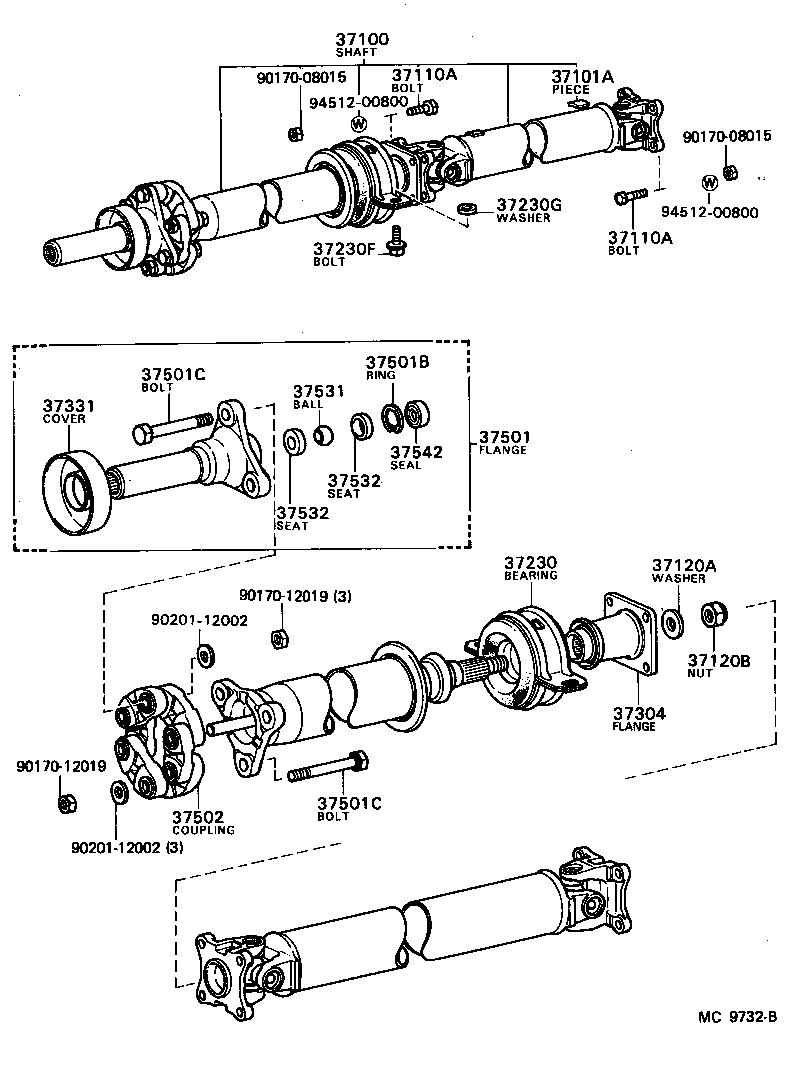

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-12410 |
AE86..EUG |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01153 |
AE86 16G,L=33.2,16G |
3 | ||
| 90937-01154 |
AE86 18G,L=37.3,18G |
3 | ||
| 90937-01155 |
AE86 22G,L=45.6,22G |
3 | ||
| 90937-01140 |
AE86 30G,L=62.2,30G |
3 | ||
| 90937-01158 |
AE86 28G,L=58.1,28G |
3 | ||
| 90937-01136 |
AE86 20G,L=41.4,20G |
3 | ||
| 90937-01157 |
AE86 26G,L=53.9,26G |
3 | ||
| 90937-01156 |
AE86 24G,L=49.7,24G |
3 | ||
| 90937-01148 |
AE86 4G,T=2.0,4G |
3 | ||
| 90937-01151 |
AE86 12G,L=24.9,12G |
3 | ||
| 90937-01150 |
AE86 8G,L=16.6,8G |
3 | ||
| 90937-01132 |
AE86 10G,L=20.7,10G |
3 | ||
| 90937-01147 |
AE86 2G,T=2.0,2G |
3 | ||
| 90937-01149 |
AE86 6G,L=12.4,6G |
3 | ||
| 90937-01152 |
AE86 14G,L=29.0,14G |
3 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08090 |
AE86..EUR 17G |
2 | ||
| 90101-08091 |
AE86..EUR 19G |
2 | ||
| 90101-08088 |
AE86..ARL,EUR 15G |
2 | ||
| 90101-08091 |
AE86..ARL,EUR 19G |
2 | ||
| 90101-08088 |
AE86..EUR 15G |
2 | ||
| 90101-08082 |
AE86 *8-1.25PX25-12,13G |
8 | ||
| 90101-08090 |
AE86..ARL,EUR 17G |
2 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08090 |
AE86..EUR 17G |
2 | ||
| 90101-08091 |
AE86..EUR 19G |
2 | ||
| 90101-08088 |
AE86..ARL,EUR 15G |
2 | ||
| 90101-08091 |
AE86..ARL,EUR 19G |
2 | ||
| 90101-08088 |
AE86..EUR 15G |
2 | ||
| 90101-08082 |
AE86 *8-1.25PX25-12,13G |
8 | ||
| 90101-08090 |
AE86..ARL,EUR 17G |
2 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
AE86 OD=33.5,T=4.0,T=4,OD=33.5 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18060 |
AE86 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-12060 |
AE86..EUG |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10049 |
AE86 |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10008 |
AE86 T=4.5 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22012 |
AE86 |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-12010 |
AE86..5F |
1 | ||
| 37501 - FLANGE SUB-ASSY, FLEXIBLE COUPLING SLEEVE | ||||
| 37501-14020 |
AE86..EUG |
1 | ||
| 37501B - RING, HOLE SNAP (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90521-37001 |
AE86..EUG T=1.42,T=1.42 |
1 | ||
| 90521-37003 |
AE86..EUG T=1.48,T=1.48 |
1 | ||
| 90521-37005 |
AE86..EUG T=1.54,T=1.54 |
1 | ||
| 90521-37004 |
AE86..EUG T=1.51,T=1.51 |
1 | ||
| 90521-37002 |
AE86..EUG T=1.45,T=1.45 |
1 | ||
| 37501C - BOLT (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90101-12008 |
AE86..EUG |
6 | ||
| 37501C - BOLT (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 90101-12008 |
AE86..EUG |
6 | ||
| 37502 - COUPLING SUB-ASSY, FLEXIBLE | ||||
| 37502-20010 |
AE86..EUG |
1 | ||
| 37531 - BALL, FLEXIBLE COUPLING CENTERING | ||||
| 37531-20010 |
AE86..EUG |
1 | ||
| 37532 - SEAT, FLEXIBLE COUPLING | ||||
| 37532-20010 |
AE86..EUG |
2 | ||
| 37532 - SEAT, FLEXIBLE COUPLING | ||||
| 37532-20010 |
AE86..EUG |
2 | ||
| 37542 - SEAL, CENTERING (FOR FLEXIBLE COUPLING SLEEVE FLANGE) | ||||
| 37542-20011 |
AE86..EUG |
1 | ||
| Common parts | ||||
| 90170-08015 | ||||
| 90170-12019 | ||||
| 90201-12002 | ||||
| 94512-00800 | ||||
