AE86R-ECMQFW (1983)
Toyota Corolla Coupe
Production
Aug 1983
-
Apr 1987
Engine
4AGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

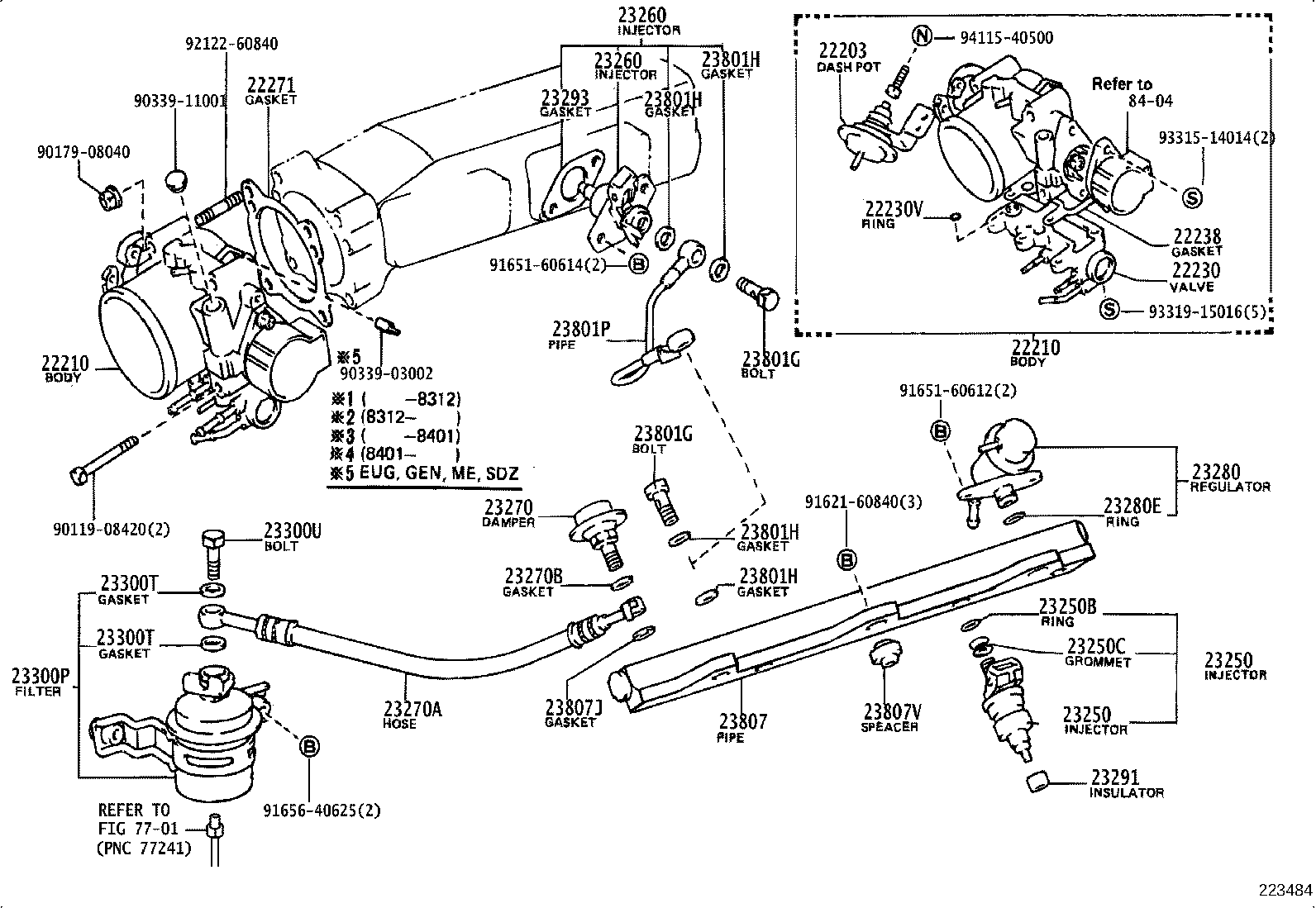

(8308- )4AG#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16030 |
4AGE..AE86 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-16030 |
4AGE..AE86 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-16010 |
4AGE..AE86 |
4 | ||
| 23250-16010 |
4AGE..AE86 |
4 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-16010 |
4AGE..AE86 |
4 | ||
| 23250-16010 |
4AGE..AE86 |
4 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-16020 |
4AGE..AE86 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-16020 |
4AGE..AE86 |
1 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-52011 |
4AG#..AE86 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-16020 |
4AG#..AE86 |
1 | ||
| Common parts | ||||
| 90119-08420 | ||||
| 90179-08040 | ||||
| 90339-03002 | ||||
| 90339-11001 | ||||
| 91621-60840 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
| 91656-40625 | ||||
| 92122-60840 | ||||
| 93315-14014 | ||||
| 93319-15016 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8404 | ||||

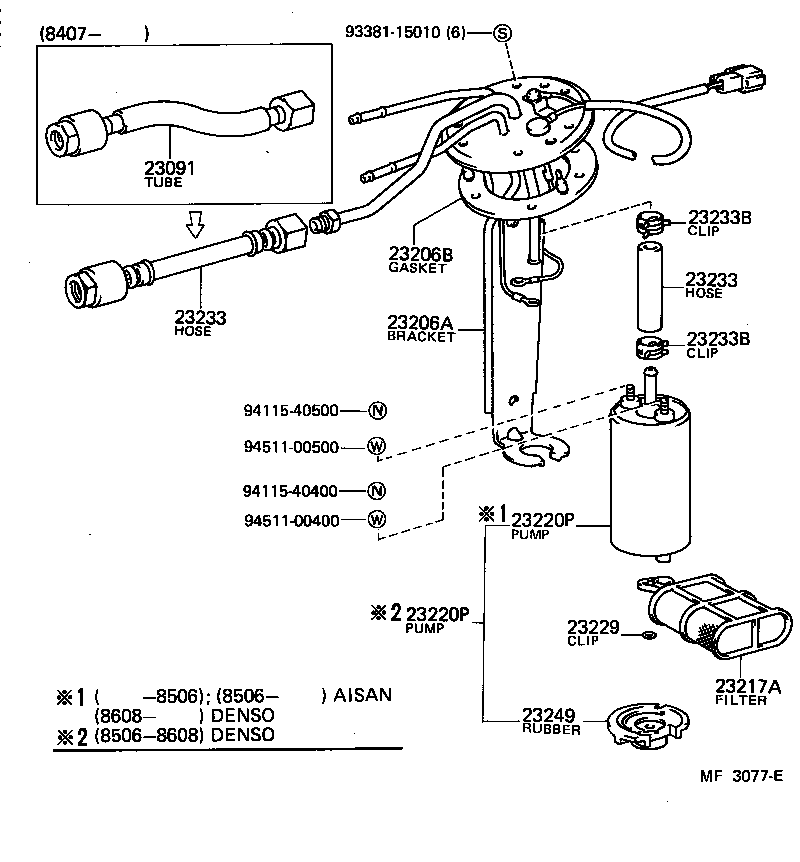

(8308- )4AG#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-12010 |
4AG#..AE86..EUR |
1 | ||
| 23091-12010 |
4AG#..AE86 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16042 |
4AG#..AE86 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16082 |
4AG#..AE86 AISAN |
1 | ||
| 23220-16080 |
4AG#..AE86 AISAN |
1 | ||
| 23220-16070 |
4AG#..AE86 DENSO |
1 | ||
| 23220-16083 |
4AG#..AE86 AISAN |
1 | ||
| 23220-19015 |
4AG#..AE86 DENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16082 |
4AG#..AE86 AISAN |
1 | ||
| 23220-16080 |
4AG#..AE86 AISAN |
1 | ||
| 23220-16070 |
4AG#..AE86 DENSO |
1 | ||
| 23220-16083 |
4AG#..AE86 AISAN |
1 | ||
| 23220-19015 |
4AG#..AE86 DENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4AGE..AE86 DENSO |
1 | ||
| 23229-16020 |
4AGE..AE86 AISAN |
1 | ||
| 23229-16010 |
4AG#..AE86 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90923-01305 |
4AGE..AE86..EUG BRACKET TO FUEL PIPE |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 90923-01305 |
4AGE..AE86..EUG BRACKET TO FUEL PIPE |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-43080 |
4AG#..AE86 DENSO |
1 | ||
| 23249-43080 |
4AG#..AE86 |
1 | ||
| 23249-16010 |
4AG#..AE86 AISAN |
1 | ||
| 23249-16010 |
4AG#..AE86 |
1 | ||
| Common parts | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
