AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4AG#

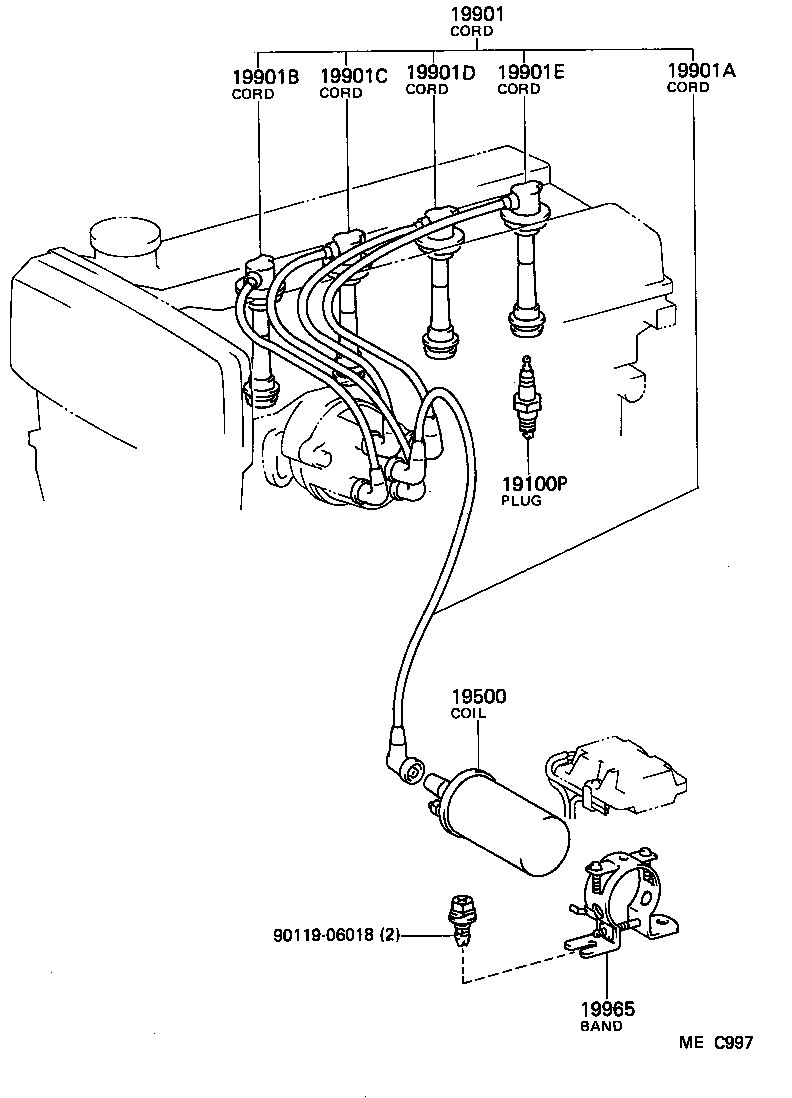

Click highlighted areas on diagram

diagram 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19965 9011906018
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01064

4A..AE86

W16EXR-U,W16EXR-U

 4
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21328

4AG#..AE86

 1
19901A - CORD, COIL RESISTIVE
90919-13189

4AG#..AE86

 1
Common parts
90119-06018
