AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4AG#

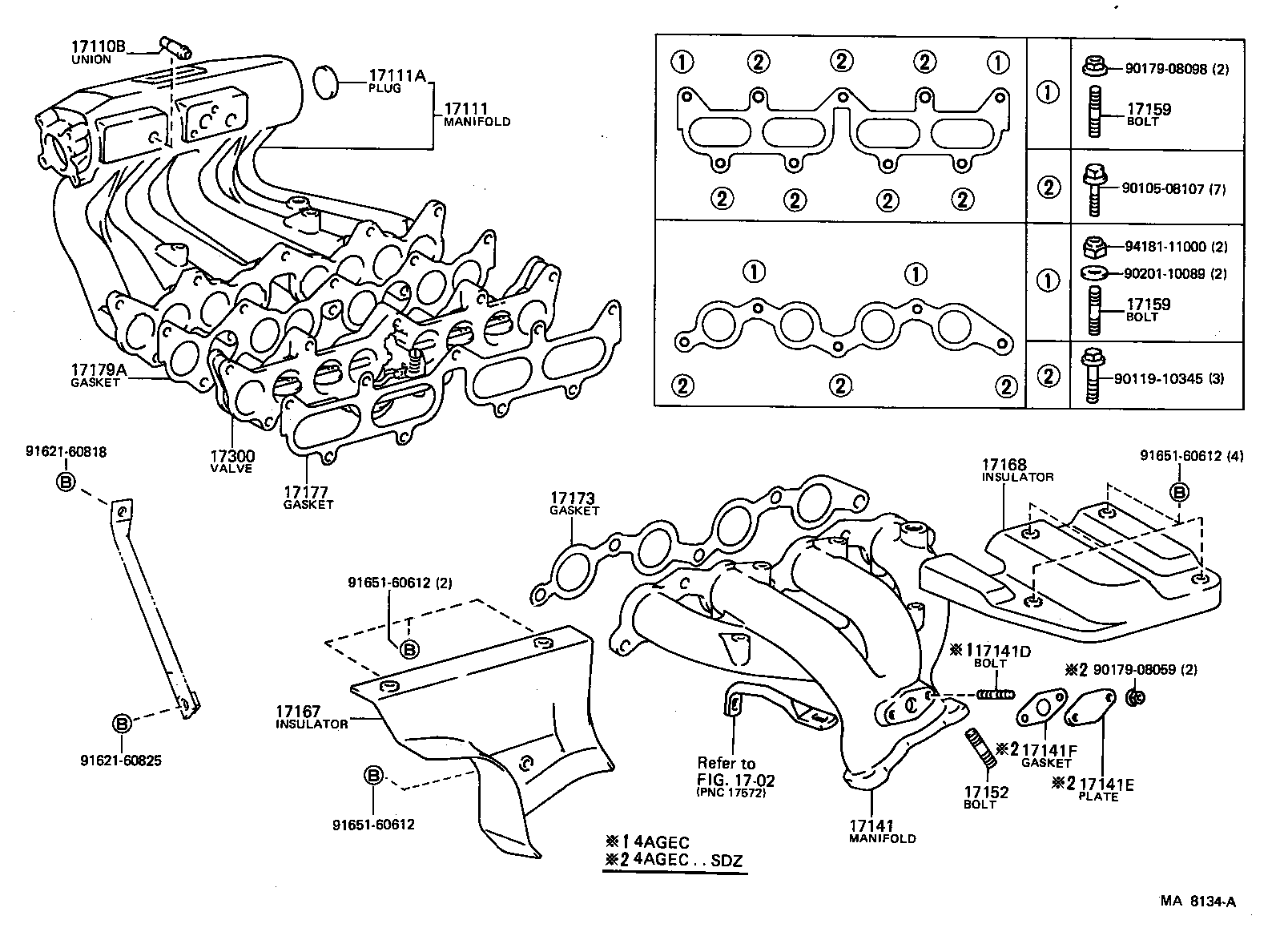

Click highlighted areas on diagram

diagram 1702 17110B 17111 17111A 17141 17141D 17141E 17141F 17152 17159 17159 17167 17168 17173 17177 17179A 17300 9010508107 9011910345 9017908059 9017908098 9020110089 9162160818 9162160825 9165160612 9165160612 9165160612 9418111000
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-16010

4A,4AC..AE86

 1
17141 - MANIFOLD, EXHAUST
17141-16050

4AGE..AE86

 1
17141-16060

4A..AE86

 1
17141-16061

4A..AE86

 1
17141D - BOLT, STUD(FOR OXYGEN SENSOR)
90116-08128

4A..AE86

 2
17141E - PLATE, EXHAUST MANIFOLD
17148-16010

4A..AE86

 1
17141F - GASKET(FOR EXHAUST MANIFOLD PLATE)
89466-32010

4A..AE86

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

4A,4AC,4AG#..AE86

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4A,4AC..AE86

L=44,S=12 & 20

 2
92122-61028

4AGE..AE86

EXHAUST MANIFOLD

 2
92122-60850

4AGE..AE86

INTAKE MANIFOLD

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61032

4A,4AC..AE86

L=44,S=12 & 20

 2
92122-61028

4AGE..AE86

EXHAUST MANIFOLD

 2
92122-60850

4AGE..AE86

INTAKE MANIFOLD

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-16020

4AG#..AE86

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-16011

4AG#..AE86

 1
17177-16010

4AGE..AE86

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17171-16011

4AG#..AE86

 1
17171-16010

4AGE..AE86

 1
17300 - VALVE ASSY, INTAKE AIR CONTROL
17300-16010

4AGE..AE86

 1
Common parts
90105-08107
90119-10345
90179-08059
90179-08098
90201-10089
91621-60818
91621-60825
91651-60612
94181-11000
Linked diagrams
1702
