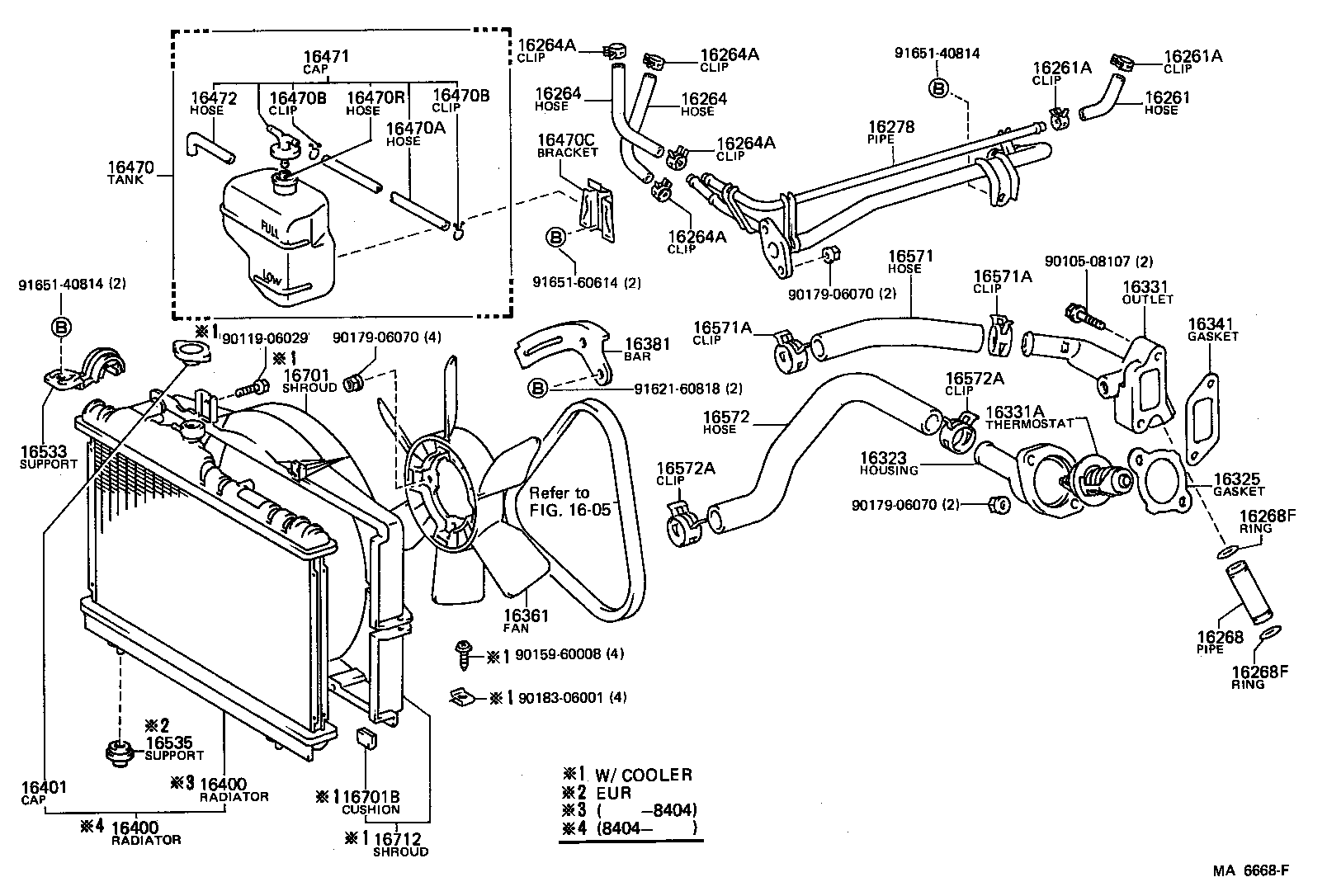

Toyota Corolla coupe AE86 RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
16268 - PIPE, WATER BY-PASS, NO.1
16268-15011	4A,4AC..AE86	03/1985 - 04/1987	1
16268-16010	4AG#..AE86	08/1983 - 04/1985	1
16268-15010	4A,4AC..AE86	05/1983 - 03/1985	1
16268F - RING, O(FOR WATER BY-PASS PIPE)
96711-24013	4A,4AC,4AG#..AE86	05/1983 - 07/1987	2
16268F - RING, O(FOR WATER BY-PASS PIPE)
96711-24013	4A,4AC,4AG#..AE86	05/1983 - 07/1987	2
16278 - PIPE, WATER BY-PASS, NO.2
16278-16020	4AGE..AE86	08/1983 - 01/1986	1
16323 - HOUSING, WATER INLET
16323-15020	4A,4AC..AE86	05/1983 - 04/1987	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-70021	4A,4AC,4AG#..AE86	05/1983 - 07/1987	1
16331 - OUTLET, WATER
16331-15050	4A,4AC..AE86..5F	05/1983 - 12/2999	1
16331A - THERMOSTAT
90916-03046	4A,4AC,4AG#..AE86 *WAX 82-95	05/1983 - 07/1987	1
16341 - GASKET, WATER OUTLET
16341-15011	4A,4AC..AE86	05/1983 - 12/2999	1
16341-16010	4AG#..AE86	08/1983 - 01/1987	1
16361 - FAN
16361-16010	4A,4AC,4AG#..AE86	05/1983 - 07/1987	1
16381 - BAR, FAN BELT ADJUSTING
16381-15030	4A,4AC..AE86	05/1983 - 04/1987	1
16400 - RADIATOR ASSY
16410-15210	4A#..AE86..5F	05/1983 - 04/1984	1
16400 - RADIATOR ASSY
16410-15210	4A#..AE86..5F	05/1983 - 04/1984	1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010	4A#..AE86..5F TOYO RADIATOR	05/1983 - 10/1983	1
16401-63010	4A,4AC,4AG#..AE86 DENSO	05/1983 - 07/1987	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-16010	4A..AE86 W/PRE-CLEANER	05/1983 - 04/1987	1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534	4A..AE86 L=1000,W/PRE-CLEANER	05/1983 - 04/1987	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	4A..AE86 W/PRE-CLEANER	05/1983 - 04/1987	2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085	4A..AE86 W/PRE-CLEANER	05/1983 - 04/1987	2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-16010	4A..AE86 W/PRE-CLEANER	05/1983 - 04/1987	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-16010	4A..AE86 W/PRE-CLEANER	05/1983 - 04/1987	1
16472 - HOSE, BREATHER
85338-12020	4A..AE86 W/PRE-CLEANER	05/1983 - 04/1987	1
16533 - SUPPORT, RADIATOR, UPPER
16533-16010	4AG#..AE86..EUR	08/1983 - 04/1987	2
16535 - SUPPORT, RADIATOR, LOWER
16535-16010	4AG#..AE86..EUR	08/1983 - 04/1987	1
16571 - HOSE, RADIATOR, INLET
16571-15110	4A,4AC..AE86	05/1983 - 05/1985	1
16571-15130	4A..AE86	05/1985 - 04/1987	1
16571-16010	4AG#..AE86	08/1983 - 04/1987	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001	4AG#..AE86 ENGINE SIDE	08/1984 - 04/1987	1
90467-34001	4A#..AE86	05/1983 - 08/1984	2
90467-34001	4A,4AC..AE86	08/1984 - 04/1987	2
90467-34002	4AG#..AE86 RADIATOR SIDE	08/1984 - 01/1986	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-34001	4AG#..AE86 ENGINE SIDE	08/1984 - 04/1987	1
90467-34001	4A#..AE86	05/1983 - 08/1984	2
90467-34001	4A,4AC..AE86	08/1984 - 04/1987	2
90467-34002	4AG#..AE86 RADIATOR SIDE	08/1984 - 01/1986	1
16572 - HOSE, RADIATOR, OUTLET
16572-15160	4A,4AC..AE86	05/1983 - 04/1987	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34002	4A,4AC,4AG#..AE86 ENGINE SIDE	05/1983 - 01/1986	1
90467-34001	4A,4AC,4AG#..AE86 RADIATOR SIDE	05/1983 - 04/1987	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-34002	4A,4AC,4AG#..AE86 ENGINE SIDE	05/1983 - 01/1986	1
90467-34001	4A,4AC,4AG#..AE86 RADIATOR SIDE	05/1983 - 04/1987	1
16701 - SHROUD SUB-ASSY, FAN
16711-15130	4A,4AC..AE86	05/1983 - 04/1987	1
Common parts
90105-08107
90119-06029
90159-60008
90179-06070
90183-06001
91621-60818
91651-40814
91651-60614
Linked diagrams
1605

AE86R-ECMQFW (1983)

(8308- )4AG#
