AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4AGE..EUR,ME

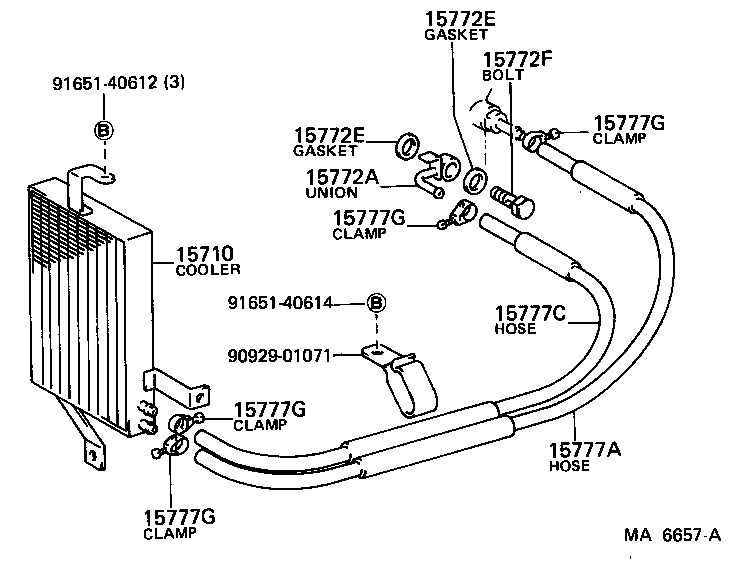

Click highlighted areas on diagram

(8502- )4AGEC

diagram 15710 15772A 15772E 15772E 15772F 15777A 15777C 15777G 15777G 15777G 15777G 9092901071 9165140612 9165140614
Part # Description Qty Price
15772E - GASKET(FOR OIL PIPE)
90430-12009

4AG#..AE86..EUR,ME

W/OIL COOLER

 2
15772E - GASKET(FOR OIL PIPE)
90430-12009

4AG#..AE86..EUR,ME

W/OIL COOLER

 2
Common parts
90929-01071
91651-40612
91651-40614
