AE86R-ECMQFW (1983)
Toyota Corolla Coupe
(8308- )4AG#

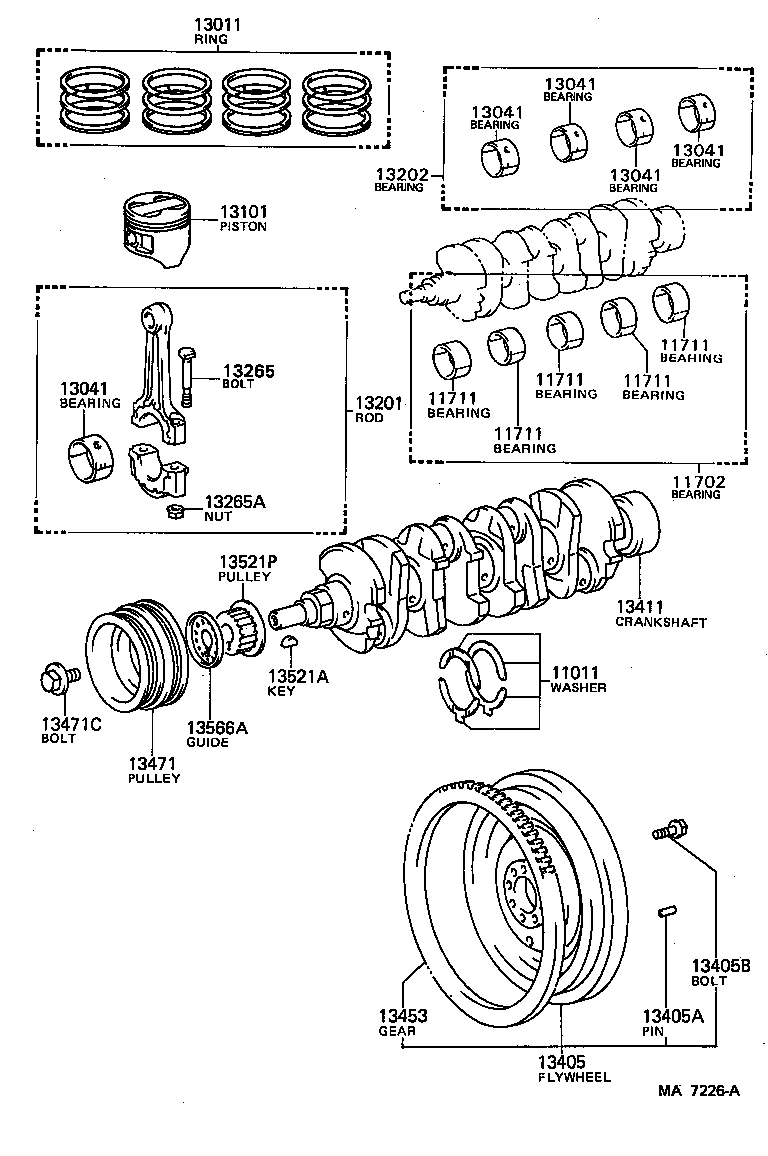

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-15010 |
4A,4AC,4AG#..AE86 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-15050 |
4A,4AC,4AG#..AE86 U/S 0.25,U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1503001 |
4A,4AC..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1505001 |
4AGE..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1601001 |
4A#..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1503002 |
4A,4AC..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505002 |
4AGE..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505003 |
4AGE..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1503003 |
4A,4AC..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1601003 |
4A#..AE86 MARK"3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1503001 |
4A,4AC..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1505001 |
4AGE..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1601001 |
4A#..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1503002 |
4A,4AC..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505002 |
4AGE..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505003 |
4AGE..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1503003 |
4A,4AC..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1601003 |
4A#..AE86 MARK"3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1503001 |
4A,4AC..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1505001 |
4AGE..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1601001 |
4A#..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1503002 |
4A,4AC..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505002 |
4AGE..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505003 |
4AGE..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1503003 |
4A,4AC..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1601003 |
4A#..AE86 MARK"3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1503001 |
4A,4AC..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1505001 |
4AGE..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1601001 |
4A#..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1503002 |
4A,4AC..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505002 |
4AGE..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505003 |
4AGE..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1503003 |
4A,4AC..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1601003 |
4A#..AE86 MARK"3",MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1503001 |
4A,4AC..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1505001 |
4AGE..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1601001 |
4A#..AE86 MARK"1",MARK 1 |
5 | ||
| 11701-1503002 |
4A,4AC..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505002 |
4AGE..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1505003 |
4AGE..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1503003 |
4A,4AC..AE86 MARK"3",MARK 3 |
5 | ||
| 11701-1601002 |
4A#..AE86 MARK"2",MARK 2 |
5 | ||
| 11701-1601003 |
4A#..AE86 MARK"3",MARK 3 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-16031 |
4A,4AC..AE86 STD |
1 | ||
| 13013-16031 |
4A,4AC..AE86 O/S 0.50 |
1 | ||
| 13011-16032 |
4A..AE86 STD,STD |
1 | ||
| 13013-16032 |
4A..AE86 O/S 0.50,O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501103 |
4A..AE86 MARK"3",MARK 3 |
4 | ||
| 13041-1501102 |
4A..AE86 MARK"2",MARK 2 |
4 | ||
| 13041-1501101 |
4A#..AE86 MARK"1",MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501103 |
4A..AE86 MARK"3",MARK 3 |
4 | ||
| 13041-1501102 |
4A..AE86 MARK"2",MARK 2 |
4 | ||
| 13041-1501101 |
4A#..AE86 MARK"1",MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501103 |
4A..AE86 MARK"3",MARK 3 |
4 | ||
| 13041-1501102 |
4A..AE86 MARK"2",MARK 2 |
4 | ||
| 13041-1501101 |
4A#..AE86 MARK"1",MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501103 |
4A..AE86 MARK"3",MARK 3 |
4 | ||
| 13041-1501102 |
4A..AE86 MARK"2",MARK 2 |
4 | ||
| 13041-1501101 |
4A#..AE86 MARK"1",MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501103 |
4A..AE86 MARK"3",MARK 3 |
4 | ||
| 13041-1501102 |
4A..AE86 MARK"2",MARK 2 |
4 | ||
| 13041-1501101 |
4A#..AE86 MARK"1",MARK 1 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-16010 |
4A,4AC..AE86 STD,STD |
4 | ||
| 13101-16030 |
4AGE..AE86..EUG STD,STD |
4 | ||
| 13103-16010 |
4A,4AC..AE86 O/S 0.50,O/S 0.50 |
4 | ||
| 13103-16030 |
4AGE..AE86..EUG O/S 0.50 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-19016 |
4A#..AE86 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-15011 |
4A#..AE86 U/S 0.25,U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-19015 |
4A..AE86 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-08014 |
4A..AE86 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-19075 |
4A,4AC..AE86..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
4A,4AC,4AG#..AE86..5F L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
4A,4AC..AE86..5F |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-15040 |
4A..AE86 |
1 | ||
| 13411-15030 |
4A,4AC..AE86 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-10010 |
4A,4AC,4AG#..AE86..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-15013 |
4A,4AC..AE86 |
1 | ||
| 13470-15050 |
4A..AE86 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12012 |
4A,4AC,4AG#..AE86 |
1 | ||
| 90119-12101 |
4A,4AG#..AE86 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
4A,4AC,4AG#..AE86 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-15010 |
4A,4AC..AE86 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-15010 |
4A,4AC,4AG#..AE86 |
1 | ||
