AE86R-ECMQFW (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987
Engine 4AGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4AG#

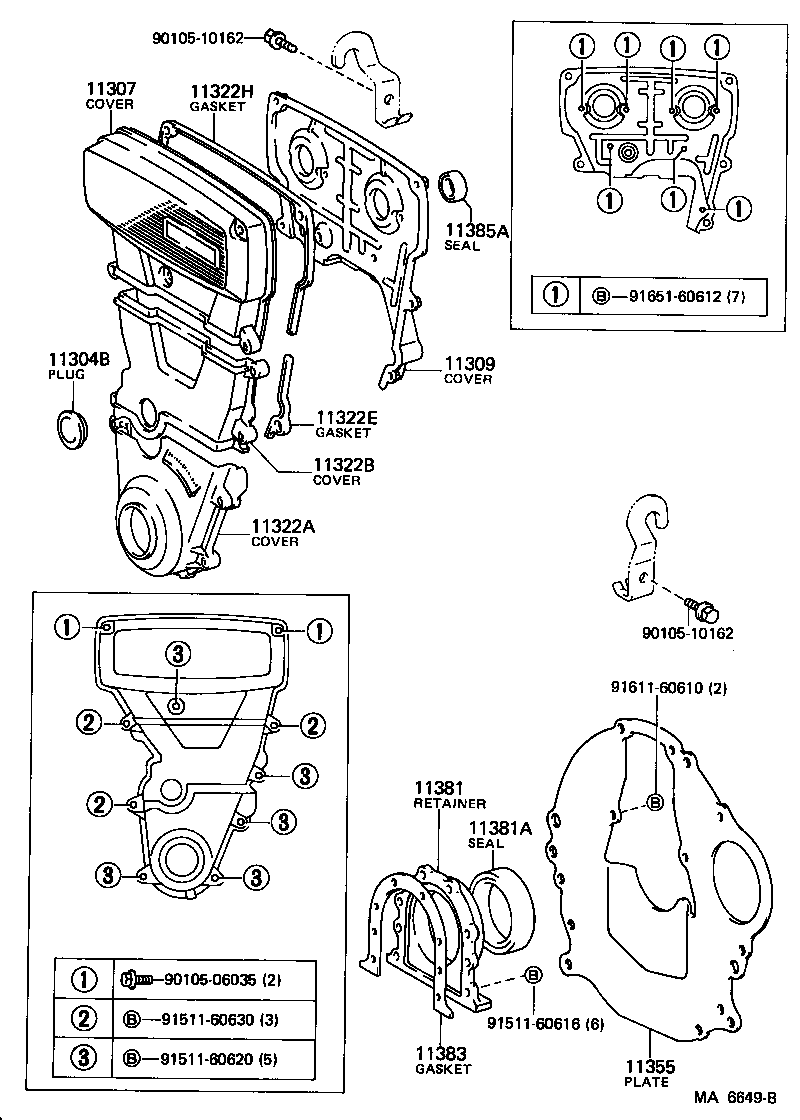

Click highlighted areas on diagram

diagram 11304B 11307 11309 11322A 11322B 11322E 11322H 11355 11381 11381A 11383 11385A 9010506035 9010510162 9010510162 9151160616 9151160620 9151160630 9161160610 9165160612
Part # Description Qty Price
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01391

4AG#..AE86

OD=34

 1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-16010

4AGE..AE86

 1
11322A - COVER, TIMING BELT, NO.1
11302-16010

4AG#..AE86

 1
11322B - COVER, TIMING BELT, NO.2
11303-16010

4AG#..AE86

 1
11322H - GASKET, TIMING BELT COVER, NO.3
11319-16010

4AG#..AE86

 1
11355 - PLATE, REAR END
11355-15021

4A,4AC,4AG#..AE86..5F

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4A,4AC,4AG#..AE86

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

4A,4AC,4AG#..AE86

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15010

4A,4AC,4AG#..AE86

 1
Common parts
90105-06035
90105-10162
91511-60616
91511-60620
91511-60630
91611-60610
91651-60612
