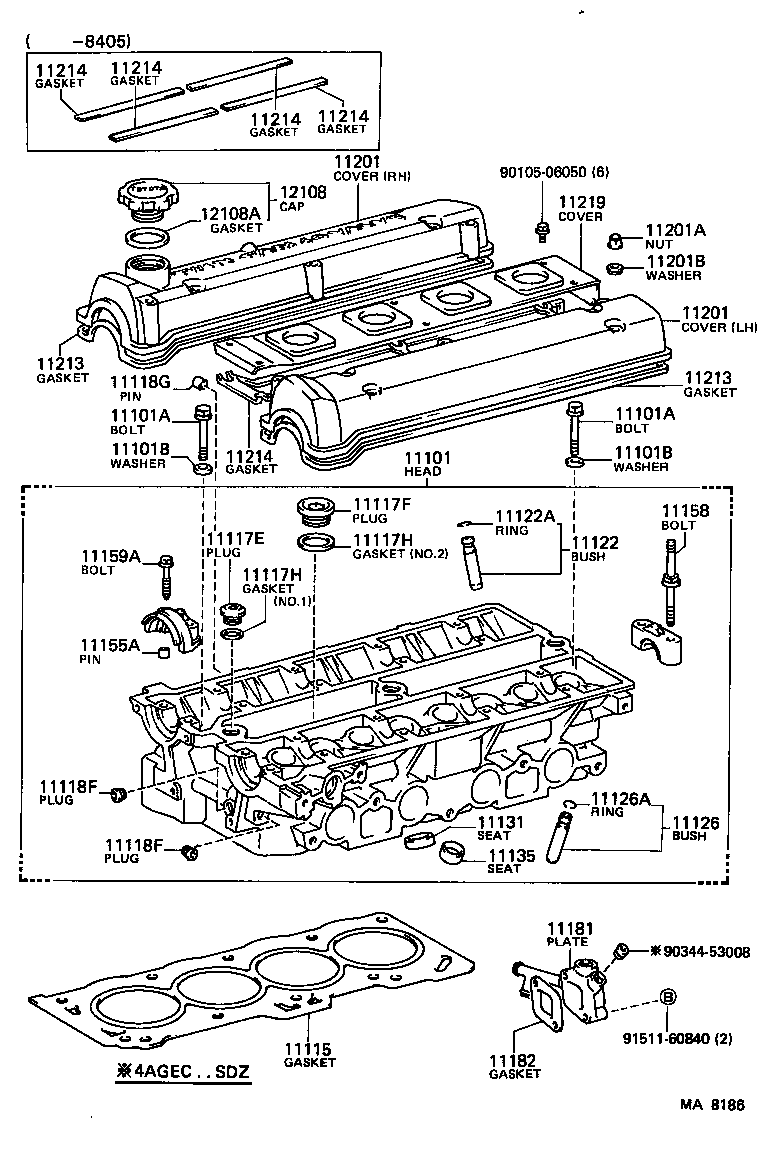

Toyota Corolla coupe AE86 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-15031	4A,4AC..AE86	05/1983 - 05/1985	1
11101-15080	4A..AE86	05/1985 - 04/1987	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10025	4A,4AC..AE86 *10-1.25PX97.5-22	05/1983 - 04/1987	10
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10025	4A,4AC..AE86 *10-1.25PX97.5-22	05/1983 - 04/1987	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344	4A,4AC,4AG#..AE86	05/1983 - 07/1987	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344	4A,4AC,4AG#..AE86	05/1983 - 07/1987	10
11115 - GASKET, CYLINDER HEAD
11115-16020	4A,4AC..AE86	05/1983 - 05/1985	1
11115-16050	4A..AE86	05/1985 - 04/1987	1
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-32070	4AG#..AE86	08/1983 - 04/1986	2
11117H - GASKET(FOR WATER HOLE)
90430-20004	4A,4AC..AE86	05/1983 - 04/1987	2
11117H - GASKET(FOR WATER HOLE)
90430-20004	4A,4AC..AE86	05/1983 - 04/1987	2
11118F - PLUG, TAPER, NO.1
90344-51002	4AG#..AE86	08/1983 - 04/1986	2
11118F - PLUG, TAPER, NO.1
90344-51002	4AG#..AE86	08/1983 - 04/1986	2
11122 - BUSH, INTAKE VALVE GUIDE
11122-15011	4A..AE86 STD,STD	02/1986 - 04/1987	4
11123-15020	4A,4AC..AE86 O/S 0.05,O/S 0.05	05/1983 - 02/1986	4
11122-15020	4A,4AC..AE86 STD,STD	05/1983 - 02/1986	4
11123-15011	4A..AE86 O/S 0.05,O/S 0.05	02/1986 - 04/1987	4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-10001	4A,4AC..AE86	05/1983 - 02/1986	4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-15020	4A,4AC..AE86 O/S 0.05,O/S 0.05	05/1983 - 02/1986	4
11126-15020	4A,4AC..AE86 STD,STD	05/1983 - 02/1986	4
11127-15011	4A..AE86 O/S 0.05,O/S 0.05	02/1986 - 04/1987	4
11126-15011	4A..AE86 STD,STD	02/1986 - 04/1987	4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-10001	4A,4AC..AE86	05/1983 - 02/1986	4
11131 - SEAT, INTAKE VALVE
11131-15020	4A,4AC..AE86 STD,STD	05/1983 - 04/1987	4
11132-15020	4A,4AC..AE86 O/S 0.03,O/S 0.03	05/1983 - 04/1987	4
11135 - SEAT, EXHAUST VALVE
11135-15020	4A,4AC..AE86 STD,STD	05/1983 - 04/1987	4
11136-15020	4A,4AC..AE86 O/S 0.03,O/S 0.03	05/1983 - 04/1987	4
11181 - PLATE, CYLINDER HEAD, REAR
11181-15020	4A,4AC..AE86..RHD	05/1983 - 04/1987	1
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-15011	4A,4AC..AE86	05/1983 - 04/1987	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-19025	4A,4AC..AE86	05/1983 - 05/1985	1
11210-15040	4A..AE86	05/1985 - 04/1987	1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-19025	4A,4AC..AE86	05/1983 - 05/1985	1
11210-15040	4A..AE86	05/1985 - 04/1987	1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007	4A,4AC..AE86	05/1983 - 04/1987	3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001	4A,4AC..AE86	05/1983 - 04/1987	3
11213 - GASKET, CYLINDER HEAD COVER
11213-15040	4A..AE86	05/1985 - 04/1987	1
11213-15020	4A,4AC..AE86	05/1983 - 05/1985	1
11213 - GASKET, CYLINDER HEAD COVER
11213-15040	4A..AE86	05/1985 - 04/1987	1
11213-15020	4A,4AC..AE86	05/1983 - 05/1985	1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11229-16010	4AGE..AE86 RR	08/1983 - 05/1984	2
11214-16010	4AGE..AE86 FR	08/1983 - 05/1984	2
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11229-16010	4AGE..AE86 RR	08/1983 - 05/1984	2
11214-16010	4AGE..AE86 FR	08/1983 - 05/1984	2
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11229-16010	4AGE..AE86 RR	08/1983 - 05/1984	2
11214-16010	4AGE..AE86 FR	08/1983 - 05/1984	2
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11229-16010	4AGE..AE86 RR	08/1983 - 05/1984	2
11214-16010	4AGE..AE86 FR	08/1983 - 05/1984	2
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11229-16010	4AGE..AE86 RR	08/1983 - 05/1984	2
11214-16010	4AGE..AE86 FR	08/1983 - 05/1984	2
11219 - COVER, CYLINDER HEAD, NO.3
11219-16020	4AGE..AE86	08/1983 - 05/1984	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-70010	4A,4AC,4AG#..AE86	05/1983 - 03/1986	1
12180-13030	4A..AE86	04/1986 - 04/1987	1
12180-70010	4A..AE86	03/1986 - 04/1986	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140	4A,4AC,4AG#..AE86	05/1983 - 07/1987	1
Common parts
90105-06050
90344-53008
91511-60840

AE86R-ECMQFW (1983)

(8308- )4AG#
