AE86L-ESPXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )4FC

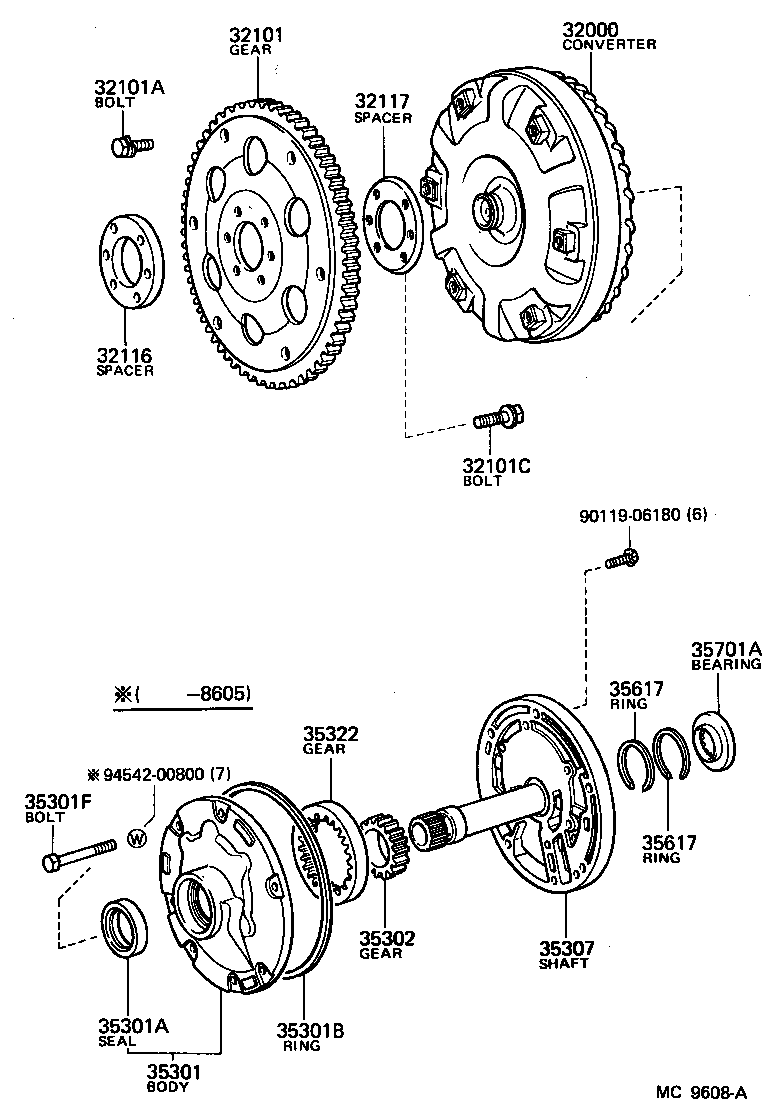

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35302 35307 35322 35617 35617 35701A 9011906180 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-12071

AE86..4FC

 1
32000-12070

AE86..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-12030

AE86..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08223

AE86..4FC

*8-1.25PX10.5-6.5,YELLOW

 5
90109-08090

AE86..4FC

WHITE

 1
90109-08113

AE86..4FC

*8-1.25PX12-8.4,OLIVE GREEN

 1
90119-08498

AE86..4FC

*8-1.25PX12-8,BLACK

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

AE86..4FC

*10-1.25PX18-13

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-12010

AE86..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-12010

AE86..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-14010

AE86..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

AE86..4FC

 1
90311-38129

AE86..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

AE86..4FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08137

AE86..4FC

 7
90101-08042

AE86..4FC

 7
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-14010

AE86..4FC

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-14011

AE86..4FC

 1
35370-14012

AE86..4FC

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-14010

AE86..4FC

T=17.286-17.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

AE86..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-16010

AE86..4FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

AE86..4FC

 1
Common parts
90119-06180
94542-00800
