AE86L-ESMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305- )

Click highlighted areas on diagram

diagram 87126 88910 9011906098 9017906162
Part # Description Qty Price

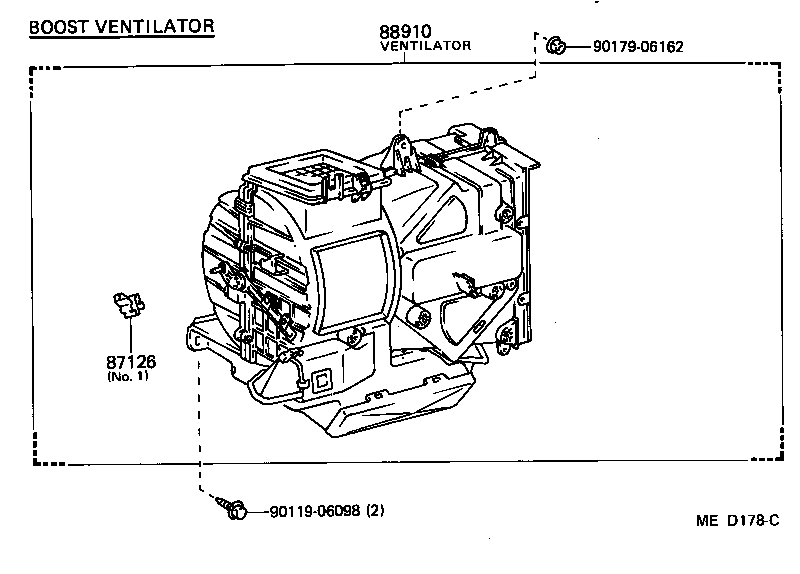

88910 - VENTILATOR ASSY, BOOST
88910-12050

AE86..LHD..GEN

 1
Common parts
90119-06098
90179-06162

(8305- )

Click highlighted areas on diagram

diagram 8202 87104 87105 87107 87126 87126 87126 87130 87138 87150 9011906098 9011906098 9017906162 9017906162 9048001015 9048001015 9048001089
Part # Description Qty Price

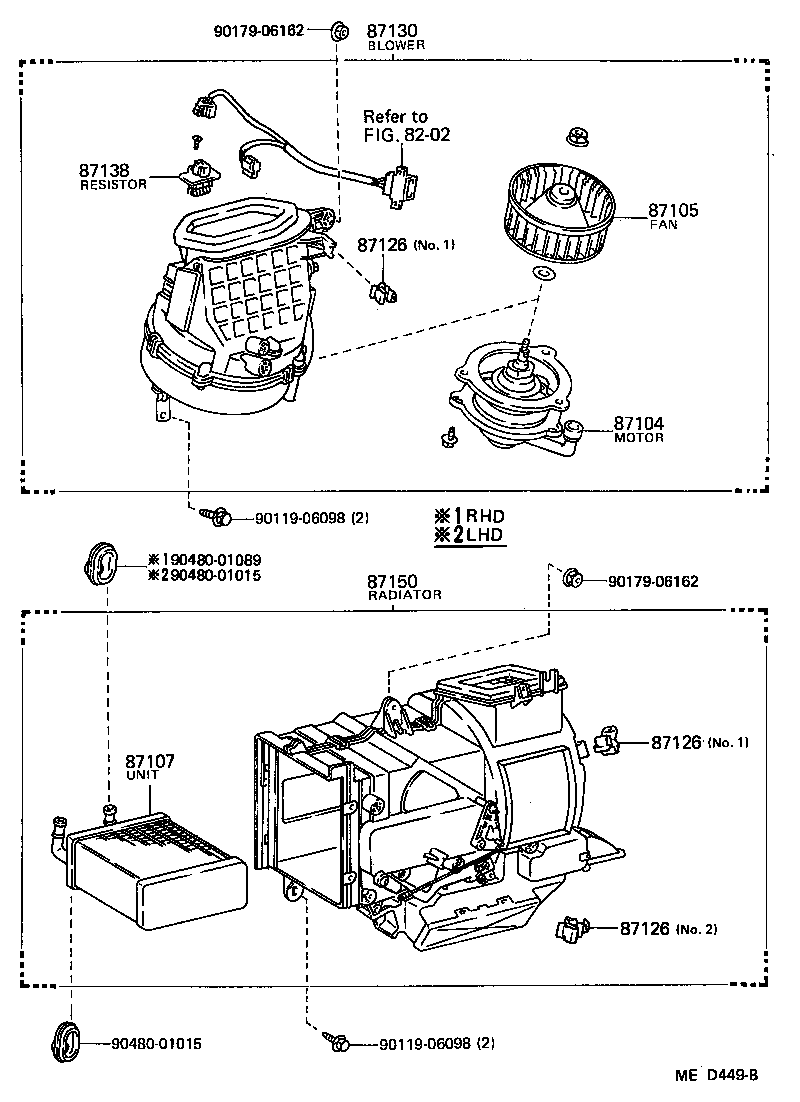

87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-12120

AE86

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-12060

AE86..LHD

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-12280

AE86..LHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-12170

AE86..LHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-12091

AE86

 1
87150 - RADIATOR ASSY, HEATER
87150-12240

AE86..LHD

 1
Common parts
90119-06098
90179-06162
90480-01015
90480-01089
Linked diagrams
8202
