AE86L-ESMXS (1983)
Toyota Corolla Coupe

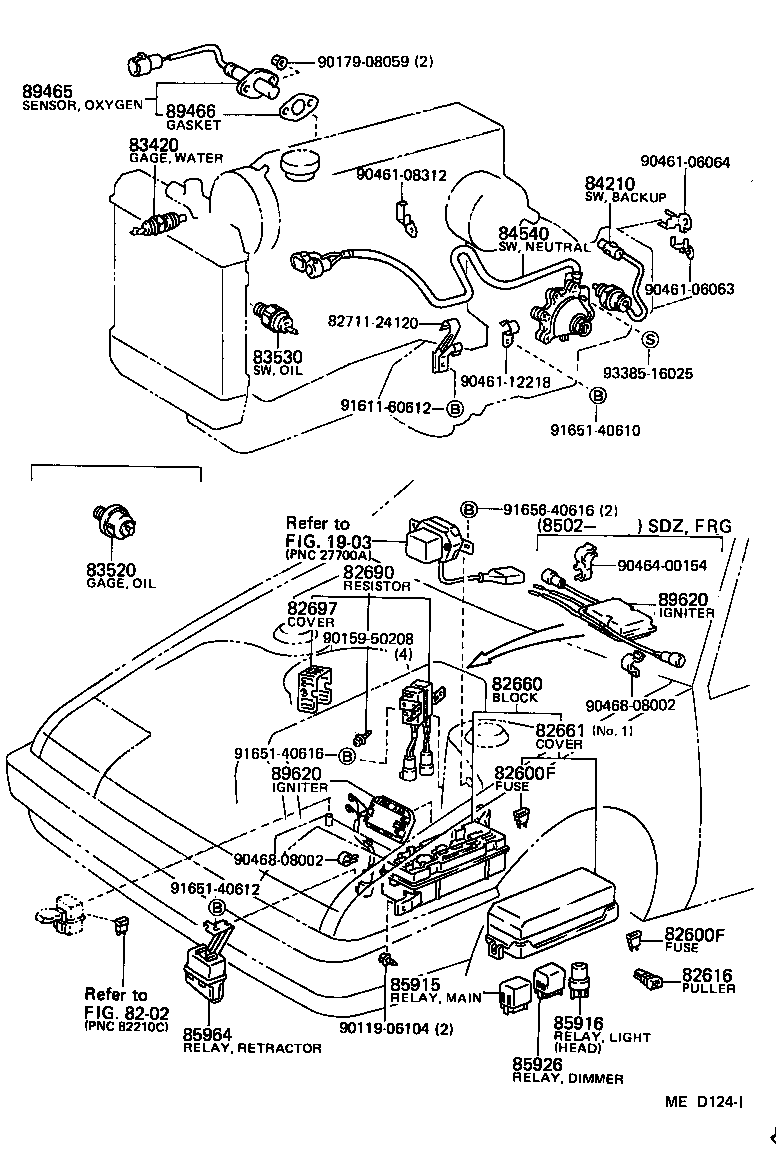

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE86 10A,10A |
11 | ||
| 90982-09004 |
AE86 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
AE86 7.5A,7.5A |
6 | ||
| 90982-07011 |
AE86 30A,GREEN,30A |
1 | ||
| 90982-09003 |
AE86 15A,15A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE86 10A,10A |
11 | ||
| 90982-09004 |
AE86 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
AE86 7.5A,7.5A |
6 | ||
| 90982-07011 |
AE86 30A,GREEN,30A |
1 | ||
| 90982-09003 |
AE86 15A,15A |
6 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE86 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12191 |
AE86..ARL,EUR,GEN |
1 | ||
| 82660-12191 |
AE86..EUG;AE86..ARL,GEN |
1 | ||
| 82660-12190 |
AE86..ARL,EUR,GEN |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12130 |
AE86..ARL,EUR,GEN NO.1 |
1 | ||
| 82661-12131 |
AE86..ARL,EUR,GEN NO.1 |
1 | ||
| 82661-12131 |
AE86..EUG;AE86..ARL,GEN NO.1 |
1 | ||
| 82661-12100 |
AE86 NO.2 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
AE86 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
AE86..SR..(EUR,GEN) |
1 | ||
| 83530-30080 |
AE86..SR..GEN |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10051 |
AE86..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 85913-30020 |
AE86 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE86 TAIL & HEAD |
2 | ||
| Common parts | ||||
| 82711-24120 | ||||
| 90119-06104 | ||||
| 90159-50208 | ||||
| 90179-08059 | ||||
| 90461-06063 | ||||
| 90461-06064 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90464-00154 | ||||
| 90468-08002 | ||||
| 91611-60612 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8202 | ||||

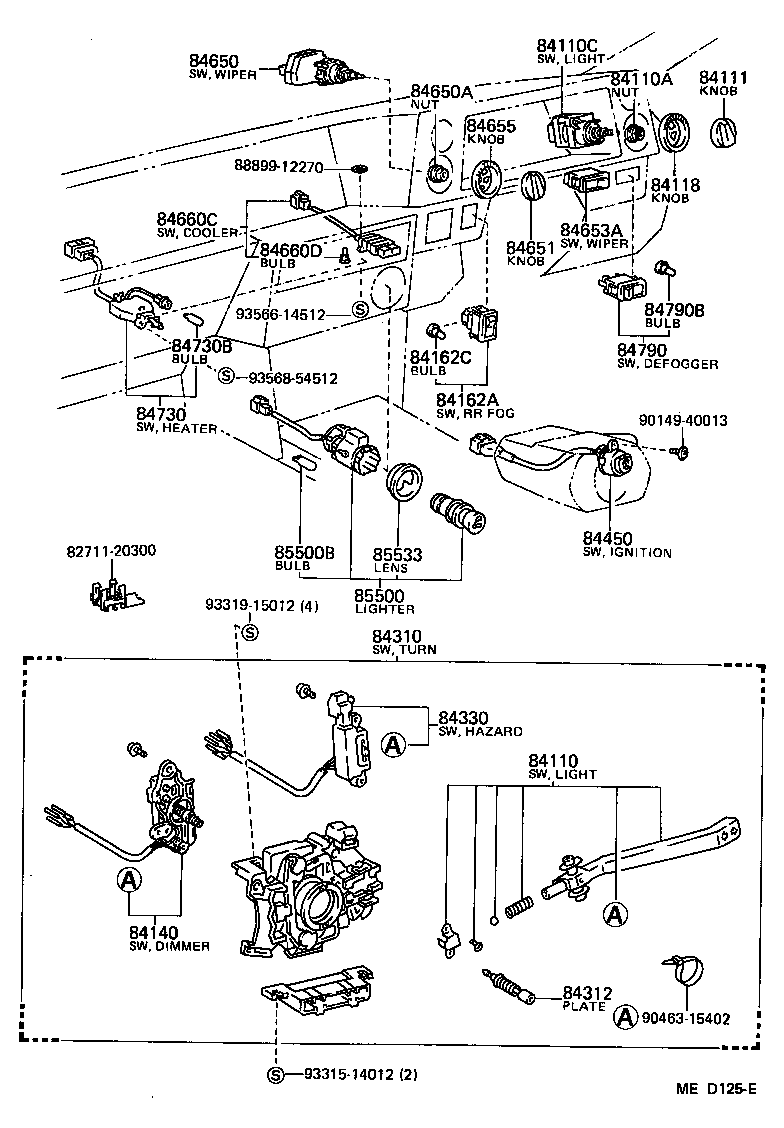

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19575 |
AE86..LHD |
1 | ||
| 84110A - BOLT OR NUT, LIGHT CONTROL SWITCH SET | ||||
| 90179-14010 |
AE86 |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-12130 |
AE86..LHD..(EUR,GEN) |
1 | ||
| 84111 - KNOB, LIGHT CONTROL SWITCH | ||||
| 84111-12060 |
AE86 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12060 |
AE86..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19315 |
AE86..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12540 |
AE86..LHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
AE86..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19285 |
AE86..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12120 |
AE86 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-12070 |
AE86..LHD..SR..GEN |
1 | ||
| 84650-12080 |
AE86..LHD W/*IW |
1 | ||
| 84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET | ||||
| 90179-14010 |
AE86 |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-12040 |
AE86 |
1 | ||
| 84655 - KNOB, WINDSHIELD WIPER VOLUME SWITCH | ||||
| 84118-12040 |
AE86 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12080 |
AE86..LHD..(GEN,ME) |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
AE86..LHD..(GEN,ME) |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12140 |
AE86 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE86 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12120 |
AE86 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
AE86 12V 1.12W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12190 |
AE86 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AE86 14V 1.4W,12V 1.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
AE86 |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 88899-12270 | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| 93568-54512 | ||||

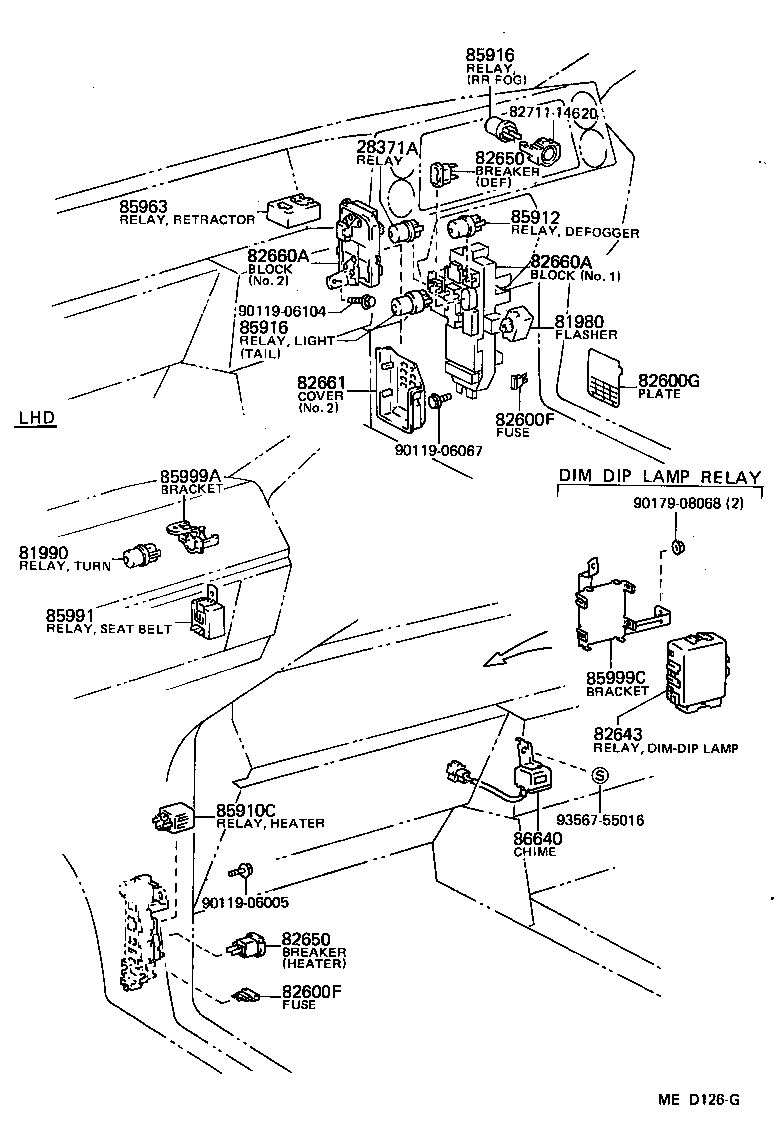

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AE86 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE86 10A,10A |
11 | ||
| 90982-09004 |
AE86 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
AE86 7.5A,7.5A |
6 | ||
| 90982-07011 |
AE86 30A,GREEN,30A |
1 | ||
| 90982-09003 |
AE86 15A,15A |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AE86 10A,10A |
11 | ||
| 90982-09004 |
AE86 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
AE86 7.5A,7.5A |
6 | ||
| 90982-07011 |
AE86 30A,GREEN,30A |
1 | ||
| 90982-09003 |
AE86 15A,15A |
6 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12081 |
AE86..LHD |
1 | ||
| 82683-12082 |
AE86..LHD |
1 | ||
| 82683-12080 |
AE86..LHD |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE86..LHD 30A,30A,*DEF |
1 | ||
| 82650-20011 |
AE86 30A,30A,*HEA |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE86..LHD 30A,30A,*DEF |
1 | ||
| 82650-20011 |
AE86 30A,30A,*HEA |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12220 |
AE86 NO.2 |
1 | ||
| 82660-12130 |
AE86 NO.1 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12220 |
AE86 NO.2 |
1 | ||
| 82660-12130 |
AE86 NO.1 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12130 |
AE86..ARL,EUR,GEN NO.1 |
1 | ||
| 82661-12131 |
AE86..ARL,EUR,GEN NO.1 |
1 | ||
| 82661-12131 |
AE86..EUG;AE86..ARL,GEN NO.1 |
1 | ||
| 82661-12100 |
AE86 NO.2 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AE86 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02004 |
AE86..LHD |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE86 TAIL & HEAD |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE86 TAIL & HEAD |
2 | ||
| Common parts | ||||
| 82711-14620 | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90119-06104 | ||||
| 90179-08068 | ||||
| 93567-55016 | ||||

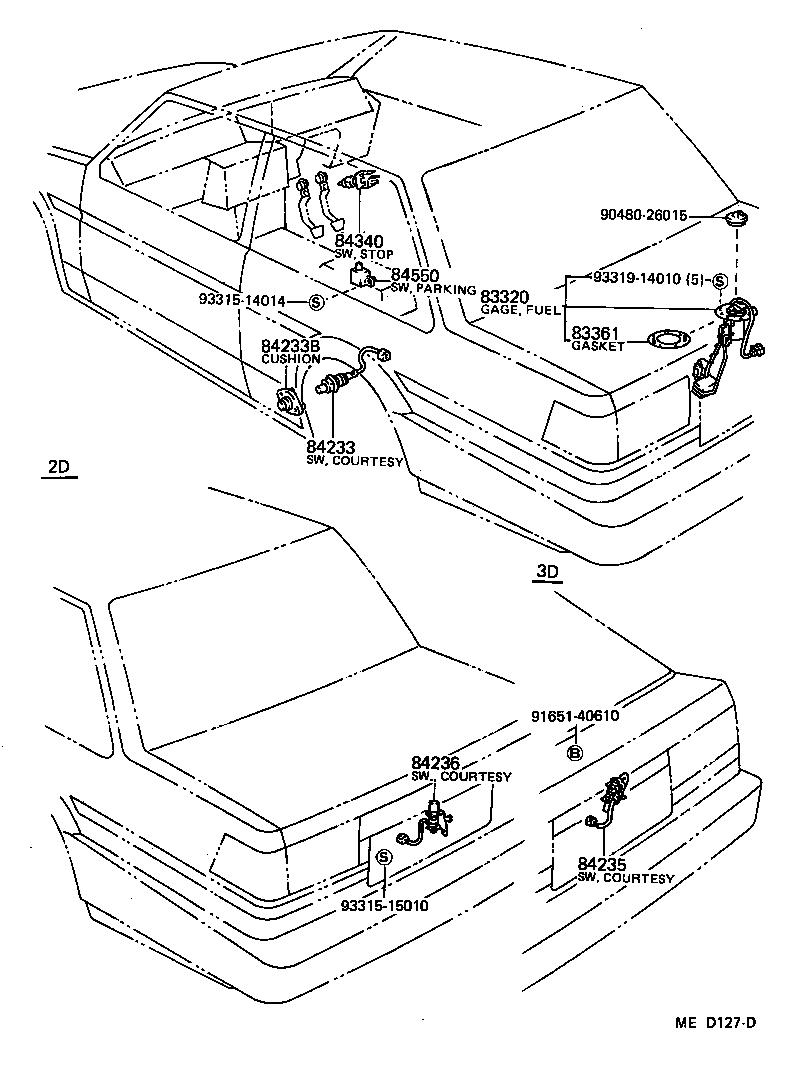

(8305- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19715 |
AE86 |
1 | ||
| 83320-19885 |
AE86..GEN,ME;AE86..EUG,SDZ |
1 | ||
| 83320-19885 |
AE86 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AE86 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12130 |
AE86 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
AE86 |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AE86 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE86 |
1 | ||
| Common parts | ||||
| 90480-26015 | ||||
| 91651-40610 | ||||
| 93315-14014 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
