AE86L-ESMXS (1983)
Toyota Corolla Coupe

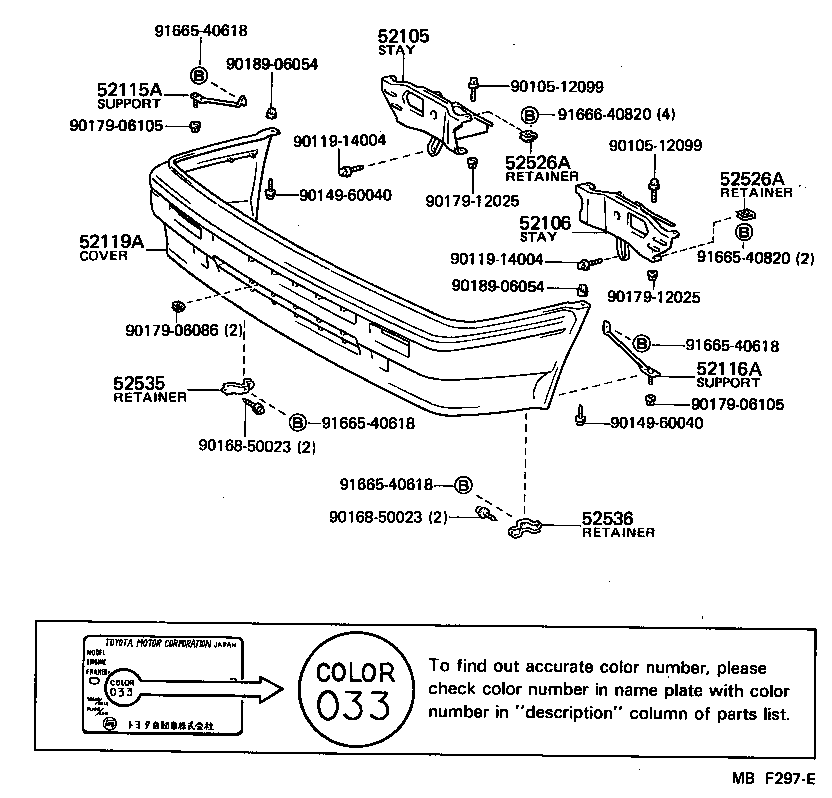

(8305-8505)ARL,EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-12231 |
AE86..EUR,GEN |
1 | ||
| 52011-12220 |
AE86..ARL,EUR,GEN |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-12231 |
AE86..EUR,GEN |
1 | ||
| 52012-12220 |
AE86..ARL,EUR,GEN |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12160 |
AE86 |
1 | ||
| 52115-12240 |
AE86..EUR,GEN |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-12240 |
AE86..EUR,GEN |
1 | ||
| 52115-12160 |
AE86 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-12090 |
AE86..ARL,EUR,GEN D-GRAY,8B1 |
1 | ||
| 52119-1213002 |
AE86..ARL,EUR,GEN RED,RED/MAROON,2M9 |
1 | ||
| 52119-1213003 |
AE86..ARL,EUR,GEN SILVER-M,GRAY,2M8 |
1 | ||
| 52119-12090 |
AE86..ARL,EUR,GEN D-GRAY,4E1 ,558 ,6G5 ,8A8 ,8A9 |
1 | ||
| 52119-12090 |
AE86..ARL,EUR,GEN D-GRAY,038 ,147 ,3C3 ,3D6 ,3D7 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,8B1 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,038 ,147 ,3C3 ,3D6 ,3D7 |
1 | ||
| 52119-1213102 |
AE86..ARL,EUR,GEN RED,RED,2M9 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,4E1 ,558 ,6G5 ,8A8 ,8A9 |
1 | ||
| 52119-1213112 |
AE86..ARL,EUR,GEN RED,RED,2T6 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,8A8 ,8A9 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,041 ,147 ,3E6 ,4E1 ,561 ,148 |
1 | ||
| 52119-12142 |
AE86..GEN BLACK |
1 | ||
| 52119-1A07003 |
AE86..GEN BLACK & SILVER,MEDIUM GRAY METALLIC |
1 | ||
| 52119-1213103 |
AE86..ARL,EUR,GEN SILVER-M,SILVER METALLIC,2M8 ,2P2 |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52565-12040 |
AE86..ARL,EUR,GEN |
8 | ||
| 52565-12040 |
AE86..EUR,GEN |
4 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52565-12040 |
AE86..ARL,EUR,GEN |
8 | ||
| 52565-12040 |
AE86..EUR,GEN |
4 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-12011 |
AE86..EUR,GEN |
1 | ||
| 52535-12010 |
AE86..ARL,EUR,GEN |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-12011 |
AE86..EUR,GEN |
1 | ||
| 52536-12010 |
AE86..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90105-12099 | ||||
| 90119-14004 | ||||
| 90149-60040 | ||||
| 90168-50023 | ||||
| 90179-06086 | ||||
| 90179-06105 | ||||
| 90179-12025 | ||||
| 90189-06054 | ||||
| 91665-40618 | ||||
| 91665-40820 | ||||
| 91666-40820 | ||||

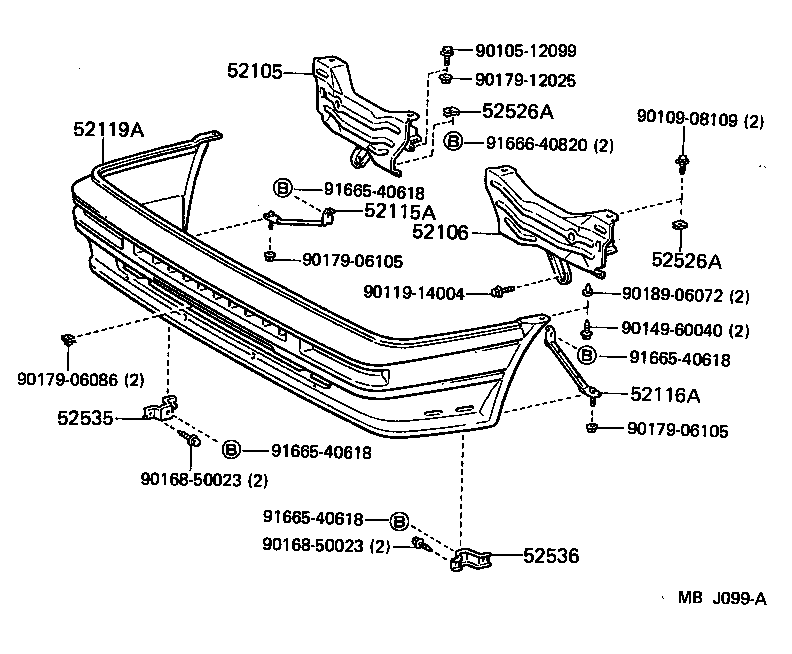

(8505- )EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52105 - STAY SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-12231 |
AE86..EUR,GEN |
1 | ||
| 52011-12220 |
AE86..ARL,EUR,GEN |
1 | ||
| 52106 - STAY SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-12231 |
AE86..EUR,GEN |
1 | ||
| 52012-12220 |
AE86..ARL,EUR,GEN |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12160 |
AE86 |
1 | ||
| 52115-12240 |
AE86..EUR,GEN |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-12240 |
AE86..EUR,GEN |
1 | ||
| 52115-12160 |
AE86 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-12090 |
AE86..ARL,EUR,GEN D-GRAY,8B1 |
1 | ||
| 52119-1213002 |
AE86..ARL,EUR,GEN RED,RED/MAROON,2M9 |
1 | ||
| 52119-1213003 |
AE86..ARL,EUR,GEN SILVER-M,GRAY,2M8 |
1 | ||
| 52119-12090 |
AE86..ARL,EUR,GEN D-GRAY,4E1 ,558 ,6G5 ,8A8 ,8A9 |
1 | ||
| 52119-12090 |
AE86..ARL,EUR,GEN D-GRAY,038 ,147 ,3C3 ,3D6 ,3D7 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,8B1 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,038 ,147 ,3C3 ,3D6 ,3D7 |
1 | ||
| 52119-1213102 |
AE86..ARL,EUR,GEN RED,RED,2M9 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,4E1 ,558 ,6G5 ,8A8 ,8A9 |
1 | ||
| 52119-1213112 |
AE86..ARL,EUR,GEN RED,RED,2T6 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,8A8 ,8A9 |
1 | ||
| 52119-12091 |
AE86..ARL,EUR,GEN BLACK,041 ,147 ,3E6 ,4E1 ,561 ,148 |
1 | ||
| 52119-12142 |
AE86..GEN BLACK |
1 | ||
| 52119-1A07003 |
AE86..GEN BLACK & SILVER,MEDIUM GRAY METALLIC |
1 | ||
| 52119-1213103 |
AE86..ARL,EUR,GEN SILVER-M,SILVER METALLIC,2M8 ,2P2 |
1 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52565-12040 |
AE86..ARL,EUR,GEN |
8 | ||
| 52565-12040 |
AE86..EUR,GEN |
4 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 52565-12040 |
AE86..ARL,EUR,GEN |
8 | ||
| 52565-12040 |
AE86..EUR,GEN |
4 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-12011 |
AE86..EUR,GEN |
1 | ||
| 52535-12010 |
AE86..ARL,EUR,GEN |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-12011 |
AE86..EUR,GEN |
1 | ||
| 52536-12010 |
AE86..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90105-12099 | ||||
| 90109-08109 | ||||
| 90119-14004 | ||||
| 90149-60040 | ||||
| 90168-50023 | ||||
| 90179-06086 | ||||
| 90179-06105 | ||||
| 90179-12025 | ||||
| 90189-06072 | ||||
| 91665-40618 | ||||
| 91666-40820 | ||||
