AE86L-ECMXS (1983)

Toyota Corolla Coupe

Production May 1983 - Apr 1987
Engine 4A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)3D..EUR,GEN,ME ; (8505- )3D..EUR,GEN

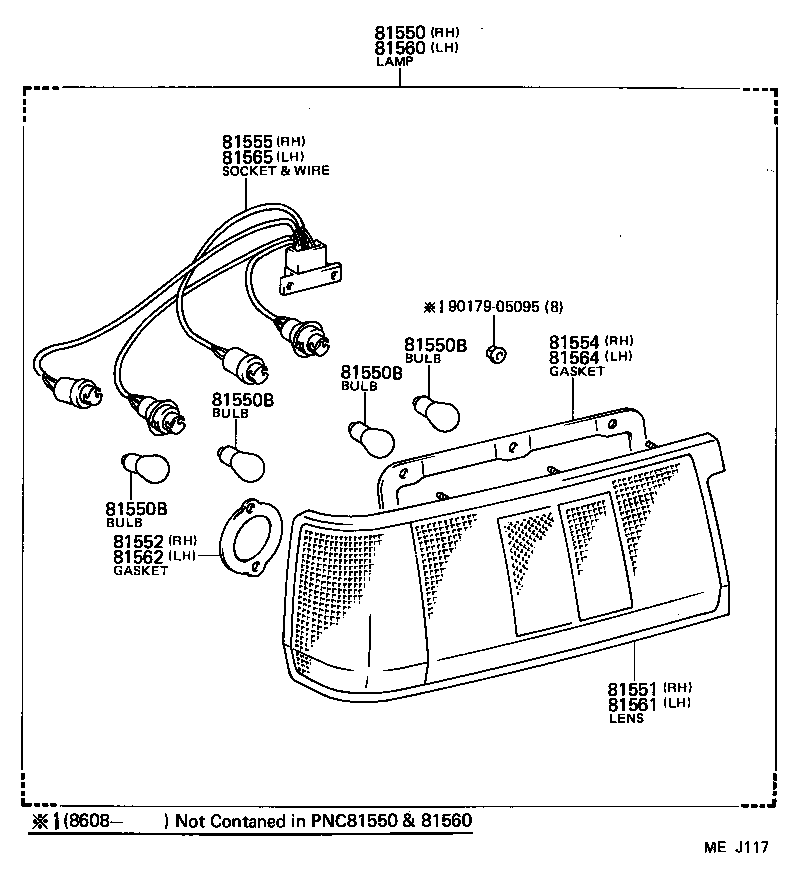

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81552 81554 81555 81560 81561 81562 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80161

AE86..3D..GEN

 1
81550-80161

AE86..3D..(GEN,ME)

 1
81550-1A230

AE86..3D..GEN

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE86

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

AE86..ARL,GEN,ME

12V 23W,12V 23W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE86

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

AE86..ARL,GEN,ME

12V 23W,12V 23W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE86

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

AE86..ARL,GEN,ME

12V 23W,12V 23W(TURN OR BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AE86

12V 21/5W,12V 21/5W(STOP & TAIL)

 4
99132-11230

AE86..ARL,GEN,ME

12V 23W,12V 23W(TURN OR BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-1A230

AE86..3D..GEN

 1
81551-1A230

AE86..3D..(GEN,ME)

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81556-1A230

AE86..3D

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-1A230

AE86..3D

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-1A230

AE86..3D..GEN

 1
81555-1A230

AE86..3D..(ARL,GEN,ME)

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80166

AE86..3D..(GEN,ME)

 1
81560-80166

AE86..3D..GEN

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-1A230

AE86..3D..(GEN,ME)

 1
81561-1A230

AE86..3D..GEN

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81556-1A230

AE86..3D

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-1A230

AE86..3D

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-1A230

AE86..3D..(ARL,GEN,ME)

 1
81555-1A230

AE86..3D..GEN

 1
Common parts
90179-05095
