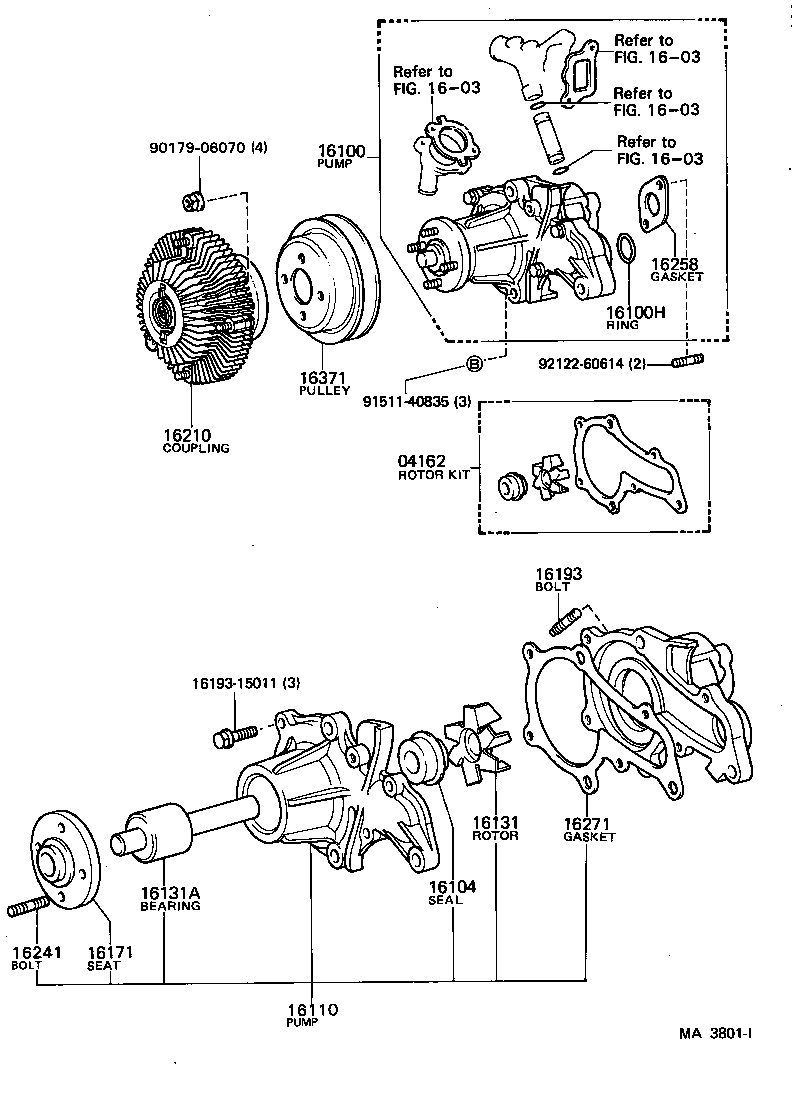

Toyota Corolla coupe AE86 WATER PUMP

Part #	Description	Period	Qty
04162 - ROTOR KIT, WATER PUMP
04162-15010	4A,4AC..AE86	05/1983 - 04/1987	1
16100 - PUMP ASSY, ENGINE WATER
16100-19036	4A,4AC..AE86	05/1983 - 04/1987	1
16100H - RING, O(FOR WATER PUMP)
96711-24035	4A,4AC,4AG#..AE86	05/1983 - 07/1987	1
16104 - SEAL SET, WATER PUMP
16104-41111	4A,4AC..AE86	05/1983 - 05/1984	1
16104-15020	4A,4AC..AE86	05/1984 - 04/1987	1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-15020	4A,4AC..AE86	01/1984 - 04/1987	1
16131 - ROTOR, WATER PUMP
16131-15010	4A,4AC..AE86	05/1983 - 04/1987	1
16131A - BEARING, WATER PUMP
90369-30014	4A,4AC..AE86	05/1983 - 04/1987	1
16171 - SEAT, WATER PUMP PULLEY
16171-15020	4A,4AC..AE86	05/1983 - 04/1987	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15010	4A,4AC,4AG#..AE86	05/1983 - 07/1987	2
16210 - COUPLING ASSY, FLUID
16210-28020	4A,4AC..AE86	05/1983 - 04/1987	1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16241-15020	4A,4AC,4AG#..AE86	05/1983 - 07/1987	4
16258 - GASKET(FOR HEATER RETURN)
16258-15011	4A,4AC,4AG#..AE86	05/1983 - 07/1987	1
16271 - GASKET, WATER PUMP
16124-15010	4A,4AC,4AG#..AE86	05/1983 - 07/1987	1
16371 - PULLEY, FAN
16173-26021	4A,4AC..AE86	05/1983 - 04/1987	1
Common parts
16193-15011
90179-06070
91511-40835
92122-60614
Linked diagrams
1603

AE86L-ECMXS (1983)
