AE86L-ECMXCC (1983)

Toyota Corolla Coupe

Production Aug 1983 - Feb 1985
Engine 4AC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8305-8505)ARL,EUR,GEN

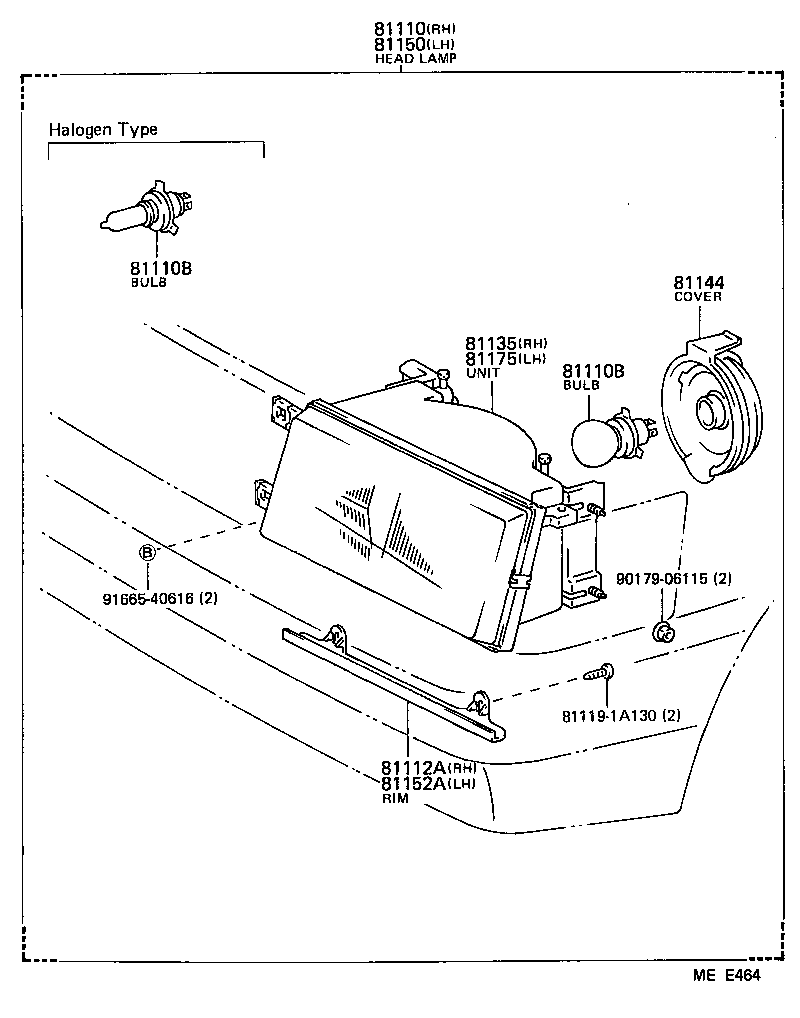

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81112A 811191A130 81135 81144 81150 81152A 81175 9017906115 9166540616
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-80331

AE86..LHD..(EUR,GEN)

HALOGEN,WHITE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AE86..ARL,EUR,GEN

12V 60/55W,*HAL *WH,HALOGEN,WHITE,12V 60/55W

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

AE86..ARL,EUR,GEN

12V 60/55W,*HAL *WH,HALOGEN,WHITE,12V 60/55W

 2
81112A - RIM, HEADLAMP, RH
81112-1A130

AE86..ARL,EUR,GEN

 1
81135 - UNIT ASSY, HEADLAMP, RH
81135-1A350

AE86..LHD..(EUR,GEN)

HALOGEN

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

AE86..ARL,EUR,GEN

 2
81150 - HEADLAMP ASSY, LH
81150-80328

AE86..LHD..(EUR,GEN)

HALOGEN,WHITE

 1
81152A - RIM, HEADLAMP, LH
81152-1A080

AE86..ARL,EUR,GEN

 1
81175 - UNIT ASSY, HEADLAMP, LH
81175-1A280

AE86..LHD..(EUR,GEN)

HALOGEN

 1
Common parts
81119-1A130
90179-06115
91665-40616
