Toyota Corolla coupe AE86 MUDGUARD & SPOILER

AE86L-ECMQF (1983)

Toyota Corolla Coupe

Production Aug 1983 - Apr 1987

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

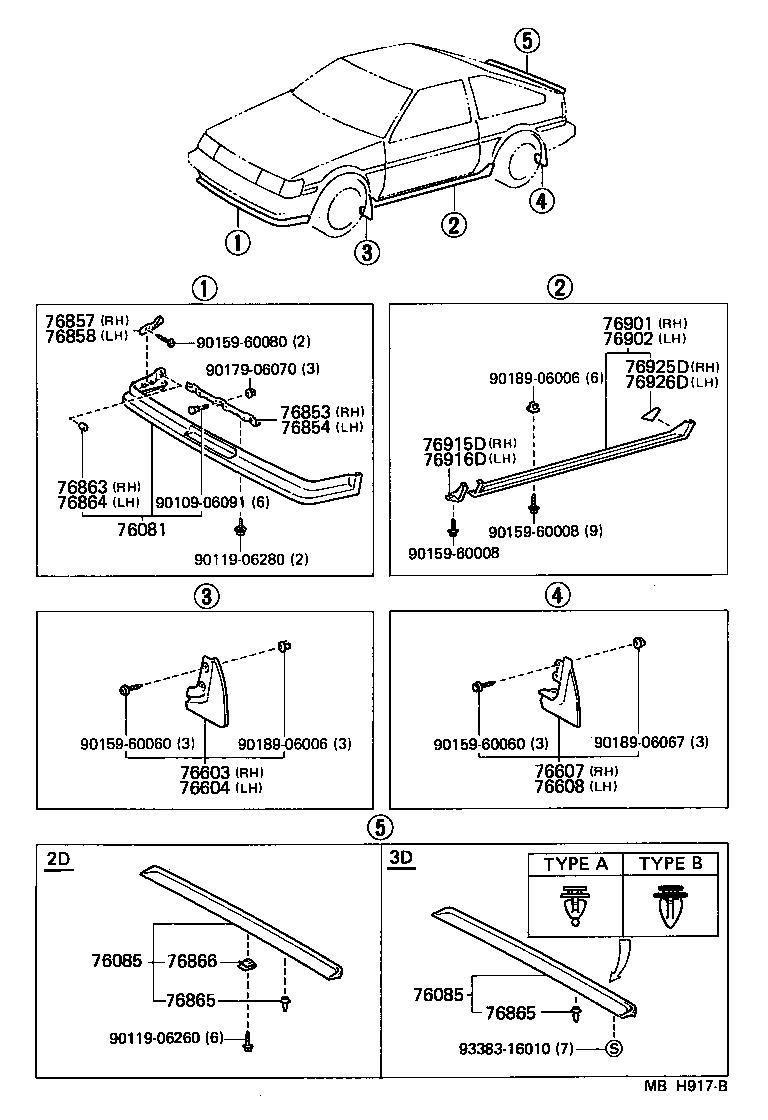

(8305-8505)

Click highlighted areas on diagram

Part #	Description	Period	Qty
76081 - SPOILER SUB-ASSY, FRONT
76081-12010	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19075	AE86	05/1983 - 05/1985	1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19075	AE86	05/1983 - 05/1985	1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19285	AE86..EUR,GEN	05/1985 - 04/1987	1
76607-19185	AE86	05/1983 - 05/1985	1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19285	AE86..EUR,GEN	05/1985 - 04/1987	1
76608-19185	AE86	05/1983 - 05/1985	1
76853 - RETAINER, FRONT SPOILER, UPPER RH
76853-12020	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76854 - RETAINER, FRONT SPOILER, UPPER LH
76854-12020	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76857 - RETAINER, FRONT SPOILER SIDE, RH
76857-12010	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76858 - RETAINER, FRONT SPOILER SIDE, LH
76858-12010	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76863 - RETAINER, FRONT SPOILER, LOWER NO.2 RH
76863-12010	AE86..EUR;AE86..GT..GEN	01/1984 - 05/1985	2
76864 - RETAINER, FRONT SPOILER, LOWER NO.2 LH
76863-12010	AE86..EUR;AE86..GT..GEN	01/1984 - 05/1985	2
76865 - RETAINER, REAR SPOILER, NO.1
76865-12020	AE86..GT..GEN;AE86..3D..(EUR,ME) TYPE A	04/1984 - 01/1985	2
76865-12040	AE86..GT..GEN;AE86..3D..(EUR,ME) TYPE B	04/1984 - 01/1985	2
76865-12020	AE86..GT..GEN;AE86..3D..(EUR,ME)	08/1983 - 04/1984	4
76865 - RETAINER, REAR SPOILER, NO.1
76865-12020	AE86..GT..GEN;AE86..3D..(EUR,ME) TYPE A	04/1984 - 01/1985	2
76865-12040	AE86..GT..GEN;AE86..3D..(EUR,ME) TYPE B	04/1984 - 01/1985	2
76865-12020	AE86..GT..GEN;AE86..3D..(EUR,ME)	08/1983 - 04/1984	4
76901 - MUDGUARD SUB-ASSY, SIDE, RH
76901-12010	AE86..GT..GEN;AE86..ARL,EUR,ME	08/1984 - 05/1985	1
76902 - MUDGUARD SUB-ASSY, SIDE, LH
76902-12010	AE86..GT..GEN;AE86..ARL,EUR,ME	08/1984 - 05/1985	1
76915D - MUDGUARD, SIDE, FRONT RH
76915-12010	AE86..GT..GEN;AE86..ARL,EUR,ME	08/1984 - 05/1985	1
76916D - MUDGUARD, SIDE, FRONT LH
76916-12010	AE86..GT..GEN;AE86..ARL,EUR,ME	08/1984 - 05/1985	1
Common parts
90109-06091
90119-06260
90119-06280
90159-60008
90159-60060
90159-60080
90179-06070
90189-06006
90189-06067
93383-16010

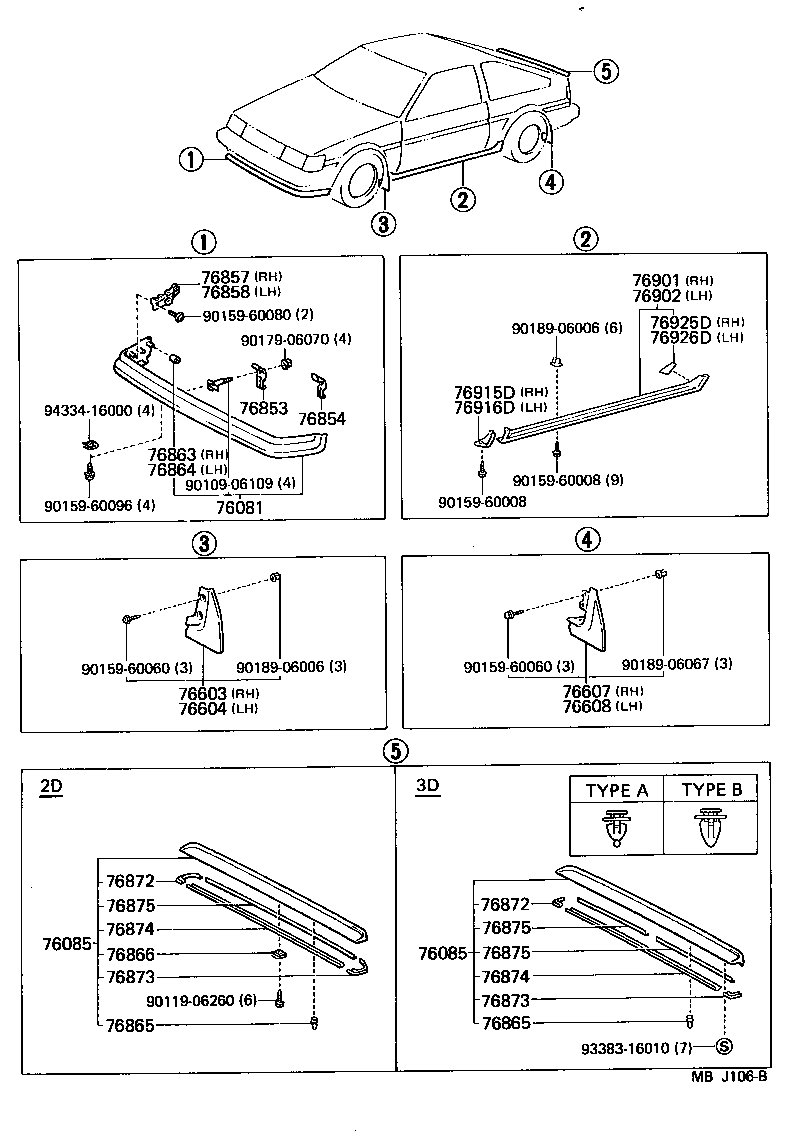

(8505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
76081 - SPOILER SUB-ASSY, FRONT
76081-12010	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19075	AE86	05/1983 - 05/1985	1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19075	AE86	05/1983 - 05/1985	1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19285	AE86..EUR,GEN	05/1985 - 04/1987	1
76607-19185	AE86	05/1983 - 05/1985	1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19285	AE86..EUR,GEN	05/1985 - 04/1987	1
76608-19185	AE86	05/1983 - 05/1985	1
76853 - RETAINER, FRONT SPOILER, UPPER RH
76853-12020	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76854 - RETAINER, FRONT SPOILER, UPPER LH
76854-12020	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76857 - RETAINER, FRONT SPOILER SIDE, RH
76857-12010	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76858 - RETAINER, FRONT SPOILER SIDE, LH
76858-12010	AE86..EUR;AE86..GT..GEN	08/1983 - 05/1985	1
76863 - RETAINER, FRONT SPOILER, LOWER NO.2 RH
76863-12010	AE86..EUR;AE86..GT..GEN	01/1984 - 05/1985	2
76864 - RETAINER, FRONT SPOILER, LOWER NO.2 LH
76863-12010	AE86..EUR;AE86..GT..GEN	01/1984 - 05/1985	2
76865 - RETAINER, REAR SPOILER, NO.1
76865-12020	AE86..GT..GEN;AE86..3D..(EUR,ME) TYPE A	04/1984 - 01/1985	2
76865-12040	AE86..GT..GEN;AE86..3D..(EUR,ME) TYPE B	04/1984 - 01/1985	2
76865-12020	AE86..GT..GEN;AE86..3D..(EUR,ME)	08/1983 - 04/1984	4
76865 - RETAINER, REAR SPOILER, NO.1
76865-12020	AE86..GT..GEN;AE86..3D..(EUR,ME) TYPE A	04/1984 - 01/1985	2
76865-12040	AE86..GT..GEN;AE86..3D..(EUR,ME) TYPE B	04/1984 - 01/1985	2
76865-12020	AE86..GT..GEN;AE86..3D..(EUR,ME)	08/1983 - 04/1984	4
76901 - MUDGUARD SUB-ASSY, SIDE, RH
76901-12010	AE86..GT..GEN;AE86..ARL,EUR,ME	08/1984 - 05/1985	1
76902 - MUDGUARD SUB-ASSY, SIDE, LH
76902-12010	AE86..GT..GEN;AE86..ARL,EUR,ME	08/1984 - 05/1985	1
76915D - MUDGUARD, SIDE, FRONT RH
76915-12010	AE86..GT..GEN;AE86..ARL,EUR,ME	08/1984 - 05/1985	1
76916D - MUDGUARD, SIDE, FRONT LH
76916-12010	AE86..GT..GEN;AE86..ARL,EUR,ME	08/1984 - 05/1985	1
Common parts
90109-06109
90119-06260
90159-60008
90159-60060
90159-60080
90159-60096
90179-06070
90189-06006
90189-06067
93383-16010
94334-16000
