Toyota Corolla 5d ZZE122 WIRING & CLAMP

ZZE122R-AHPDKQ (2001)

Toyota Corolla 5d

Production Oct 2001 - Feb 2007

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0110-0702)

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82115-12470	ZZE122 W(ABS)	10/2001 - 04/2004	1
82111-13A71	ZZE122 W(*80,DRIVER SIDE & PASSENGER SIDE)	10/2005 - 02/2007	1
82115-12480	ZZE122..CONQ	10/2001 - 04/2004	1
82111-13A60	ZZE122..CONQ	04/2004 - 09/2005	1
82111-13A61	ZZE122..CONQ	10/2005 - 02/2007	1
82111-13A70	ZZE122 W(*80,DRIVER SIDE & PASSENGER SIDE)	04/2004 - 09/2005	1
82210C - FUSIBLE LINK
90982-08246	ZZE122 100A,TERM.:MALE,BLUE	10/2001 - 04/2004	1
90982-08282	ZZE122 50A,TERM.:FEMALE,RED	10/2001 - 04/2004	1
90982-08280	ZZE122 30A,TERM.:FEMALE,PNK,YAZAKI	10/2001 - 04/2004	2
90982-08281	ZZE122 40A,TERM.:FEMALE,GRN,YAZAKI	10/2001 - 04/2004	1
90982-08284	ZZE122 40A,TERM.:FEMALE,GRN,TAIHEIYO	04/2004 - 02/2007	1
90982-08246	ZZE122 100A,TERM.:MALE,BLUE	04/2004 - 02/2007	1
90982-08284	ZZE122 40A,TERM.:FEMALE,GRN,TAIHEIYO	10/2001 - 04/2004	1
90982-08283	ZZE122 30A,TERM.:FEMALE,PNK,TAIHEIYO	04/2004 - 02/2007	1
90982-08281	ZZE122 40A,TERM.:FEMALE,GRN,YAZAKI	04/2004 - 02/2007	1
90982-08282	ZZE122 50A,TERM.:FEMALE,RED	04/2004 - 02/2007	1
90982-08283	ZZE122 30A,TERM.:FEMALE,PNK	10/2001 - 04/2004	1
90982-08280	ZZE122 30A,TERM.:FEMALE,PNK,YAZAKI	04/2004 - 02/2007	1
82824 - CONNECTOR, WIRING HARNESS
82824-12300	ZZE122	10/2005 - 02/2007	1
82824-12300	ZZE122	04/2004 - 10/2005	1
82824-12300	ZZE122	10/2001 - 04/2004	1
Common parts
90119-06390
Linked diagrams
8401

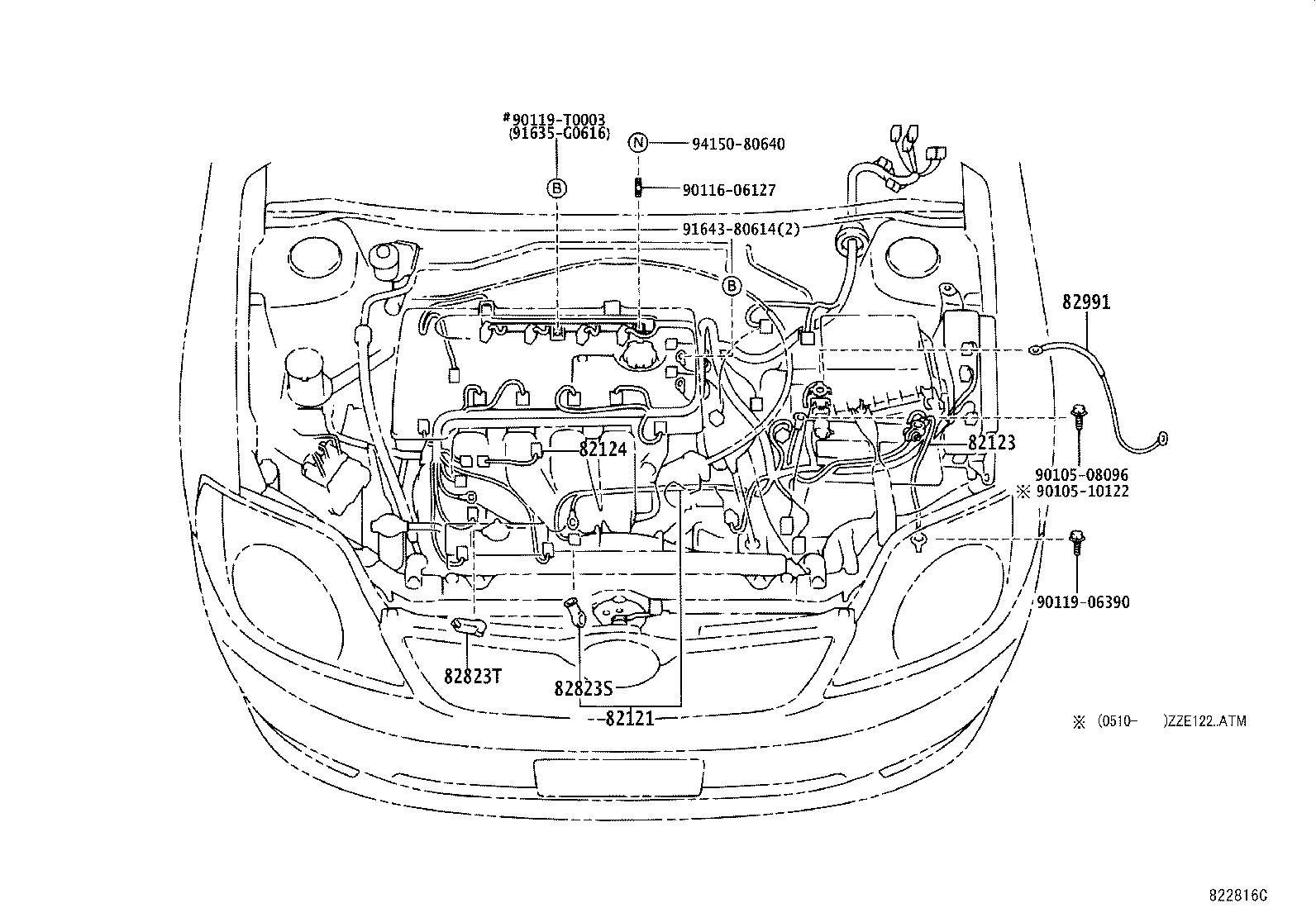

ILLUST NO. 2 OF 7(0110-0702)

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1T800	ZZE122..ATM	10/2001 - 08/2002	1
82121-12C40	ZZE122..ATM	04/2004 - 10/2005	1
82121-1T801	ZZE122..ATM	08/2002 - 04/2004	1
82121-12F00	ZZE122..ATM	10/2005 - 02/2007	1
82123 - WIRE, ENGINE, NO.3
82123-12430	ZZE122..ATM	10/2005 - 02/2007	1
82123-13040	ZZE122	10/2001 - 04/2004	1
82123-13040	ZZE122..ATM	04/2004 - 10/2005	1
82124 - WIRE, ENGINE, NO.4
82124-32050	ZZE122	04/2004 - 10/2005	1
82124-32050	ZZE122	10/2001 - 04/2004	1
82823S - CAP, STARTER TERMINAL
82823-12090	ZZE122	08/2002 - 04/2004	1
82823-12090	ZZE122	10/2005 - 02/2007	2
82823-12090	ZZE122	04/2004 - 10/2005	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	ZZE122	04/2004 - 02/2007	1
82823-22050	ZZE122	10/2001 - 04/2004	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12090	ZZE122	04/2004 - 02/2007	1
82991-12090	ZZE122	10/2001 - 04/2004	1
Common parts
90105-08096
90105-10122
90116-06127
90119-06390
90119-T0003
91635-G0616
91643-80614
94150-80640

ILLUST NO. 3 OF 7(0110-0702)

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-1T670	ZZE122 W(*80,DRIVER SIDE & PASSENGER SIDE & KEY LESS ENTRY)	10/2001 - 09/2002	1
82141-1T680	ZZE122..CONQ,LVN W(KEY LESS ENTRY)	10/2001 - 09/2002	1
82141-1T830	ZZE122 W(*80,DRIVER SIDE & PASSENGER SIDE)	10/2001 - 09/2002	1
82141-1T671	ZZE122 W(*80,DRIVER SIDE & PASSENGER SIDE & KEY LESS ENTRY)	09/2002 - 04/2004	1
82141-1T841	ZZE122..CONQ,LVN	09/2002 - 04/2004	1
82141-12W20	ZZE122..CONQ	04/2004 - 10/2005	1
82141-12U30	ZZE122..CONQ,LVN W(POWER WINDOW)	04/2004 - 10/2005	1
82141-1T840	ZZE122..CONQ,LVN	10/2001 - 09/2002	1
82141-12U41	ZZE122 W(KEY LESS ENTRY & POWER WINDOW)	10/2005 - 02/2007	1
82141-1T681	ZZE122..CONQ,LVN W(KEY LESS ENTRY)	09/2002 - 04/2004	1
82141-1T831	ZZE122 W(*80,DRIVER SIDE & PASSENGER SIDE)	09/2002 - 04/2004	1
82141-12U31	ZZE122..CONQ,LVN W(POWER WINDOW)	10/2005 - 02/2007	1
82141-12W31	ZZE122..CONQ W(KEY LESS ENTRY)	10/2005 - 02/2007	1
82141-12U40	ZZE122 W(KEY LESS ENTRY & POWER WINDOW)	04/2004 - 10/2005	1
82141-12W21	ZZE122..CONQ	10/2005 - 02/2007	1
82141-12W30	ZZE122..CONQ W(KEY LESS ENTRY)	04/2004 - 10/2005	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-12111	ZZE122..CONQ W(*80,DRIVER SIDE & PASSENGER SIDE)	09/2002 - 04/2004	1
82143-12130	ZZE122..CONQ,LVN W(*80,DRIVER SIDE ONLY)	10/2001 - 09/2002	1
82143-12131	ZZE122..CONQ,LVN W(*80,DRIVER SIDE ONLY)	09/2002 - 04/2004	1
82143-12110	ZZE122..CONQ W(*80,DRIVER SIDE & PASSENGER SIDE)	10/2001 - 09/2002	1
82144 - WIRE, INSTRUMENT PANEL, NO.4
82144-12060	ZZE122	04/2004 - 02/2007	1
82144-12060	ZZE122	10/2001 - 04/2004	1
82210C - FUSIBLE LINK
90982-08246	ZZE122 100A,TERM.:MALE,BLUE	10/2001 - 04/2004	1
90982-08282	ZZE122 50A,TERM.:FEMALE,RED	10/2001 - 04/2004	1
90982-08280	ZZE122 30A,TERM.:FEMALE,PNK,YAZAKI	10/2001 - 04/2004	2
90982-08281	ZZE122 40A,TERM.:FEMALE,GRN,YAZAKI	10/2001 - 04/2004	1
90982-08284	ZZE122 40A,TERM.:FEMALE,GRN,TAIHEIYO	04/2004 - 02/2007	1
90982-08246	ZZE122 100A,TERM.:MALE,BLUE	04/2004 - 02/2007	1
90982-08284	ZZE122 40A,TERM.:FEMALE,GRN,TAIHEIYO	10/2001 - 04/2004	1
90982-08283	ZZE122 30A,TERM.:FEMALE,PNK,TAIHEIYO	04/2004 - 02/2007	1
90982-08281	ZZE122 40A,TERM.:FEMALE,GRN,YAZAKI	04/2004 - 02/2007	1
90982-08282	ZZE122 50A,TERM.:FEMALE,RED	04/2004 - 02/2007	1
90982-08283	ZZE122 30A,TERM.:FEMALE,PNK	10/2001 - 04/2004	1
90982-08280	ZZE122 30A,TERM.:FEMALE,PNK,YAZAKI	04/2004 - 02/2007	1
82223 - WIRE, SWITCH
82223-12632	ZZE122	04/2004 - 02/2007	1
82223-12640	ZZE122	10/2001 - 08/2002	1
82223-12641	ZZE122	08/2002 - 04/2004	1
82666A - HOLDER, CONNECTOR NO.2
82666-12240	ZZE122	10/2001 - 04/2004	1
82666-12240	ZZE122	04/2004 - 10/2005	1
82666-12240	ZZE122	10/2005 - 02/2007	1
82666B - HOLDER, CONNECTOR NO.3
82666-12250	ZZE122	04/2004 - 10/2005	1
82666-12250	ZZE122	10/2001 - 04/2004	1
82666-12250	ZZE122	10/2005 - 02/2007	1
82666C - HOLDER, CONNECTOR NO.4
82666-02070	ZZE122	04/2004 - 02/2007	2
82666-02070	ZZE122	10/2001 - 04/2004	2
82666C - HOLDER, CONNECTOR NO.4
82666-02070	ZZE122	04/2004 - 02/2007	2
82666-02070	ZZE122	10/2001 - 04/2004	2
82666D - HOLDER, CONNECTOR NO.5
82666-12290	ZZE122	04/2004 - 10/2005	1
82666-12290	ZZE122	10/2005 - 02/2007	1
82666-12290	ZZE122	10/2001 - 04/2004	1
82666E - HOLDER, CONNECTOR NO.6
82666-02110	ZZE122	10/2001 - 04/2004	1
82666-02110	ZZE122	04/2004 - 02/2007	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A830	ZZE122 LH	10/2001 - 04/2004	1
82817-1A761	ZZE122 RH	10/2001 - 04/2004	1
82817-1A761	ZZE122 RH	04/2004 - 02/2007	1
82817-1A830	ZZE122 LH	04/2004 - 02/2007	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A830	ZZE122 LH	10/2001 - 04/2004	1
82817-1A761	ZZE122 RH	10/2001 - 04/2004	1
82817-1A761	ZZE122 RH	04/2004 - 02/2007	1
82817-1A830	ZZE122 LH	04/2004 - 02/2007	1
Common parts
90119-06915
90159-50295
90159-70003
Linked diagrams
8401

ILLUST NO. 4 OF 7(0110-0404)

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-12A50	ZZE122..CONQ	04/2004 - 02/2007	1
82151-12A90	ZZE122 W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 02/2007	1
82151-1E310	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR)	03/2003 - 10/2003	1
82151-1E200	ZZE122..CONQ W(POWER DOOR LOCK)	04/2004 - 02/2007	1
82151-1E360	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	10/2001 - 10/2003	1
82151-1E200	ZZE122..CONQ W(POWER DOOR LOCK)	10/2001 - 10/2003	1
82151-12A60	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR)	04/2004 - 02/2007	1
82151-1E190	ZZE122..CONQ	10/2001 - 04/2004	1
82152 - WIRE, FRONT DOOR, LH
82152-1A810	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW)	03/2003 - 10/2003	1
82152-12A60	ZZE122 W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR)	04/2004 - 09/2006	1
82152-1A750	ZZE122..CONQ W(ELECTRIC RETRACTABLE MIRROR & POWER DOOR LOCK & POWER WINDOW)	10/2001 - 10/2003	1
82151-1E190	ZZE122..CONQ	10/2001 - 04/2004	1
82152-12A40	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 02/2007	1
82152-1A740	ZZE122..CONQ W(POWER DOOR LOCK & TWEETER SPEAKER)	10/2001 - 10/2003	1
82152-1A740	ZZE122..CONQ W(POWER DOOR LOCK)	04/2004 - 02/2007	1
82151-12A50	ZZE122..CONQ	04/2004 - 02/2007	1
82153 - WIRE, REAR DOOR, NO.1
82153-12380	ZZE122..CONQ W(POWER DOOR LOCK & REAR SPEAKER)	10/2001 - 10/2003	1
82153-12400	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 07/2004	1
82153-12400	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER)	03/2003 - 10/2003	1
82153-12380	ZZE122..CONQ W(POWER DOOR LOCK)	04/2004 - 02/2007	1
82153-12440	ZZE122 W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 09/2006	1
82153-12370	ZZE122..CONQ	04/2004 - 02/2007	1
82153-12370	ZZE122..CONQ	10/2001 - 04/2004	1
82154 - WIRE, REAR DOOR, NO.2
82153-12400	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER)	03/2003 - 10/2003	1
82153-12370	ZZE122..CONQ	04/2004 - 02/2007	1
82153-12380	ZZE122..CONQ W(POWER DOOR LOCK & REAR SPEAKER)	10/2001 - 10/2003	1
82154-12440	ZZE122 W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 09/2006	1
82153-12400	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 07/2004	1
82153-12370	ZZE122..CONQ	10/2001 - 04/2004	1
82153-12380	ZZE122..CONQ W(POWER DOOR LOCK)	04/2004 - 02/2007	1
82161 - WIRE, FLOOR
82161-1N371	ZZE122 W(ABS)	10/2001 - 04/2004	1
82161-1N401	ZZE122..CONQ	02/2003 - 04/2004	1
82161-13C10	ZZE122..CONQ,LVN	04/2004 - 02/2007	1
82161-13A90	ZZE122..CONQ NEW ZEALAND SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE)	12/2004 - 02/2007	1
82161-1N400	ZZE122..CONQ	10/2001 - 02/2003	1
82161-13C20	ZZE122..CONQ W(*80,DRIVER SIDE & PASSENGER SIDE)	04/2004 - 02/2007	1
82171 - WIRE, ROOF, NO.1
82171-12890	ZZE122 W(KEY LESS ENTRY)	10/2001 - 04/2004	1
82171-12890	ZZE122 W(KEY LESS ENTRY)	04/2004 - 02/2007	1
82171-12860	ZZE122	10/2001 - 04/2004	1
82171-12B40	ZZE122 NEW ZEALAND SPEC	12/2004 - 02/2007	1
82171-12B50	ZZE122 NEW ZEALAND SPEC & W(KEY LESS ENTRY)	12/2004 - 02/2007	1
82171-12860	ZZE122	04/2004 - 02/2007	1
82184 - WIRE, BACK DOOR, NO.1
82184-12560	ZZE122	04/2004 - 05/2004	1
82184-12520	ZZE122 W(REAR SPOILER)	10/2001 - 04/2004	1
82184-12510	ZZE122	10/2001 - 04/2004	1
82184-12561	ZZE122	05/2004 - 02/2007	1
82184-12570	ZZE122 W(REAR SPOILER)	04/2004 - 02/2007	1
82185 - WIRE, BACK DOOR, NO.2
82185-12670	ZZE122	04/2004 - 02/2007	1
82185-12630	ZZE122	10/2001 - 04/2004	1
82666L - HOLDER, CONNECTOR NO.9
82666-12330	ZZE122 (J)	10/2001 - 04/2004	1
82666-02120	ZZE122	04/2004 - 02/2007	1
82666-02120	ZZE122 (L)	10/2001 - 04/2004	1
82666-02120	ZZE122..CONQ	10/2001 - 04/2004	1
Common parts
90119-06915
Linked diagrams
5804

ILLUST NO. 5 OF 7(0110-0702)

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-30370
82711-35470
82711-3F040
82711-3F230
82715-12420
82715-12610
82715-12700
82715-12710
82715-12720
82715-12800
82715-13150
82715-32390
82715-42550
82715-42560
82715-42580
82729-20010
87616-22010
90105-08096
91512-B1016
91611-B0816
91621-J0612
91651-60612
91651-B0618

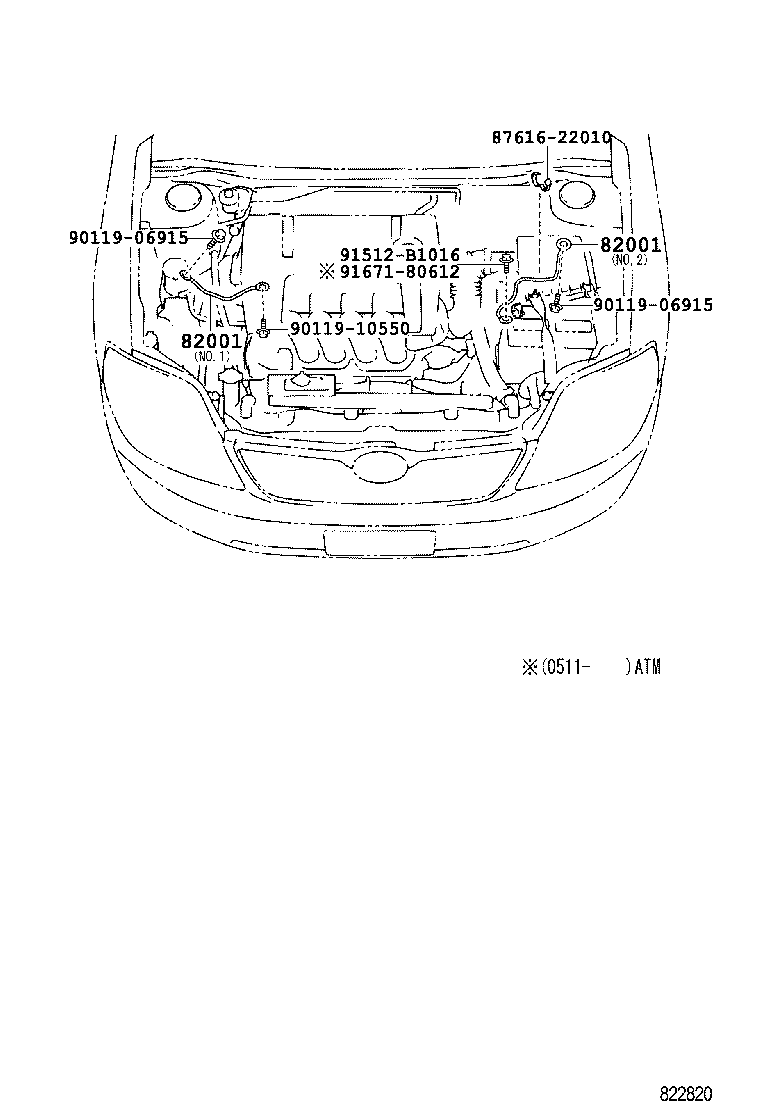

ILLUST NO. 6 OF 7(0110-0702)

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07407	ZZE122 NO.2	10/2001 - 12/2001	1
90980-07109	ZZE122 NO.1	10/2001 - 04/2004	1
90080-82049	ZZE122 NO.2,(L)	12/2001 - 04/2004	1
90980-07407	ZZE122..ATM NO.2	04/2004 - 10/2005	1
90980-07411	ZZE122..ATM NO.2	10/2005 - 02/2007	1
90980-07109	ZZE122 NO.1	04/2004 - 02/2007	1
90980-07407	ZZE122 NO.2,(J)	12/2001 - 04/2004	1
82001 - CABLE, BOND, NO.1
90980-07407	ZZE122 NO.2	10/2001 - 12/2001	1
90980-07109	ZZE122 NO.1	10/2001 - 04/2004	1
90080-82049	ZZE122 NO.2,(L)	12/2001 - 04/2004	1
90980-07407	ZZE122..ATM NO.2	04/2004 - 10/2005	1
90980-07411	ZZE122..ATM NO.2	10/2005 - 02/2007	1
90980-07109	ZZE122 NO.1	04/2004 - 02/2007	1
90980-07407	ZZE122 NO.2,(J)	12/2001 - 04/2004	1
Common parts
87616-22010
90119-06915
90119-10550
91512-B1016
91671-80612

ILLUST NO. 4 OF 7(0404-0702)

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-12A50	ZZE122..CONQ	04/2004 - 02/2007	1
82151-12A90	ZZE122 W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 02/2007	1
82151-1E310	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR)	03/2003 - 10/2003	1
82151-1E200	ZZE122..CONQ W(POWER DOOR LOCK)	04/2004 - 02/2007	1
82151-1E360	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	10/2001 - 10/2003	1
82151-1E200	ZZE122..CONQ W(POWER DOOR LOCK)	10/2001 - 10/2003	1
82151-12A60	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR)	04/2004 - 02/2007	1
82151-1E190	ZZE122..CONQ	10/2001 - 04/2004	1
82152 - WIRE, FRONT DOOR, LH
82152-1A810	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW)	03/2003 - 10/2003	1
82152-12A60	ZZE122 W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR)	04/2004 - 09/2006	1
82152-1A750	ZZE122..CONQ W(ELECTRIC RETRACTABLE MIRROR & POWER DOOR LOCK & POWER WINDOW)	10/2001 - 10/2003	1
82151-1E190	ZZE122..CONQ	10/2001 - 04/2004	1
82152-12A40	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 02/2007	1
82152-1A740	ZZE122..CONQ W(POWER DOOR LOCK & TWEETER SPEAKER)	10/2001 - 10/2003	1
82152-1A740	ZZE122..CONQ W(POWER DOOR LOCK)	04/2004 - 02/2007	1
82151-12A50	ZZE122..CONQ	04/2004 - 02/2007	1
82153 - WIRE, REAR DOOR, NO.1
82153-12380	ZZE122..CONQ W(POWER DOOR LOCK & REAR SPEAKER)	10/2001 - 10/2003	1
82153-12400	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 07/2004	1
82153-12400	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER)	03/2003 - 10/2003	1
82153-12380	ZZE122..CONQ W(POWER DOOR LOCK)	04/2004 - 02/2007	1
82153-12440	ZZE122 W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 09/2006	1
82153-12370	ZZE122..CONQ	04/2004 - 02/2007	1
82153-12370	ZZE122..CONQ	10/2001 - 04/2004	1
82154 - WIRE, REAR DOOR, NO.2
82153-12400	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER)	03/2003 - 10/2003	1
82153-12370	ZZE122..CONQ	04/2004 - 02/2007	1
82153-12380	ZZE122..CONQ W(POWER DOOR LOCK & REAR SPEAKER)	10/2001 - 10/2003	1
82154-12440	ZZE122 W(POWER DOOR LOCK & POWER WINDOW=FRONT & REAR);W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 09/2006	1
82153-12400	ZZE122..CONQ W(POWER DOOR LOCK & POWER WINDOW=FRONT ONLY)	04/2004 - 07/2004	1
82153-12370	ZZE122..CONQ	10/2001 - 04/2004	1
82153-12380	ZZE122..CONQ W(POWER DOOR LOCK)	04/2004 - 02/2007	1
82161 - WIRE, FLOOR
82161-1N371	ZZE122 W(ABS)	10/2001 - 04/2004	1
82161-1N401	ZZE122..CONQ	02/2003 - 04/2004	1
82161-13C10	ZZE122..CONQ,LVN	04/2004 - 02/2007	1
82161-13A90	ZZE122..CONQ NEW ZEALAND SPEC & W(*80,DRIVER SIDE & PASSENGER SIDE)	12/2004 - 02/2007	1
82161-1N400	ZZE122..CONQ	10/2001 - 02/2003	1
82161-13C20	ZZE122..CONQ W(*80,DRIVER SIDE & PASSENGER SIDE)	04/2004 - 02/2007	1
82171 - WIRE, ROOF, NO.1
82171-12890	ZZE122 W(KEY LESS ENTRY)	10/2001 - 04/2004	1
82171-12890	ZZE122 W(KEY LESS ENTRY)	04/2004 - 02/2007	1
82171-12860	ZZE122	10/2001 - 04/2004	1
82171-12B40	ZZE122 NEW ZEALAND SPEC	12/2004 - 02/2007	1
82171-12B50	ZZE122 NEW ZEALAND SPEC & W(KEY LESS ENTRY)	12/2004 - 02/2007	1
82171-12860	ZZE122	04/2004 - 02/2007	1
82184 - WIRE, BACK DOOR, NO.1
82184-12560	ZZE122	04/2004 - 05/2004	1
82184-12520	ZZE122 W(REAR SPOILER)	10/2001 - 04/2004	1
82184-12510	ZZE122	10/2001 - 04/2004	1
82184-12561	ZZE122	05/2004 - 02/2007	1
82184-12570	ZZE122 W(REAR SPOILER)	04/2004 - 02/2007	1
82185 - WIRE, BACK DOOR, NO.2
82185-12670	ZZE122	04/2004 - 02/2007	1
82185-12630	ZZE122	10/2001 - 04/2004	1
82666L - HOLDER, CONNECTOR NO.9
82666-12330	ZZE122 (J)	10/2001 - 04/2004	1
82666-02120	ZZE122	04/2004 - 02/2007	1
82666-02120	ZZE122 (L)	10/2001 - 04/2004	1
82666-02120	ZZE122..CONQ	10/2001 - 04/2004	1
Common parts
90119-06915
Linked diagrams
5804

ILLUST NO. 7 OF 7(0404-0702)

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
82824-60460
90080-98001
90980-10481
90980-10619
90980-11016
90980-11019
90980-11148
90980-11156
90980-11162
90980-11659
90980-11660

ZZE122R-AHPDKQ (2001)

ILLUST NO. 1 OF 7(0110-0702)

ILLUST NO. 2 OF 7(0110-0702)

ILLUST NO. 3 OF 7(0110-0702)

ILLUST NO. 4 OF 7(0110-0404)

ILLUST NO. 5 OF 7(0110-0702)

ILLUST NO. 6 OF 7(0110-0702)

ILLUST NO. 4 OF 7(0404-0702)

ILLUST NO. 7 OF 7(0404-0702)

Part Price Details
