Toyota Corolla 5d ZZE122 REAR BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
COROLLA 5D
ZZE122R-AHPDKQ (2001)
5202 - REAR BUMPER & BUMPER STAY

ZZE122R-AHPDKQ (2001)

Toyota Corolla 5d

Production Oct 2001 - Feb 2007

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

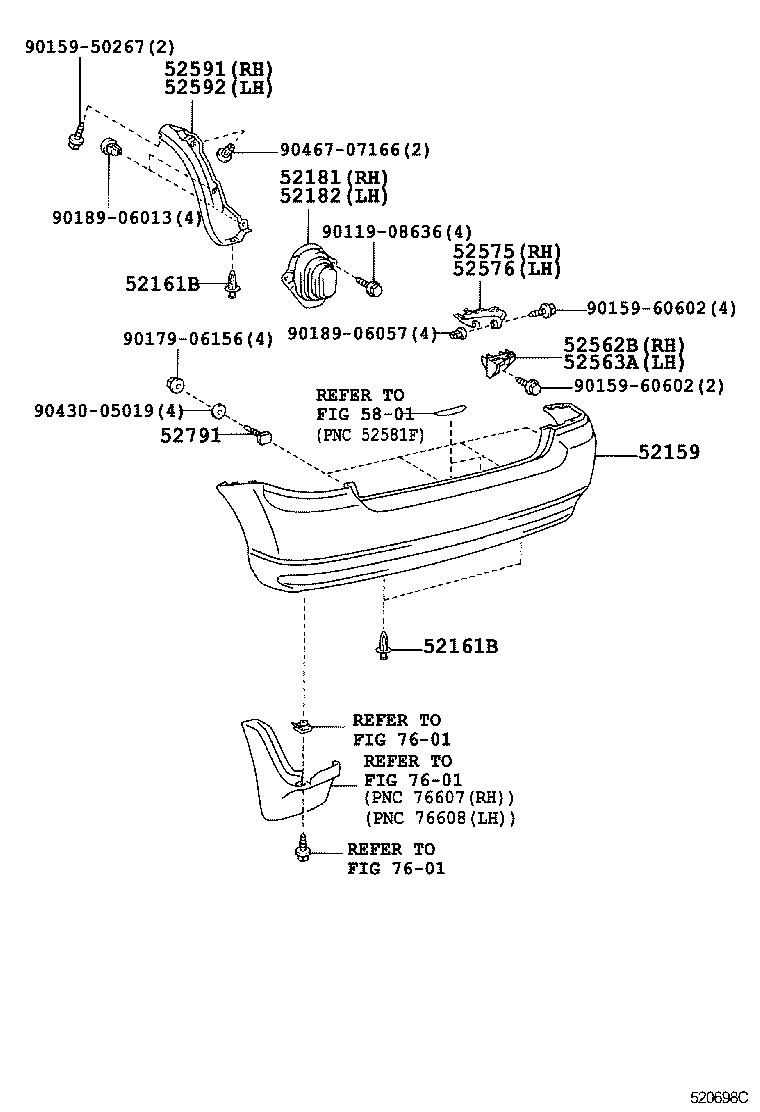

(0110-0702)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-13906	ZZE122	10/2001 - 01/2004	1
52159-13906	ZZE122	01/2004 - 04/2004	1
52159-13906	ZZE122	04/2004 - 02/2007	1
52159-13913	ZZE122 NEWZEALAND SPEC	11/2004 - 02/2007	1
52161B - PIECE, REAR BUMPER
90467-09093	ZZE122	10/2001 - 04/2004	4
52161-16010	ZZE122	04/2004 - 02/2007	4
52161B - PIECE, REAR BUMPER
90467-09093	ZZE122	10/2001 - 04/2004	4
52161-16010	ZZE122	04/2004 - 02/2007	4
52181 - ARM, REAR BUMPER, RH
52181-13120	ZZE122	10/2001 - 04/2004	1
52181-13120	ZZE122	04/2004 - 02/2007	1
52182 - ARM, REAR BUMPER, LH
52181-13120	ZZE122	04/2004 - 02/2007	1
52181-13120	ZZE122	10/2001 - 04/2004	1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-13030	ZZE122	04/2004 - 02/2007	1
52562-13030	ZZE122	10/2001 - 04/2004	1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-13020	ZZE122	04/2004 - 02/2007	1
52563-13020	ZZE122	10/2001 - 04/2004	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13030	ZZE122	10/2001 - 04/2004	1
52575-13030	ZZE122	04/2004 - 02/2007	1
52575-13050	ZZE122 NEWZEALAND SPEC	11/2004 - 02/2007	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13030	ZZE122	10/2001 - 04/2004	1
52576-13050	ZZE122 NEWZEALAND SPEC	11/2004 - 02/2007	1
52576-13030	ZZE122	04/2004 - 02/2007	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-13040	ZZE122	04/2004 - 02/2007	1
52591-13040	ZZE122	10/2001 - 04/2004	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-13040	ZZE122	10/2001 - 04/2004	1
52592-13040	ZZE122	04/2004 - 02/2007	1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	ZZE122	10/2001 - 04/2004	4
52791-12040	ZZE122	04/2004 - 02/2007	4
Common parts
90119-08636
90159-50267
90159-60602
90179-06156
90189-06013
90189-06057
90430-05019
90467-07166
Linked diagrams
5801
7601

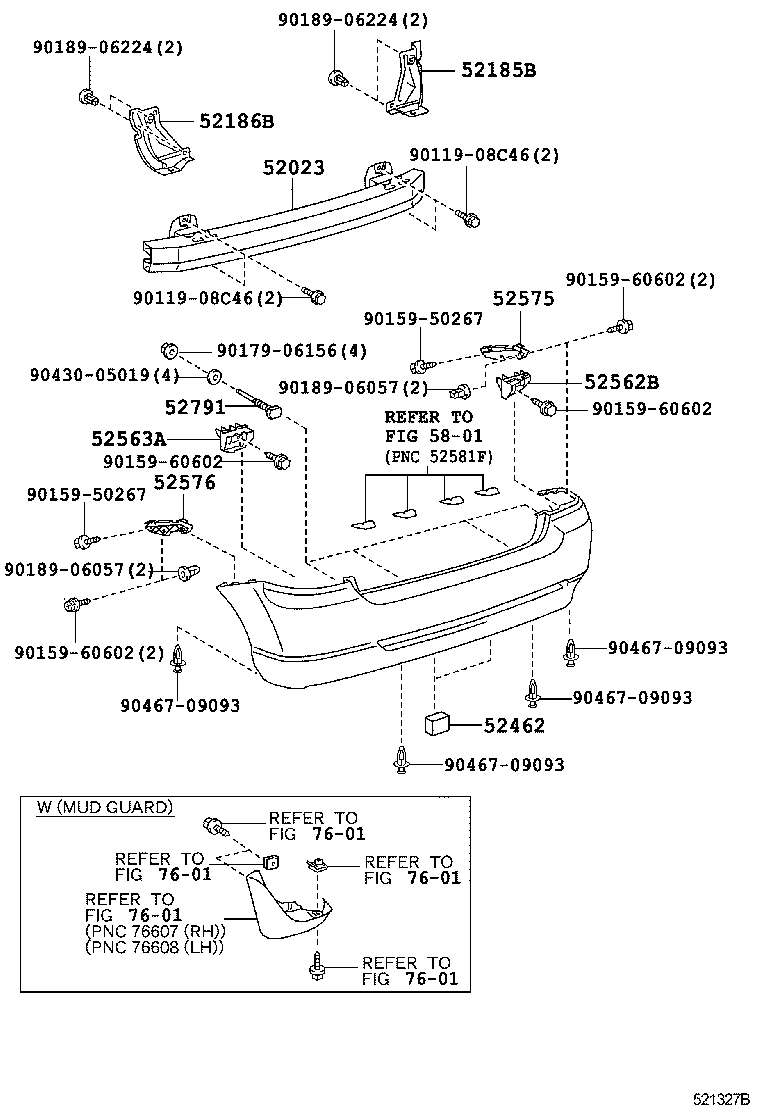

(0411-0702)

Click highlighted areas on diagram

NEWZEALAND SPEC

Part #	Description	Period	Qty
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-12210	ZZE122	11/2004 - 02/2007	1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-13080	ZZE122	11/2004 - 02/2007	1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-13040	ZZE122	11/2004 - 02/2007	1
52462 - PAD, REAR BUMPER, RH
52462-13020	ZZE122	11/2004 - 02/2007	2
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-13030	ZZE122	04/2004 - 02/2007	1
52562-13030	ZZE122	10/2001 - 04/2004	1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-13020	ZZE122	04/2004 - 02/2007	1
52563-13020	ZZE122	10/2001 - 04/2004	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13030	ZZE122	10/2001 - 04/2004	1
52575-13030	ZZE122	04/2004 - 02/2007	1
52575-13050	ZZE122 NEWZEALAND SPEC	11/2004 - 02/2007	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13030	ZZE122	10/2001 - 04/2004	1
52576-13050	ZZE122 NEWZEALAND SPEC	11/2004 - 02/2007	1
52576-13030	ZZE122	04/2004 - 02/2007	1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	ZZE122	10/2001 - 04/2004	4
52791-12040	ZZE122	04/2004 - 02/2007	4
Common parts
90119-08C46
90159-50267
90159-60602
90179-06156
90189-06057
90189-06224
90430-05019
90467-09093
Linked diagrams
5801
7601

ZZE122R-AHPDKQ (2001)

(0110-0702)

(0411-0702)
