Toyota Corolla 5d ZZE122 FRONT STEERING GEAR & LINK

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-20261	ZZE122	04/2004 - 10/2005	1
04445-12170	ZZE122	10/2001 - 04/2004	1
04445-13010	ZZE122	10/2005 - 02/2007	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-20171	ZZE122	04/2004 - 10/2005	1
04455-20171	ZZE122	11/2001 - 04/2004	1
04455-12220	ZZE122	10/2001 - 11/2001	1
04455-44010	ZZE122	10/2005 - 02/2007	1

Part #	Description	Period	Qty
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44200-13021	ZZE122	10/2005 - 02/2007	1
44200-12750	ZZE122	10/2001 - 04/2004	1
44200-12750	ZZE122	04/2004 - 10/2005	1
44275L - WIRE, BOOT
90580-14073	ZZE122	10/2001 - 04/2004	2
90580-14073	ZZE122	04/2004 - 10/2005	2
90460-55016	ZZE122	10/2005 - 02/2007	2
44275L - WIRE, BOOT
90580-14073	ZZE122	10/2001 - 04/2004	2
90580-14073	ZZE122	04/2004 - 10/2005	2
90460-55016	ZZE122	10/2005 - 02/2007	2
45046 - END SUB-ASSY, TIE ROD, RH
45046-49115	ZZE122	04/2004 - 02/2007	1
45046-49115	ZZE122	10/2001 - 04/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	ZZE122	04/2004 - 02/2007	2
90171-12028	ZZE122	10/2001 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	ZZE122	04/2004 - 02/2007	2
90171-12028	ZZE122	10/2001 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	ZZE122	04/2004 - 02/2007	2
90171-12028	ZZE122	10/2001 - 04/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028	ZZE122	04/2004 - 02/2007	2
90171-12028	ZZE122	10/2001 - 04/2004	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49045	ZZE122	10/2001 - 04/2004	1
45047-49045	ZZE122	04/2004 - 02/2007	1
45503 - END SUB-ASSY, STEERING RACK
45503-19255	ZZE122	10/2001 - 04/2004	2
45503-19255	ZZE122	04/2004 - 02/2007	2
45503 - END SUB-ASSY, STEERING RACK
45503-19255	ZZE122	10/2001 - 04/2004	2
45503-19255	ZZE122	04/2004 - 02/2007	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	ZZE122 OD=35.2	04/2004 - 02/2007	2
90214-14009	ZZE122 OD=35.2	10/2001 - 04/2004	2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14009	ZZE122 OD=35.2	04/2004 - 02/2007	2
90214-14009	ZZE122 OD=35.2	10/2001 - 04/2004	2
45535 - BOOT, STEERING RACK, NO.1
45535-32070	ZZE122	04/2004 - 10/2005	1
45535-32070	ZZE122	10/2001 - 04/2004	1
45535-13010	ZZE122	10/2005 - 02/2007	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	ZZE122	10/2001 - 04/2004	2
90467-19019	ZZE122	04/2004 - 02/2007	2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019	ZZE122	10/2001 - 04/2004	2
90467-19019	ZZE122	04/2004 - 02/2007	2
45536 - BOOT, STEERING RACK, NO.2
45535-13010	ZZE122	10/2005 - 02/2007	1
45535-32070	ZZE122	10/2001 - 04/2004	1
45535-32070	ZZE122	04/2004 - 10/2005	1
Common parts
90119-12379
90170-14012
95381-03020

ZZE122R-AHPDKQ (2001)

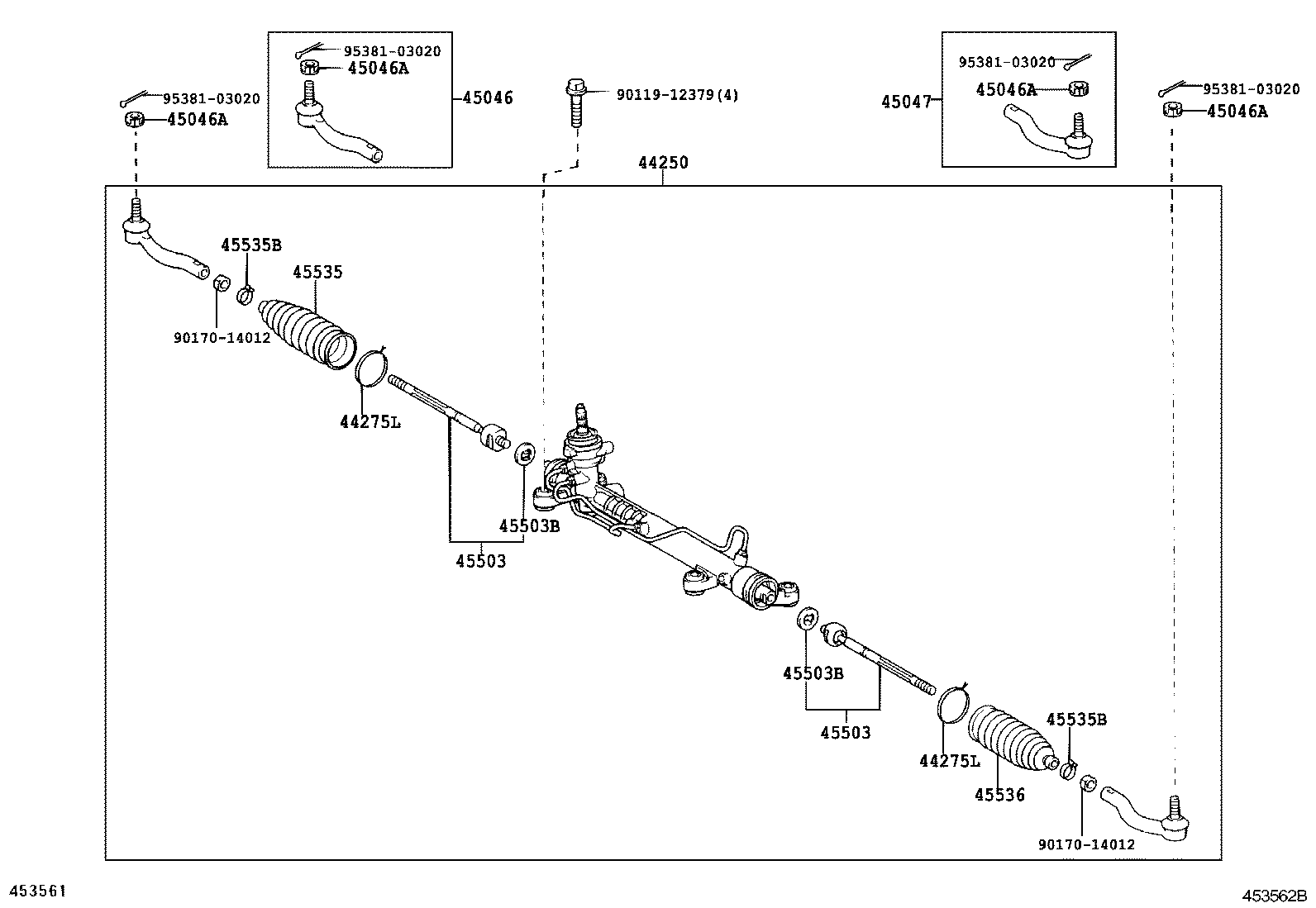

ILLUST NO. 2 OF 2(0110- )

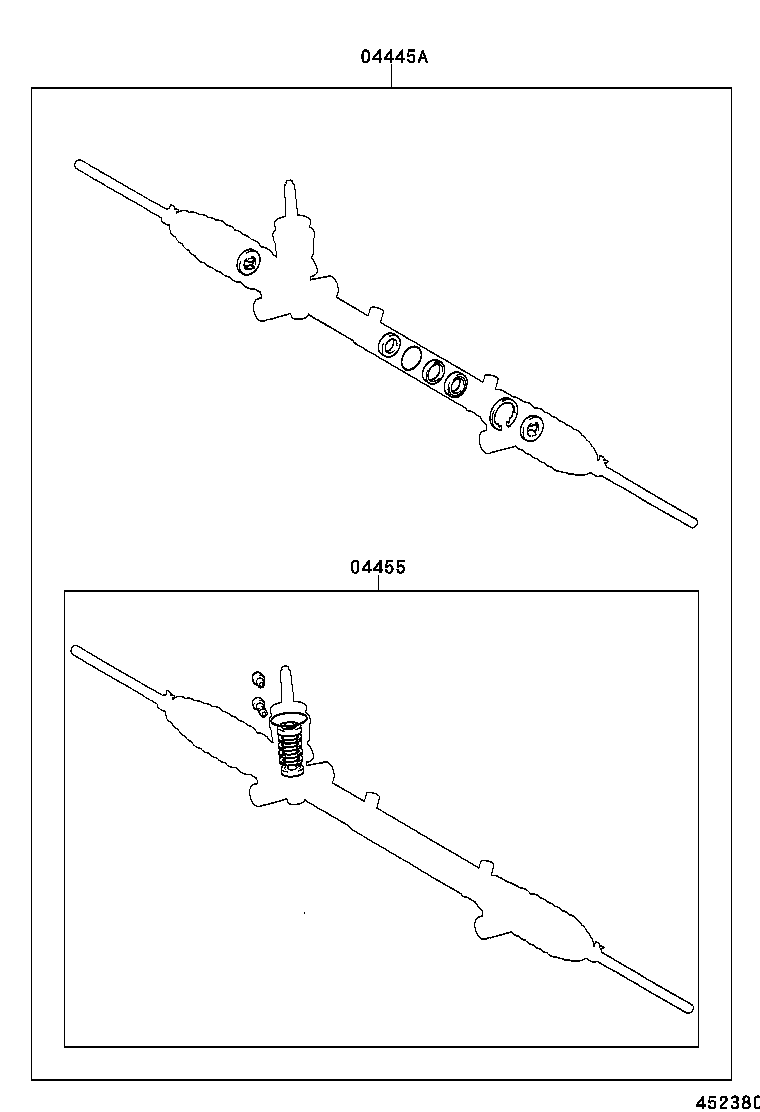

ILLUST NO. 1 OF 2(0110- )
