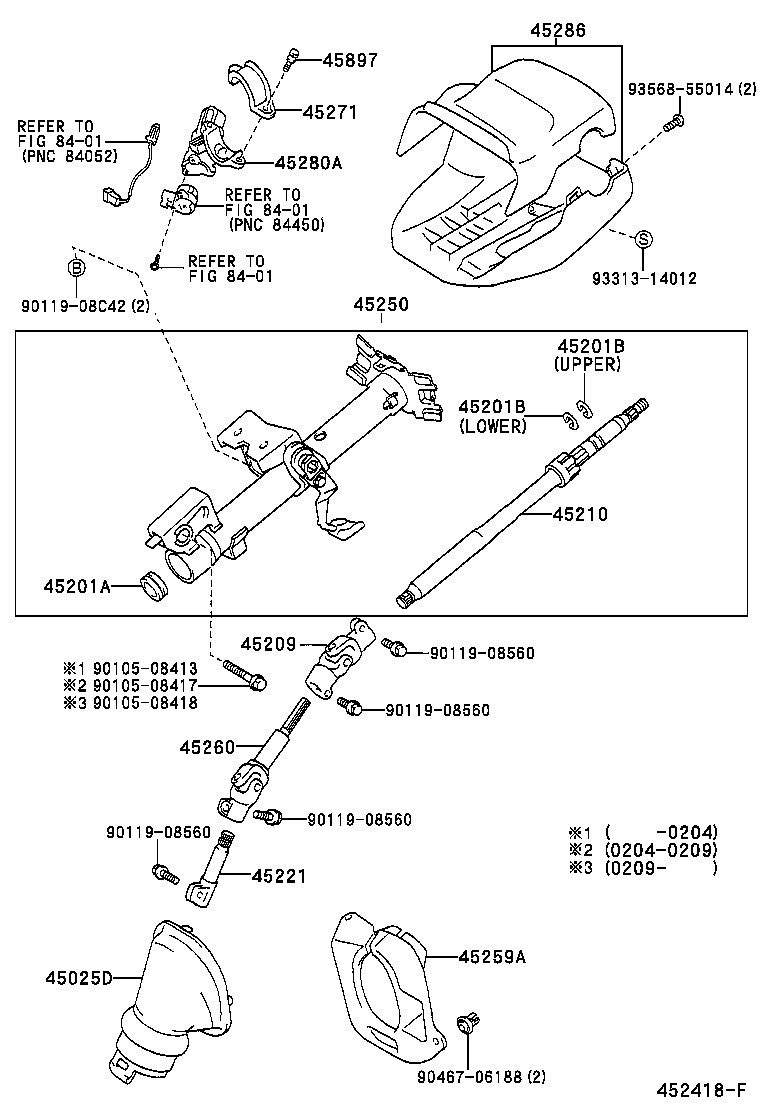

Toyota Corolla 5d ZZE122 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-13020	ZZE122	10/2005 - 02/2007	1
45025-12230	ZZE122	04/2004 - 10/2005	1
45025-12230	ZZE122	10/2001 - 04/2004	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-42010	ZZE122	10/2001 - 04/2004	1
45274-42010	ZZE122	04/2004 - 02/2007	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	ZZE122 T=1.20,LOWER	10/2001 - 04/2004	1
90520-17042	ZZE122 T=1.20,LOWER	04/2004 - 02/2007	1
90520-17269	ZZE122 T=1.20,UPPER	10/2001 - 04/2004	1
90520-17269	ZZE122 T=1.20,UPPER	04/2004 - 02/2007	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	ZZE122 T=1.20,LOWER	10/2001 - 04/2004	1
90520-17042	ZZE122 T=1.20,LOWER	04/2004 - 02/2007	1
90520-17269	ZZE122 T=1.20,UPPER	10/2001 - 04/2004	1
90520-17269	ZZE122 T=1.20,UPPER	04/2004 - 02/2007	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-12150	ZZE122	04/2004 - 09/2005	1
45209-12150	ZZE122	10/2001 - 04/2004	1
45209-12151	ZZE122	10/2005 - 02/2007	1
45210 - SHAFT ASSY, STEERING MAIN
45210-42020	ZZE122	04/2004 - 02/2007	1
45210-42020	ZZE122	10/2001 - 04/2004	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12291	ZZE122	10/2001 - 04/2004	1
45221-12291	ZZE122	04/2004 - 02/2007	1
45250 - COLUMN ASSY, STEERING
45250-1E200	ZZE122	10/2001 - 04/2004	1
45250-1E200	ZZE122	04/2004 - 02/2007	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12010	ZZE122	10/2001 - 04/2004	1
45259-12010	ZZE122	04/2004 - 02/2007	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-12460	ZZE122	10/2001 - 04/2004	1
45260-12461	ZZE122	04/2004 - 02/2007	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	ZZE122	04/2004 - 02/2007	1
45271-16020	ZZE122	10/2001 - 04/2004	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-52030	ZZE122..ATM	10/2001 - 04/2004	1
45280-52030	ZZE122..ATM	04/2004 - 02/2007	1
45286 - COVER, STEERING COLUMN
45286-12968B2	ZZE122..CONQ,LVN DK.GRAY,TRIM1#	04/2004 - 02/2007	1
45286-12968B2	ZZE122..CONQ,LVN DK.GRAY,TRIM1#	10/2001 - 11/2003	1
45286-12968	ZZE122	11/2003 - 12/2003	1
45897 - BOLT, STEERING LOCK SET
45897-12020	ZZE122	10/2001 - 04/2004	2
45897-12020	ZZE122	04/2004 - 02/2007	2
Common parts
90105-08413
90105-08417
90105-08418
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
Linked diagrams
8401

ZZE122R-AHPDKQ (2001)

(0110- )
