Toyota Corolla 5d ZZE122 DISC WHEEL & WHEEL CAP

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-1A480	ZZE122..CONQ,LVN 15X6JJ, #,TYPE E:REFER ILLUST.	10/2001 - 04/2004	4
42611-1A510	ZZE122..CONQ 15X6JJ, #,TYPE D:REFER ILLUST.	03/2003 - 04/2004	4
42611-1A450	ZZE122..CONQ 14X5.5JJ, #,TYPE B:REFER ILLUST.	10/2001 - 03/2003	4
42611-1A460	ZZE122..CONQ 14X5.5JJ,TYPE C:REFER ILLUST.	10/2001 - 03/2003	4
42611-1A480	ZZE122..CONQ,LVN 15X6JJ, #,TYPE E:REFER ILLUST.	04/2004 - 02/2007	4
42611-1A510	ZZE122..CONQ,LVN 15X6JJ, #,TYPE D:REFER ILLUST.	04/2004 - 02/2007	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A510	ZZE122..CONQ,LVN 15X6JJ, #,TYPE D:REFER ILLUST.	04/2004 - 02/2007	1
42611-1A460	ZZE122..CONQ 14X5.5JJ,TYPE C:REFER ILLUST.	10/2001 - 03/2003	1
42611-1A480	ZZE122..CONQ,LVN 15X6JJ, #,TYPE E:REFER ILLUST.	10/2001 - 04/2004	1
42611-1A450	ZZE122..CONQ 14X5.5JJ, #,TYPE B:REFER ILLUST.	10/2001 - 03/2003	1
42611-1A510	ZZE122..CONQ 15X6JJ, #,TYPE D:REFER ILLUST.	03/2003 - 04/2004	1
42611-1A480	ZZE122..CONQ,LVN 15X6JJ, #,TYPE E:REFER ILLUST.	04/2004 - 02/2007	1
42601C - NUT, HUB (FOR AXLE)
90942-01058	ZZE122 TYPE D:REFER ILLUST.	04/2004 - 02/2007	16
90942-01058	ZZE122..CONQ TYPE B:REFER ILLUST.	03/2003 - 04/2004	16
90942-01082	ZZE122..CONQ,LVN TYPE C:REFER ILLUST.	10/2001 - 04/2004	16
90942-01007	ZZE122..CONQ TYPE A:REFER ILLUST.	10/2001 - 03/2003	16
90942-01082	ZZE122..CONQ,LVN TYPE C:REFER ILLUST.	04/2004 - 02/2007	16
42601C - NUT, HUB (FOR AXLE)
90942-01058	ZZE122 TYPE D:REFER ILLUST.	04/2004 - 02/2007	16
90942-01058	ZZE122..CONQ TYPE B:REFER ILLUST.	03/2003 - 04/2004	16
90942-01082	ZZE122..CONQ,LVN TYPE C:REFER ILLUST.	10/2001 - 04/2004	16
90942-01007	ZZE122..CONQ TYPE A:REFER ILLUST.	10/2001 - 03/2003	16
90942-01082	ZZE122..CONQ,LVN TYPE C:REFER ILLUST.	04/2004 - 02/2007	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	ZZE122	10/2001 - 04/2004	4
90942-05009	ZZE122	04/2004 - 02/2007	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	ZZE122	04/2004 - 02/2007	1
90942-05009	ZZE122	10/2001 - 04/2004	1
42652 - TIRE
42652-02521	ZZE122 195/60R15,*D/L,TYPE B:REFER ILLUST.	10/2001 - 04/2004	4
42652-02501	ZZE122 195/60R15	10/2001 - 04/2004	4
42652-12A31	ZZE122 195/60R15,*D/L,TYPE A:REFER ILLUST.	04/2004 - 02/2007	4
42652-02501	ZZE122 195/60R15	04/2004 - 02/2007	4
42652-12A31	ZZE122 195/60R15,*D/L,TYPE A:REFER ILLUST.	10/2001 - 04/2004	4
42652-02521	ZZE122 195/60R15,*D/L,TYPE B:REFER ILLUST.	04/2004 - 02/2007	4
42652A - TIRE (FOR SPARE)
42652-12A31	ZZE122 195/60R15,*D/L,TYPE A:REFER ILLUST.	10/2001 - 04/2004	1
42652-02501	ZZE122 195/60R15	10/2001 - 04/2004	1
42652-12A31	ZZE122 195/60R15,*D/L,TYPE A:REFER ILLUST.	04/2004 - 02/2007	1
42652-02521	ZZE122 195/60R15,*D/L,TYPE B:REFER ILLUST.	04/2004 - 02/2007	1
42652-02501	ZZE122 195/60R15	04/2004 - 02/2007	1
42652-02521	ZZE122 195/60R15,*D/L,TYPE B:REFER ILLUST.	10/2001 - 04/2004	1

Part #	Description	Period	Qty	Price

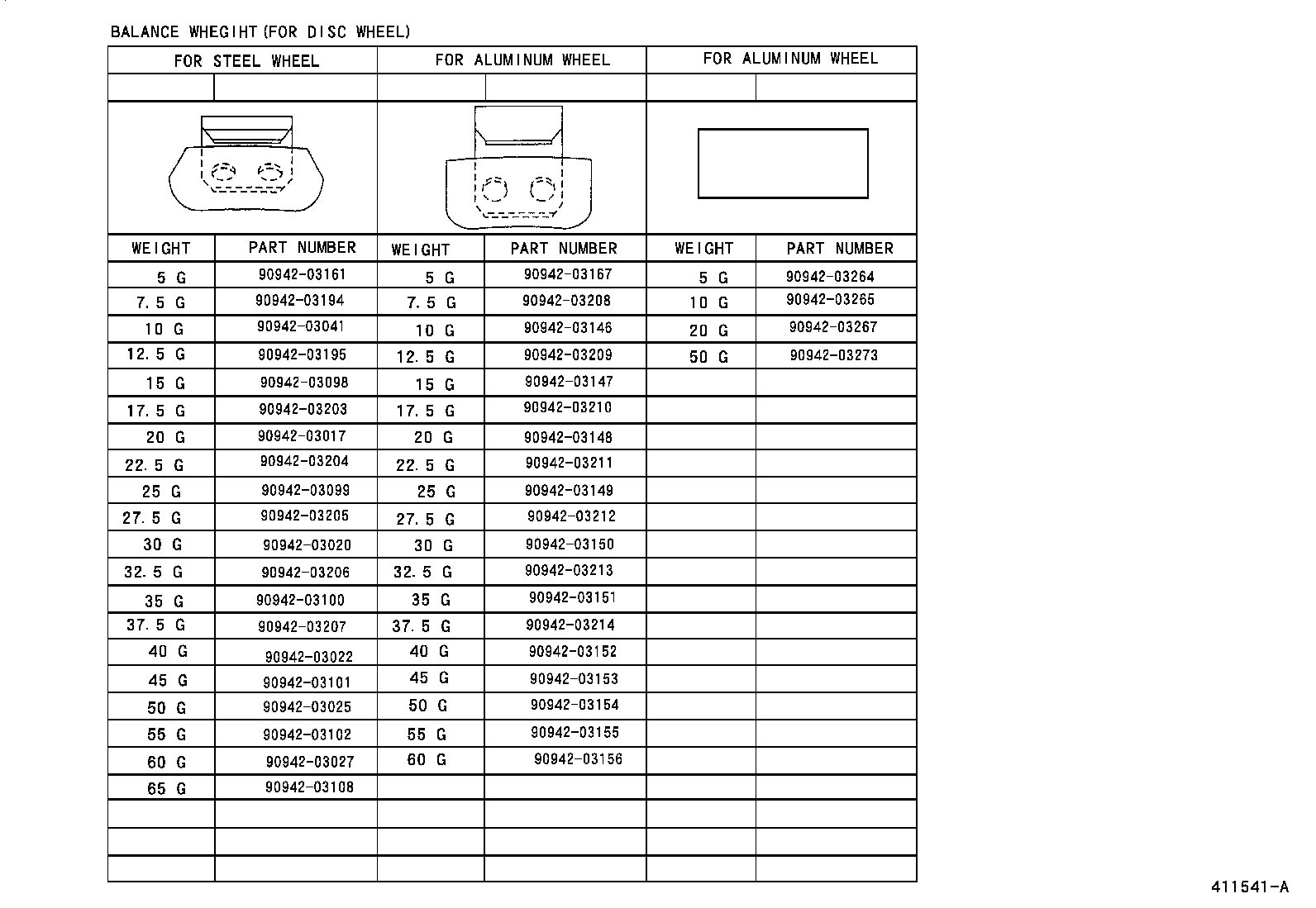

Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

ZZE122R-AHPDKQ (2001)

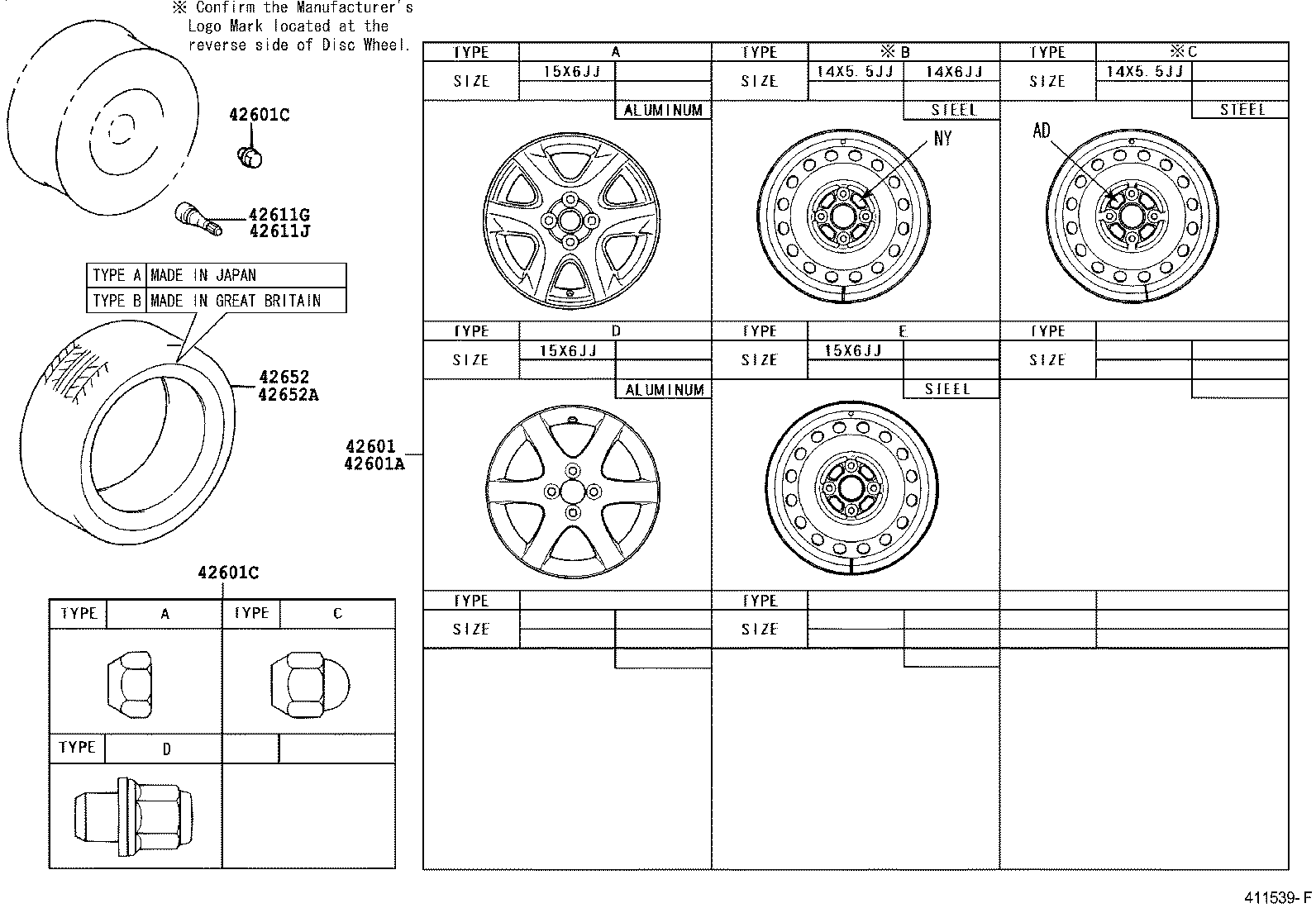

ILLUST NO. 1 OF 3(0110- )

ILLUST NO. 2 OF 3(0110- )

ILLUST NO. 3 OF 3(0110- )

Part Price Details

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12710	ZZE122..CONQ,LVN *ALU, NO PAINT REQ.,TYPE B:REFER ILLUST.	04/2004 - 02/2007	4
42603-12710	ZZE122..CONQ *ALU, NO PAINT REQ.,TYPE B:REFER ILLUST.	03/2003 - 04/2004	4
42621 - CAP, WHEEL
42602-12590	ZZE122..CONQ TYPE A:REFER ILLUST.	10/2001 - 03/2003	4
42602-12630	ZZE122..CONQ,LVN TYPE C:REFER ILLUST.	10/2001 - 04/2004	4
42602-12630	ZZE122..CONQ,LVN TYPE C:REFER ILLUST.	04/2004 - 02/2007	4
