ZZE122R-AHMDKQ (2001)

Toyota Corolla 5d

Production Oct 2001 - Feb 2007
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0110- )MTM

Click highlighted areas on diagram

C52

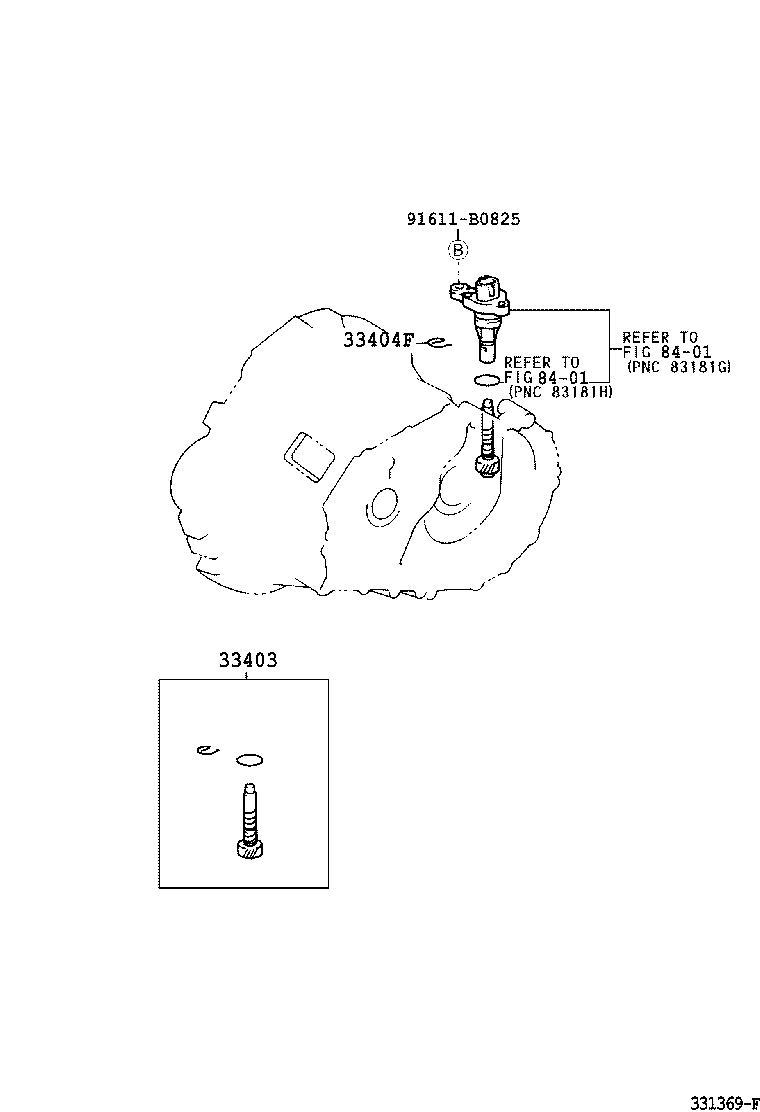

diagram 33403 33404F 8401 8401 91611B0825
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29395

ZZE122..MTM

N=29,MARK 29:35

 1
33403-19455

ZZE122..MTM..CONQ

N=30,MARK 30:35

 1
33403-29395

ZZE122..MTM

N=29,MARK 29:35

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

ZZE122..MTM

 1
90468-12005

ZZE122..MTM

 1
Common parts
91611-B0825
Linked diagrams
8401
