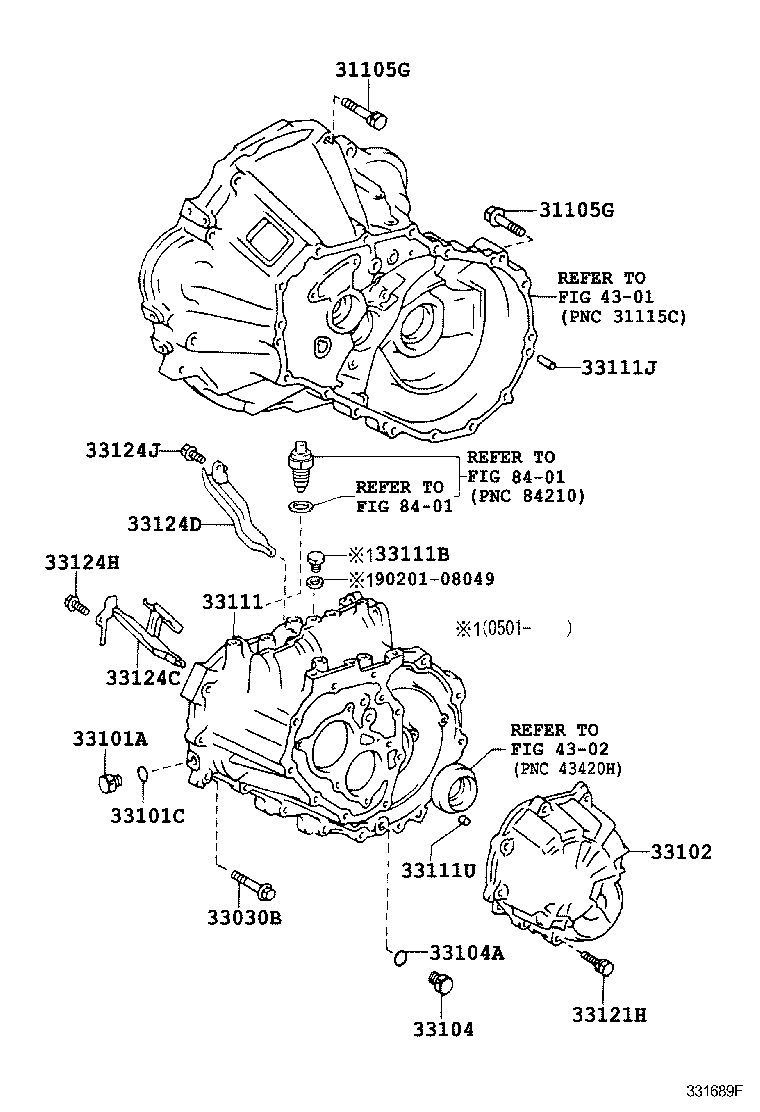

Toyota Corolla 5d ZZE122 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91642-81055	ZZE122..MTM *10-1.25PX55-30	10/2001 - 04/2004	2
91642-81055	ZZE122..MTM *10-1.25PX55-30	04/2004 - 02/2007	2
91619-61255	ZZE122..MTM *12-1.25PX55-30	10/2001 - 04/2004	2
91619-61255	ZZE122..MTM *12-1.25PX55-30	04/2004 - 02/2007	2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91642-81055	ZZE122..MTM *10-1.25PX55-30	10/2001 - 04/2004	2
91642-81055	ZZE122..MTM *10-1.25PX55-30	04/2004 - 02/2007	2
91619-61255	ZZE122..MTM *12-1.25PX55-30	10/2001 - 04/2004	2
91619-61255	ZZE122..MTM *12-1.25PX55-30	04/2004 - 02/2007	2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086	ZZE122..MTM *8-1.25PX45-27.5	10/2001 - 04/2004	3
90105-08086	ZZE122..MTM *8-1.25PX45-27.5	04/2004 - 07/2004	3
90105-08353	ZZE122..MTM *8-1.25PX50-30	04/2004 - 02/2007	13
90105-08430	ZZE122..MTM *8-1.25PX45-27.5	07/2004 - 02/2007	3
90105-08353	ZZE122..MTM *8-1.25PX50-30	10/2001 - 04/2004	13
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18033	ZZE122..MTM	06/2005 - 02/2007	1
90341-18006	ZZE122..MTM	04/2004 - 06/2005	1
90341-18006	ZZE122..MTM	10/2001 - 04/2004	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	ZZE122..MTM	10/2001 - 04/2004	1
90430-18008	ZZE122..MTM	04/2004 - 02/2007	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-12021	ZZE122..MTM	10/2001 - 04/2004	1
33102-12021	ZZE122..MTM	04/2004 - 02/2007	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	ZZE122..MTM	10/2001 - 04/2004	1
90341-18033	ZZE122..MTM	06/2005 - 02/2007	1
90341-18006	ZZE122..MTM	04/2004 - 06/2005	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	ZZE122..MTM	04/2004 - 02/2007	1
90430-18008	ZZE122..MTM	10/2001 - 04/2004	1
33111 - CASE, MANUAL TRANSMISSION
33111-17101	ZZE122..MTM	01/2003 - 04/2004	1
33111-17100	ZZE122..MTM	10/2001 - 01/2003	1
33111-17101	ZZE122..MTM	04/2004 - 01/2005	1
33111-17102	ZZE122..MTM	01/2005 - 02/2007	1
33111B - BOLT, STUD OR BOLT(FOR TRANSMISSION CASE)
90101-08166	ZZE122..MTM *8-1.25PX14-12	01/2005 - 02/2007	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	ZZE122..MTM L=23,OD=8	04/2004 - 02/2007	4
90250-08054	ZZE122..MTM L=23,OD=8	10/2001 - 04/2004	4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001	ZZE122..MTM L=11,OD=11	10/2001 - 04/2004	2
90253-11001	ZZE122..MTM L=11,OD=11	04/2004 - 02/2007	2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835	ZZE122..MTM	04/2004 - 03/2006	9
91611-60835	ZZE122..MTM	10/2001 - 04/2004	9
90119-08782	ZZE122..MTM	03/2006 - 02/2007	9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050	ZZE122..MTM	10/2001 - 04/2004	1
33124-20050	ZZE122..MTM	04/2004 - 02/2007	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12021	ZZE122..MTM	04/2004 - 02/2007	1
33124-12021	ZZE122..MTM	10/2001 - 04/2004	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-G0820	ZZE122..MTM	04/2004 - 02/2007	1
91611-G0820	ZZE122..MTM	10/2001 - 04/2004	1
33124J - BOLT, W/WASHER
91611-G0820	ZZE122..MTM	10/2001 - 04/2004	1
91611-G0820	ZZE122..MTM	04/2004 - 02/2007	1
Common parts
90201-08049
Linked diagrams
4301
4302
8401

ZZE122R-AHMDKQ (2001)

(0110- )MTM
