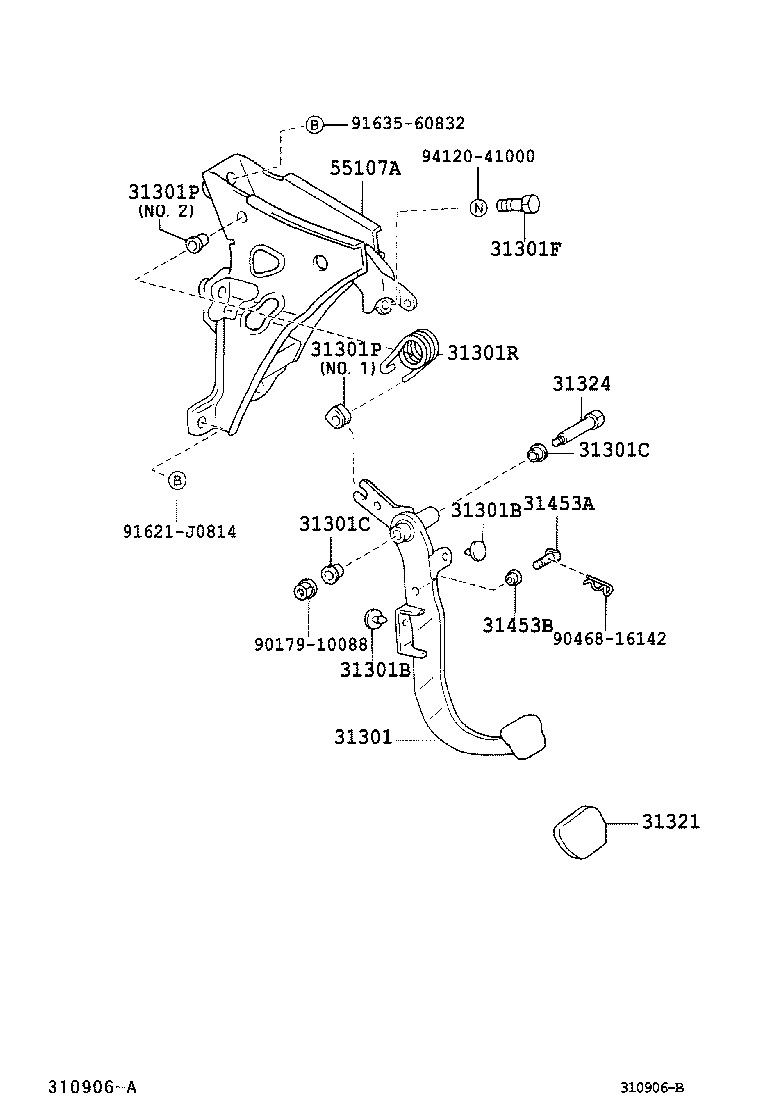

Toyota Corolla 5d ZZE122 CLUTCH PEDAL & FLEXIBLE HOSE

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-12450	ZZE122..MTM	04/2004 - 02/2007	1
31301-12450	ZZE122..MTM	10/2001 - 04/2004	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ZZE122..MTM	04/2004 - 02/2007	2
90541-06036	ZZE122..MTM	10/2001 - 04/2004	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ZZE122..MTM	04/2004 - 02/2007	2
90541-06036	ZZE122..MTM	10/2001 - 04/2004	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ZZE122..MTM	10/2001 - 04/2004	2
90386-13015	ZZE122..MTM	04/2004 - 02/2007	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ZZE122..MTM	10/2001 - 04/2004	2
90386-13015	ZZE122..MTM	04/2004 - 02/2007	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	ZZE122..MTM	04/2004 - 02/2007	1
90101-10369	ZZE122..MTM	10/2001 - 04/2004	1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017	ZZE122..MTM NO.1	10/2001 - 04/2004	1
90389-05019	ZZE122..MTM NO.2	10/2001 - 04/2004	1
90386-05017	ZZE122..MTM NO.1	04/2004 - 02/2007	1
90389-05019	ZZE122..MTM NO.2	04/2004 - 02/2007	1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017	ZZE122..MTM NO.1	10/2001 - 04/2004	1
90389-05019	ZZE122..MTM NO.2	10/2001 - 04/2004	1
90386-05017	ZZE122..MTM NO.1	04/2004 - 02/2007	1
90389-05019	ZZE122..MTM NO.2	04/2004 - 02/2007	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03100	ZZE122..MTM	10/2001 - 04/2004	1
90949-03100	ZZE122..MTM	04/2004 - 02/2007	1
31321 - PAD, CLUTCH PEDAL
31321-52010	ZZE122..MTM	04/2004 - 02/2007	1
31321-52010	ZZE122..MTM	10/2001 - 04/2004	1
31324 - SHAFT, CLUTCH PEDAL
90109-10167	ZZE122..MTM	04/2004 - 02/2007	1
90109-10167	ZZE122..MTM	10/2001 - 04/2004	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243	ZZE122..MTM L=30	04/2004 - 02/2007	1
90249-08243	ZZE122..MTM L=30	10/2001 - 04/2004	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	ZZE122..MTM	10/2001 - 04/2004	1
90386-08002	ZZE122..MTM	04/2004 - 02/2007	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-12200	ZZE122..MTM	04/2004 - 02/2007	1
55107-12200	ZZE122..MTM	10/2001 - 04/2004	1
Common parts
90179-10088
90468-16142
91621-J0814
91635-60832
94120-41000

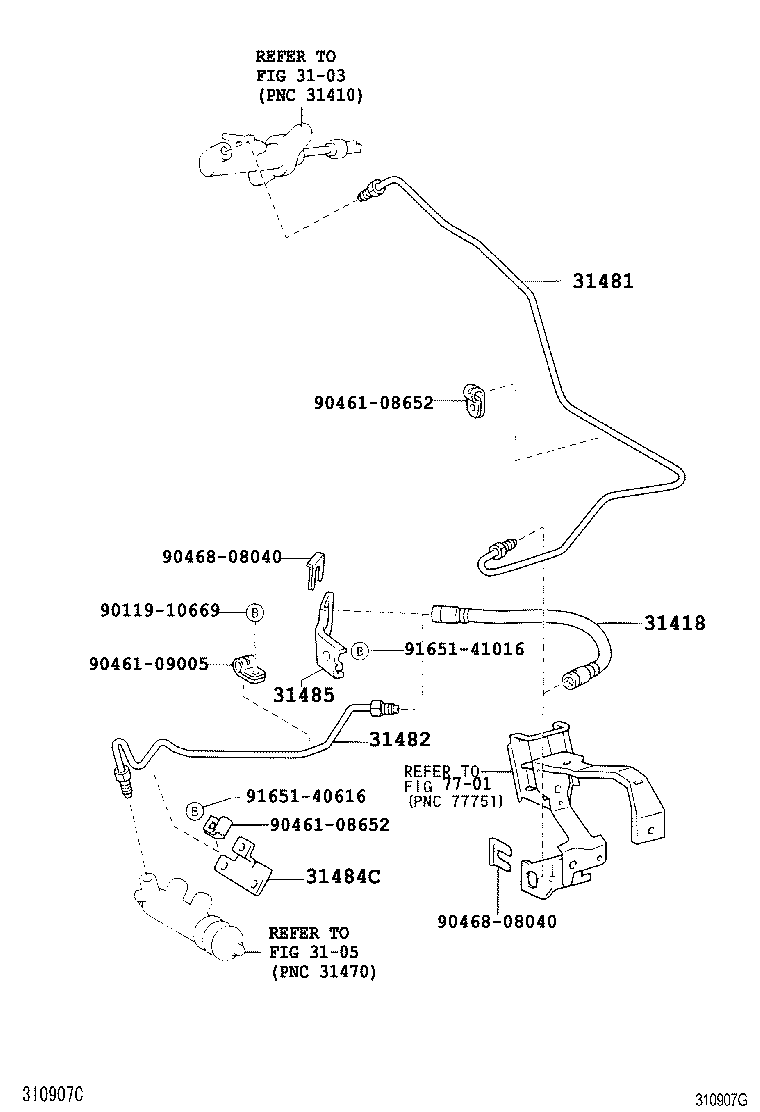

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-02D20	ZZE122..MTM	10/2001 - 04/2004	1
90947-02D20	ZZE122..MTM	04/2004 - 02/2007	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12320	ZZE122..MTM	10/2001 - 04/2004	1
31481-12320	ZZE122..MTM	04/2004 - 02/2007	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-13020	ZZE122..MTM	10/2001 - 04/2004	1
31482-13020	ZZE122..MTM	04/2004 - 02/2007	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20460	ZZE122..MTM	04/2004 - 02/2007	1
31484-20460	ZZE122..MTM	10/2001 - 04/2004	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12430	ZZE122..MTM	04/2004 - 02/2007	1
31484-12430	ZZE122..MTM	10/2001 - 04/2004	1
Common parts
90119-10669
90461-08652
90461-09005
90468-08040
91651-40616
91651-41016
Linked diagrams
3103
3105
7701

ZZE122R-AHMDKQ (2001)

ILLUST NO. 1 OF 2(0110- )MTM

ILLUST NO. 2 OF 2(0110- )MTM
