ZWE211R-DHXGBW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )RHD

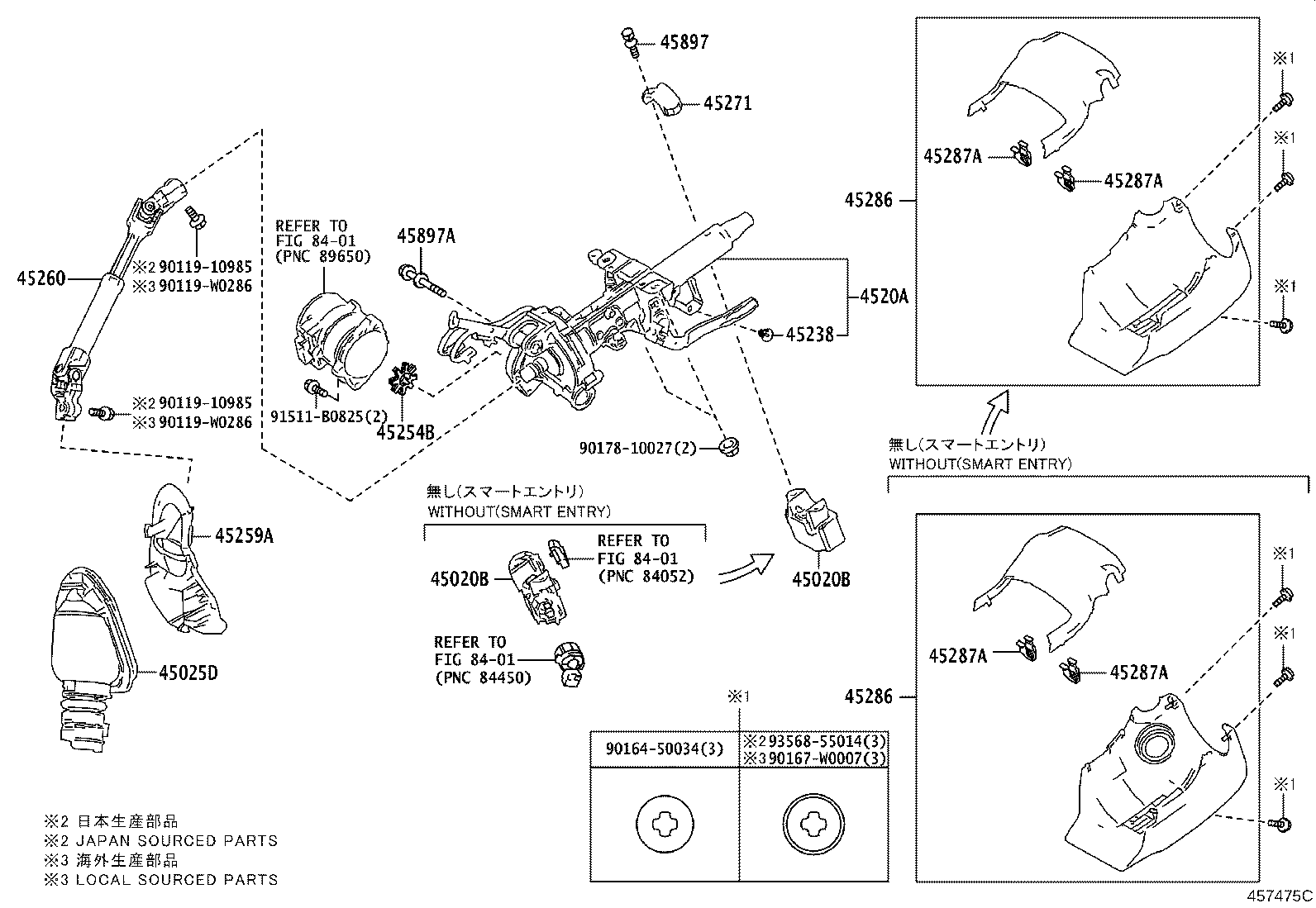

Click highlighted areas on diagram

diagram 45020B 45020B 45025D 4520A 45238 45254B 45259A 45260 45271 45286 45286 45287A 45287A 45287A 45287A 45897 45897A 8401 8401 8401 9011910985 9011910985 90119W0286 90119W0286 9016450034 90167W0007 9017810027 91511B0825 9356855014
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02790

ZWE211..RHD..(G,N)

UNITED KINGDOM SPEC&LIGHT GRADE&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)

 1
45020-02790

NRE210..G;MZEH12,ZWE211

 1
45020-02A20

NRE210..RHD..G;MZEH12,ZWE211..RHD

UNITED KINGDOM SPEC

 1
45020-02790

ZWE211..RHD..D

UNITED KINGDOM SPEC&LIGHT GRADE

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02790

ZWE211..RHD..(G,N)

UNITED KINGDOM SPEC&LIGHT GRADE&SUN VISOR-*DRP(VANITY MIRROR) & W/O(VANITY LAMP)

 1
45020-02790

NRE210..G;MZEH12,ZWE211

 1
45020-02A20

NRE210..RHD..G;MZEH12,ZWE211..RHD

UNITED KINGDOM SPEC

 1
45020-02790

ZWE211..RHD..D

UNITED KINGDOM SPEC&LIGHT GRADE

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-02270

MZEH12,NRE210,ZWE211..RHD

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-02380

ZWE211..RHD;NRE210..RHD..G

 1
4520A-02610

ZWE211..RHD;NRE210..RHD..G

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

MZEH12,NRE210,ZWE211

 1
45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45254-28040

MZEH12,NRE210,ZWE211

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-02260

MZEH12,NRE210,ZWE211..RHD

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-02200

MZEH12,NRE210,ZWE211..RHD

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

MZEH12,NRE210,ZWE211

 1
45286 - COVER, STEERING COLUMN
45286-02953C1

NRE210..G;MZEH12,ZWE211

BLACK,TRIM1#,2#

 1
45286 - COVER, STEERING COLUMN
45286-02953C1

NRE210..G;MZEH12,ZWE211

BLACK,TRIM1#,2#

 1
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

MZEH12,NRE210,ZWE211

 2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

MZEH12,NRE210,ZWE211

 2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

MZEH12,NRE210,ZWE211

 2
45287A - CLIP(FOR STEERING COLUMN COVER)
90467-05171

MZEH12,NRE210,ZWE211

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

MZEH12,NRE210,ZWE211

(J)

 2
45897-12020

MZEH12,NRE210,ZWE211

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

MZEH12,NRE210,ZWE211

(J)

 1
90119-W0215

MZEH12,NRE210,ZWE211

(L)

 1
Common parts
90119-10985
90119-W0286
90164-50034
90167-W0007
90178-10027
91511-B0825
93568-55014
Linked diagrams
8401
