ZWE211R-DHXDBW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )2ZRFXE

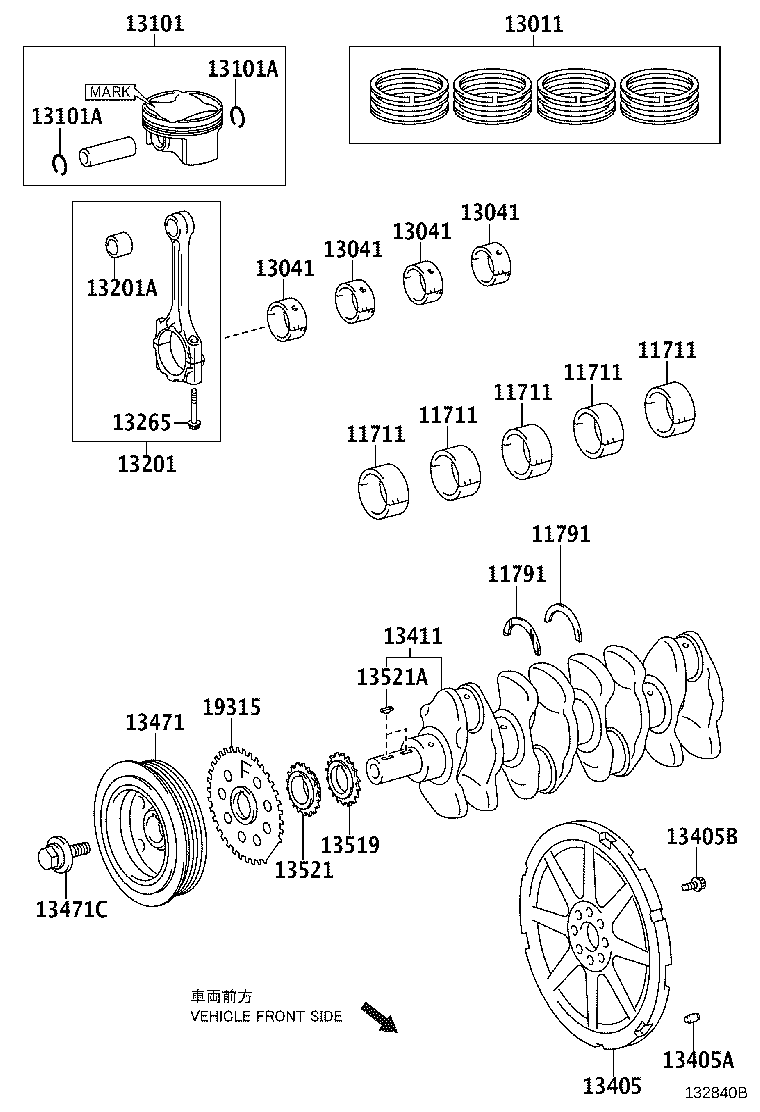

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13405 13405A 13405B 13411 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-3705001

2ZRFXE..ZWE211

MARK1,(J),REFER R/M

 5
11701-3705004

2ZRFXE..ZWE211

MARK4,(J),REFER R/M

 5
11701-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 5
11701-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 5
11701-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 5
11701-0T06004

2ZRFXE..ZWE211

MARK4,(L),REFER R/M

 5
11701-3705003

2ZRFXE..ZWE211

MARK3,(J),REFER R/M

 5
11701-3705002

2ZRFXE..ZWE211

MARK2,(J),REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-3705001

2ZRFXE..ZWE211

MARK1,(J),REFER R/M

 5
11701-3705004

2ZRFXE..ZWE211

MARK4,(J),REFER R/M

 5
11701-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 5
11701-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 5
11701-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 5
11701-0T06004

2ZRFXE..ZWE211

MARK4,(L),REFER R/M

 5
11701-3705003

2ZRFXE..ZWE211

MARK3,(J),REFER R/M

 5
11701-3705002

2ZRFXE..ZWE211

MARK2,(J),REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-3705001

2ZRFXE..ZWE211

MARK1,(J),REFER R/M

 5
11701-3705004

2ZRFXE..ZWE211

MARK4,(J),REFER R/M

 5
11701-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 5
11701-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 5
11701-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 5
11701-0T06004

2ZRFXE..ZWE211

MARK4,(L),REFER R/M

 5
11701-3705003

2ZRFXE..ZWE211

MARK3,(J),REFER R/M

 5
11701-3705002

2ZRFXE..ZWE211

MARK2,(J),REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-3705001

2ZRFXE..ZWE211

MARK1,(J),REFER R/M

 5
11701-3705004

2ZRFXE..ZWE211

MARK4,(J),REFER R/M

 5
11701-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 5
11701-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 5
11701-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 5
11701-0T06004

2ZRFXE..ZWE211

MARK4,(L),REFER R/M

 5
11701-3705003

2ZRFXE..ZWE211

MARK3,(J),REFER R/M

 5
11701-3705002

2ZRFXE..ZWE211

MARK2,(J),REFER R/M

 5
11711 - BEARING, CRANKSHAFT
11701-3705001

2ZRFXE..ZWE211

MARK1,(J),REFER R/M

 5
11701-3705004

2ZRFXE..ZWE211

MARK4,(J),REFER R/M

 5
11701-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 5
11701-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 5
11701-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 5
11701-0T06004

2ZRFXE..ZWE211

MARK4,(L),REFER R/M

 5
11701-3705003

2ZRFXE..ZWE211

MARK3,(J),REFER R/M

 5
11701-3705002

2ZRFXE..ZWE211

MARK2,(J),REFER R/M

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-37010

2ZRFXE..ZWE211

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-37010

2ZRFXE..ZWE211

STD

 2
13011 - RING SET, PISTON
13011-37270

2ZRFXE..ZWE211

STD

 1
13041 - BEARING, CONNECTING ROD
13041-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 4
13041-3704003

2ZRFXE..ZWE211

MARK3,(J):REFER R/M

 4
13041-3704001

2ZRFXE..ZWE211

MARK1,(J):REFER R/M

 4
13041-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 4
13041-3704002

2ZRFXE..ZWE211

MARK2,(J):REFER R/M

 4
13041-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 4
13041-3704003

2ZRFXE..ZWE211

MARK3,(J):REFER R/M

 4
13041-3704001

2ZRFXE..ZWE211

MARK1,(J):REFER R/M

 4
13041-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 4
13041-3704002

2ZRFXE..ZWE211

MARK2,(J):REFER R/M

 4
13041-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 4
13041-3704003

2ZRFXE..ZWE211

MARK3,(J):REFER R/M

 4
13041-3704001

2ZRFXE..ZWE211

MARK1,(J):REFER R/M

 4
13041-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 4
13041-3704002

2ZRFXE..ZWE211

MARK2,(J):REFER R/M

 4
13041-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 4
13041 - BEARING, CONNECTING ROD
13041-0T06002

2ZRFXE..ZWE211

MARK2,(L),REFER R/M

 4
13041-3704003

2ZRFXE..ZWE211

MARK3,(J):REFER R/M

 4
13041-3704001

2ZRFXE..ZWE211

MARK1,(J):REFER R/M

 4
13041-0T06003

2ZRFXE..ZWE211

MARK3,(L),REFER R/M

 4
13041-3704002

2ZRFXE..ZWE211

MARK2,(J):REFER R/M

 4
13041-0T06001

2ZRFXE..ZWE211

MARK1,(L),REFER R/M

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-0T300

2ZRFXE..ZWE211

STD,MARK=2X

 4
13101-37440

2ZRFXE..ZWE211

STD,MARK=2S

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZRFXE..ZWE211

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

2ZRFXE..ZWE211

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-39295

2ZRFXE..ZWE211

(J)

 4
13201-09C80

2ZRFXE..ZWE211

(L)

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

2ZRFXE..ZWE211

 4
13265 - BOLT, CONNECTING ROD
13265-22040

2ZRFXE..ZWE211

 8
13265-22020

2ZRFXE..ZWE211

 8
13405 - FLYWHEEL SUB-ASSY
13451-37070

2ZRFXE..ZWE211

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

2ZRFXE..ZWE211

L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-01027

2ZRFXE..ZWE211

 8
13411 - CRANKSHAFT
13401-0T061

2ZRFXE..ZWE211

(L)

 1
13401-37021

2ZRFXE..ZWE211

(J)

 1
13471 - PULLEY, CRANKSHAFT
13470-37060

2ZRFXE..ZWE211

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

2ZRFXE..ZWE211

 1
13519 - GEAR, OIL PUMP DRIVE
13519-37010

2ZRFXE..ZWE211

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-0T030

2ZRFXE..ZWE211

(L),MADE IN TMMNA

 1
13521-37011

2ZRFXE..ZWE211

(J)

 1
13521-0T070

2ZRFXE..ZWE211

(L),MADE IN EUROPE

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

2ZRFXE..ZWE211

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-37020

2ZRFXE..ZWE211

 1
