ZWE211L-DWXDBW (2019)
Toyota Corolla (Ukp)
(1902- )ZWE211..WG

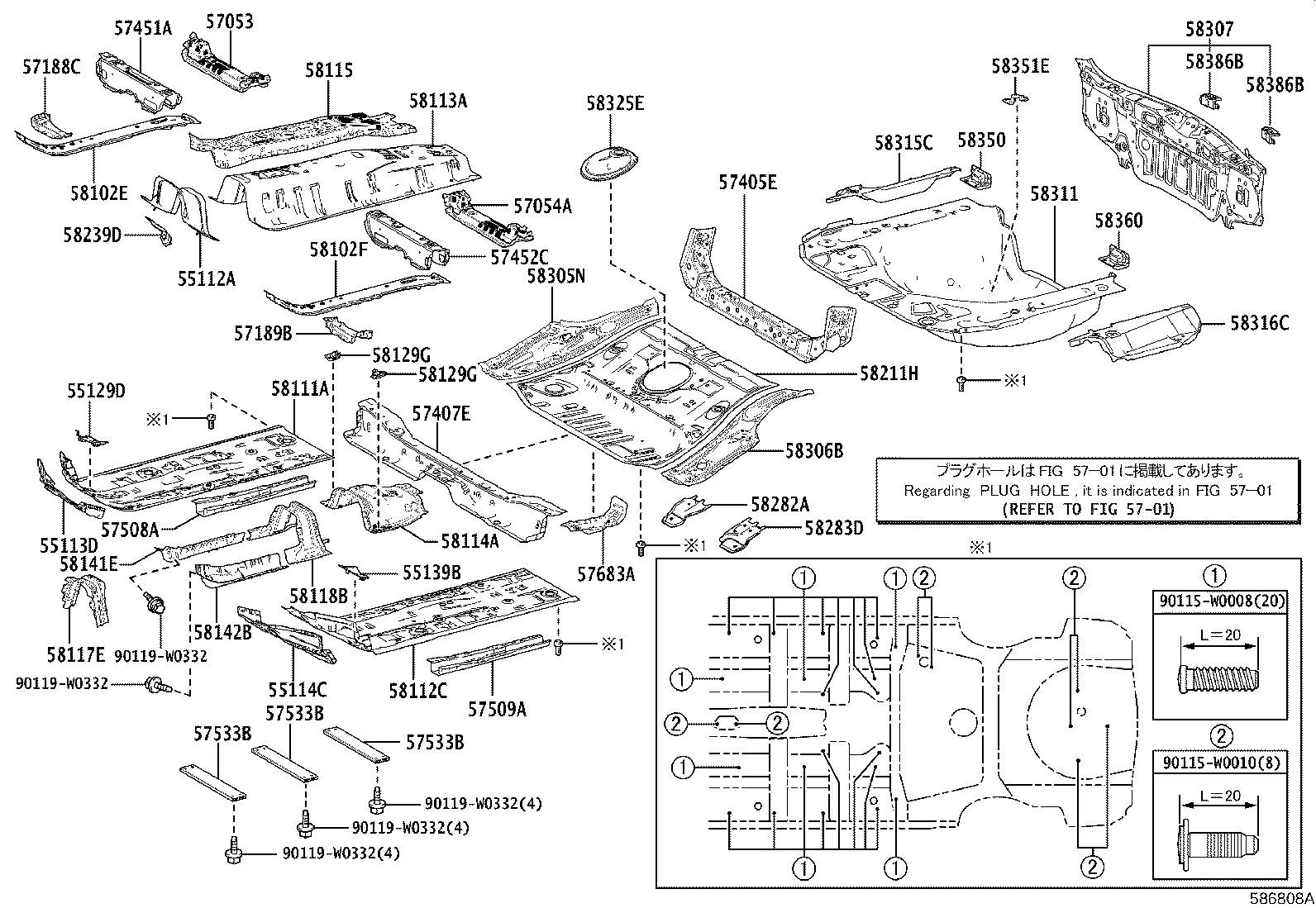

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55112A - PANEL, DASH, NO.2 | ||||
| 55112-02030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55113D - PANEL, DASH, LOWER RH | ||||
| 55113-02040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55114C - PANEL, DASH, LOWER LH | ||||
| 55114-02080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55129D - COVER, DASH PANEL HOLE, RH | ||||
| 55129-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-02100 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-02090 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57188C - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH | ||||
| 57188-02080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57189B - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH | ||||
| 57189-02060 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57405E - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-02040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-02240 |
MZEH12,ZWE211 |
1 | ||
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-02250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57452C - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-02190 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 57508-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH | ||||
| 57508-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-F4010 |
MZEH12,NRE210,ZWE211 |
3 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-F4010 |
MZEH12,NRE210,ZWE211 |
3 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-F4010 |
MZEH12,NRE210,ZWE211 |
3 | ||
| 57683A - BRACKET, FUEL TANK MOUNTING, NO.1 | ||||
| 57683-F4020 |
MZEH12,ZWE211 |
1 | ||
| 58102E - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH | ||||
| 58102-02190 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58102F - PANEL SUB-ASSY, FRONT FLOOR, LH | ||||
| 58102-02190 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-02380 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58111-02381 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58111-02382 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-02131 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58112-02132 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58112-02130 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-02170 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-02070 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT | ||||
| 58115-02060 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58015-02250 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58117E - PANEL, FRONT FLOOR SUB COVER | ||||
| 58117-02050 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2 | ||||
| 58118-02090 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58129G - BRACKET, FRONT CROSS TO FRONT PANEL MEMBER REINFORCE | ||||
| 58129-02030 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 58129G - BRACKET, FRONT CROSS TO FRONT PANEL MEMBER REINFORCE | ||||
| 58129-02030 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH | ||||
| 58141-F4011 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58142B - REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH | ||||
| 58142-F4011 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-02540 |
MZEH12,ZWE211 |
1 | ||
| 58239D - BRACKET, CABLE CLAMP | ||||
| 58239-02040 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH | ||||
| 58282-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58283D - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH | ||||
| 58283-02200 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58305N - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH | ||||
| 58305-02100 |
MZEH12,ZWE211 |
1 | ||
| 58306B - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH | ||||
| 58306-02110 |
MZEH12,ZWE211 |
1 | ||
| 58306-02111 |
MZEH12,ZWE211 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-02490 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-02380 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-02180 |
NRE210,ZWE211..WG |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-02060 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-F4011 |
MZEH12,ZWE211 |
1 | ||
| 58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH | ||||
| 58350-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-02110 |
MZEH12..WG;NRE210,ZWE211 |
1 | ||
| 58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH | ||||
| 58350-F4010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-02010 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-02010 |
MZEH12,NRE210,ZWE211..WG |
2 | ||
| Common parts | ||||
| 90115-W0008 | ||||
| 90115-W0010 | ||||
| 90119-W0332 | ||||
| Linked diagrams | ||||
| 5701 | ||||
