ZWE211L-DWXDBW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2010- )2ZRFXE

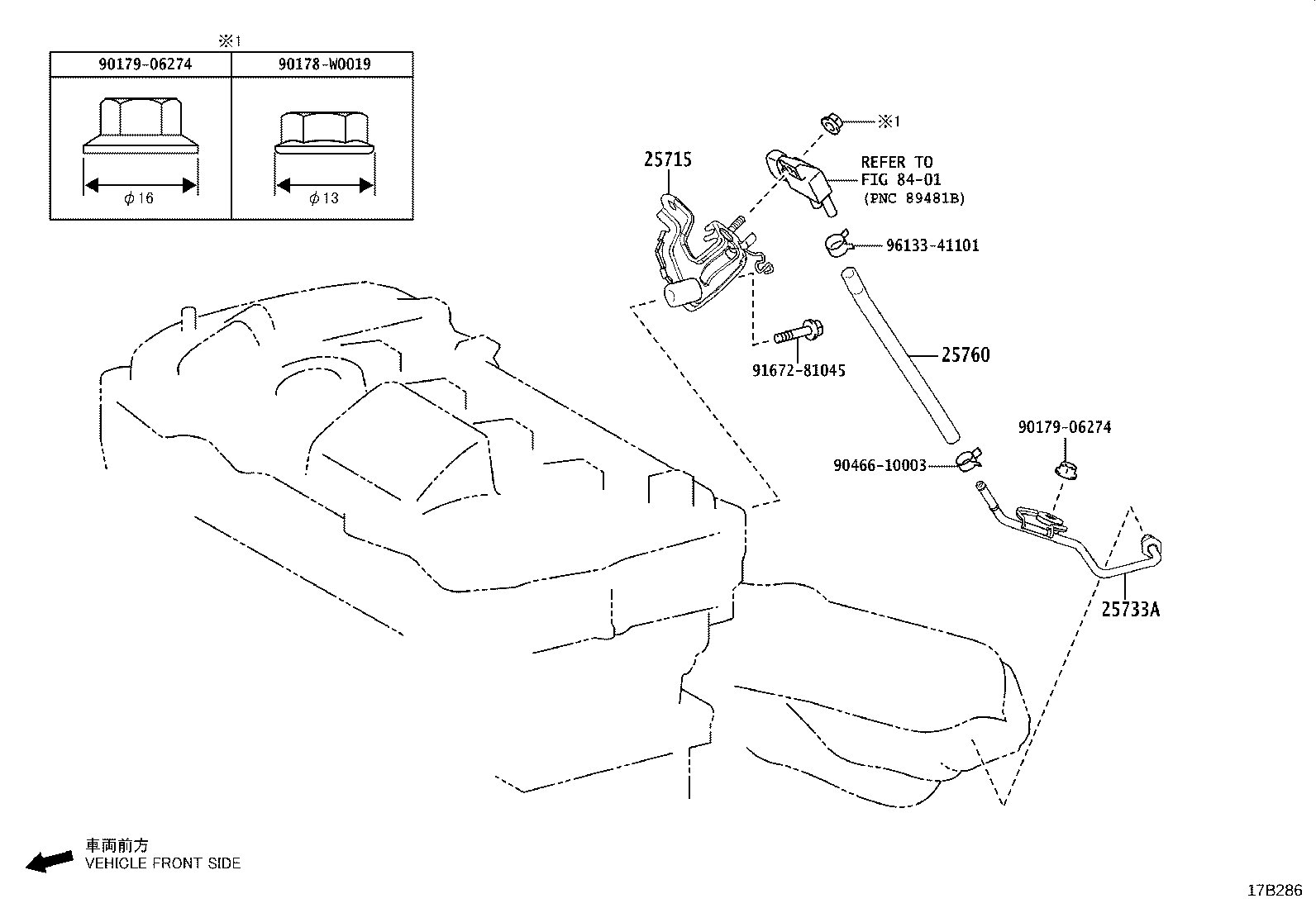

Click highlighted areas on diagram

W(GPF)

diagram 25715 25733A 25760 8401 90178W0019 9017906274 9017906274 9046610003 9167281045 9613341101
Part # Description Qty Price
25715 - BRACKET, EMISSION CONTROL VALVE
25715-37040

2ZRFXE..ZWE211..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

 1
25715-37040

2ZRFXE..ZWE211

 1
25733A - PIPE, VACUUM, NO.1
25733-0T010

2ZRFXE..ZWE211..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL,(L)

 1
25733-0T010

2ZRFXE..ZWE211

(L)

 1
25733-37010

2ZRFXE..ZWE211

(J)

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-37030

2ZRFXE..ZWE211..LHD

REGULATION COMPLIANCE LABEL & NAME PLATE-*NTA LABEL

 1
25760-37030

2ZRFXE..ZWE211

 1
Common parts
90178-W0019
90179-06274
90466-10003
91672-81045
96133-41101
Linked diagrams
8401
