ZWE211L-DHXNBW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )2ZRFXE

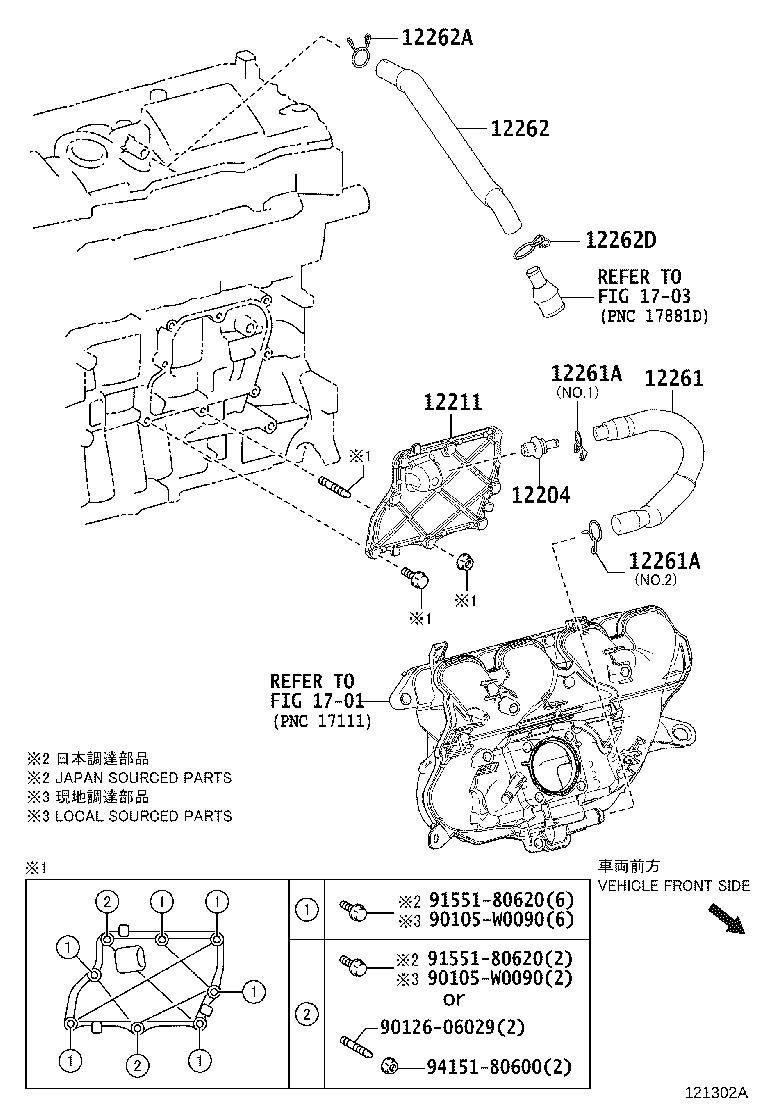

Click highlighted areas on diagram

diagram 12204 12211 12261 12261A 12261A 12262 12262A 12262D 1701 1703 90105W0090 90105W0090 9012606029 9155180620 9155180620 9415180600
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-37060

2ZRFXE..ZWE211..LHD..HB

PERU SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)

 1
12204-37060

2ZRFXE..ZWE211..LHD..HB

NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)

 1
12204-37050

2ZRFXE..ZWE211

 1
12204-37060

2ZRFXE..ZWE211..LHD

MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)

 1
12204-37060

2ZRFXE..ZWE211..LHD..HB

CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)

 1
12211 - CASE, VENTILATION, NO.1
12211-0T010

2ZRFXE..ZWE211

(L)

 1
12211-37010

2ZRFXE..ZWE211

(J)

 1
12261 - HOSE, VENTILATION
12261-37070

2ZRFXE..ZWE211

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2ZRFXE..ZWE211

NO.1

 1
90466-22005

2ZRFXE..ZWE211

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

2ZRFXE..ZWE211

NO.1

 1
90466-22005

2ZRFXE..ZWE211

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-37110

2ZRFXE..ZWE211

 1
12262-0T080

2ZRFXE..ZWE211

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2ZRFXE..ZWE211

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2ZRFXE..ZWE211

 1
Common parts
90105-W0090
90126-06029
91551-80620
94151-80600
Linked diagrams
1701
1703
