ZWE211L-DHXGBW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )HB

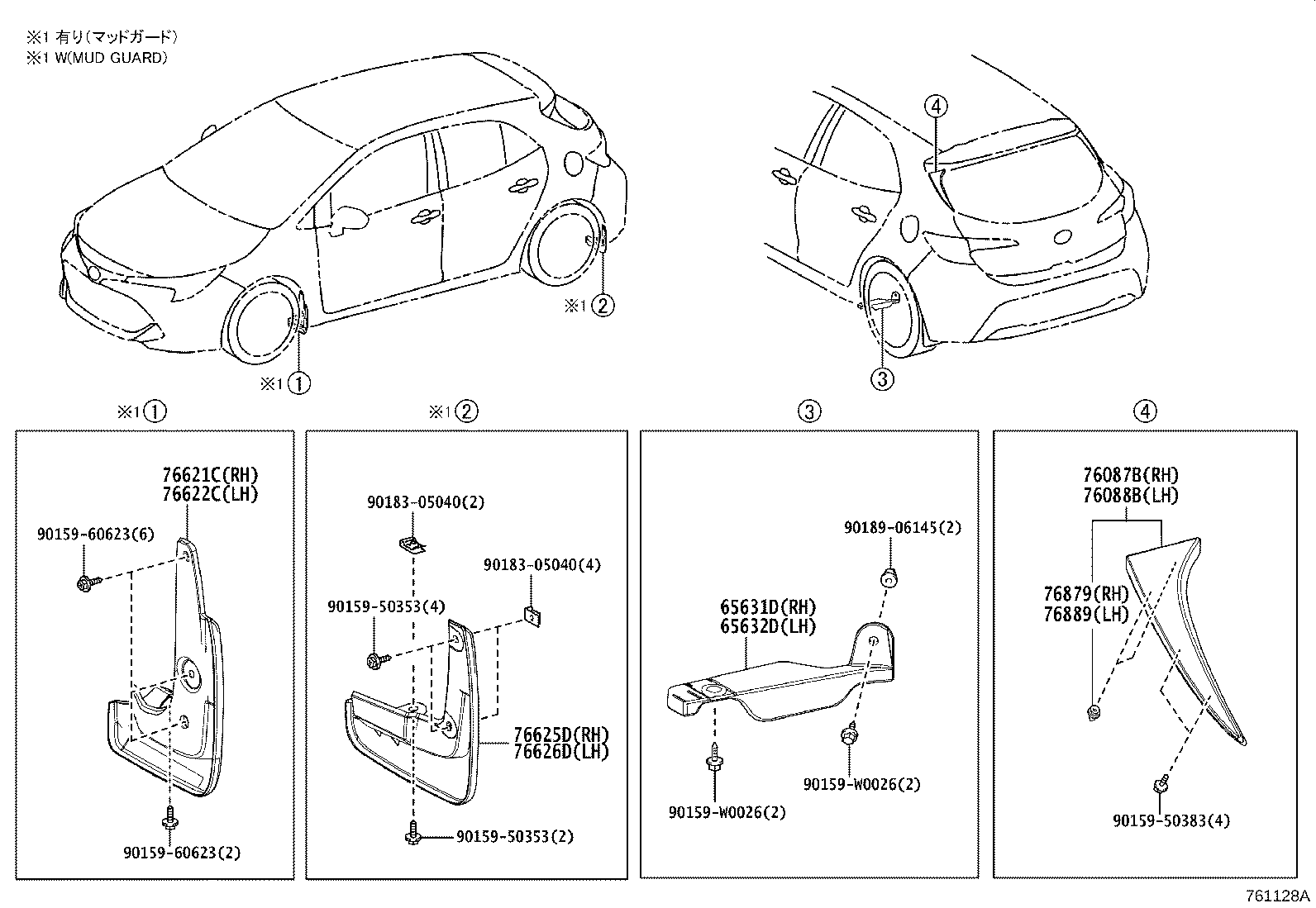

Click highlighted areas on diagram

diagram 65631D 65632D 76087B 76088B 76621C 76622C 76625D 76626D 76879 76889 9015950353 9015950353 9015950383 9015960623 9015960623 90159W0026 90159W0026 9018305040 9018305040 9018906145
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-02310

ZWE211..HB..G

LIGHT GRADE&SEAT HEATER-WITHOUT

 1
65631-02310

ZWE211..D,N;ZWE211..WG..G

LIGHT GRADE

 1
65631-02310

MZEH12,ZWE211..HB..G

LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT

 1
65631-02310

MZEH12,NRE210,ZWE211

 1
65631-02310

ZWE211..HB..G;MZEH12,NRE210..EUR

LIGHT GRADE

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-02310

ZWE211..D,N;ZWE211..WG..G

LIGHT GRADE

 1
65632-02310

ZWE211..HB..G

LIGHT GRADE&SEAT HEATER-WITHOUT

 1
65632-02310

MZEH12,ZWE211..HB..G

LIGHT GRADE&LUGGAGE & BACK DOOR RELEASE-ELECTRIC TYPE&SEAT HEATER-WITHOUT

 1
65632-02310

ZWE211..HB..G;MZEH12,NRE210..EUR

LIGHT GRADE

 1
65632-02310

MZEH12,NRE210,ZWE211

 1
76087B - SPOILER SUB-ASSY, REAR SIDE, RH
76087-02091

MZEH12,NRE210,ZWE211..HB

 1
76087-02090

MZEH12,NRE210,ZWE211..HB

 1
76088B - SPOILER SUB-ASSY, REAR SIDE, LH
76088-02091

MZEH12,NRE210,ZWE211..HB

 1
76088-02090

MZEH12,NRE210,ZWE211..HB

 1
76621C - MUDGUAD, FRONT FENDER, RH
76621-02240

MZEH12,NRE210,ZWE211

MUD GUARD-WITH(FRONT & REAR)

 1
76622C - MUDGUARD, FRONT FENDER, LH
76622-02250

MZEH12,NRE210,ZWE211

MUD GUARD-WITH(FRONT & REAR)

 1
76625D - MUDGUARD, QUARTER PANEL, REAR RH
76625-02380

MZEH12,NRE210,ZWE211..HB

MUD GUARD-WITH(FRONT & REAR)

 1
76626D - MUDGUARD, QUARTER PANEL, REAR LH
76626-02380

MZEH12,NRE210,ZWE211..HB

MUD GUARD-WITH(FRONT & REAR)

 1
76879 - CLIP, REAR SPOILER, NO.1
90467-09233

MZEH12,NRE210,ZWE211..HB

 2
76889 - CLIP, REAR SPOILER, NO.2
90467-09233

MZEH12,NRE210,ZWE211..HB

 2
Common parts
90159-50353
90159-50383
90159-60623
90159-W0026
90183-05040
90189-06145
