ZWE211L-DHXDBW (2019)
Toyota Corolla (Ukp)
Production
Jan 2019
-
Sep 9999
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1901- )

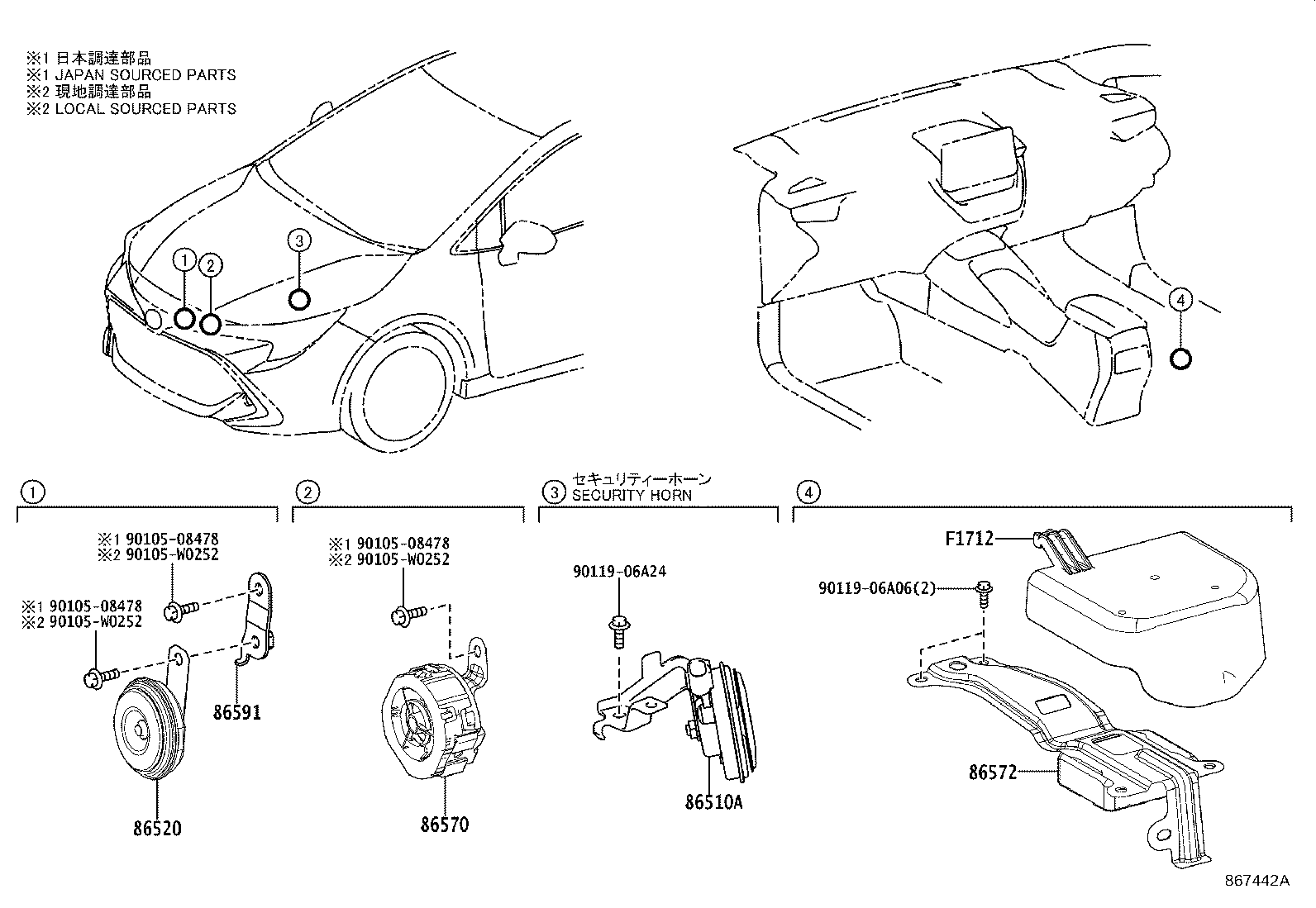

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-0D050 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-12030 |
MZEH12,ZWE211 |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-12130 |
MZEH12,ZWE211..HB |
1 | ||
| 86591 - BRACKET, HORN | ||||
| 86591-02020 |
MZEH12,NRE210,ZWE211 |
1 | ||
| F1712 - COVER, VEHICLE APPROACHING SPEAKER CONTROLLER | ||||
| F1712-12090 |
MZEH12,ZWE211 |
1 | ||
| Common parts | ||||
| 90105-08478 | ||||
| 90105-W0252 | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
