ZWE211L-DHXDBW (2019)
Toyota Corolla (Ukp)
Production
Jan 2019
-
Sep 9999
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1901- )

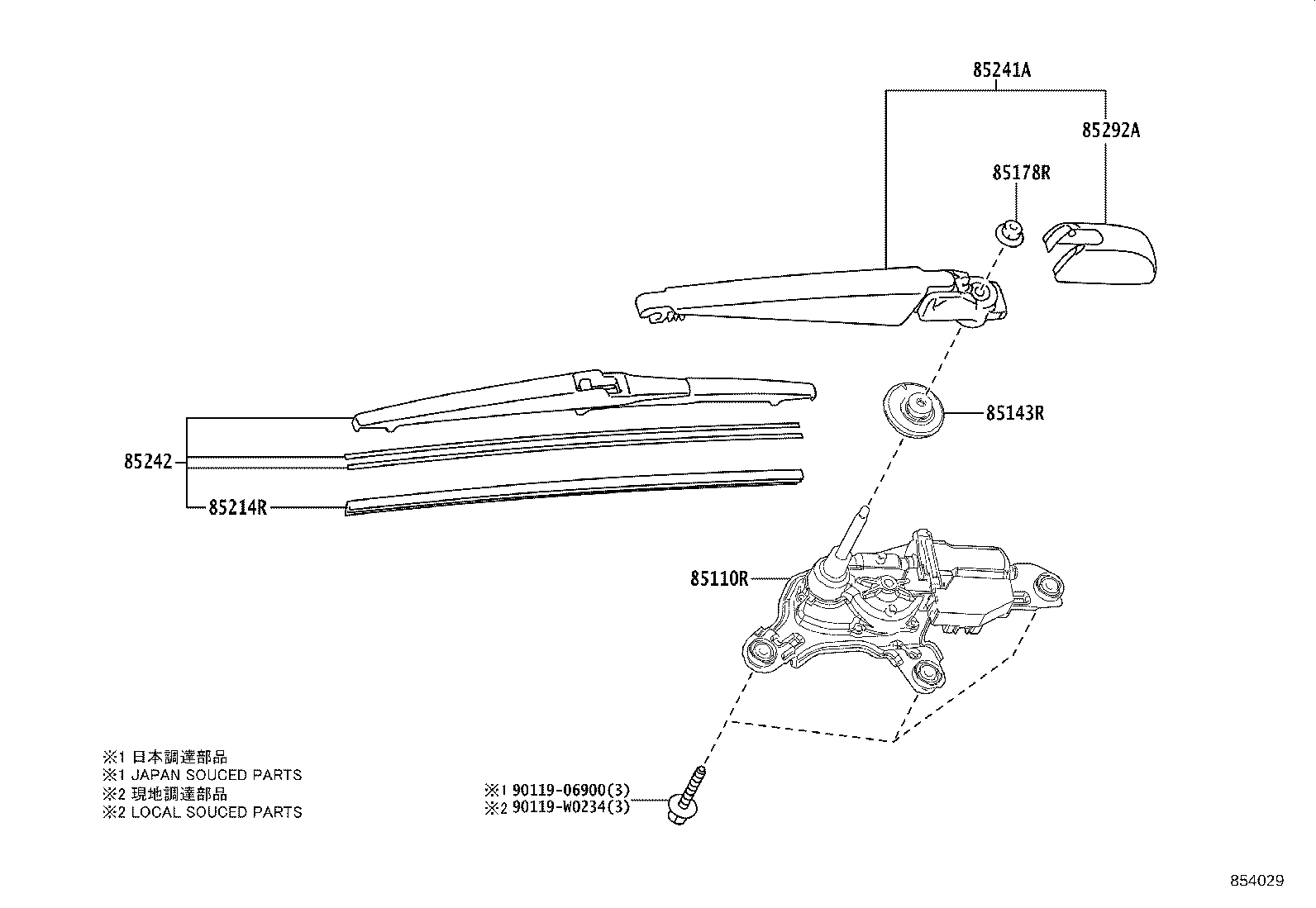

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-02060 |
ZWE211..HB..(D,N) LIGHT GRADE |
1 | ||
| 85130-02060 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 85143R - GROMMET, REAR WIPER MOTOR | ||||
| 85143-05070 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 85143-05070 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 90179-06158 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-02390 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 85214-02390 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 85241A - ARM, REAR WIPER | ||||
| 85241-02080 |
MZEH12,NRE210,ZWE211..HB |
1 | ||
| 85241-02080 |
ZWE211..HB..(D,N) LIGHT GRADE |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-02070 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 85242-02070 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 85292A - CAP, REAR WIPER ARM HEAD | ||||
| 85292-02070 |
ZWE211..D,N LIGHT GRADE |
1 | ||
| 85292-02070 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06900 | ||||
| 90119-W0234 | ||||
