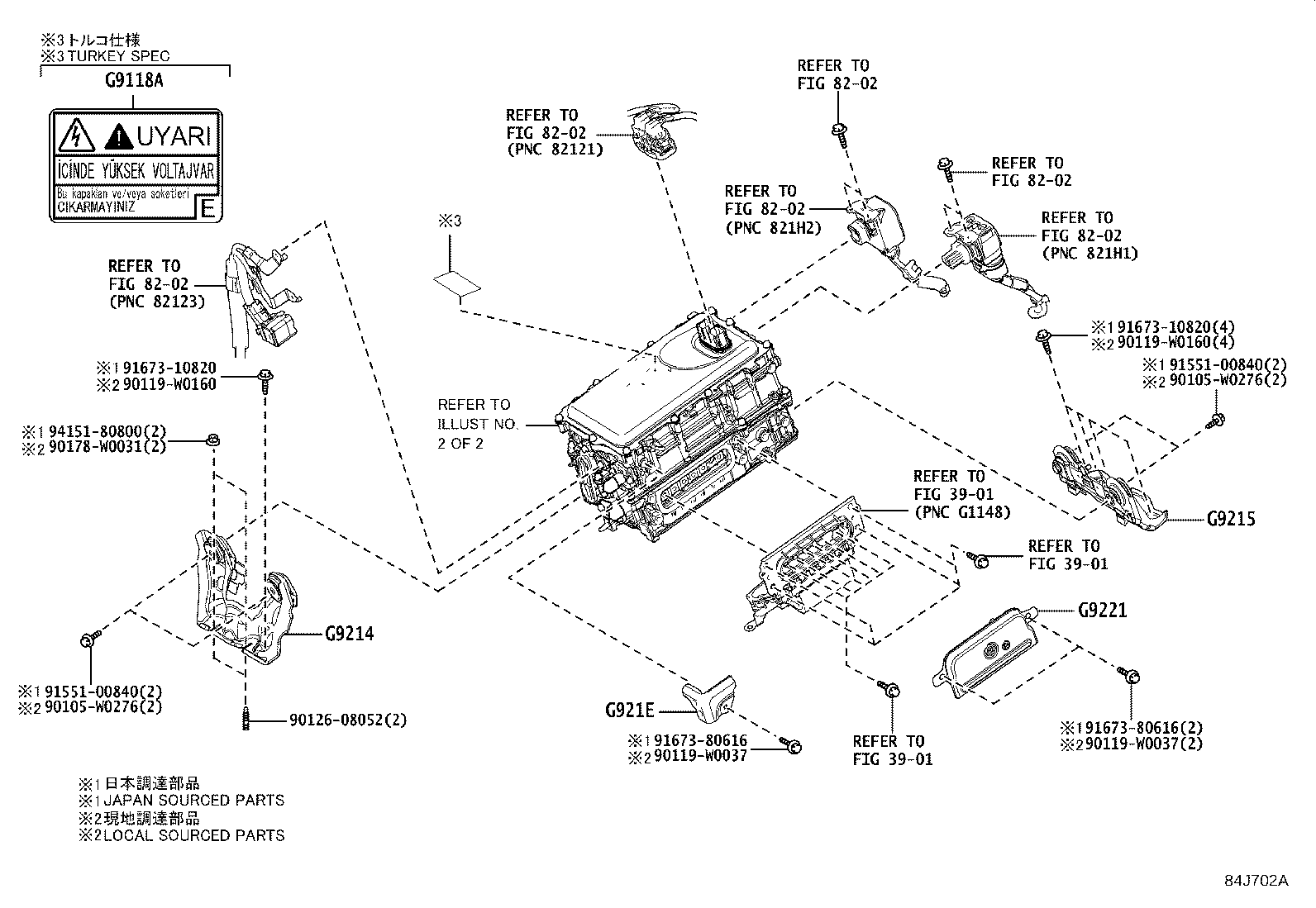

Toyota Corolla (ukp) ZWE211 HV INVERTER

Part #	Description	Period	Qty
G9118A - LABEL, HV MOTOR CONTROL INVERTER CAUTION
G9118-52010	MZEH12,ZWE211..LHD TURKEY SPEC	01/2019 - 12/2999	1
G9214 - BRACKET, INVERTER, NO.1
G9214-47070	ZWE211	01/2019 - 12/2999	1
G9215 - BRACKET, INVERTER, NO.2
G9215-47050	ZWE211	01/2019 - 12/2999	1
G921E - PROTECTOR, INVERTER
G921E-47010	MZEH12,ZWE211	01/2019 - 12/2999	1
G9221 - COVER, INVERTER
G9022-47050	MZEH12,ZWE211	01/2019 - 12/2999	1
Common parts
90105-W0276
90119-W0037
90119-W0160
90126-08052
90178-W0031
91551-00840
91673-10820
91673-80616
94151-80800
Linked diagrams
3901
8202

Part #	Description	Period	Qty

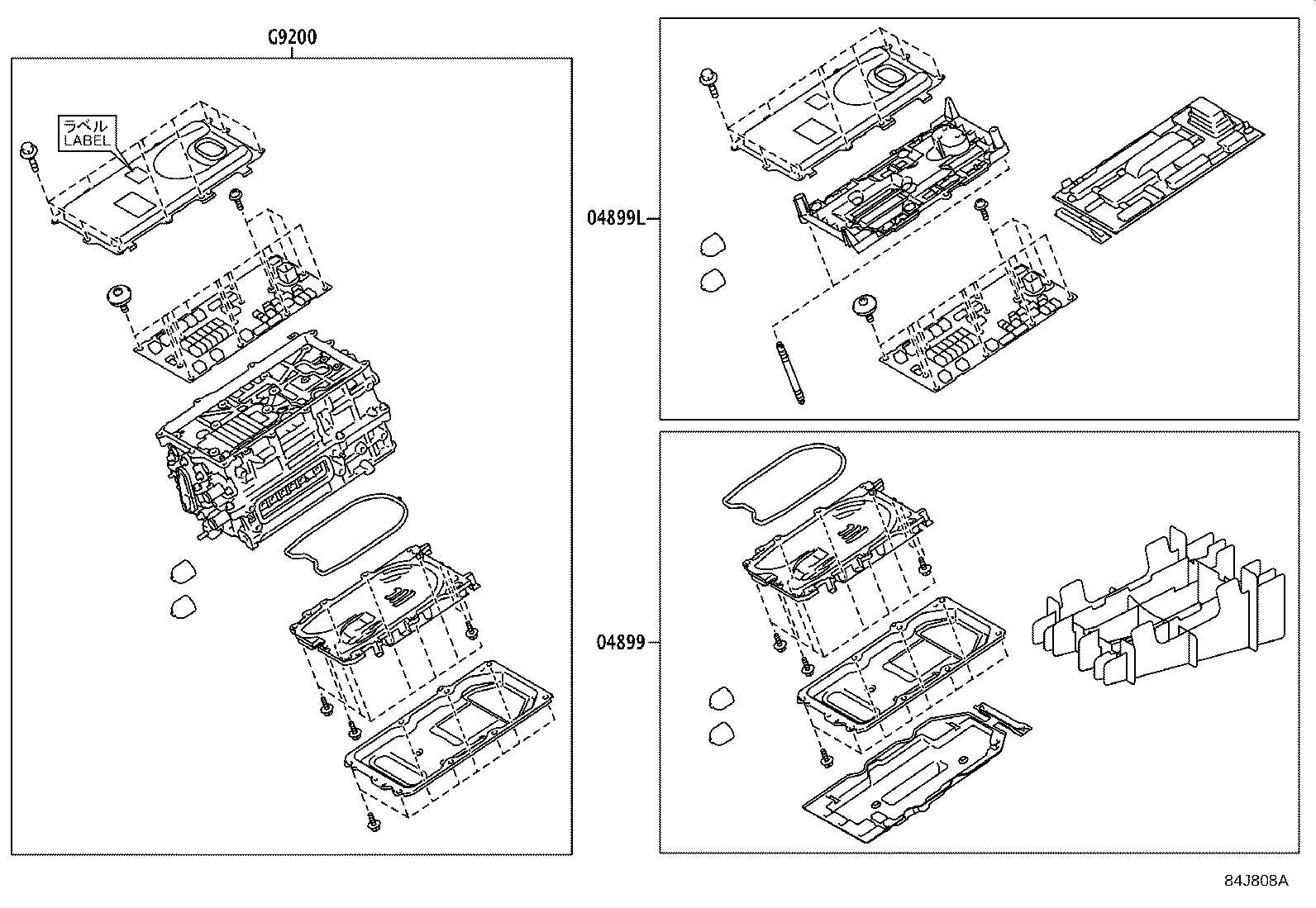

04899 - CONVERTER KIT, HV
04899-47110	ZWE211	01/2019 - 12/2999	1
04899L - COMPUTER KIT, MOTOR GENERATOR CONTROL
04899-47170	ZWE211	01/2019 - 12/2020	1
04899-47171	ZWE211 *658	01/2021 - 12/2999	1
04899-47171	ZWE211	12/2020 - 01/2021	1
04899-47190	ZWE211 *659	01/2021 - 12/2999	1
G9200 - INVERTER ASSY, W/CONVERTER
G9200-49135	ZWE211 P/N LABEL=G920047330	04/2019 - 01/2021	1
G9200-49116	ZWE211 P/N LABEL=G920047242	01/2019 - 04/2019	1
G9200-49135	ZWE211..LHD TURKEY SPEC,*660	04/2019 - 01/2021	1
G9200-49135	ZWE211 *660	01/2021 - 12/2999	1

ZWE211L-DHXDBW (2019)
