ZWE211L-DHXDBW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1901- )ZWE211

Click highlighted areas on diagram

12V BATTERY

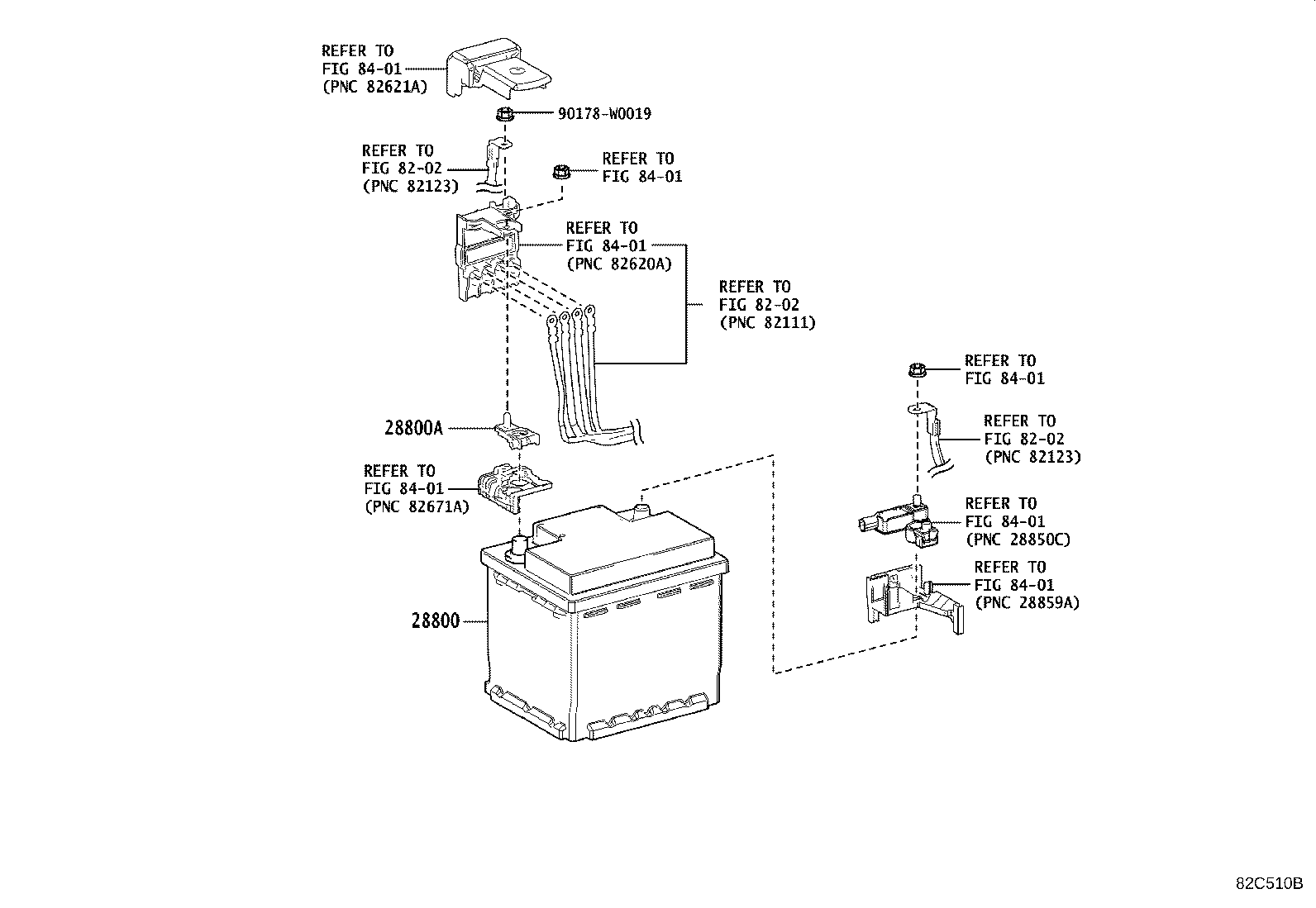

diagram 28800 28800A 8401 90178W0019
Part # Description Qty Price
28800 - BATTERY
28800-F2031

2ZRFXE..ZWE211

LN1

 1
28800-F2030

2ZRFXE..ZWE211

LN1

 1
28800-F2032

2ZRFXE..ZWE211

LN1

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

M20AFXS,2ZRFXE..MZEH12,ZWE211

 1
Common parts
90178-W0019
Linked diagrams
8401

ILLUST NO. 2 OF 4(1901- )ZWE211

Click highlighted areas on diagram

HV BATTERY

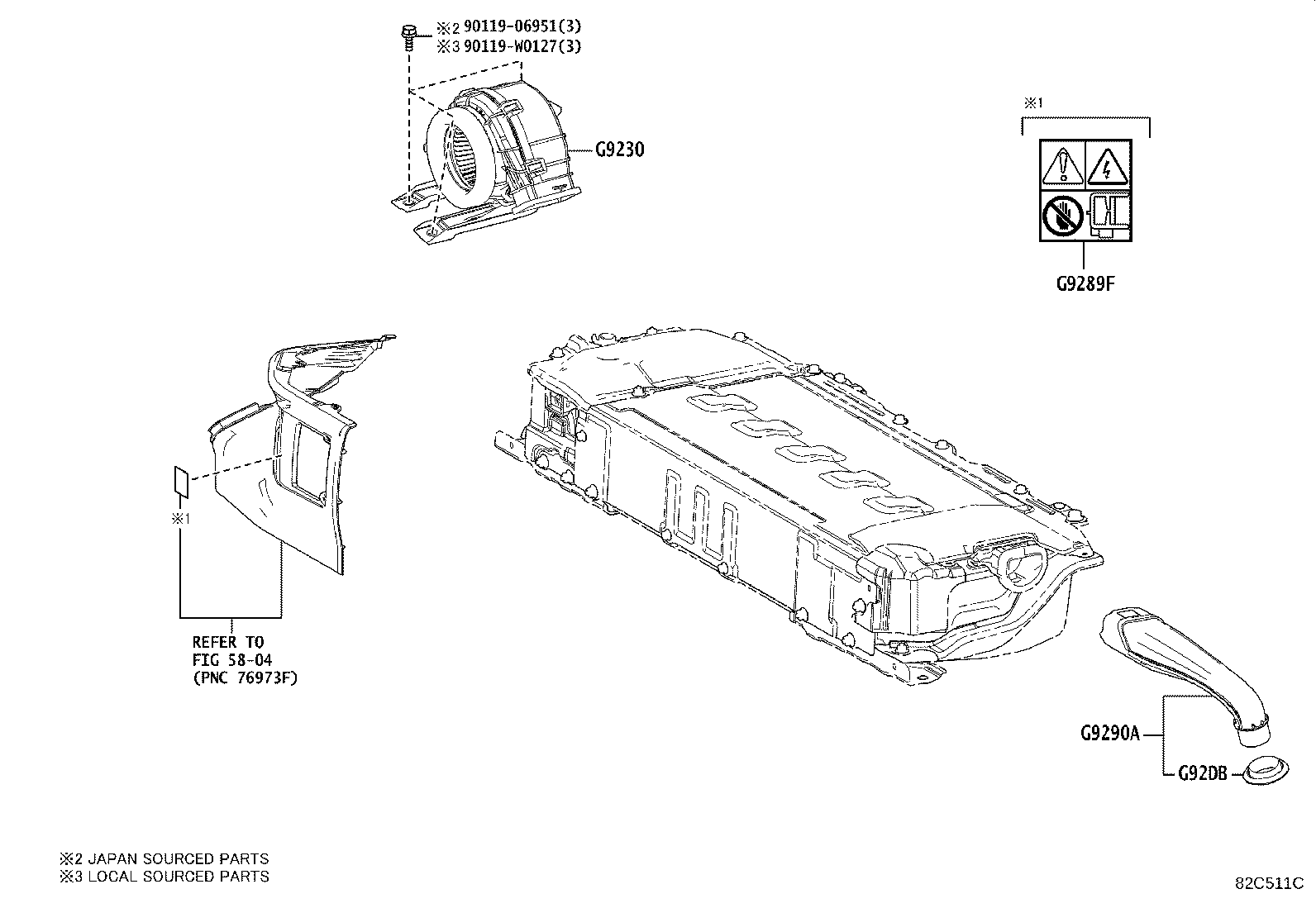

diagram 5804 9011906951 90119W0127 G9230 G9289F G9290A G92DB
Part # Description Qty Price
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-47050

ZWE211

 1
G9289F - LABEL, BATTERY CAUTION, NO.3
82685-47110

MZEH12,ZWE211

 1
G9290A - HOSE ASSY, HYBRID BATTERY
G9290-47030

ZWE211

 1
G92DB - SEAL, HYBRID BATTERY, NO.1
G92DB-47030

ZWE211

 1
Common parts
90119-06951
90119-W0127
Linked diagrams
5804

ILLUST NO. 3 OF 4(1901- )ZWE211

Click highlighted areas on diagram

HV BATTERY

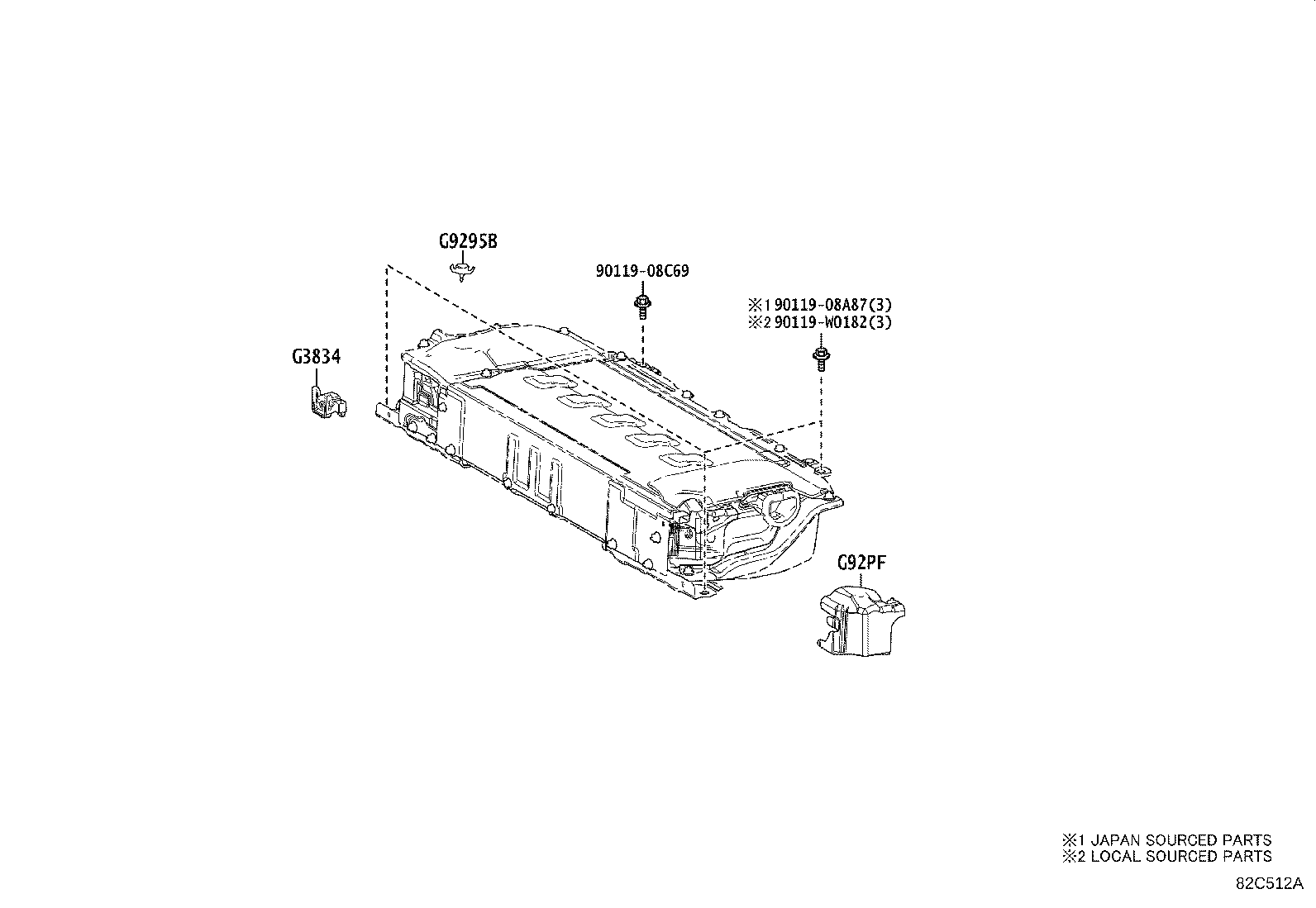

diagram 9011908A87 9011908C69 90119W0182 G3834 G9295B G92PF
Part # Description Qty Price
G3834 - GRIP, SERVICE PLUG
G3834-47050

MZEH12,ZWE211

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

MZEH12,ZWE211

 1
G92PF - PROTECTOR, HV BATTERY, NO.4
G92PF-47010

ZWE211

 1
Common parts
90119-08A87
90119-08C69
90119-W0182

ILLUST NO. 4 OF 4(1901- )ZWE211

Click highlighted areas on diagram

HV BATTERY

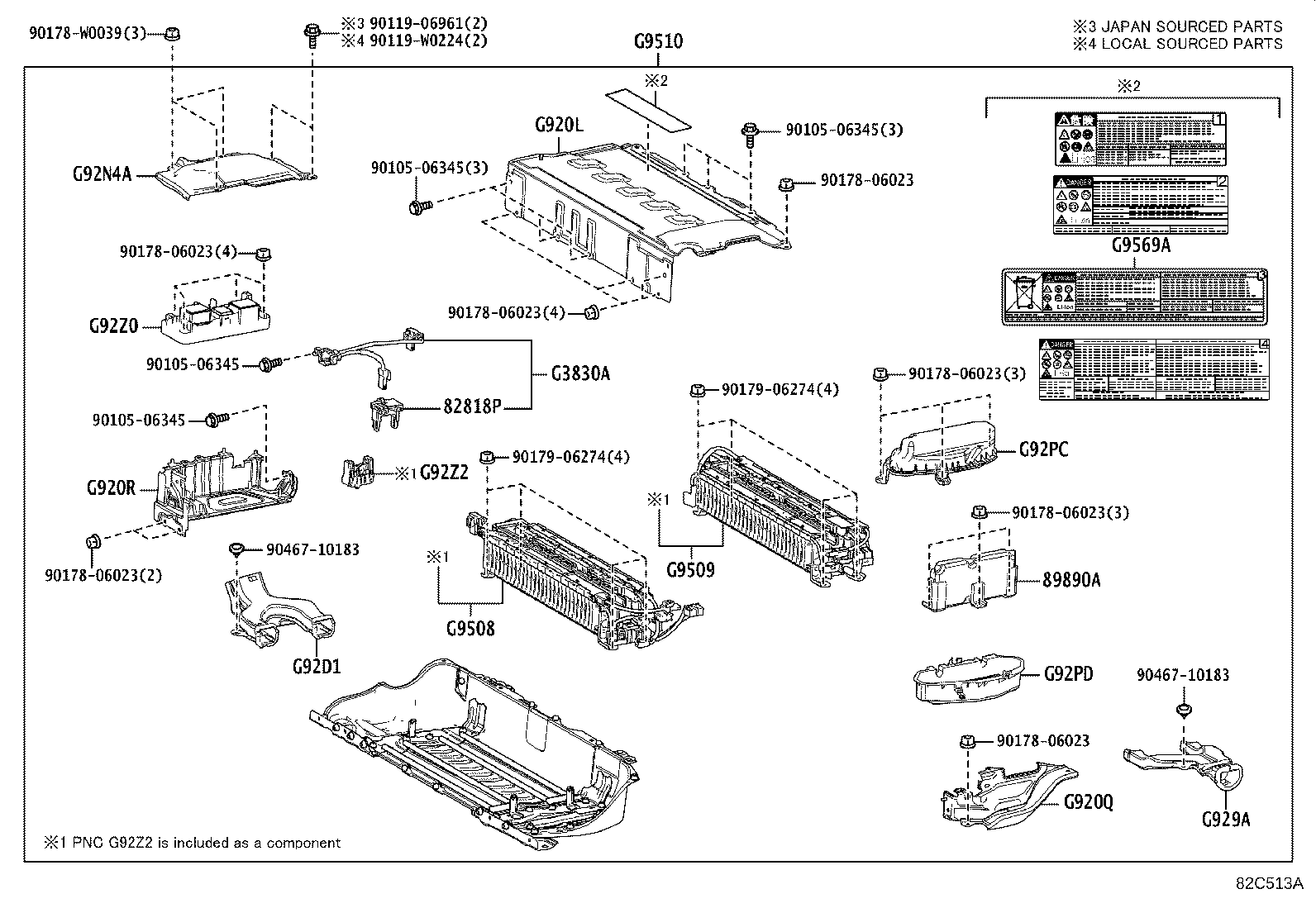

diagram 82818P 89890A 9010506345 9010506345 9010506345 9010506345 9011906961 90119W0224 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 90178W0039 9017906274 9017906274 9046710183 9046710183 G3830A G920L G920Q G920R G929A G92D1 G92N4A G92PC G92PD G92Z0 G92Z2 G9508 G9509 G9510 G9569A
Part # Description Qty Price
82818P - PROTECTOR, WIRING HARNESS
82817-47Q60

MZEH12,ZWE211

 1
89890A - COMPUTER ASSY, BATTERY
89890-47103

ZWE211

DENSO

 1
89890-47104

ZWE211

DENSO

 1
G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3830-47120

ZWE211

 1
G920L - COVER SUB-ASSY, HYBRID BATTERY, UPPER NO.1
G920N-47110

ZWE211

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-47050

ZWE211

 1
G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2
G920R-47020

ZWE211

 1
G929A - HOSE, HV BATTERY, NO.1
G929A-47030

ZWE211

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92E1-47051

ZWE211

 1
G92N4A - PANEL, HV BATTERY RH COVER, NO.1
G92N4-47050

ZWE211

 1
G92PC - PROTECTOR, HV BATTERY, NO.1
G92PC-47010

ZWE211

 1
G92PD - PROTECTOR, HV BATTERY, NO.2
G92PD-47010

ZWE211

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-47110

ZWE211

 1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-47070

MZEH12,ZWE211

 1
G9508 - STACK SUB-ASSY, HV SUPPLY, NO.1
G9509-47020

ZWE211

 1
G9509 - STACK SUB-ASSY, HV SUPPLY, NO.2
G9508-47330

ZWE211

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-47121

ZWE211

 1
G9569A - LABEL, LITHIUM ION BATTERY CAUTION
G9569-47120

ZWE211

 1
Common parts
90105-06345
90119-06961
90119-W0224
90178-06023
90178-W0039
90179-06274
90467-10183
