NRE210R-DHXNZW (2019)
Toyota Corolla (Ukp)

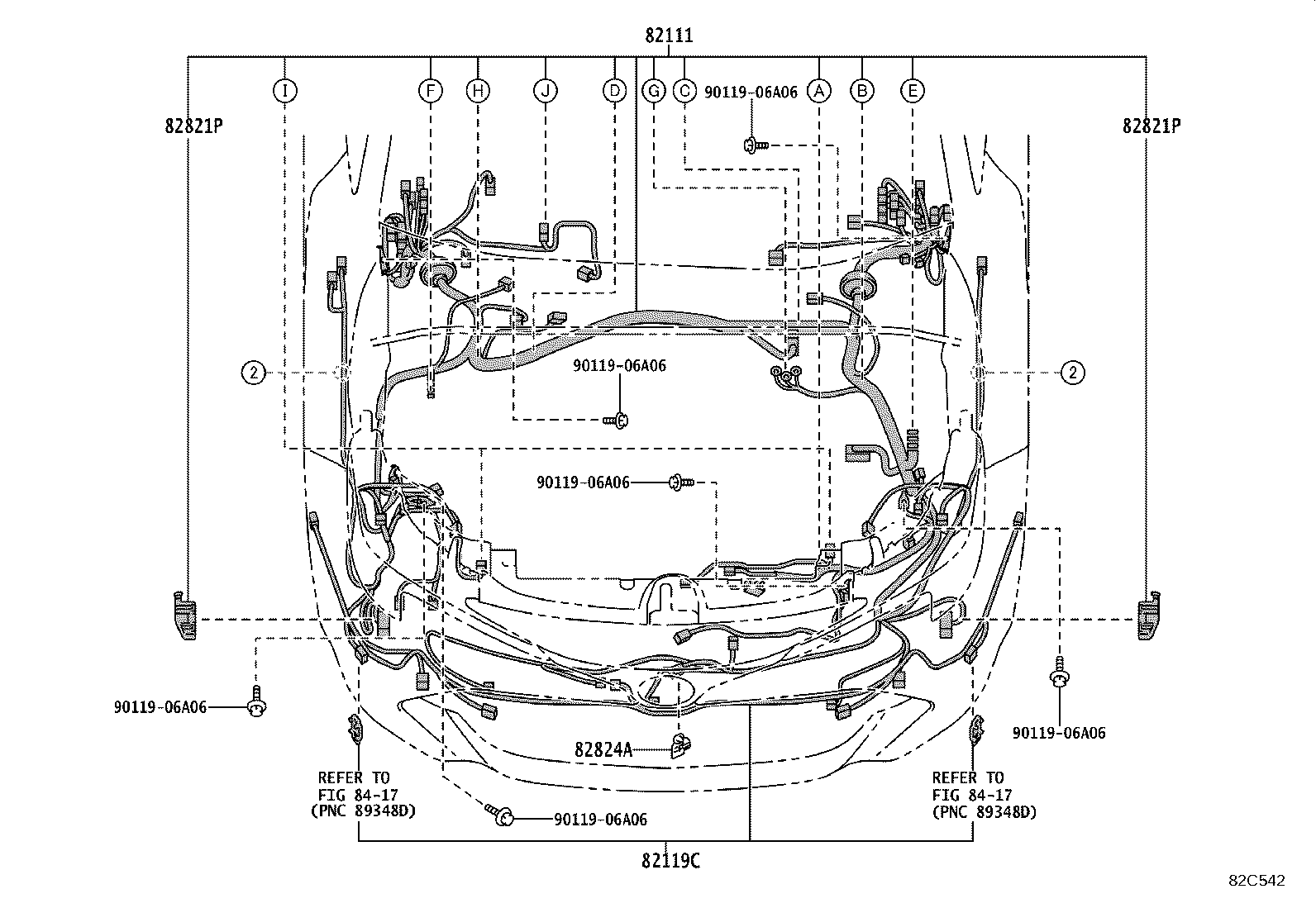

ILLUST NO. 1 OF42(1901- )NRE210..RHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-F2L00 |
NRE210..RHD..CVT..D LIGHT GRADE&GRILL SHUTTER-WITH |
1 | ||
| 82111-F2T30 |
NRE210..RHD..CVT..D GRILL SHUTTER-WITH |
1 | ||
| 82111-F2K50 |
NRE210..RHD..CVT..(D,N) |
1 | ||
| 82111-F2K50 |
NRE210..RHD..CVT..(D,N) LIGHT GRADE |
1 | ||
| 82111-F2K60 |
NRE210..RHD..CVT..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82111-F2T20 |
NRE210..RHD..CVT..N HEADLAMP-PROJECTOR & WITH(*AHB) |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-02050 |
MZEH12,NRE210,ZWE211..CVT..N CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-50780 |
NRE210;MZEH12,ZWE211..G |
1 | ||
| 82821-50780 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-50780 |
NRE210;MZEH12,ZWE211..G |
1 | ||
| 82821-50780 |
NRE210..D,N LIGHT GRADE |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| Linked diagrams | ||||
| 8417 | ||||

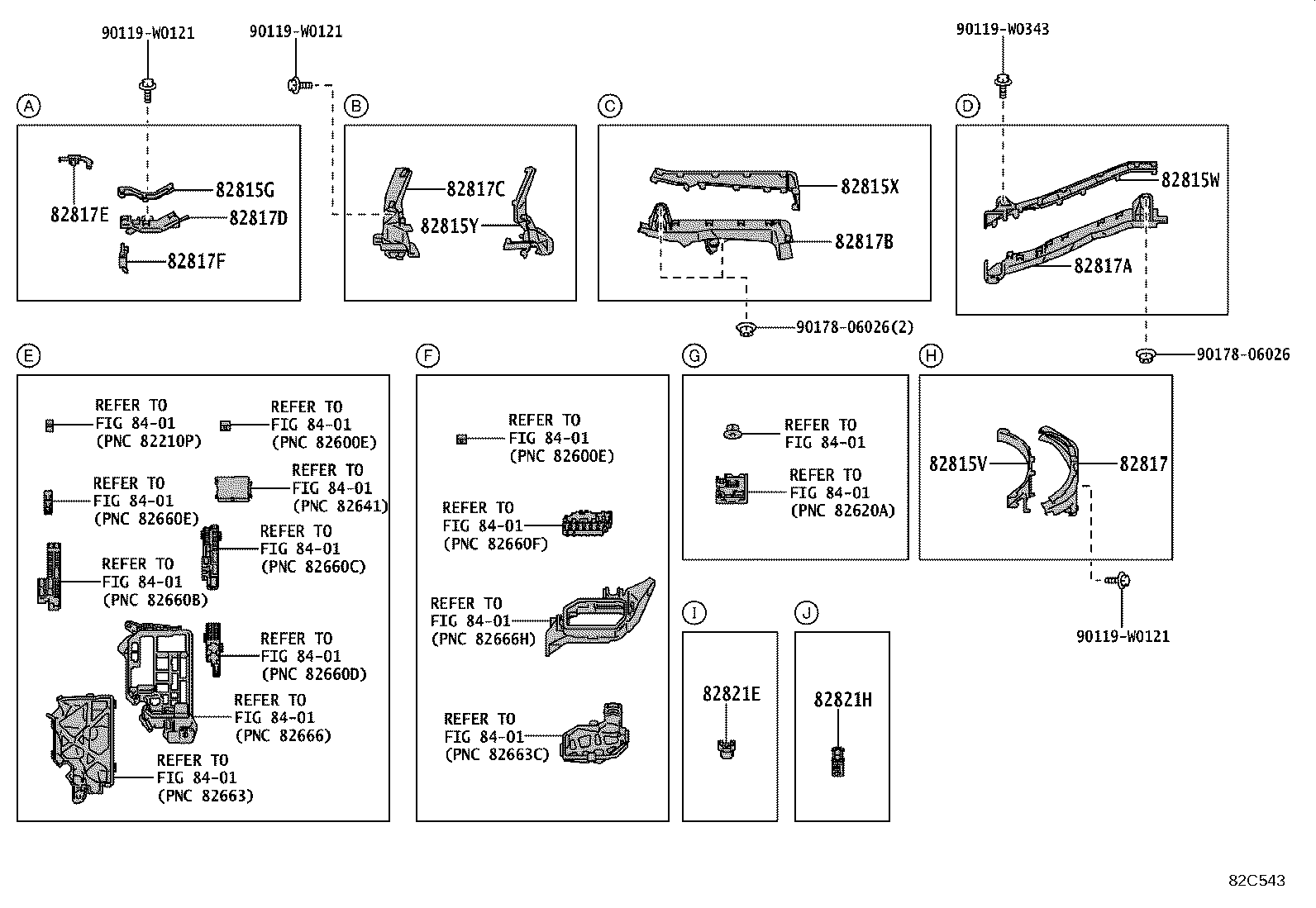

ILLUST NO. 2 OF42(1901- )NRE210..RHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12L40 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82815-12L40 |
NRE210 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-12J00 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82815-12J00 |
NRE210..RHD |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-12L90 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82815-12L90 |
NRE210..RHD |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-12L80 |
NRE210..RHD |
1 | ||
| 82815-12L80 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-12L70 |
NRE210..RHD |
1 | ||
| 82815-12L70 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12W50 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82817-12W50 |
NRE210..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12Z80 |
NRE210..RHD |
1 | ||
| 82817-12Z80 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12Z70 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82817-12Z70 |
NRE210..RHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12Z60 |
NRE210..RHD |
1 | ||
| 82817-12Z60 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12Z20 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82817-12Z20 |
NRE210 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-12Z10 |
NRE210 |
1 | ||
| 82817-12Z10 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-12Z50 |
NRE210 |
1 | ||
| 82817-12Z50 |
NRE210..D,N LIGHT GRADE |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-30650 |
NRE210 |
2 | ||
| 82821-30650 |
NRE210..D,N LIGHT GRADE |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-50500 |
NRE210..RHD..(D,N) LIGHT GRADE |
1 | ||
| 82821-50500 |
NRE210..RHD |
1 | ||
| Common parts | ||||
| 90119-W0121 | ||||
| 90119-W0343 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.15 OF42(1901- )NRE210..CVT
ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16364A - WIRE, COOLING FAN | ||||
| 16364-0Y020 |
M20AFXS,8NRFTS..MZEH12,NRE210 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-0ZT20 |
NRE210..RHD..CVT;NRE210..LHD..WG..CVT |
1 | ||
| 82121-0ZT20 |
NRE210..RHD..CVT;NRE210..LHD..WG..CVT LIGHT GRADE |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12170 |
NRE210 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-12610 |
NRE210 |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-12010 |
NRE210 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-12130 |
NRE210 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-02250 |
NRE210 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NRE210 LIGHT GRADE |
1 | ||
| 82823-22050 |
NRE210 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 90119-W0037 | ||||
| 91671-80816 | ||||
ILLUST NO.16 OF42(1901- )NRE210..CVT
ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-02810 |
NRE210 |
1 | ||
| 82815-02810 |
NRE210 LIGHT GRADE |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-12G90 |
NRE210 LIGHT GRADE |
1 | ||
| 82815-12G90 |
NRE210 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-02790 |
NRE210 |
1 | ||
| 82815-02790 |
NRE210 LIGHT GRADE |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-12M40 |
NRE210 |
1 | ||
| 82815-12M40 |
NRE210 LIGHT GRADE |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-12M70 |
NRE210 |
1 | ||
| 82815-12M70 |
NRE210 LIGHT GRADE |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-12M50 |
NRE210 LIGHT GRADE |
1 | ||
| 82815-12M50 |
NRE210 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-12M60 |
NRE210 |
1 | ||
| 82815-12M60 |
NRE210 LIGHT GRADE |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-12M30 |
NRE210 |
1 | ||
| 82815-12M30 |
NRE210 LIGHT GRADE |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02M30 |
NRE210 |
1 | ||
| 82817-02M30 |
NRE210 LIGHT GRADE |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12W40 |
NRE210 |
1 | ||
| 82817-12W40 |
NRE210 LIGHT GRADE |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-02M20 |
NRE210 LIGHT GRADE |
1 | ||
| 82817-02M20 |
NRE210 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-1AA20 |
NRE210 |
1 | ||
| 82817-1AA20 |
NRE210 LIGHT GRADE |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-1AA60 |
NRE210 |
1 | ||
| 82817-1AA60 |
NRE210 LIGHT GRADE |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-1AA30 |
NRE210 |
1 | ||
| 82817-1AA30 |
NRE210 LIGHT GRADE |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-1AA50 |
NRE210 LIGHT GRADE |
1 | ||
| 82817-1AA50 |
NRE210 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-1AA10 |
NRE210 LIGHT GRADE |
1 | ||
| 82817-1AA10 |
NRE210 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-1AA40 |
NRE210 |
1 | ||
| 82817-1AA40 |
NRE210 LIGHT GRADE |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-1AA80 |
NRE210 |
1 | ||
| 82817-1AA80 |
NRE210 LIGHT GRADE |
1 | ||
| 82818T - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-1AA70 |
NRE210 LIGHT GRADE |
1 | ||
| 82817-1AA70 |
NRE210 |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-02M10 |
NRE210 |
1 | ||
| 82817-02M10 |
NRE210 LIGHT GRADE |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 28192-47030 |
NRE210 |
1 | ||
| Common parts | ||||
| 90119-W0030 | ||||
| 90119-W0199 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 1904 | ||||
| 8401 | ||||
ILLUST NO.22 OF42(1901- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-F2G70 |
NRE210..RHD..CVT..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2G80 |
NRE210..RHD..CVT..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2G70 |
NRE210..RHD..CVT..N AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2G70 |
NRE210..RHD..CVT..D |
1 | ||
| 82141-F2L40 |
NRE210..RHD..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2G80 |
NRE210..RHD..CVT..N LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2G80 |
NRE210..RHD..CVT..D AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 82141-F2G80 |
NRE210..RHD..CVT..N |
1 | ||
| 82141-F2G80 |
NRE210..RHD..CVT..D AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82141-F2L50 |
NRE210..RHD..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82141-F2G81 |
NRE210..RHD..CVT..N |
1 | ||
| 82141-F2G81 |
NRE210..RHD..CVT..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2G81 |
NRE210..RHD..CVT..D AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82141-F2G81 |
NRE210..RHD..CVT..D AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 82141-F2G71 |
NRE210..RHD..CVT..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2L41 |
NRE210..RHD..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2G71 |
NRE210..RHD..CVT..D |
1 | ||
| 82141-F2G71 |
NRE210..RHD..CVT..N AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2G81 |
NRE210..RHD..CVT..N LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2L51 |
NRE210..RHD..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82141-F2L52 |
NRE210..RHD..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82141-F2L42 |
NRE210..RHD..CVT..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2G72 |
NRE210..RHD..CVT..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2G72 |
NRE210..RHD..CVT..D |
1 | ||
| 82141-F2G82 |
NRE210..RHD..CVT..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2G72 |
NRE210..RHD..CVT..N AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 82141-F2G82 |
NRE210..RHD..CVT..N LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82141-F2G82 |
NRE210..RHD..CVT..N |
1 | ||
| 82141-F2G82 |
NRE210..RHD..CVT..D AUDIO-T1 (8INCH) & DAB & 6SPEAKER |
1 | ||
| 82141-F2G82 |
NRE210..RHD..CVT..D AUDIO-T1 (8INCH) & 6SPEAKER |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12680 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02550 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-02170 |
NRE210,ZWE211..RHD..(D,N) SUB COLD AREA SPEC |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12670 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82666-12670 |
MZEH12,NRE210,ZWE211..EUR LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82666-12670 |
NRE210..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12680 |
NRE210..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82666-12680 |
MZEH12,NRE210,ZWE211..EUR LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82666-12680 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12530 |
NRE210..RHD..N;NRE210..LHD..WG..N;NRE210..RHD..CVT..D;NRE210..LHD..HB..6F..N;NRE210..LHD..WG..CVT..D LIGHT GRADE |
1 | ||
| 82824-12530 |
ZWE211;NRE210..RHD;NRE210..LHD..WG;NRE210..LHD..HB..6F |
1 | ||
| 82824-12530 |
ZWE211..D,N;ZWE211..WG..G;NRE210..RHD..CVT;NRE210..LHD..WG..CVT LIGHT GRADE&HEADLAMP-MULTI REFLECTOR |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90159-W0012 | ||||
| 90159-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO.23 OF42(1901- )HB
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0ZL90 |
MZEH12,NRE210,ZWE211..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82151-0ZM00 |
MZEH12,NRE210,ZWE211..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 82151-0ZM00 |
MZEH12,NRE210,ZWE211..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 82151-0ZQ80 |
MZEH12,NRE210,ZWE211..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 82151-0ZQ80 |
MZEH12,NRE210,ZWE211..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 82151-0ZQ70 |
MZEH12,NRE210,ZWE211..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 82151-0ZM10 |
NRE210,ZWE211..RHD..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82151-0ZM10 |
NRE210..RHD..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82151-0ZM10 |
MZEH12,NRE210,ZWE211..RHD..N LIGHT GRADE&BACK MONITOR-WITHOUT |
1 | ||
| 82151-0ZM10 |
MZEH12,NRE210,ZWE211..RHD..(D,N) |
1 | ||
| 82151-0ZV70 |
MZEH12,NRE210,ZWE211..RHD..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 82151-0ZR00 |
MZEH12,NRE210,ZWE211..RHD..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 82151-0ZV60 |
MZEH12,NRE210,ZWE211..RHD..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0ZK40 |
MZEH12,NRE210,ZWE211..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82152-0ZK50 |
MZEH12,NRE210,ZWE211..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 82152-0ZP80 |
MZEH12,NRE210,ZWE211..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 82152-0ZK50 |
MZEH12,NRE210,ZWE211..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 82152-0ZP90 |
MZEH12,NRE210,ZWE211..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 82152-0ZP90 |
MZEH12,NRE210,ZWE211..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM |
1 | ||
| 82152-0ZK60 |
MZEH12,NRE210,ZWE211..RHD..(D,N) |
1 | ||
| 82152-0ZK60 |
NRE210..RHD..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82152-0ZK60 |
MZEH12,NRE210,ZWE211..RHD..N LIGHT GRADE&BACK MONITOR-WITHOUT |
1 | ||
| 82152-0ZK60 |
NRE210,ZWE211..RHD..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82152-0ZU40 |
MZEH12,NRE210,ZWE211..RHD..N OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 82152-0ZQ10 |
MZEH12,NRE210,ZWE211..RHD..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM) |
1 | ||
| 82152-0ZU50 |
MZEH12,NRE210,ZWE211..RHD..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&OUTSIDE REAR VIEW MIRROR-*AREM & *MIH |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02G40 |
MZEH12,NRE210,ZWE211..RHD..HB |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02E40 |
MZEH12,NRE210,ZWE211..RHD..HB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-02790 |
MZEH12,NRE210,ZWE211..RHD..HB |
1 | ||
| 82184-02880 |
MZEH12,NRE210,ZWE211..RHD..HB..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-02140 |
NRE210..HB..D..EUR;ZWE211..LHD..HB..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82185-02140 |
NRE210..HB..(G,N);MZEH12,ZWE211..LHD..HB..N LIGHT GRADE&BACK MONITOR-WITHOUT |
1 | ||
| 82185-02140 |
NRE210..HB..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82185-02140 |
NRE210..HB;MZEH12,ZWE211..LHD..HB |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82184-12B00 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 82184-12A90 |
MZEH12,NRE210,ZWE211..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-1AA90 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
ILLUST NO.25 OF42(1901- )NRE210..HB
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-F2E10 |
NRE210..RHD..HB..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82161-F2E10 |
NRE210..RHD..HB..N LIGHT GRADE&BACK MONITOR-WITHOUT |
1 | ||
| 82161-F2E20 |
NRE210..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82161-F2E10 |
NRE210..RHD..HB..(D,N) |
1 | ||
| 82161-F2E10 |
NRE210..RHD..HB..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82161-F2E11 |
NRE210..RHD..HB..(D,N) |
1 | ||
| 82161-F2E21 |
NRE210..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82161-F2E11 |
NRE210..RHD..HB..N LIGHT GRADE&BACK MONITOR-WITHOUT |
1 | ||
| 82161-F2E11 |
NRE210..RHD..HB..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82161-F2E11 |
NRE210..RHD..HB..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82161-F2E22 |
NRE210..RHD..HB..N WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82161-F2E12 |
NRE210..RHD..HB..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 82161-F2E12 |
NRE210..RHD..HB..(D,N) |
1 | ||
| 82161-F2E12 |
NRE210..RHD..HB..N LIGHT GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&BACK MONITOR-WITHOUT |
1 | ||
| 82161-F2E12 |
NRE210..RHD..HB..N LIGHT GRADE&BACK MONITOR-WITHOUT |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-02380 |
NRE210..HB..(G,N) HEADLAMP-PROJECTOR & WITH(*AHS) |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-02050 |
MZEH12,NRE210,ZWE211..HB..(D,N) |
1 | ||
| 82169-02070 |
MZEH12,NRE210,ZWE211..HB..CVT..N CLEARANCE & BACK SONAR-WITH(*ICS & *IPA) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0ZV00 |
NRE210..RHD..HB..(D,N);MZEH12,NRE210,ZWE211..LHD..HB..N |
1 | ||
| 82171-0ZV00 |
NRE210..RHD..HB..(D,N);MZEH12,NRE210,ZWE211..LHD..HB..N LIGHT GRADE |
1 | ||
| 82171-F2080 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N INTERMITTENT WIPER-WITH(AUTO) |
1 | ||
| 82171-F2240 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N MOON ROOF-WITH(PANORAMA ROOF)&INTERMITTENT WIPER-WITH(AUTO) |
1 | ||
| 82171-F2200 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-F2180 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N INTERMITTENT WIPER-WITH(AUTO)&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-F2280 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N MOON ROOF-WITH(PANORAMA ROOF)&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-F2120 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-F2320 |
NRE210..HB..N;MZEH12,ZWE211..LHD..HB..N MOON ROOF-WITH(PANORAMA ROOF)&INTERMITTENT WIPER-WITH(AUTO)&INNER REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-02060 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-02030 |
NRE210;ZWE211..WG..G;MZEH12,ZWE211..D,N |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-02040 |
NRE210;ZWE211..WG..G;MZEH12,ZWE211..D,N |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-W0037 | ||||
| 90178-W0031 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO.38 OF42(1901- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-02230 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 82191-02250 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-02230 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 82191-02250 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82191-02330 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 82191-02330 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
ILLUST NO.39 OF42(1901- )
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-02N70 | ||||
| 82715-02N80 | ||||
| 82715-02N90 | ||||
| 82715-02P00 | ||||
| 82715-02P30 | ||||
| 82715-02P40 | ||||
| 82715-02W80 | ||||
| 82715-02W90 | ||||
| 82715-02X20 | ||||
| 82715-02X40 | ||||
| 82715-02X50 | ||||
| 82715-02X60 | ||||
| 82715-02X70 | ||||
| 82715-10300 | ||||
| 82715-10520 | ||||
| 82715-12A01 | ||||
| 82715-12R70 | ||||
| 82715-12R80 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-33L00 | ||||
| 82715-33N10 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47770 | ||||
| 82715-47A00 | ||||
| 82715-F4020 | ||||
| 82715-F4040 | ||||
| 82715-F4050 | ||||
| 82715-F4120 | ||||
| 90119-06A12 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0199 | ||||
| 90119-W0356 | ||||
| 90178-W0039 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
ILLUST NO.40 OF42(1901- )
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02Y10 | ||||
| 82715-0Z050 | ||||
| 82715-12S90 | ||||
| 82715-33L40 | ||||
| 82715-47790 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47830 | ||||
| 82715-47860 | ||||
| 82715-47A20 | ||||
| 82715-5C050 | ||||
| 82715-76090 | ||||
| 82715-76790 | ||||
| 82715-F4010 | ||||
| 82729-20150 | ||||
| 90119-06A12 | ||||
| 90119-06A24 | ||||
| 90119-W0019 | ||||
| 90119-W0037 | ||||
| 90119-W0061 | ||||
| 90119-W0141 | ||||
| 90119-W0356 | ||||
| 91621-B0816 | ||||
| 91671-80614 | ||||
ILLUST NO.41 OF42(1901- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10825 | ||||
| 90980-10858 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-11660 | ||||
| 90980-12520 | ||||
| 90980-12732 | ||||
| 90980-12A92 | ||||
| 90980-12D34 | ||||
| 90980-12E29 | ||||
| 90980-12F30 | ||||
| 90980-WA052 | ||||
ILLUST NO.42 OF42(1901- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10860 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11148 | ||||
| 90980-11246 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B01 | ||||
| 90980-12C39 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
