NRE210R-DHXDZW (2019)
Toyota Corolla (Ukp)

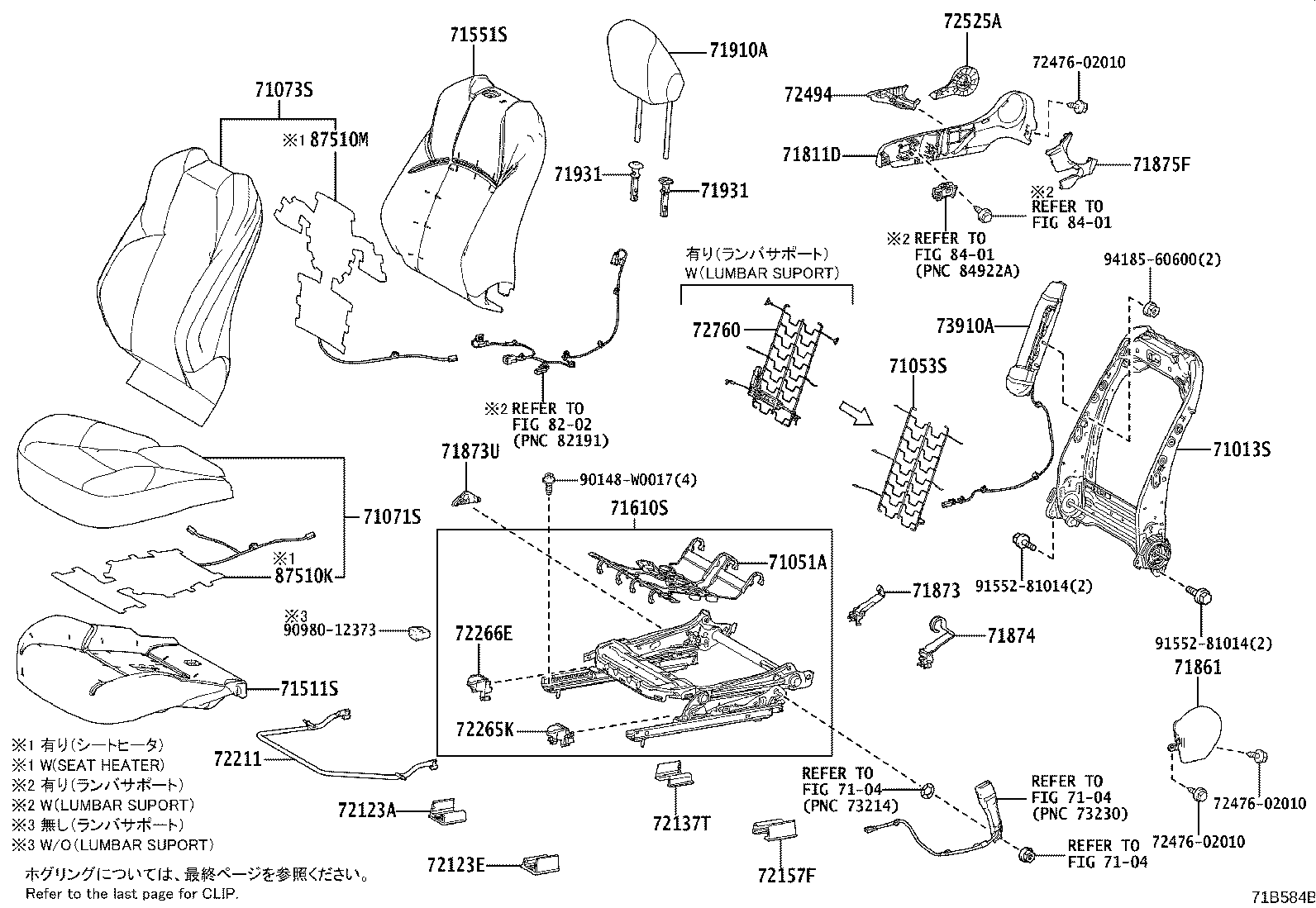

ILLUST NO. 3 OF 3(1901- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

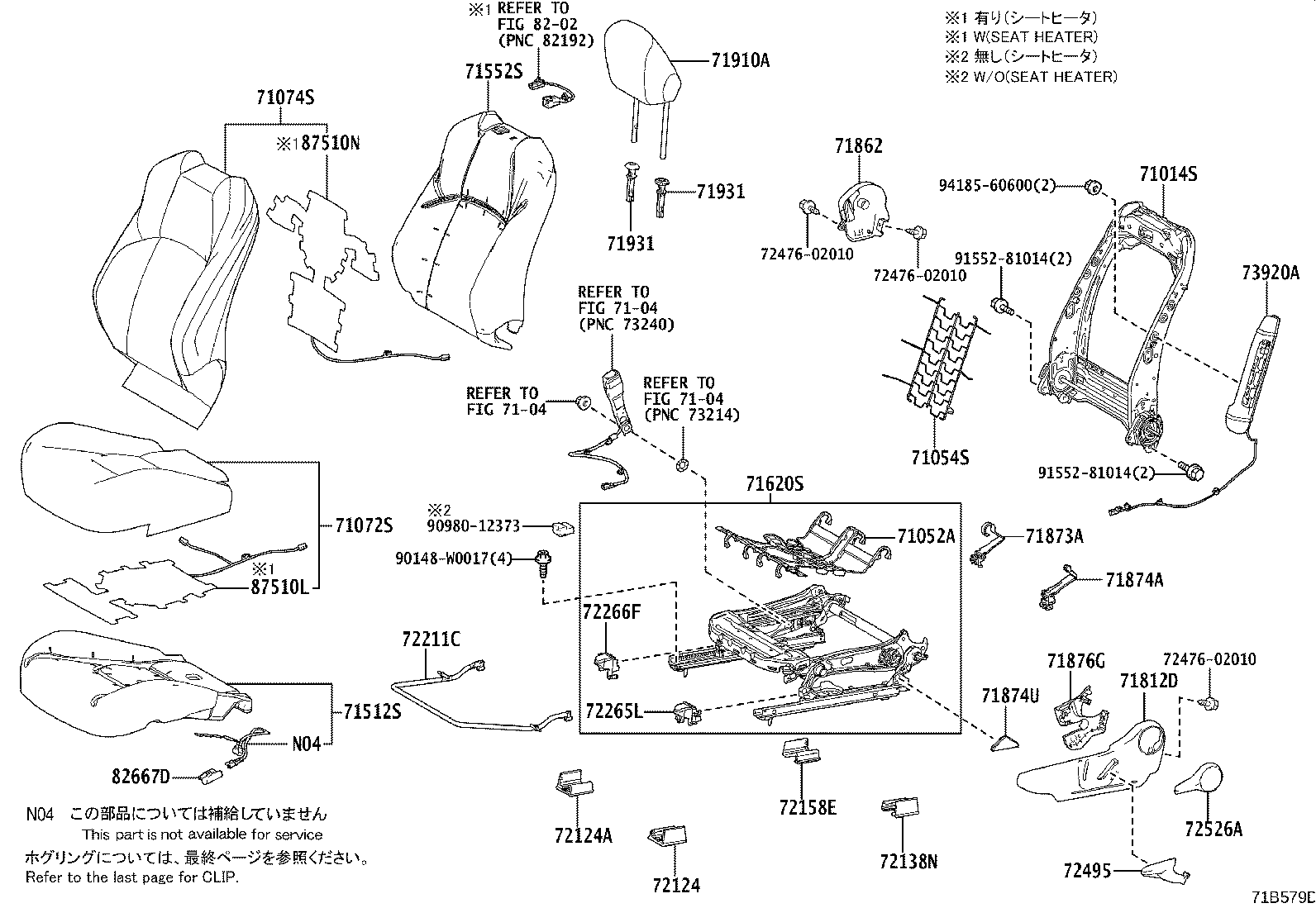

ILLUST NO. 1 OF 3(1901- )RHD
LH,4-WAY SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-02280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-02250 |
MZEH12,NRE210,ZWE211..RHD;MZEH12,NRE210,ZWE211..LHD..(D,N) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZK70C2 |
ZWE211..WG..N;MZEH12,NRE210..N;ZWE211..LHD..HB..N BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK70C2 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK50C3 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 71072-0ZK70C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK70C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK50C3 |
MZEH12,NRE210,ZWE211..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71072-0ZK70C3 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK70C3 |
ZWE211..WG..N;MZEH12,NRE210..N;ZWE211..LHD..HB..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK80C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK80C2 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK80C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK80C3 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-YY130 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY110 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY120 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY140 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE |
1 | ||
| 71072-YY150 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE |
1 | ||
| 71072-0ZK51C3 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71072-0ZK51C3 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 71072-0ZK71C2 |
ZWE211..WG..N;MZEH12,NRE210..N;ZWE211..LHD..HB..N BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK71C2 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-YY160 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE |
1 | ||
| 71072-0ZK71C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK71C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK81C2 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK81C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK81C3 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK81C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK71C3 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK71C3 |
ZWE211..WG..N;MZEH12,NRE210..N;ZWE211..LHD..HB..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-YY130 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY110 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY120 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-YY110 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER BROWN FABRIC PACKAGE |
1 | ||
| 71074-YY150 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE |
1 | ||
| 71074-0ZW50C2 |
MZEH12,NRE210,ZWE211..RHD..N BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW40C1 |
MZEH12,NRE210,ZWE211..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71074-0ZW50C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW40C1 |
NRE210,ZWE211..D BLACK,TRIM2# |
1 | ||
| 71074-0ZW50C3 |
MZEH12,NRE210,ZWE211..RHD..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW60C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW60C2 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW50C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW60C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW50C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW60C3 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW50C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-YY090 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY170 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY130 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY190 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC LIGHT PACKAGE |
1 | ||
| 71074-0ZW52C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW42C1 |
MZEH12,NRE210..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71074-0ZW52C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW42C1 |
NRE210,ZWE211..D BLACK,TRIM2# |
1 | ||
| 71074-0ZW52C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW52C3 |
MZEH12,NRE210,ZWE211..RHD..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW62C3 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW52C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW62C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW62C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW52C2 |
MZEH12,NRE210,ZWE211..RHD..N BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW62C2 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-YY130 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY170 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY090 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-02120 |
NRE210..RHD..D;ZWE211..RHD..WG..D;ZWE211..RHD..HB..(D,N) |
1 | ||
| 71502-02120 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 71502-02260 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B |
1 | ||
| 71502-02260 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 71502-02260 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N |
1 | ||
| 71502-02260 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02C60 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 71552-02C61 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02A30C0 |
NRE210..RHD..D;ZWE211..RHD..WG..D;ZWE211..RHD..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71812-02A40C0 |
ZWE211..WG..N;ZWE211..RHD..G;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N);MZEH12,NRE210..RHD..(G,N);MZEH12,NRE210..LHD..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71812-02A30C0 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71812-02A40C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71812-02A40C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71812-02A40C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02530C0 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71862-02370C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
1 | ||
| 71862-02370C0 |
ZWE211..G;ZWE211..WG..N;NRE210..LHD..D;MZEH12,NRE210..G,N;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71862-02370C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71862-02370C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71862-02530C0 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-02200C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02S20C2 |
NRE210,ZWE211..D BLACK,TRIM2# |
2 | ||
| 71910-YY080 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
2 | ||
| 71910-YY090 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE |
2 | ||
| 71910-02S30C1 |
MZEH12,NRE210,ZWE211..N BLACK,TRIM1#,2# |
2 | ||
| 71910-02S20C2 |
MZEH12,NRE210..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
2 | ||
| 71910-YY100 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71910-YY100 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE |
2 | ||
| 71910-YY080 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE |
2 | ||
| 71910-YY090 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY080 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY090 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY100 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C6 |
MZEH12,NRE210,ZWE211..D,N W(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931-02150C2 |
MZEH12,NRE210,ZWE211..D,N W/O(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C6 |
MZEH12,NRE210,ZWE211..D,N W(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931-02150C2 |
MZEH12,NRE210,ZWE211..D,N W/O(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-02810 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 72020-02810 |
NRE210..RHD..D;ZWE211..RHD..WG..D;ZWE211..RHD..HB..(D,N) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-02120 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72137-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-02330 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02170 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72265H - COVER, SEAT TRACK UPPER RAIL, REAR INNER | ||||
| 72265-02080 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 72265-02080 |
NRE210..RHD..D;ZWE211..RHD..WG..D;ZWE211..RHD..HB..(D,N) |
1 | ||
| 72265L - COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR LH SEAT) | ||||
| 72265-02080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72266F - COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR LH SEAT) | ||||
| 72266-02010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72266H - COVER, SEAT TRACK UPPER RAIL, REAR OUTER | ||||
| 72266-02010 |
NRE210..RHD..D;ZWE211..RHD..WG..D;ZWE211..RHD..HB..(D,N) |
1 | ||
| 72266-02010 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-02280C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02310 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-F4080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 72476-02010 | ||||
| 90148-W0017 | ||||
| 90980-12373 | ||||
| 91552-81014 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 3(1901- )RHD
LH,6-WAY SEAT(SPORTY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-02280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-02250 |
MZEH12,NRE210,ZWE211..RHD;MZEH12,NRE210,ZWE211..LHD..(D,N) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0ZK70C2 |
ZWE211..WG..N;MZEH12,NRE210..N;ZWE211..LHD..HB..N BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK70C2 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK50C3 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 71072-0ZK70C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK70C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK50C3 |
MZEH12,NRE210,ZWE211..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71072-0ZK70C3 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK70C3 |
ZWE211..WG..N;MZEH12,NRE210..N;ZWE211..LHD..HB..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK80C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK80C2 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK80C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK80C3 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-YY130 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY110 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY120 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY140 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE |
1 | ||
| 71072-YY150 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE |
1 | ||
| 71072-0ZK51C3 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71072-0ZK51C3 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 71072-0ZK71C2 |
ZWE211..WG..N;MZEH12,NRE210..N;ZWE211..LHD..HB..N BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK71C2 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-YY160 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE |
1 | ||
| 71072-0ZK71C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK71C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK81C2 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK81C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71072-0ZK81C3 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK81C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK71C3 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-0ZK71C3 |
ZWE211..WG..N;MZEH12,NRE210..N;ZWE211..LHD..HB..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71072-YY130 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY110 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71072-YY120 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-YY110 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER BROWN FABRIC PACKAGE |
1 | ||
| 71074-YY150 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE |
1 | ||
| 71074-0ZW50C2 |
MZEH12,NRE210,ZWE211..RHD..N BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW40C1 |
MZEH12,NRE210,ZWE211..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71074-0ZW50C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW40C1 |
NRE210,ZWE211..D BLACK,TRIM2# |
1 | ||
| 71074-0ZW50C3 |
MZEH12,NRE210,ZWE211..RHD..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW60C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW60C2 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW50C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW60C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW50C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW60C3 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW50C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-YY090 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY170 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY130 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY190 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC LIGHT PACKAGE |
1 | ||
| 71074-0ZW52C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW42C1 |
MZEH12,NRE210..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71074-0ZW52C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW42C1 |
NRE210,ZWE211..D BLACK,TRIM2# |
1 | ||
| 71074-0ZW52C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW52C3 |
MZEH12,NRE210,ZWE211..RHD..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW62C3 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW52C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW62C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71074-0ZW62C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW52C2 |
MZEH12,NRE210,ZWE211..RHD..N BLACK/GRAY,TRIM2# |
1 | ||
| 71074-0ZW62C2 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71074-YY130 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY170 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71074-YY090 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-02120 |
NRE210..RHD..D;ZWE211..RHD..WG..D;ZWE211..RHD..HB..(D,N) |
1 | ||
| 71502-02120 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A |
1 | ||
| 71502-02260 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B |
1 | ||
| 71502-02260 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 71502-02260 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N |
1 | ||
| 71502-02260 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02C60 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 71552-02C61 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-02600 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 71620-02600 |
ZWE211..G;ZWE211..WG..N;NRE210..LHD..D;MZEH12,NRE210..G,N;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N) |
1 | ||
| 71620-02600 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B |
1 | ||
| 71620-02600 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02A30C0 |
NRE210..RHD..D;ZWE211..RHD..WG..D;ZWE211..RHD..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71812-02A40C0 |
ZWE211..WG..N;ZWE211..RHD..G;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N);MZEH12,NRE210..RHD..(G,N);MZEH12,NRE210..LHD..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71812-02A30C0 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71812-02A40C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71812-02A40C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71812-02A40C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02530C0 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71862-02370C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
1 | ||
| 71862-02370C0 |
ZWE211..G;ZWE211..WG..N;NRE210..LHD..D;MZEH12,NRE210..G,N;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71862-02370C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71862-02370C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71862-02530C0 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-02160C0 |
ZWE211..G;ZWE211..WG..N;NRE210..LHD..D;MZEH12,NRE210..G,N;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71874-02160C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71874-02160C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
1 | ||
| 71874-02160C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02460C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71874-02460C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71874-02460C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
1 | ||
| 71874-02460C0 |
ZWE211..G;ZWE211..WG..N;NRE210..LHD..D;MZEH12,NRE210..G,N;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02170C0 |
ZWE211..G;ZWE211..WG..N;NRE210..LHD..D;MZEH12,NRE210..G,N;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71874-02170C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71874-02170C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
1 | ||
| 71874-02170C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-02200C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02S20C2 |
NRE210,ZWE211..D BLACK,TRIM2# |
2 | ||
| 71910-YY080 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
2 | ||
| 71910-YY090 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE |
2 | ||
| 71910-02S30C1 |
MZEH12,NRE210,ZWE211..N BLACK,TRIM1#,2# |
2 | ||
| 71910-02S20C2 |
MZEH12,NRE210..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
2 | ||
| 71910-YY100 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71910-YY100 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE |
2 | ||
| 71910-YY080 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE |
2 | ||
| 71910-YY090 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY080 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY090 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY100 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C6 |
MZEH12,NRE210,ZWE211..D,N W(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931-02150C2 |
MZEH12,NRE210,ZWE211..D,N W/O(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C6 |
MZEH12,NRE210,ZWE211..D,N W(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931-02150C2 |
MZEH12,NRE210,ZWE211..D,N W/O(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-02120 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72137-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-02330 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02170 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72265L - COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR LH SEAT) | ||||
| 72265-02080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72266F - COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR LH SEAT) | ||||
| 72266-02010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-02070 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72495-02070 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 72495-02070 |
ZWE211..G;ZWE211..WG..N;NRE210..LHD..D;MZEH12,NRE210..G,N;ZWE211..LHD..WG..D;ZWE211..LHD..HB..(D,N) |
1 | ||
| 72495-02070 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-02280C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-02310 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 82667D - HOLDER, CONNECTOR | ||||
| 82666-F4080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-02340 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-02340 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87530-02080 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87530-02080 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 72476-02010 | ||||
| 90148-W0017 | ||||
| 90980-12373 | ||||
| 91552-81014 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(1901- )RHD
RH,6-WAY SEAT(SPORTY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-02350 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-02250 |
MZEH12,NRE210,ZWE211..D,N;MZEH12,NRE210,ZWE211..LHD..G |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0ZT50C3 |
MZEH12,NRE210,ZWE211..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71071-0ZT60C2 |
ZWE211..RHD..N;MZEH12,NRE210..N;ZWE211..LHD..WG..N BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT60C3 |
ZWE211..RHD..N;MZEH12,NRE210..N;ZWE211..LHD..WG..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT60C3 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT60C2 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT60C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT70C2 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT60C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT70C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT50C3 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 71071-0ZT70C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT70C3 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-YY150 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71071-YY110 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71071-YY120 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71071-YY160 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE |
1 | ||
| 71071-YY130 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE |
1 | ||
| 71071-YY140 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE |
1 | ||
| 71071-0ZT61C3 |
ZWE211..RHD..N;MZEH12,NRE210..N;ZWE211..LHD..WG..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT61C2 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT61C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT51C3 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 71071-0ZT61C2 |
ZWE211..RHD..N;MZEH12,NRE210..N;ZWE211..LHD..WG..N BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT61C3 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT71C3 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT61C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT71C2 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71071-0ZT51C3 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71071-0ZT71C3 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71071-0ZT71C2 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71071-YY110 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71071-YY120 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71071-YY150 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71027-02720C1 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71027-02720C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71027-02720C1 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71027-02720C0 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71073-0ZX50C1 |
NRE210,ZWE211..D BLACK,TRIM2# |
1 | ||
| 71073-0ZY10C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71073-0ZX50C1 |
MZEH12,NRE210,ZWE211..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71073-0ZY10C2 |
MZEH12,NRE210,ZWE211..RHD..N BLACK/GRAY,TRIM2# |
1 | ||
| 71073-0ZY10C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71027-02721C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71073-0ZY10C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71073-0ZY10C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71073-0ZY10C3 |
MZEH12,NRE210,ZWE211..RHD..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71027-02721C1 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71027-02721C1 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71027-02721C0 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71073-YY090 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71073-YY130 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71073-YY200 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71073-YY220 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC LIGHT PACKAGE |
1 | ||
| 71073-YY110 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER BROWN FABRIC PACKAGE |
1 | ||
| 71027-02722C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71027-02722C1 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71027-02722C0 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM2# |
1 | ||
| 71073-YY180 |
MZEH12,NRE210,ZWE211..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE |
1 | ||
| 71027-02722C1 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71073-0ZX52C1 |
MZEH12,NRE210..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
1 | ||
| 71073-0ZX52C1 |
NRE210,ZWE211..D BLACK,TRIM2# |
1 | ||
| 71073-0ZY11C2 |
MZEH12,NRE210,ZWE211..RHD..N BLACK/GRAY,TRIM2# |
1 | ||
| 71073-0ZY11C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK/GRAY,TRIM2# |
1 | ||
| 71073-0ZY11C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71073-0ZY11C3 |
MZEH12,NRE210,ZWE211..RHD..N COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71073-0ZY11C2 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK/GRAY,TRIM2# |
1 | ||
| 71073-0ZY11C3 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,COOL GRAY/GRAY,TRIM1# |
1 | ||
| 71073-YY090 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71073-YY130 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71073-YY200 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02C20 |
MZEH12,NRE210,ZWE211..RHD..(D,N) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02E90 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 71551-02E91 |
MZEH12,NRE210,ZWE211..D,N |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-02510 |
MZEH12;ZWE211..LHD..G;NRE210..LHD..(G,N);NRE210,ZWE211..RHD;ZWE211..LHD..WG..N |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02750C0 |
MZEH12..N;NRE210..LHD..(G,N);ZWE211..LHD..WG..N;MZEH12,ZWE211..LHD..G;NRE210,ZWE211..RHD..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 71811-02760C0 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71811-02760C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71811-02760C0 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
1 | ||
| 71811-02760C0 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02320C0 |
MZEH12;ZWE211..LHD..G;NRE210..LHD..(G,N);NRE210,ZWE211..RHD;ZWE211..LHD..WG..N BLACK,TRIM1#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-02330C0 |
MZEH12;ZWE211..LHD..G;NRE210..LHD..(G,N);NRE210,ZWE211..RHD;ZWE211..LHD..WG..N BLACK,TRIM1#,2# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-02170C0 |
MZEH12;ZWE211..LHD..G;NRE210..LHD..(G,N);NRE210,ZWE211..RHD;ZWE211..LHD..WG..N BLACK,TRIM1#,2# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-02180C0 |
MZEH12;ZWE211..LHD..G;NRE210..LHD..(G,N);NRE210,ZWE211..RHD;ZWE211..LHD..WG..N BLACK,TRIM1#,2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-02190C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-YY080 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE |
2 | ||
| 71910-YY080 |
MZEH12,NRE210,ZWE211..N SEAT COVER BROWN FABRIC PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D SEAT COVER MATERIAL-SPORTY FABRIC B,BLACK,TRIM1#,2# |
2 | ||
| 71910-YY090 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE |
2 | ||
| 71910-02S20C2 |
NRE210,ZWE211..D BLACK,TRIM2# |
2 | ||
| 71910-02S30C1 |
MZEH12,NRE210,ZWE211..N BLACK,TRIM1#,2# |
2 | ||
| 71910-02S20C2 |
MZEH12,NRE210..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A,BLACK,TRIM2# |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT,BLACK,TRIM1#,2# |
2 | ||
| 71910-YY100 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-02S30C1 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71910-YY100 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC LIGHT PACKAGE |
2 | ||
| 71910-YY090 |
MZEH12,NRE210,ZWE211..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY080 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER BROWN FABRIC PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY090 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC RED INSERT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71910-YY100 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT COVER FABRIC LIGHT PACKAGE&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C6 |
MZEH12,NRE210,ZWE211..D,N W(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931-02150C2 |
MZEH12,NRE210,ZWE211..D,N W/O(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02330C6 |
MZEH12,NRE210,ZWE211..D,N W(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 71931-02150C2 |
MZEH12,NRE210,ZWE211..D,N W/O(LOCK),BLACK,TRIM1#,2# |
4 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72137-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-02120 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72123-02120 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-02360 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-02170 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72265K - COVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR RH SEAT) | ||||
| 72265-02080 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72266E - COVER, SEAT TRACK UPPER RAIL, FRONT OUTER(FOR RH SEAT) | ||||
| 72266-02010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-02220C0 |
MZEH12;ZWE211..LHD..G;NRE210..LHD..(G,N);NRE210,ZWE211..RHD;ZWE211..LHD..WG..N BLACK,TRIM1#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02270C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 72760 - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72760-02060 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 72760-02060 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT |
1 | ||
| 72760-02060 |
ZWE211..RHD..WG..N;MZEH12,NRE210..RHD..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72760-02060 |
NRE210,ZWE211..RHD..D SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-02320 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-02340 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510-02340 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87530-02080 |
ZWE211..WG..N;MZEH12,NRE210..N SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87530-02080 |
NRE210,ZWE211..D..EUR SEAT COVER MATERIAL-SPORTY FABRIC B&SEAT LUMBAR SUPPORT-WIHT&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 72476-02010 | ||||
| 90148-W0017 | ||||
| 90980-12373 | ||||
| 91552-81014 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
