NRE210R-DHFNZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )RHD

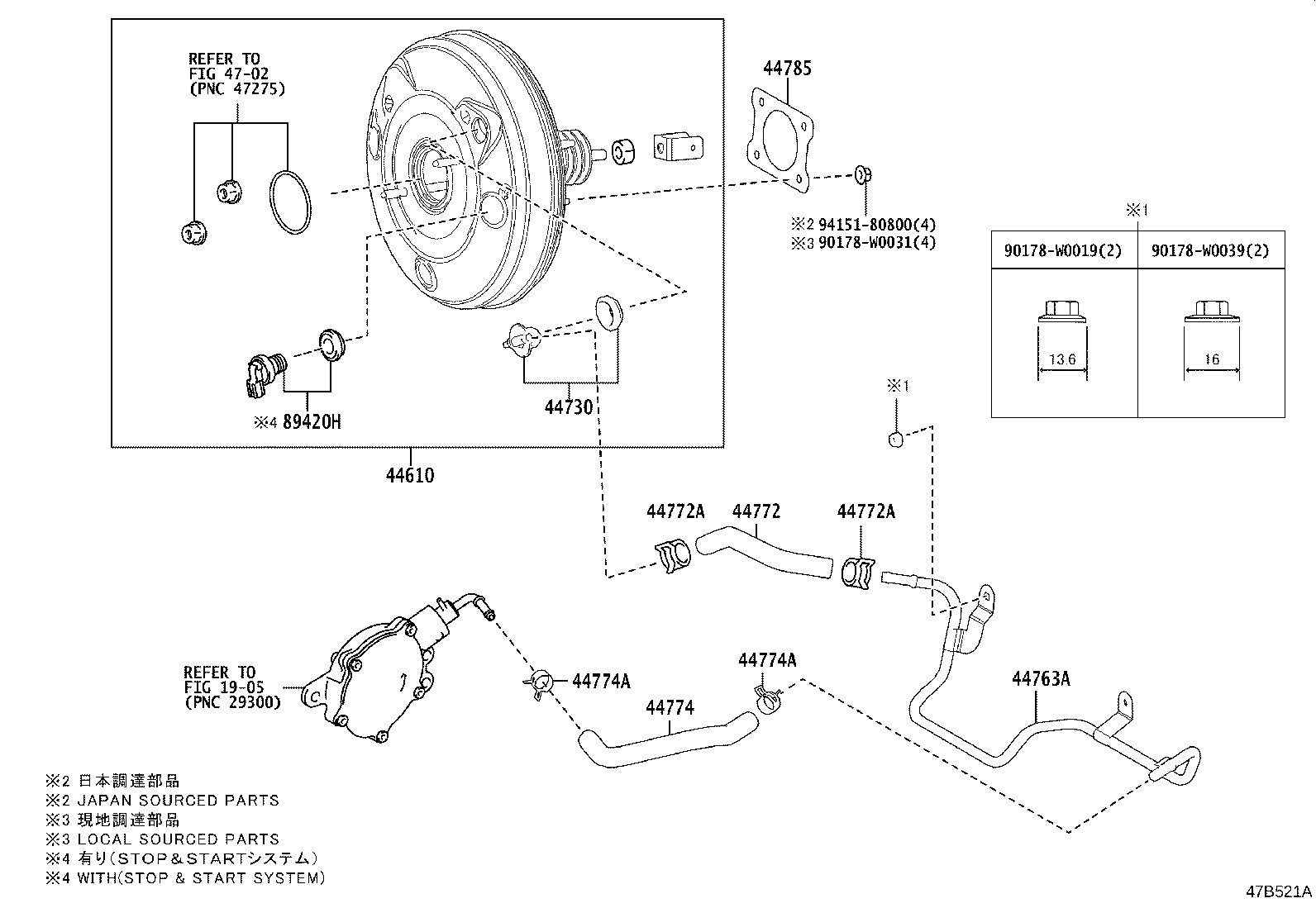

Click highlighted areas on diagram

diagram 1905 44610 44730 44763A 44772 44772A 44772A 44774 44774A 44774A 44785 4702 89420H 90178W0019 90178W0031 90178W0039 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09G10

NRE210..RHD..6F

LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

 1
44610-09G20

NRE210..RHD..6F

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-F9010

NRE210

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12570

NRE210..RHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-10220

NRE210..RHD

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NRE210..RHD

 2
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16014

NRE210..RHD

 2
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12800

NRE210..RHD

 1
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NRE210..RHD

 2
44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16014

NRE210..RHD

 2
44785 - GASKET, BRAKE BOOSTER
44785-05020

NRE210

(L)

 1
44785-12040

NRE210

(J)

 1
89420H - SENSOR ASSY, VACUUM
89421-09010

NRE210..6F..EUR;NRE210..LHD..HB..CVT..EUR

LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

 1
Common parts
90178-W0019
90178-W0031
90178-W0039
94151-80800
Linked diagrams
1905
4702
