NRE210R-DHFGZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )6F

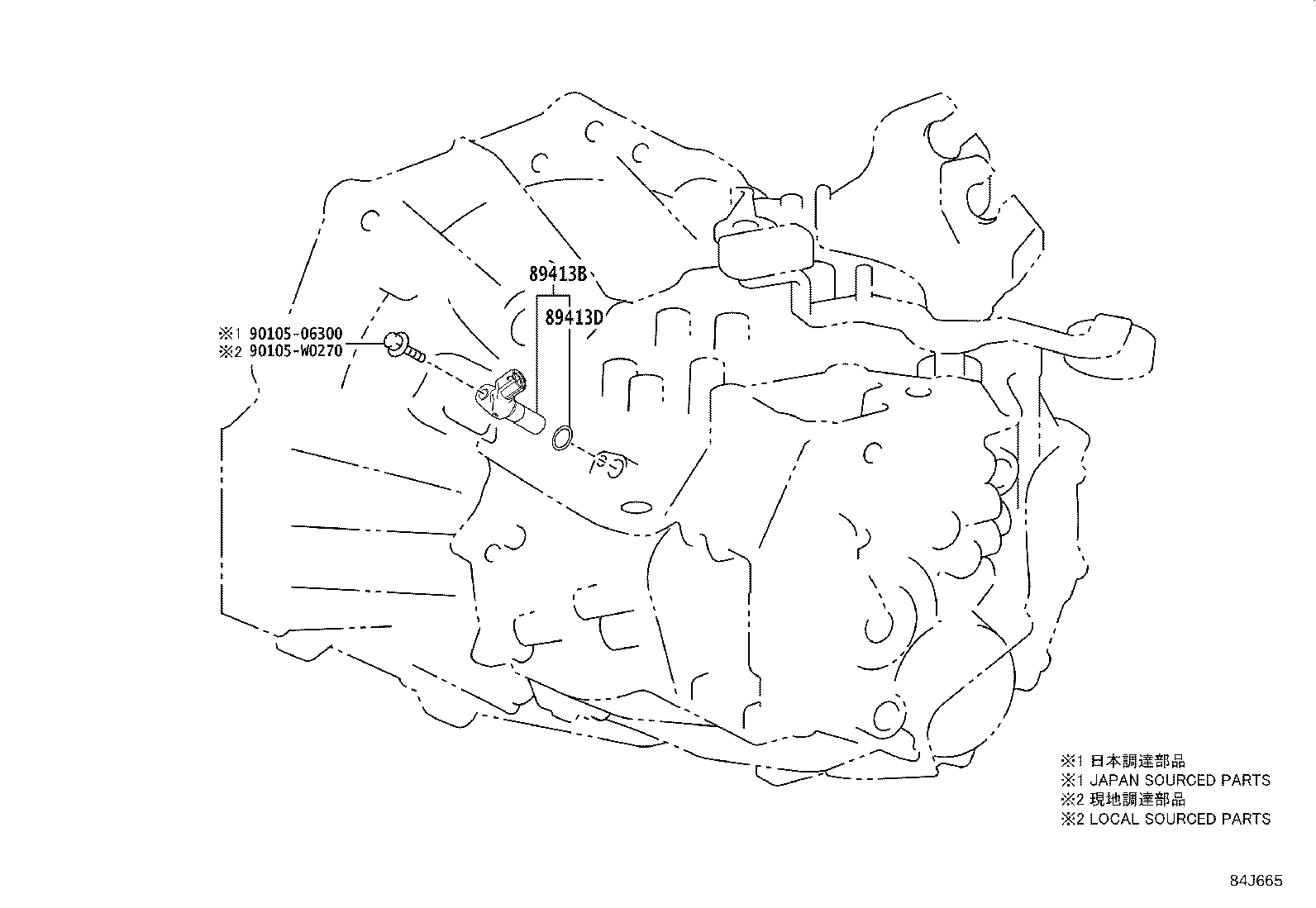

Click highlighted areas on diagram

EC6A

diagram 89413B 89413D 9010506300 90105W0270
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-22010

NRE210..6F

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NRE210..6F

 1
Common parts
90105-06300
90105-W0270
