NRE210R-DHFGZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )6F

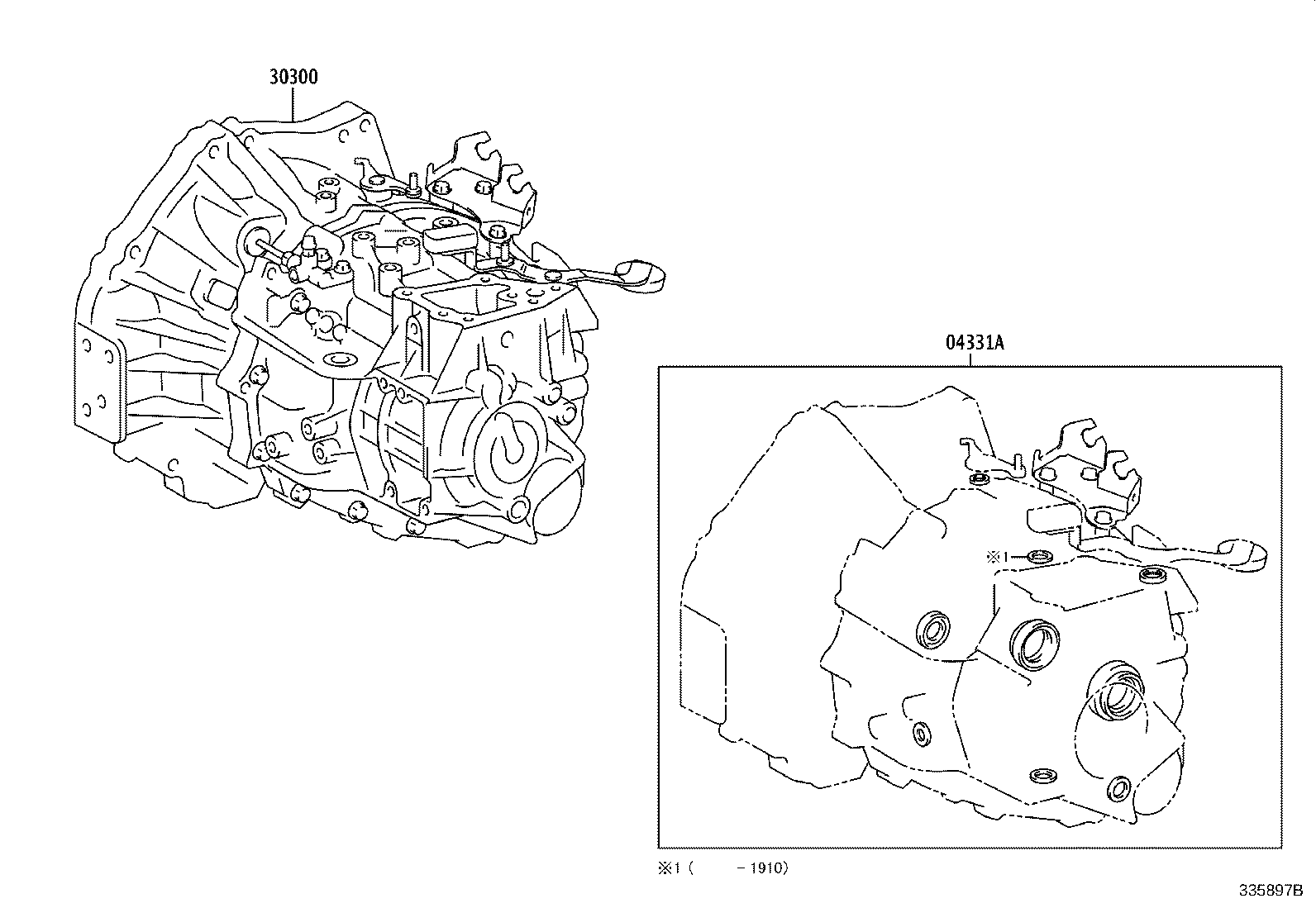

Click highlighted areas on diagram

EC6A

diagram 04331A 30300
Part # Description Qty Price
04331A - GASKET KIT, TRANSAXLE OVERHAUL(MTM)
04331-0F020

NRE210..6F

 1
04331-0F011

NRE210..6F

 1
30300 - TRANSAXLE ASSY, MANUAL
30300-02461

NRE210..6F

EC6A,REFER TO PNC 33403K

 1
30300-02460

NRE210..6F

EC6A,REFER TO PNC 33403K

 1
30300-02470

NRE210..6F..D..EUR

EC6A,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM),REFER TO PNC 33403K

 1
30300-02471

NRE210..6F..D..EUR

EC6A,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM),REFER TO PNC 33403K

 1
