NRE210R-DHFDZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

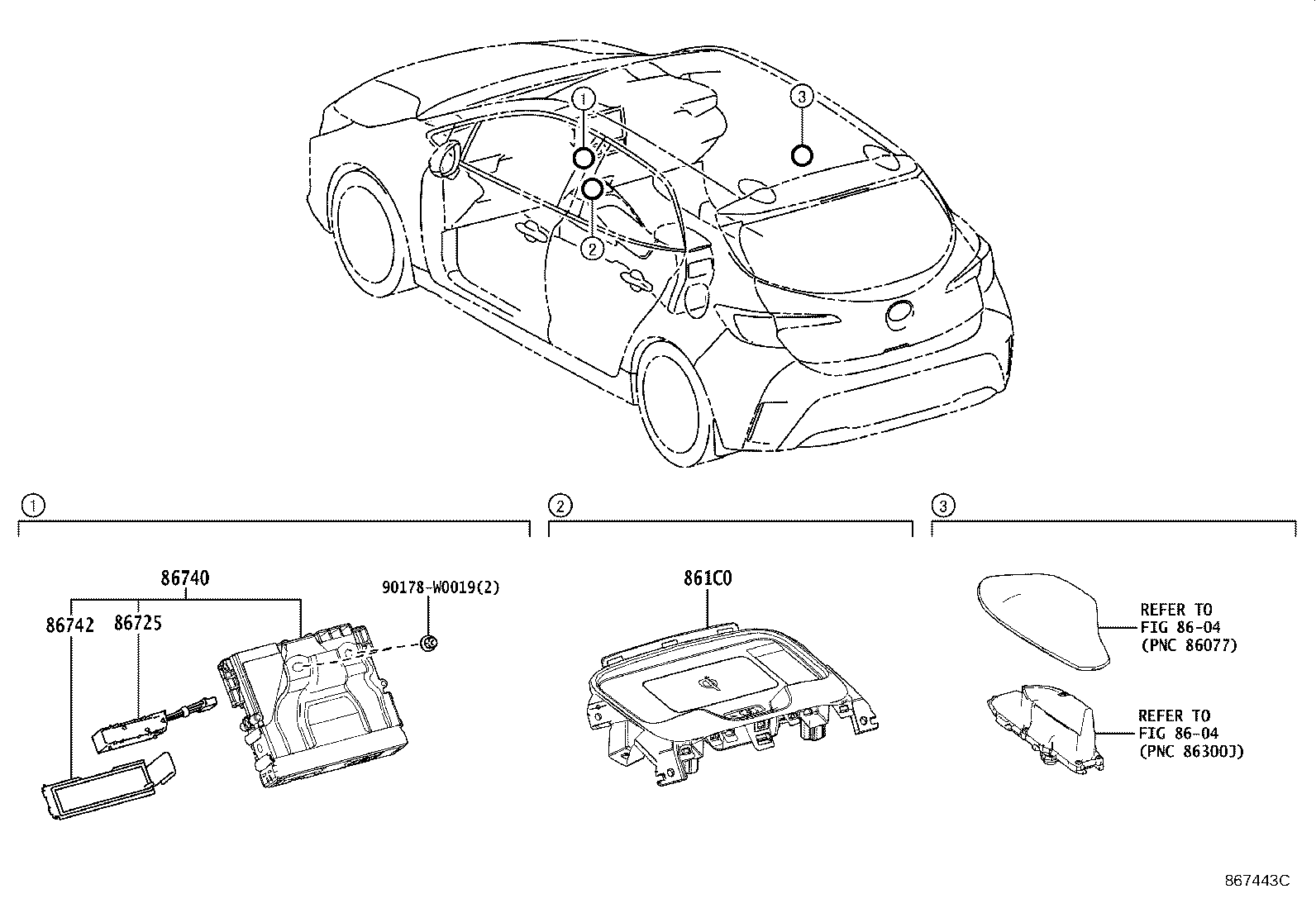

(1901-2010)HB

Click highlighted areas on diagram

diagram 8604 8604 861C0 86725 86740 86742 90178W0019
Part # Description Qty Price
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-02020

MZEH12,NRE210,ZWE211..(D,N)..EUR

SEAT HEATER-WITH(DRIVER & PASSENGER)&WIRELESS CHARGER-WITH

 1
861C0-02010

MZEH12,NRE210,ZWE211..(D,N)..EUR

WIRELESS CHARGER-WITH

 1
86725 - BATTERY, MOBILEPHONE
86725-33010

MZEH12,NRE210,ZWE211..EUR

 1
86725-78010

MZEH12,NRE210,ZWE211..EUR

 1
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-12040

MZEH12,NRE210,ZWE211..EUR

 1
86740-12041

MZEH12,NRE210,ZWE211..EUR

 1
86740-02160

MZEH12,NRE210,ZWE211..EUR

 1
86742 - COVER, TRANSCEIVER
86742-0D020

MZEH12,NRE210,ZWE211..EUR

 1
86742-33010

MZEH12,NRE210,ZWE211..EUR

 1
Common parts
90178-W0019
Linked diagrams
8604

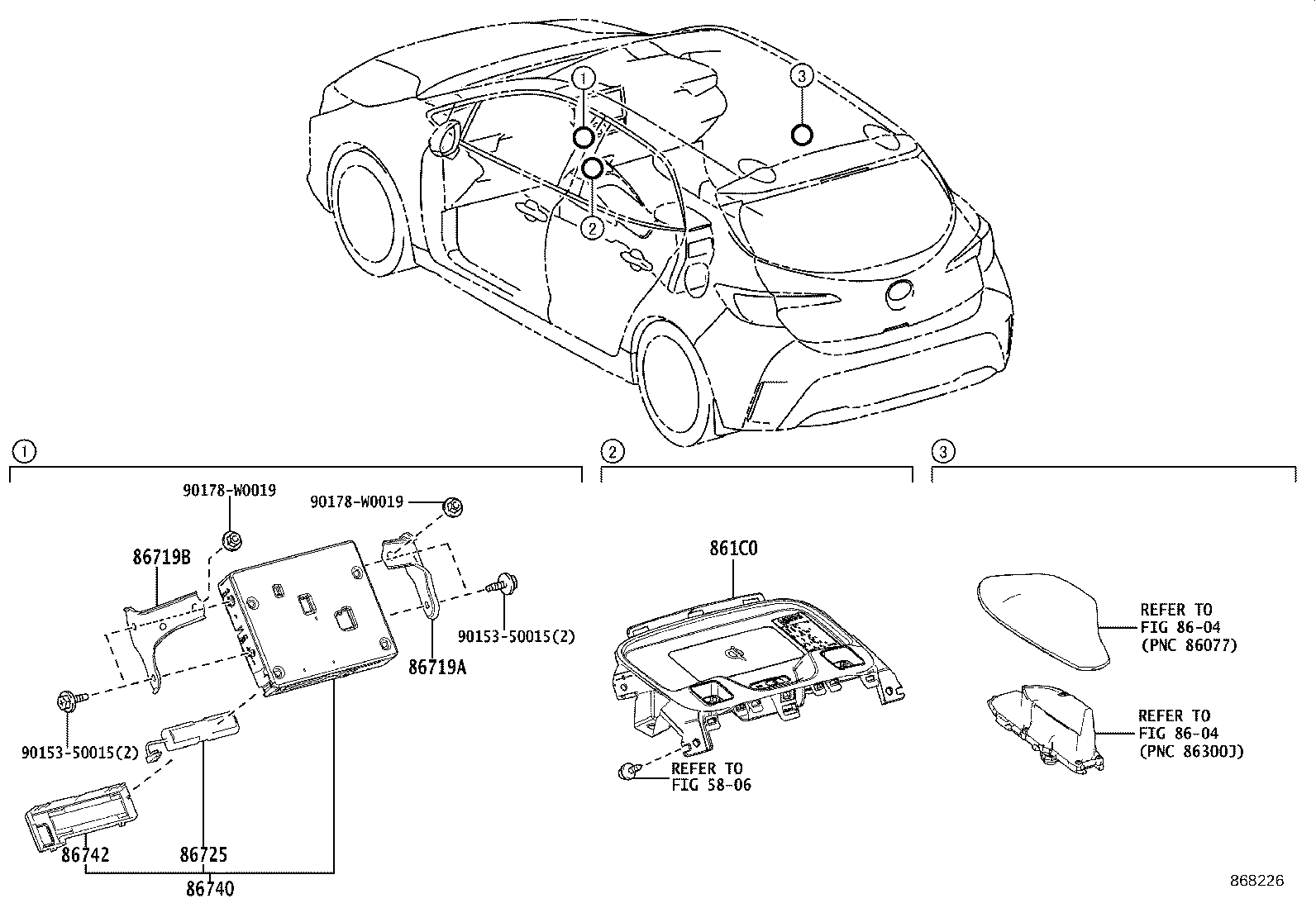

(2010- )HB

Click highlighted areas on diagram

diagram 5806 8604 8604 861C0 86719A 86719B 86725 86740 86742 9015350015 9015350015 90178W0019 90178W0019
Part # Description Qty Price
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-02020

MZEH12,NRE210,ZWE211..(D,N)..EUR

SEAT HEATER-WITH(DRIVER & PASSENGER)&WIRELESS CHARGER-WITH

 1
861C0-02010

MZEH12,NRE210,ZWE211..(D,N)..EUR

WIRELESS CHARGER-WITH

 1
86719A - BRACKET, TELEPHONE NO.1
86719-02160

MZEH12,NRE210,ZWE211..EUR

 1
86719B - BRACKET, TELEPHONE NO.2
86719-02170

MZEH12,NRE210,ZWE211..EUR

 1
86725 - BATTERY, MOBILEPHONE
86725-33010

MZEH12,NRE210,ZWE211..EUR

 1
86725-78010

MZEH12,NRE210,ZWE211..EUR

 1
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-12040

MZEH12,NRE210,ZWE211..EUR

 1
86740-12041

MZEH12,NRE210,ZWE211..EUR

 1
86740-02160

MZEH12,NRE210,ZWE211..EUR

 1
86742 - COVER, TRANSCEIVER
86742-0D020

MZEH12,NRE210,ZWE211..EUR

 1
86742-33010

MZEH12,NRE210,ZWE211..EUR

 1
Common parts
90153-50015
90178-W0019
Linked diagrams
5806
8604
