NRE210R-DHFDZW (2019)

Toyota Corolla (Ukp)

Production Jan 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )NRE210..HB

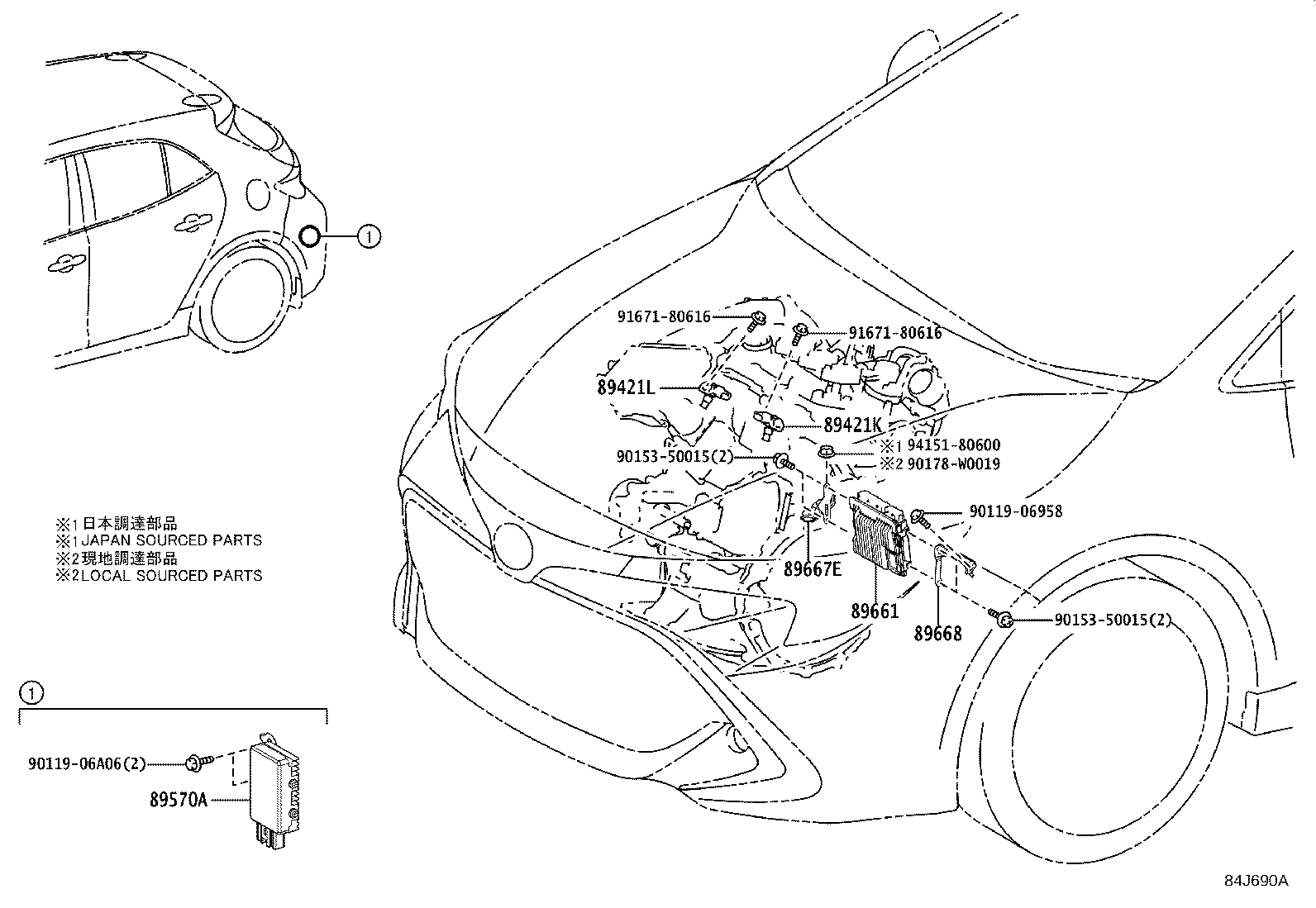

Click highlighted areas on diagram

diagram 89421K 89421L 89570A 89661 89667E 89668 9011906958 9011906A06 9015350015 9015350015 90178W0019 9167180616 9167180616 9415180600
Part # Description Qty Price
89421K - SENSOR, TURBO PRESSURE, NO.1
89421-78010

NRE210

 1
89421L - SENSOR, TURBO PRESSURE, NO.2
89421-78010

NRE210

 1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-12410

NRE210..HB

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02B00

NRE210..6F..D..EUR

DENSO,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

 1
89661-0ZX40

NRE210..6F..(G,N)

DENSO,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

 1
89661-0ZX50

NRE210..6F..EUR

DENSO

 1
89661-0ZX30

NRE210..6F..D..EUR

DENSO,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

 1
89666-02B00

NRE210..6F..(G,N)

DENSO,LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)

 1
89666-02B10

NRE210..6F..EUR

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-F4030

NRE210

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02500

NRE210

 1
Common parts
90119-06958
90119-06A06
90153-50015
90178-W0019
91671-80616
94151-80600
