NRE210R-DHFDZW (2019)
Toyota Corolla (Ukp)

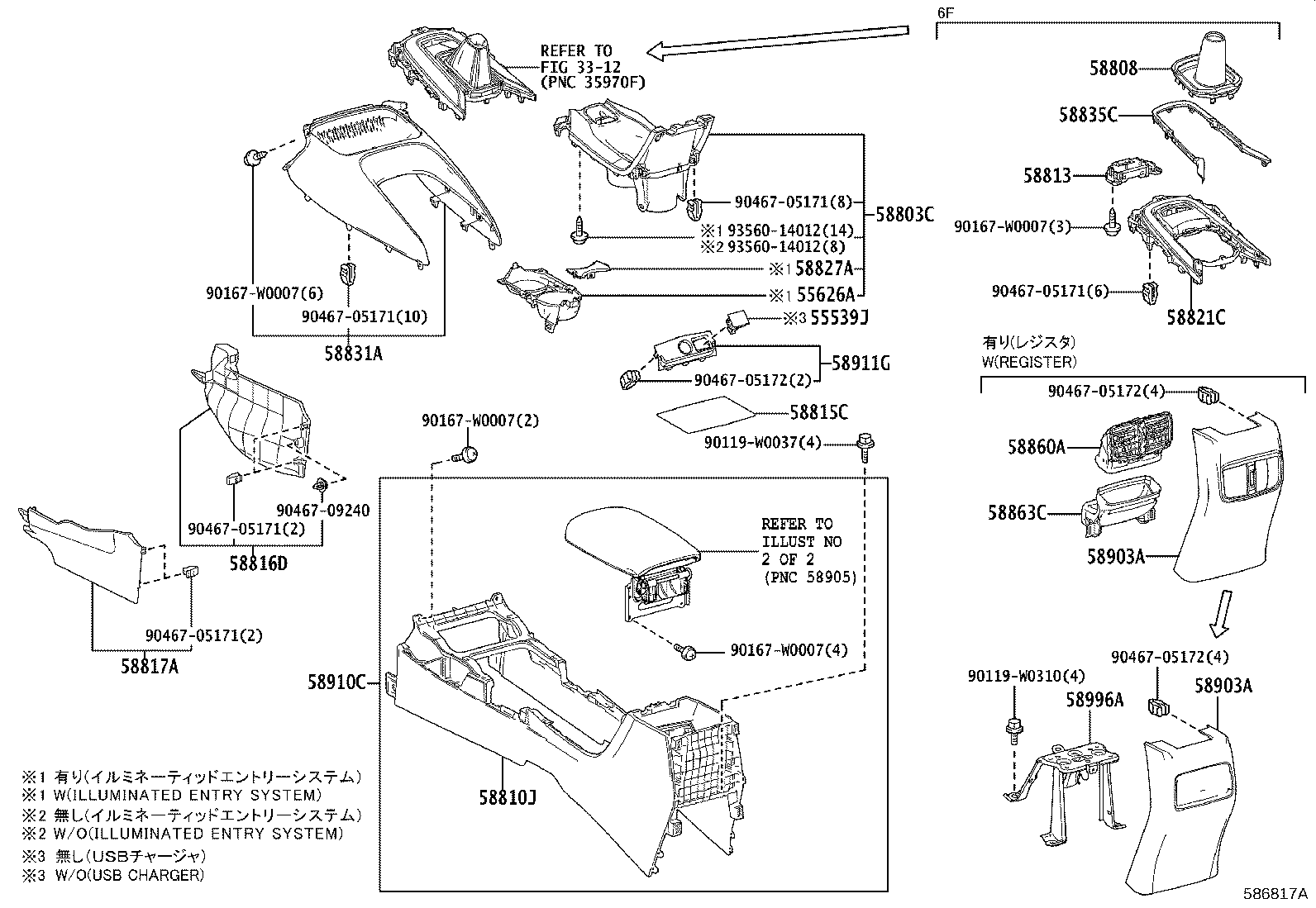

ILLUST NO. 1 OF 2(1901- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-02290C0 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 55539-02290C0 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..HB..(D,N)..EUR LIGHT GRADE,BLACK,TRIM1#,2# |
1 | ||
| 55626A - RETAINER, INSTRUMENT PANEL UNDER TRAY WALL | ||||
| 55626-02070 |
MZEH12,NRE210,ZWE211..RHD..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER |
1 | ||
| 58803C - BOX SUB-ASSY, CONSOLE CUP HOLDER | ||||
| 58803-02550 |
MZEH12,NRE210,ZWE211..RHD..N |
1 | ||
| 58803-02280 |
MZEH12,NRE210,ZWE211..RHD..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER |
1 | ||
| 58803-02560 |
NRE210,ZWE211..RHD..D |
1 | ||
| 58803-02560 |
MZEH12,NRE210..RHD..N LIGHT GRADE |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-02640C0 |
NRE210..6F BLACK,TRIM1#,2# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-02060C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 58813 - BOX, CONSOLE, UPPER | ||||
| 58813-02230 |
NRE210..6F |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-02410 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02370C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02380C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-02A70 |
NRE210..6F |
1 | ||
| 58827A - GARNISH, CONSOLE BOX POCKET | ||||
| 58827-12020 |
MZEH12,NRE210,ZWE211..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&DOOR ARM REST-PVC LEATHER |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-02060C2 |
MZEH12,NRE210,ZWE211..N DOOR ARM REST-PVC LEATHER,BLACK/BLACK,TRIM10,2# |
1 | ||
| 58831-02070C3 |
MZEH12,NRE210,ZWE211..N DOOR ARM REST-PVC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/GRAY,TRIM10 |
1 | ||
| 58831-02050C1 |
MZEH12,NRE210,ZWE211..D,N BLACK,TRIM10,2# |
1 | ||
| 58831-02090C4 |
MZEH12,NRE210,ZWE211..N DOOR ARM REST-PVC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&WIRELESS CHARGER-WITH,BLACK/GRAY,TRIM1# |
1 | ||
| 58831-02060C3 |
MZEH12,NRE210,ZWE211..N DOOR ARM REST-PVC LEATHER,BLACK/GRAY,TRIM10 |
1 | ||
| 58831-02080C0 |
MZEH12,NRE210,ZWE211..N DOOR ARM REST-PVC LEATHER&WIRELESS CHARGER-WITH,BLACK/GRAY,TRIM10 |
1 | ||
| 58831-02050C0 |
MZEH12,NRE210,ZWE211..D,N BLACK,TRIM10 |
1 | ||
| 58831-02090C6 |
NRE210..N DOOR ARM REST-PVC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)&WIRELESS CHARGER-WITH,BLACK/GRAY,TRIM2# |
1 | ||
| 58831-02080C1 |
MZEH12,NRE210,ZWE211..N DOOR ARM REST-PVC LEATHER&WIRELESS CHARGER-WITH,BLACK/GRAY,TRIM10,2# |
1 | ||
| 58831-02390C0 |
MZEH12,NRE210,ZWE211..(D,N)..EUR WIRELESS CHARGER-WITH,BLACK,TRIM10 |
1 | ||
| 58831-02070C5 |
NRE210..N DOOR ARM REST-PVC LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BALCK/GRAY,TRIM10,2# |
1 | ||
| 58831-02380C1 |
MZEH12,NRE210,ZWE211..(D,N)..EUR SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM10,2# |
1 | ||
| 58831-02380C0 |
MZEH12,NRE210,ZWE211..(D,N)..EUR SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM10 |
1 | ||
| 58831-02390C1 |
MZEH12,NRE210,ZWE211..(D,N)..EUR WIRELESS CHARGER-WITH,BLACK,TRIM10,2# |
1 | ||
| 58831-02400C0 |
MZEH12,NRE210,ZWE211..(D,N)..EUR SEAT HEATER-WITH(DRIVER & PASSENGER)&WIRELESS CHARGER-WITH,BLACK,TRIM10 |
1 | ||
| 58831-02400C1 |
MZEH12,NRE210,ZWE211..(D,N)..EUR SEAT HEATER-WITH(DRIVER & PASSENGER)&WIRELESS CHARGER-WITH,BLACK,TRIM10,2# |
1 | ||
| 58835C - ORNAMENT, CONSOLE BOX | ||||
| 58835-02040 |
NRE210..6F |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-02130C0 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-02130C0 |
NRE210,ZWE211..WG..D;MZEH12,NRE210,ZWE211..HB..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02800C0 |
NRE210..6F..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 58910-02B90C3 |
NRE210..6F..N DOOR ARM REST-PVC LEATHER,BLACK/GRAY,TRIM1#,2# |
1 | ||
| 58911G - PANEL, BOX, NO.1 | ||||
| 58911-02380C0 |
MZEH12,NRE210,ZWE211 BLACK,TRIM1#,2# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02180 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-W0037 | ||||
| 90119-W0310 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 3312 | ||||

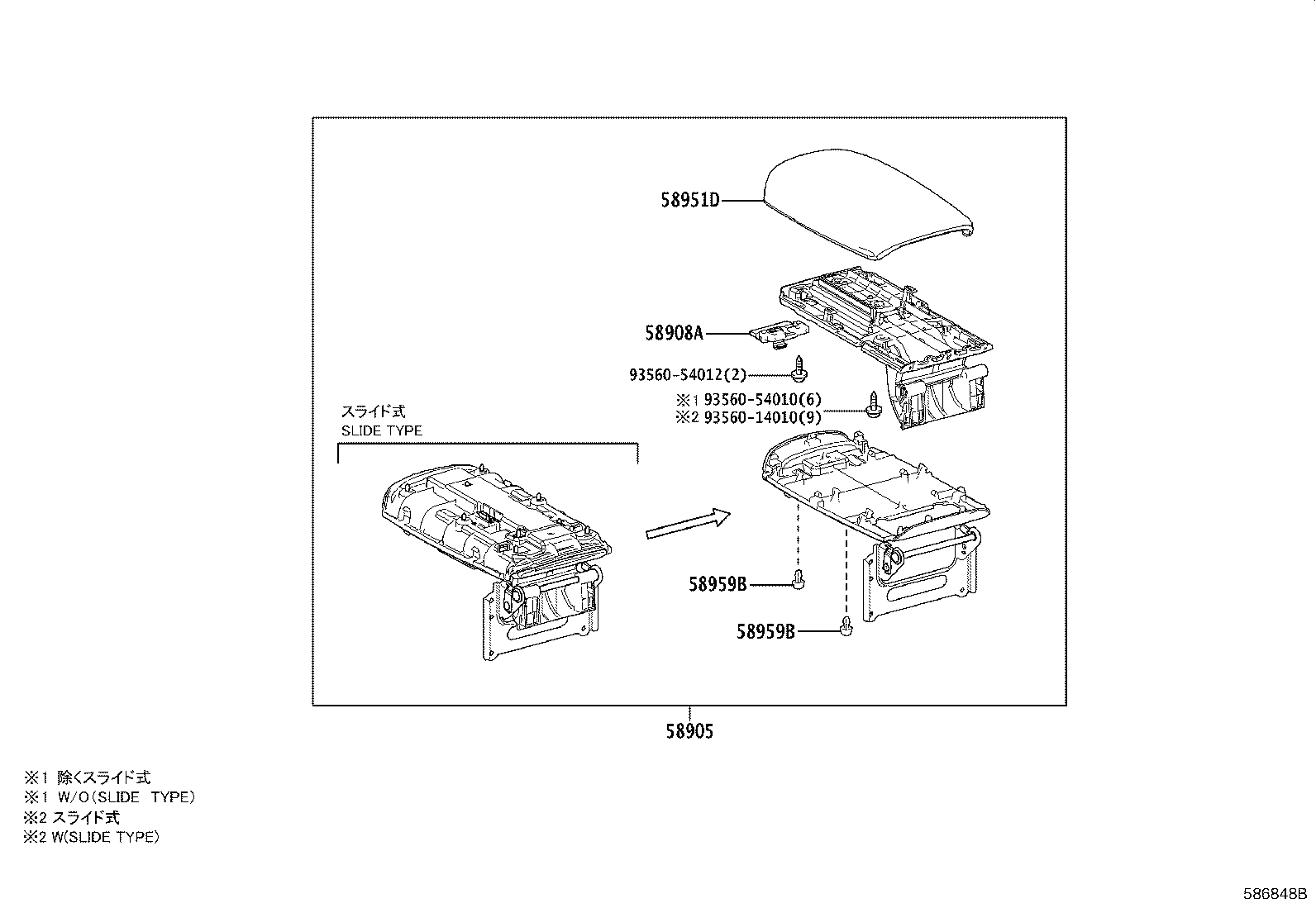

ILLUST NO. 2 OF 2(1901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02E60C0 |
NRE210..6F..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 58905-02G10C4 |
NRE210..6F..N DOOR ARM REST-PVC LEATHER,BLACK/GRAY,TRIM1#,2# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02B30C1 |
NRE210..6F..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 58951-02E10C1 |
NRE210..6F..N DOOR ARM REST-PVC LEATHER,BLACK/GRAY,TRIM1#,2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEH12,NRE210,ZWE211 |
4 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
MZEH12,NRE210,ZWE211 |
4 | ||
| Common parts | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
