NRE210R-DHFDZW (2019)
Toyota Corolla (Ukp)

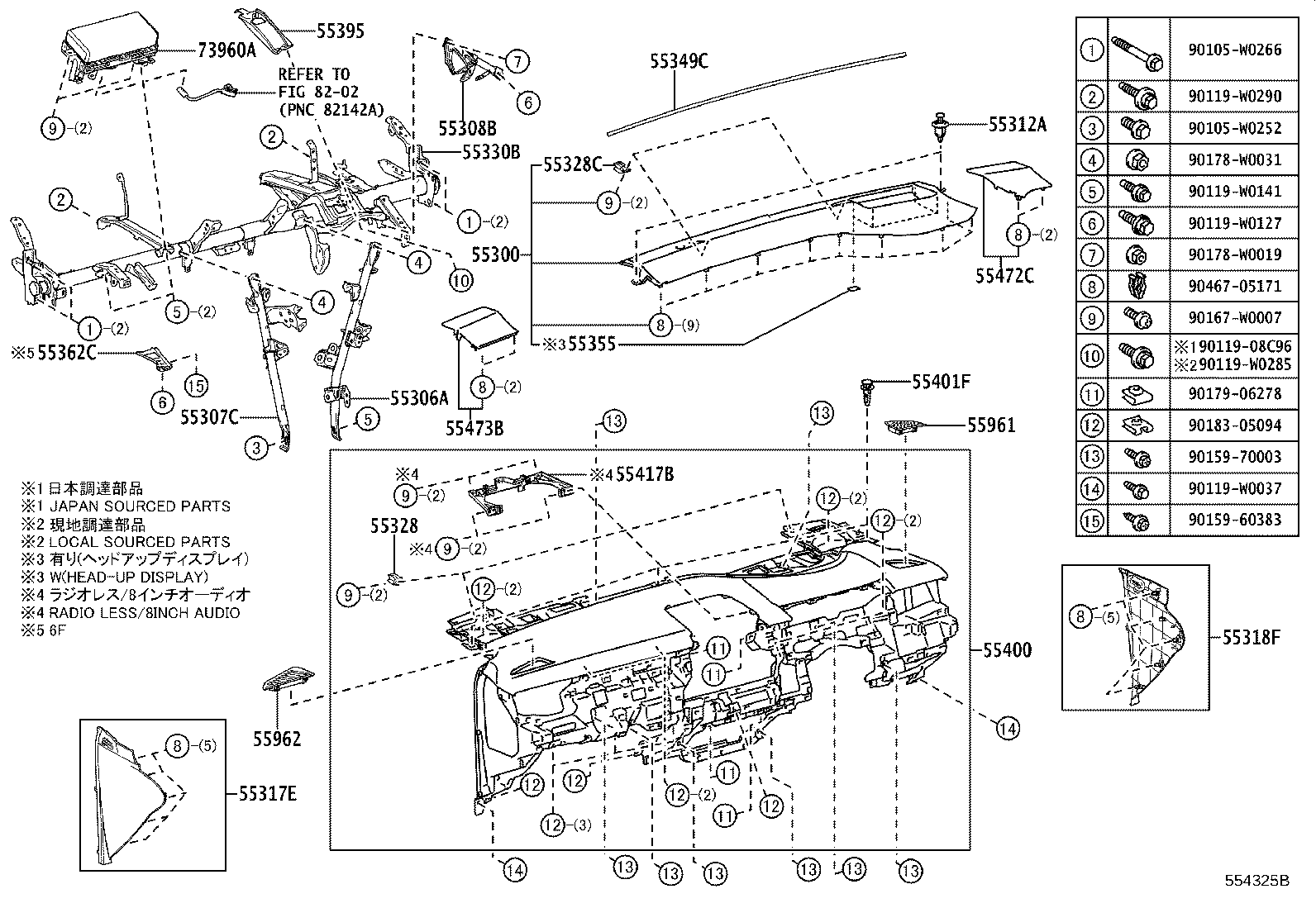

ILLUST NO. 1 OF 2(1901- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55300 - PANEL ASSY, INSTRUMENT, UPPER | ||||
| 55300-02050C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55300-02060C0 |
MZEH12,NRE210,ZWE211..RHD..(G,N) HEAD UP DISPLAY-WITH,BLACK,TRIM1#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02530 |
NRE210..RHD..6F |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02520 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-02160 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07217 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 55317E - PANEL, INSTRUMENT SIDE, NO.1 | ||||
| 55317-02620C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55318F - PANEL, INSTRUMENT SIDE, NO.2 | ||||
| 55318-02320C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-12430 |
MZEH12,NRE210,ZWE211 BROWN |
2 | ||
| 55328-02890 |
MZEH12,NRE210,ZWE211 NATURAL |
2 | ||
| 55328C - PIN, INSTRUMENT PANEL, NO.2 | ||||
| 55328-02840 |
MZEH12,NRE210,ZWE211 PINK |
2 | ||
| 55328-12440 |
MZEH12,NRE210,ZWE211 YELLOW |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02C10 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55330-02C11 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55330-02890 |
MZEH12,NRE210,ZWE211..RHD..(G,N) HEAD UP DISPLAY-WITH |
1 | ||
| 55330-02891 |
MZEH12,NRE210,ZWE211..RHD..(G,N) HEAD UP DISPLAY-WITH |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-02280 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02610 |
MZEH12,NRE210,ZWE211..G,N HEAD UP DISPLAY-WITH |
4 | ||
| 55362C - BRACKET, PARKING BRAKE MOUNTING | ||||
| 55362-02080 |
NRE210..RHD..6F |
1 | ||
| 55395 - BRACKET, INSTRUMENT PANEL TO PEDAL | ||||
| 55395-02060 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55400 - PAD ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-02180C0 |
NRE210,ZWE211..RHD..D AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55400-02180C0 |
NRE210..RHD..D LIGHT GRADE&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 55400-02180C0 |
MZEH12,NRE210..RHD..N LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 55400-02180C0 |
MZEH12,NRE210,ZWE211..RHD..N AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55400-02160C0 |
MZEH12,NRE210,ZWE211..RHD..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 55401F - CLIP(FOR SAFETY PAD) | ||||
| 52161-02030 |
MZEH12,NRE210,ZWE211 |
3 | ||
| 55417B - RETAINER, RADIO TUNER FINISH | ||||
| 55417-02040 |
MZEH12..LHD..G;NRE210..LHD..WG..6F..G;NRE210..LHD..CVT..(G,N);MZEH12,NRE210..RHD..(G,N);NRE210..LHD..HB..6F..(G,N) LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 55417-02040 |
NRE210,ZWE211..D..EUR AUDIO-RADIO LESS 4SPEAKER |
1 | ||
| 55417-02040 |
NRE210..D..EUR LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 55417-02040 |
MZEH12,NRE210,ZWE211..G,N AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 55472C - PANEL, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-02090C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55473B - PANEL, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-02190C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02310C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02270C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02380 |
MZEH12,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90105-W0252 | ||||
| 90105-W0266 | ||||
| 90119-08C96 | ||||
| 90119-W0037 | ||||
| 90119-W0127 | ||||
| 90119-W0141 | ||||
| 90119-W0285 | ||||
| 90119-W0290 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90167-W0007 | ||||
| 90178-W0019 | ||||
| 90178-W0031 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 8202 | ||||

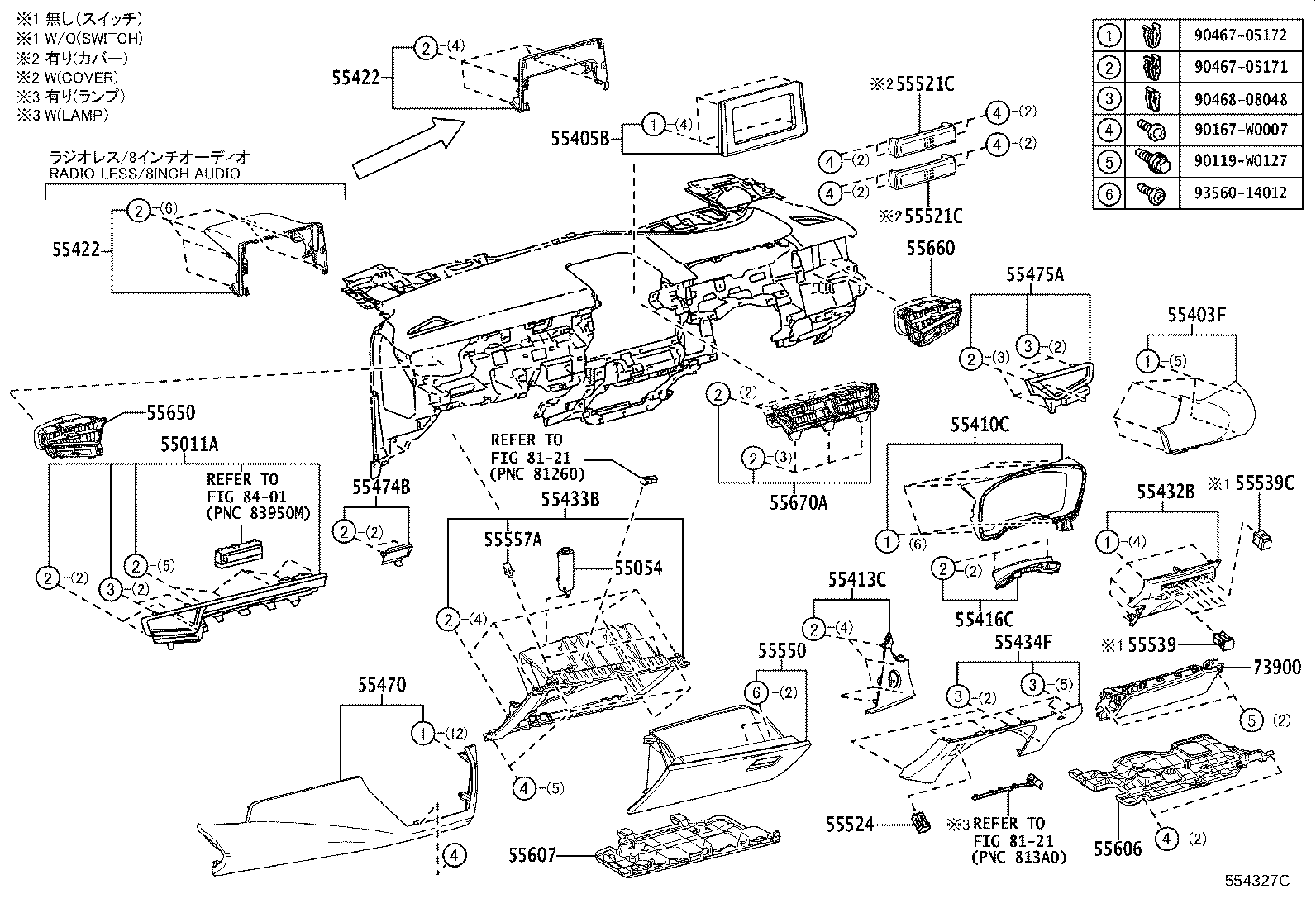

ILLUST NO. 2 OF 2(1901- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02550C0 |
MZEH12,NRE210,ZWE211..RHD..(G,N) DOOR INNER GARNISH-PLATING(DARK GRAY) & PIANO BLACK,BLACK,TRIM1#,2# |
1 | ||
| 55011-02560C0 |
MZEH12,NRE210,ZWE211..RHD..(G,N) DOOR INNER GARNISH-RED & PIANO BLACK,BLACK,TRIM1#,2# |
1 | ||
| 55011-02320C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02640C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM2# |
1 | ||
| 55403-02640B0 |
MZEH12,NRE210,ZWE211..RHD COOL GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02F10 |
MZEH12,NRE210,ZWE211..G,N DOOR INNER GARNISH-PLATING(DARK GRAY) & PIANO BLACK |
1 | ||
| 55405-02F00 |
NRE210,ZWE211..D..EUR |
1 | ||
| 55405-02J30 |
MZEH12,NRE210,ZWE211..G,N AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 55405-02J40 |
NRE210,ZWE211..D..EUR AUDIO-RADIO LESS 4SPEAKER |
1 | ||
| 55405-02J40 |
NRE210..D..EUR AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 55405-02F10 |
MZEH12,NRE210,ZWE211..G,N DOOR INNER GARNISH-RED & PIANO BLACK |
1 | ||
| 55405-02J30 |
MZEH12,NRE210..G,N AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 55405-02F10 |
MZEH12,NRE210,ZWE211..G,N |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02830C0 |
MZEH12,NRE210,ZWE211..RHD..(G,N) BLACK,TRIM1#,2# |
1 | ||
| 55410-02820C0 |
NRE210,ZWE211..RHD..D BLACK,TRIM1#,2# |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-02760B0 |
NRE210..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY),COOL GRAY,TRIM1# |
1 | ||
| 55413-02660C0 |
NRE210..RHD..(D,N) BLACK,TRIM2# |
1 | ||
| 55413-02660B0 |
NRE210..RHD..(D,N) COOL GRAY,TRIM1# |
1 | ||
| 55413-02760C0 |
NRE210..RHD..N WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM2# |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02500 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 55422 - ORNAMENT, INSTRUMENT PANEL METER, UPPER | ||||
| 55422-02760 |
NRE210,ZWE211..D..EUR AUDIO-RADIO LESS 4SPEAKER |
1 | ||
| 55422-02760 |
MZEH12..LHD..G;NRE210..LHD..WG..6F..G;NRE210..LHD..CVT..(G,N);MZEH12,NRE210..RHD..(G,N);NRE210..LHD..HB..6F..(G,N) LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 55422-02720 |
MZEH12,NRE210,ZWE211..EUR |
1 | ||
| 55422-02760 |
MZEH12,NRE210,ZWE211..G,N AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 55422-02760 |
NRE210..D..EUR LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 55422 - ORNAMENT, INSTRUMENT PANEL METER, UPPER | ||||
| 55422-02760 |
NRE210,ZWE211..D..EUR AUDIO-RADIO LESS 4SPEAKER |
1 | ||
| 55422-02760 |
MZEH12..LHD..G;NRE210..LHD..WG..6F..G;NRE210..LHD..CVT..(G,N);MZEH12,NRE210..RHD..(G,N);NRE210..LHD..HB..6F..(G,N) LIGHT GRADE&SEAT COVER MATERIAL-SPORTY FABRIC A&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 55422-02720 |
MZEH12,NRE210,ZWE211..EUR |
1 | ||
| 55422-02760 |
MZEH12,NRE210,ZWE211..G,N AUDIO-RADIO LESS 6SPEAKER |
1 | ||
| 55422-02760 |
NRE210..D..EUR LIGHT GRADE&AUDIO-WITHOUT(SPEAKER) |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-02810C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-02530C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55434F - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02340C0 |
MZEH12,NRE210,ZWE211..RHD..(D,N) BLACK,TRIM1#,2# |
1 | ||
| 55434-02340C0 |
MZEH12,NRE210,ZWE211..RHD..N AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55434-02340C0 |
MZEH12,NRE210,ZWE211..RHD..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-RADIO LESS6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55434-02340C0 |
MZEH12,NRE210,ZWE211..RHD..(D,N) AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 55434-02340C0 |
NRE210,ZWE211..RHD..D AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55434-02340C0 |
MZEH12,NRE210,ZWE211..RHD..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM)&AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 55434-02650C0 |
MZEH12,NRE210,ZWE211..RHD..HB..N ILLUMINATED ENTRY SYSTEM-WITH(CONSOLE TRAY,*CUH,FRONT DOOR TRIM),BLACK,TRIM1#,2# |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02670B0 |
NRE210,ZWE211..RHD..D COOL GRAY,TRIM1# |
1 | ||
| 55470-02680B1 |
MZEH12,NRE210,ZWE211..RHD..(G,N) GRAY/GRAY,TRIM1# |
1 | ||
| 55470-02680C3 |
NRE210..RHD..N BLACK/GRAY,TRIM2# |
1 | ||
| 55470-02670C0 |
NRE210,ZWE211..RHD..D BLACK,TRIM2# |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55474-02320 |
MZEH12,NRE210,ZWE211..RHD..(G,N) DOOR INNER GARNISH-PLATING(DARK GRAY) & PIANO BLACK |
1 | ||
| 55474-02100 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55474-02330 |
MZEH12,NRE210,ZWE211..RHD..(G,N) DOOR INNER GARNISH-RED & PIANO BLACK |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-02130C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55475-02240C0 |
MZEH12,NRE210,ZWE211..RHD..(G,N) DOOR INNER GARNISH-PLATING(DARK GRAY) & PIANO BLACK,BLACK,TRIM1#,2# |
1 | ||
| 55475-02250C0 |
MZEH12,NRE210,ZWE211..RHD..(G,N) DOOR INNER GARNISH-RED & PIANO BLACK,BLACK,TRIM1#,2# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NRE210,ZWE211..D..EUR AUDIO-RADIO LESS 4SPEAKER |
2 | ||
| 55521-05030 |
MZEH12,NRE210,ZWE211..G,N AUDIO-RADIO LESS 6SPEAKER |
2 | ||
| 55521-05030 |
MZEH12,NRE210..EUR AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NRE210,ZWE211..D..EUR AUDIO-RADIO LESS 4SPEAKER |
2 | ||
| 55521-05030 |
MZEH12,NRE210,ZWE211..G,N AUDIO-RADIO LESS 6SPEAKER |
2 | ||
| 55521-05030 |
MZEH12,NRE210..EUR AUDIO-WITHOUT(SPEAKER) |
2 | ||
| 55524 - COVER, SWITCH BACE HOLE | ||||
| 55524-02010C0 |
MZEH12,NRE210..EUR AUDIO-WITHOUT(SPEAKER),BLACK,TRIM1#,2# |
1 | ||
| 55524-02010C0 |
MZEH12,NRE210,ZWE211..G,N AUDIO-RADIO LESS 6SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55524-02010C0 |
NRE210,ZWE211..D..EUR AUDIO-RADIO LESS 4SPEAKER,BLACK,TRIM1#,2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-02310C1 |
MZEH12,NRE210,ZWE211 BLACK |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-42070C1 |
MZEH12,NRE210,ZWE211..G,N HEADLAMP-PROJECTOR & WITH(*AHS),BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02530C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
MZEH12,NRE210,ZWE211 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02280 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55606-02280 |
MZEH12,NRE210,ZWE211..RHD LIGHT GRADE |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02300 |
MZEH12,NRE210,ZWE211..RHD LIGHT GRADE |
1 | ||
| 55607-02300 |
MZEH12,NRE210,ZWE211..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02840 |
NRE210,ZWE211..D |
1 | ||
| 55650-02850 |
MZEH12,NRE210,ZWE211..G,N |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02510 |
NRE210,ZWE211..D |
1 | ||
| 55660-02520 |
MZEH12,NRE210,ZWE211..G,N |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02840C0 |
MZEH12,NRE210,ZWE211..G,N BLACK,TRIM1#,2# |
1 | ||
| 55670-02830C0 |
NRE210,ZWE211..D BLACK,TRIM1#,2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02220C0 |
MZEH12,NRE210,ZWE211..RHD BLACK,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90468-08048 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
