NRE210L-DWFGZW (2019)
Toyota Corolla (Ukp)

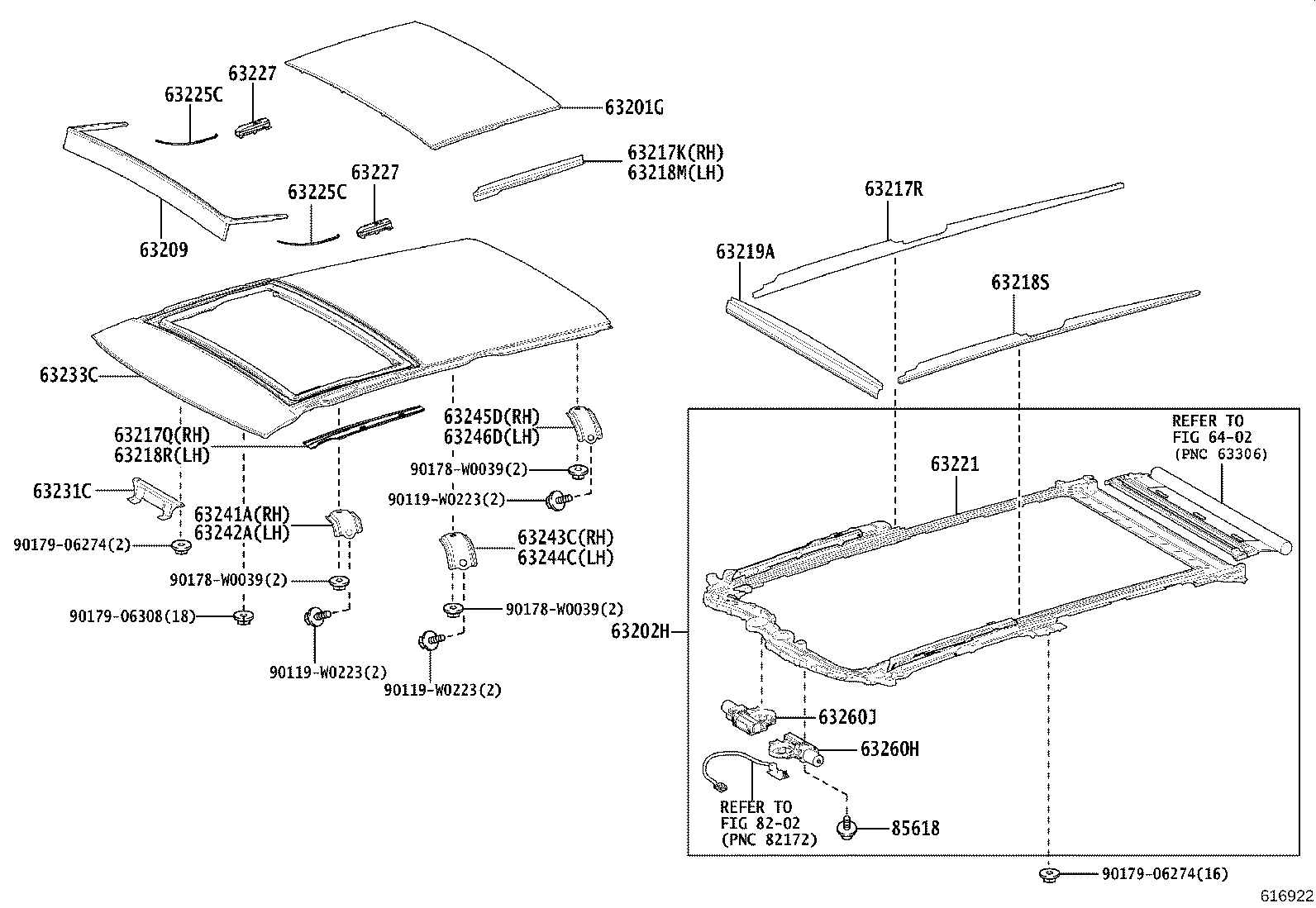

ILLUST NO. 2 OF 3(1902-1908)MZEH12,NRE210..WG..G,N
SLIDING ROOF(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-02220 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-02181C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63202-02180B0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63202-02181B0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63202-02180C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-02130 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217Q - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02160 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217R - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02070 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217R - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02070 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218R - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02080 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218S - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02070 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-02020 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-02020 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-02020 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63231C - BRACKET, ROOM LAMP | ||||
| 63231-02110 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-02150 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-02190 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-02190 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-02120 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-02120 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-02090 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-02090 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02200 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02240 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 85618 - SCREW, SLIDE ROOF MOTOR THRUST | ||||
| 85618-21010 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| Common parts | ||||
| 90119-W0223 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 90179-06308 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||

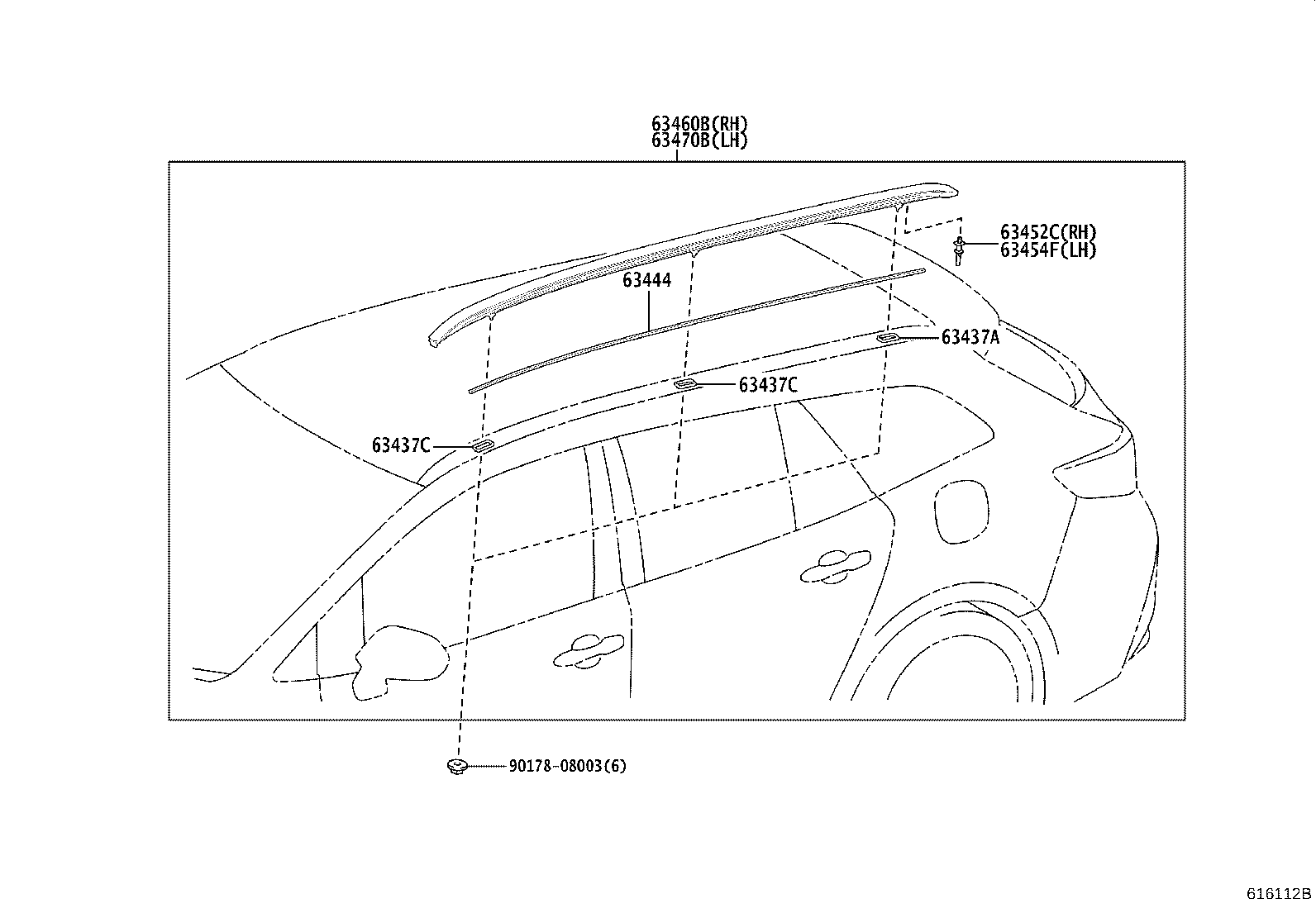

ILLUST NO. 3 OF 3(1902- )WG
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
2 | ||
| 63437-02030 |
NRE210,ZWE211..WG..D ROOF RAIL-BLACK PAINTED |
2 | ||
| 63437-02030 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63437-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
2 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
4 | ||
| 63437-02030 |
NRE210,ZWE211..WG..D ROOF RAIL-BLACK PAINTED |
4 | ||
| 63437-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
4 | ||
| 63437-02030 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437-02040 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-BLACK PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437C - SEAL, ROOF CARRIER | ||||
| 63437-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
4 | ||
| 63437-02030 |
NRE210,ZWE211..WG..D ROOF RAIL-BLACK PAINTED |
4 | ||
| 63437-02030 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
4 | ||
| 63437-02030 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63437-02040 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-BLACK PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| 63444 - PROTECTOR, ROOF CARRIER, NO.1 | ||||
| 63444-02020 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63444-02020 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
2 | ||
| 63444-02020 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
2 | ||
| 63444-02020 |
NRE210,ZWE211..WG..D ROOF RAIL-BLACK PAINTED |
2 | ||
| 63452C - RETAINER, ROOF RACK, REAR RH | ||||
| 63451-02020 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
1 | ||
| 63451-02020 |
NRE210,ZWE211..WG..D ROOF RAIL-BLACK PAINTED |
1 | ||
| 63451-02020 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
1 | ||
| 63451-02020 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63454F - RETAINER, ROOF RACK, REAR LH | ||||
| 63451-02020 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63451-02020 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
1 | ||
| 63451-02020 |
NRE210,ZWE211..WG..D ROOF RAIL-BLACK PAINTED |
1 | ||
| 63451-02020 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
1 | ||
| 63460B - RACK ASSY, ROOF, RH | ||||
| 63460-02060 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
1 | ||
| 63460-02060 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
1 | ||
| 63460-02060 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63460-02080 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63460-02090 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-BLACK PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63460-02070 |
MZEH12,NRE210,ZWE211..WG ROOF RAIL-BLACK PAINTED |
1 | ||
| 63470B - RACK ASSY, ROOF, LH | ||||
| 63470-02070 |
MZEH12,NRE210,ZWE211..WG ROOF RAIL-BLACK PAINTED |
1 | ||
| 63470-02060 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
1 | ||
| 63470-02060 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63470-02090 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-BLACK PAINTED&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63470-02080 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63470-02060 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
1 | ||
| Common parts | ||||
| 90178-08003 | ||||

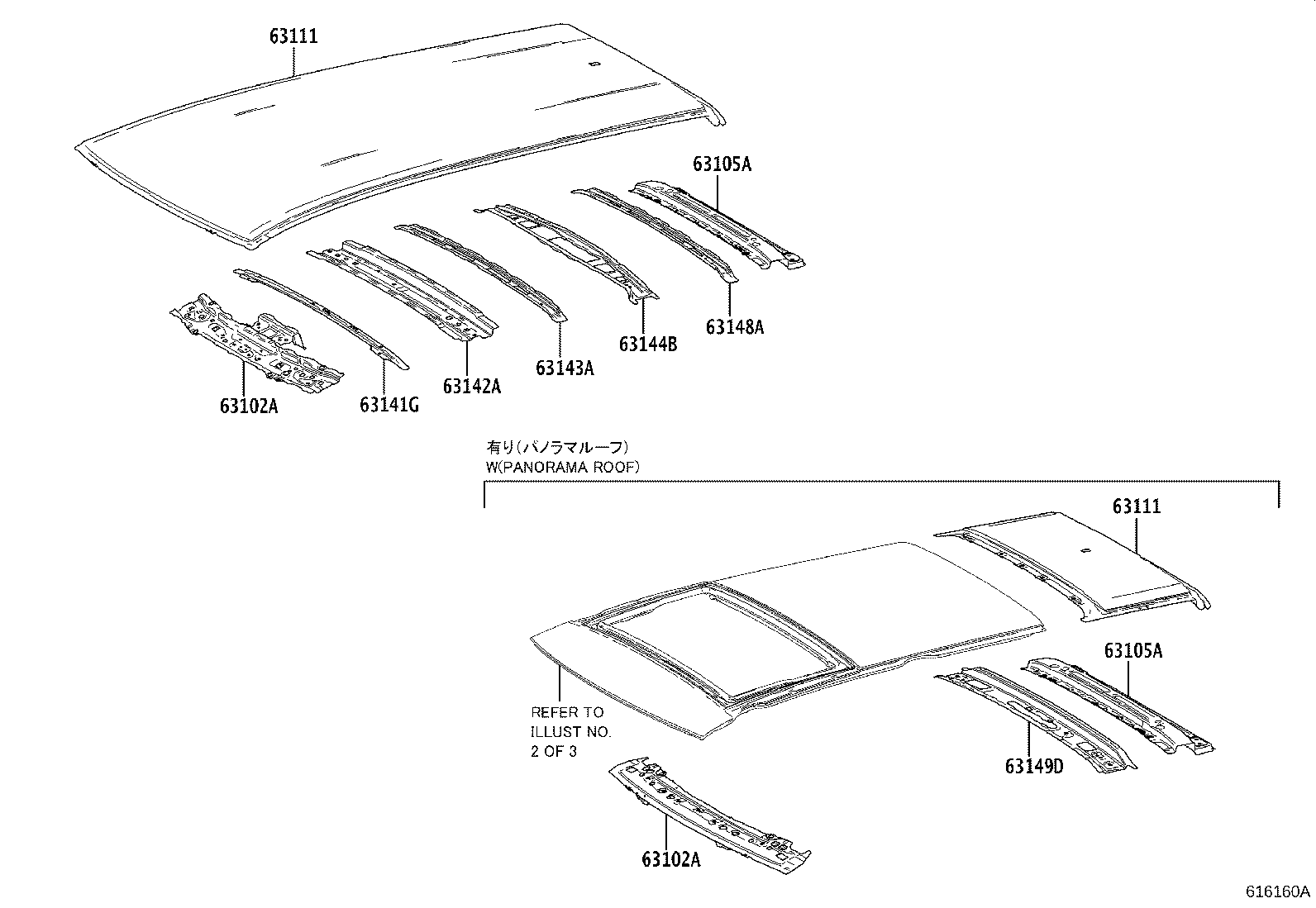

ILLUST NO. 1 OF 3(1902- )WG
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02904 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-02904 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 63102-02903 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-02904 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63102-02904 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 63102-02903 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-02200 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63105-02200 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-02200 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63105-02200 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02730 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
1 | ||
| 63111-02720 |
NRE210,ZWE211..WG..D |
1 | ||
| 63111-02720 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
1 | ||
| 63111-02730 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111-02730 |
NRE210,ZWE211..WG..D ROOF RAIL-BLACK PAINTED |
1 | ||
| 63111-02740 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-02730 |
MZEH12,NRE210,ZWE211..WG..(G,N) |
1 | ||
| 63111-02720 |
NRE210,ZWE211..WG..D |
1 | ||
| 63111-02720 |
MZEH12,NRE210,ZWE211..WG..(G,N) ROOF RAIL-WITHOUT |
1 | ||
| 63111-02730 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63111-02730 |
NRE210,ZWE211..WG..D ROOF RAIL-BLACK PAINTED |
1 | ||
| 63111-02740 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63142-02160 |
MZEH12,NRE210,ZWE211 |
1 | ||
| 63142-02160 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63142A - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63141-02310 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 63141-02310 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-02240 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63143-02240 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-02250 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63144-02250 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63128-02080 |
MZEH12,NRE210..WG..(G,N) ROOF RAIL-WITHOUT&MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63128-02080 |
MZEH12,NRE210,ZWE211..WG |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63149-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||

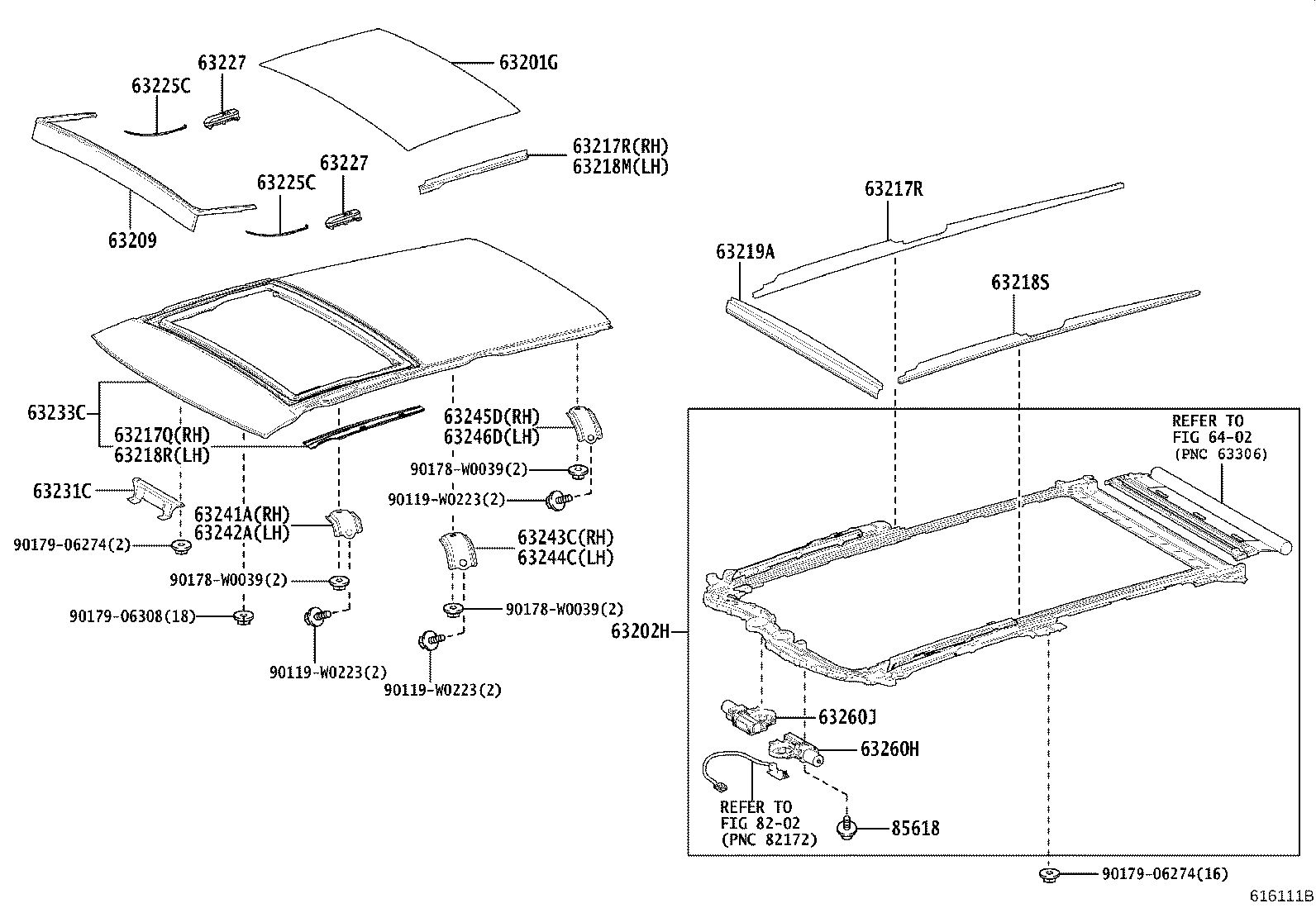

ILLUST NO. 2 OF 3(1908- )MZEH12,NRE210..WG..G,N
SLIDING ROOF(PANORAMA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-02220 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-02181C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63202-02180B0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63202-02181B0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63202-02180C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-02130 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217K - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02100 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217Q - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02160 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63217R - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-02070 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218M - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218R - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02080 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63218S - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-02070 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-02020 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-02050B0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),COOL GRAY,TRIM1# |
1 | ||
| 63221-02050C0 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2# |
1 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-02020 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-02020 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63227 - CLIP, ROOF WIND DEFLECTOR PANEL | ||||
| 63227-02040 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
2 | ||
| 63231C - BRACKET, ROOM LAMP | ||||
| 63231-02110 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-02150 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-02190 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63241-02190 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-02120 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63243-02120 |
ZWE211..HB..(G,N);MZEH12,NRE210..G,N MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-02090 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63245-02090 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02200 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 63260J - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-02240 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 85618 - SCREW, SLIDE ROOF MOTOR THRUST | ||||
| 85618-21010 |
MZEH12,NRE210..WG..(G,N) MOON ROOF-WITH(PANORAMA ROOF) |
4 | ||
| Common parts | ||||
| 90119-W0223 | ||||
| 90178-W0039 | ||||
| 90179-06274 | ||||
| 90179-06308 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
