NRE210L-DWFDZW (2019)

Toyota Corolla (Ukp)

Production Feb 2019 - Sep 9999
Engine 8NRFTS
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

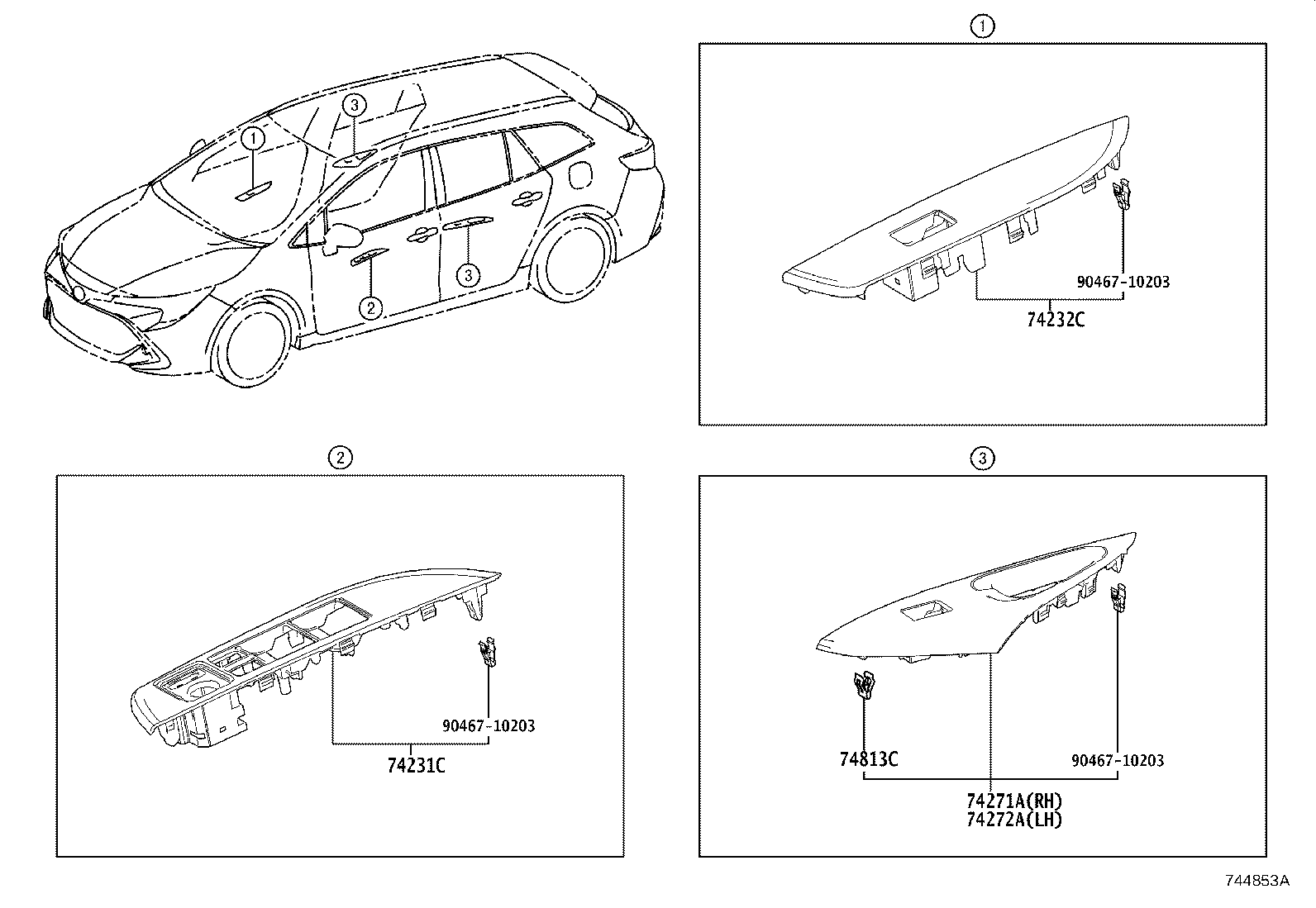

ILLUST NO. 1 OF 2(1902- )LHD..WG

Click highlighted areas on diagram

ARMREST

diagram 74231C 74232C 74271A 74272A 74813C 9046710203 9046710203 9046710203
Part # Description Qty Price
74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
74232-02G20

MZEH12,NRE210,ZWE211..LHD..(D,N)

 1
74232-02J70

MZEH12,NRE210,ZWE211..LHD..N

OUTSIDE REAR VIEW MIRROR-*AREM & *MIH

 1
74232-02G20

MZEH12,NRE210,ZWE211..LHD..G

OUTSIDE REAR VIEW MIRROR-*RCM & *MIH

 1
74232-02J70

MZEH12,NRE210,ZWE211..LHD..G

 1
74232-02G20

MZEH12,NRE210,ZWE211..LHD..WG..G

OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)

 1
74232-02J70

MZEH12,NRE210,ZWE211..LHD..WG..N

OUTSIDE REAR VIEW MIRROR-*AREM & *MIH & *BSM

 1
74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
74231-02F60

MZEH12,NRE210,ZWE211..LHD

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-02830

MZEH12,NRE210,ZWE211..WG

 1
74271-02A30

MZEH12,NRE210,ZWE211..LHD..WG..G

SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)

 1
74271-02A30

MZEH12,NRE210,ZWE211..LHD..WG..G

OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-02820

MZEH12,NRE210,ZWE211..WG

 1
74272-02A20

MZEH12,NRE210,ZWE211..LHD..WG..G

SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)

 1
74272-02A20

MZEH12,NRE210,ZWE211..LHD..WG..G

OUTSIDE REAR VIEW MIRROR-*RCM & *MIH&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR)

 1
74813C - CLIP
55416-60030

MZEH12,NRE210,ZWE211..WG

 2
Common parts
90467-10203
